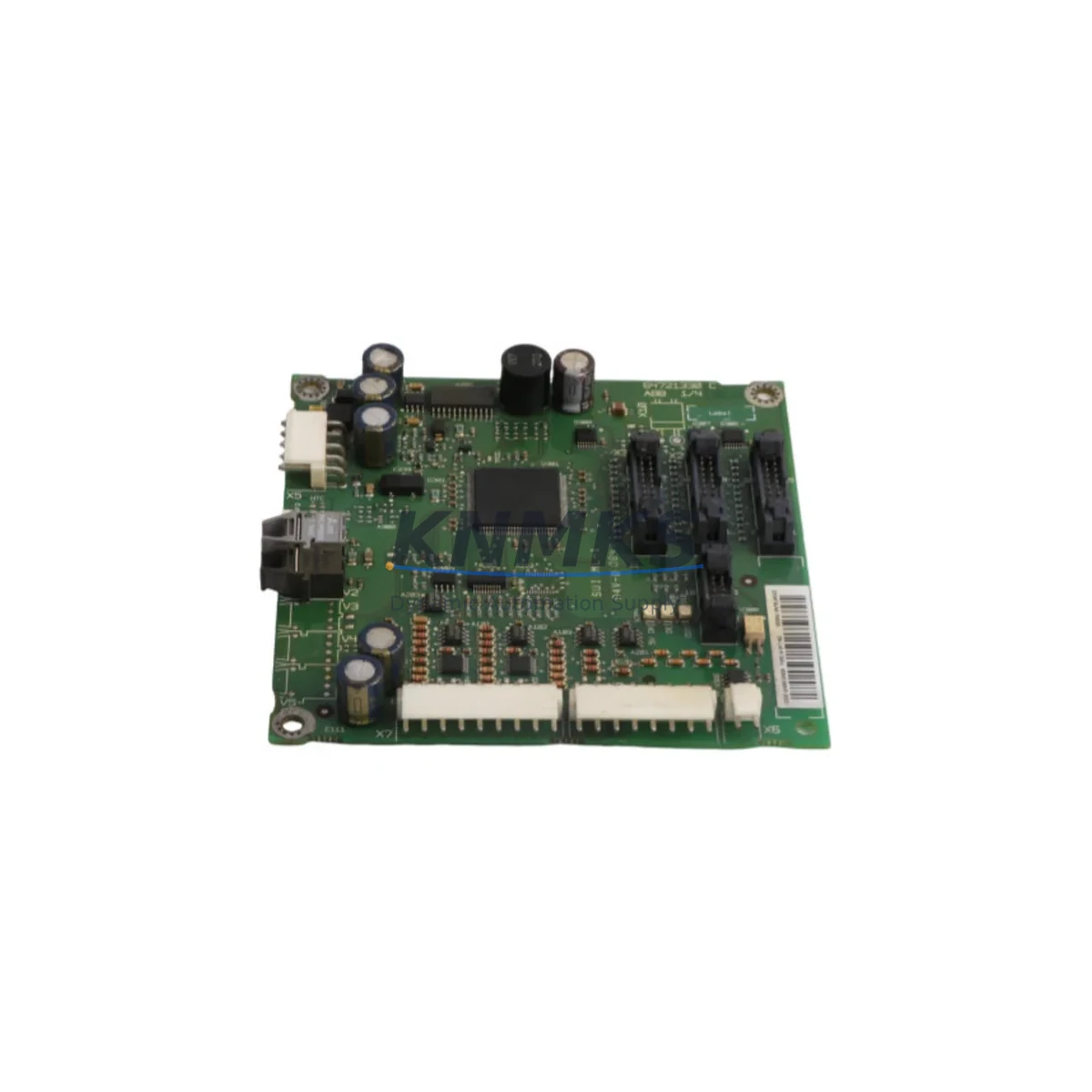

ABB RINT-5521C Fail-Safe Drive Interface for Industrial Control

Overview

ABB RINT-5521C Fail-Safe Drive Interface for Industrial Control Reliability

The ABB RINT-5521C is a critical drive interface board engineered for the ACS800 series variable frequency drive platform, delivering fail-safe signal routing, robust EMI immunity, and sustained operational integrity in the most demanding industrial environments. Designed to maintain continuous control loop stability under high electromagnetic interference, voltage transients, surge events, and thermal stress, the RINT-5521C is a cornerstone component for facilities where unplanned downtime carries severe safety and financial consequences.

In continuous production environments — including petrochemical processing, power generation, mining extraction, water treatment, metallurgical operations, and port logistics — drive interface failures can cascade into full line shutdowns, safety interlock trips, or hazardous uncontrolled motor rundowns. The RINT-5521C addresses these risks through hardened signal isolation, stable fiber-optic gate pulse transmission, and a design architecture that resists signal drift even under sustained vibration, humidity ingress, and ambient temperature extremes common to heavy industrial control cabinets.

Its fiber-optic communication interface eliminates ground loop interference and galvanic coupling between the control board and the IGBT gate driver stages, ensuring that PWM command signals remain clean and accurate regardless of cabinet-level EMI generated by adjacent drives, contactors, or high-current bus bars. This architecture directly reduces the risk of nuisance trips, motor torque irregularities, and drive fault codes that interrupt production cycles.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The RINT-5521C does not operate in isolation — its reliability is maximized when integrated within a coherent control cabinet protection architecture. In ACS800-based drive systems, the interface board works in close coordination with the AINT-02C auxiliary interface module, which manages I/O expansion and fieldbus communication integrity. When the AINT-02C is properly configured alongside the RINT-5521C, the combined system provides redundant signal validation that prevents false drive enable commands during power restoration after a grid disturbance.

For cabinet-level power quality, the RINT-5521C’s performance is directly supported by upstream surge protection devices and line reactors installed on the drive input. ABB’s NOCH0001 choke modules and compatible AC line filters reduce harmonic distortion and voltage spikes before they reach the drive’s internal boards, extending the operational life of the RINT-5521C and reducing the frequency of board-level replacements in high-cycle production environments.

In safety-critical interlock circuits, the RINT-5521C is frequently paired with ABB’s RDCO-03C DDCS fiber-optic communication module, which handles master-follower drive synchronization in multi-drive configurations. Maintaining signal fidelity across the RDCO-03C and RINT-5521C interface is essential in applications such as coordinated winder drives, crane hoisting systems, and multi-motor conveyor lines where a single communication fault can trigger an emergency stop across the entire drive train.

Cabinet thermal management is equally critical. In high-ambient or poorly ventilated enclosures, the RINT-5521C should be supported by adequate forced-air cooling or heat exchanger systems to maintain board junction temperatures within specification. Pairing the drive system with ABB’s NINT-41C or NINT-43C interface options in alternative configurations ensures that the control architecture remains adaptable to evolving safety and communication requirements without requiring full drive replacement.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the RINT-5521C supports continuous pump and compressor drive control where any uncontrolled motor stop can trigger pressure relief events or process upsets. Its fiber-optic isolation ensures that the high-voltage noise generated by large motor loads does not corrupt the gate pulse signals that govern IGBT switching, maintaining precise speed and torque control throughout the process cycle.

In electric power generation and grid-tied applications, the board’s ability to sustain stable drive operation during voltage sag events and grid switching transients is essential for auxiliary drive systems controlling cooling fans, feedwater pumps, and fuel handling conveyors. A drive interface fault in these applications can force a unit derating or emergency shutdown, with significant grid stability implications.

Mining and mineral processing operations subject drive systems to extreme dust loading, vibration from blasting and heavy machinery, and wide ambient temperature swings. The RINT-5521C’s robust construction and fiber-optic signal path make it well-suited for crusher drives, conveyor systems, and slurry pump controls in these environments, where board contamination and mechanical shock are primary failure drivers.

In water and wastewater treatment facilities, the RINT-5521C enables reliable variable-speed control of high-duty-cycle pump drives, ensuring consistent flow rates and pressure management without the signal instability that can cause pump cavitation or overflow events. Metallurgical plants operating rolling mills, ladle transfer cars, and fume extraction systems rely on the ACS800 platform — and by extension the RINT-5521C — for the precise torque control that protects both product quality and worker safety.

Safety and Quality FAQ

Q1: What support terms coverage applies to the RINT-5521C?
All RINT-5521C units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported with direct technical assistance and priority replacement dispatch to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every RINT-5521C undergoes full functional verification prior to dispatch, including fiber-optic signal path continuity checks, board-level power supply validation, and visual inspection for component integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the RINT-5521C compatible with all ACS800 drive variants?
The RINT-5521C is designed for the ABB ACS800 series drive platform. Compatibility should be verified against the specific ACS800 variant and firmware revision in your installation. KNMKS technical support can assist with cross-referencing your drive’s hardware revision to confirm direct fit or identify a compatible alternative interface board.

Q4: Can long-term supply continuity be assured for ongoing maintenance programs?
KNMKS maintains forward buffer stock of the RINT-5521C to support planned maintenance schedules, annual shutdown programs, and emergency replacement requirements. Long-term supply agreements are available for facilities operating multiple ACS800 drive systems, ensuring that critical spare parts are available without dependence on OEM lead times that can extend to 16–26 weeks for legacy drive components.
