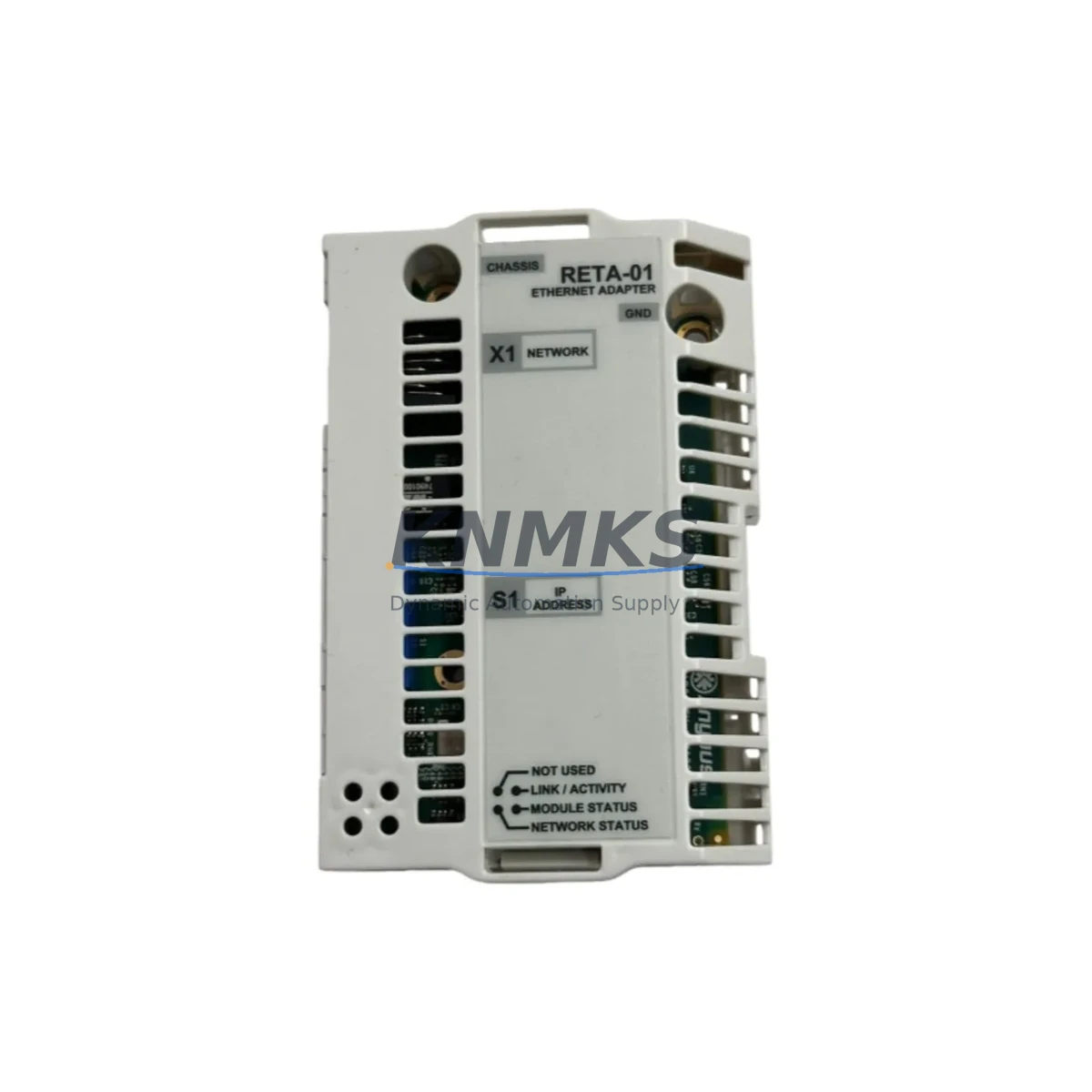

ABB RETA-01 Fail-Safe Ethernet Adapter for Industrial Control

Overview

ABB RETA-01 Fail-Safe Ethernet Adapter for Industrial Control Reliability

The ABB RETA-01 is a dual-port Ethernet adapter module engineered for mission-critical drive communication in demanding industrial environments. Designed for integration with ABB ACS800 series variable frequency drives, the RETA-01 supports both Modbus TCP and EtherNet/IP protocols, enabling seamless connectivity within modern industrial Ethernet architectures. In continuous production facilities — including petrochemical plants, power generation stations, mining operations, water treatment systems, and heavy manufacturing lines — uninterrupted drive communication is not optional. The RETA-01 is built to ensure that control signals remain stable, accurate, and fail-safe even under the harshest field conditions.

Signal drift, communication timeouts, and electromagnetic interference are among the leading causes of unplanned drive shutdowns in industrial control cabinets. The RETA-01 addresses these risks through its robust hardware design, which includes galvanic isolation on Ethernet ports, shielded signal paths, and firmware-level watchdog supervision. When paired with ABB’s RDCO-03 optical communication module or the RAIO-01 analog I/O extension module within the same control cabinet, the RETA-01 forms a tightly integrated communication and I/O backbone that significantly reduces the probability of false trips, missed commands, and cascading interlock failures.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-designed ACS800 control cabinet, the RETA-01 operates as the primary Ethernet gateway, but its reliability depends on the integrity of the surrounding system. Surge events on the network cable — common in outdoor substations, port crane control rooms, and mining surface installations — can corrupt communication frames or damage port hardware. Installing a DIN-rail mounted Ethernet surge protector upstream of the RETA-01 is a standard protective measure in high-risk installations.

Power quality is equally critical. The ACS800 drive’s internal SMPS supplies the RETA-01, but voltage sags and transients on the main supply can propagate into the drive’s auxiliary circuits. Deploying an ABB UNO-PS series or equivalent 24 VDC stabilized power supply for the control cabinet’s auxiliary bus — including the RMIO-11 main control board and any connected RDIO-01 digital I/O extension modules — ensures that the RETA-01 receives clean, stable power even during grid disturbances.

In high-EMI environments such as arc furnace control rooms, variable speed pump stations, or heavy press lines, shielded Cat6 cabling with proper grounding at both ends is mandatory. The RETA-01’s galvanic isolation provides a first line of defense, but cable routing discipline — keeping Ethernet cables away from power cables and using ferrite cores at cabinet entry points — is essential to prevent common-mode noise from degrading communication integrity. When the RETA-01 is used in a redundant ring topology alongside a managed industrial Ethernet switch, the RSTP (Rapid Spanning Tree Protocol) failover capability ensures that a single cable or switch failure does not interrupt drive control.

For installations requiring safety-rated communication, the RETA-01 can be integrated into a safety interlock loop where the PLC monitors Ethernet heartbeat signals. A loss of heartbeat triggers a safe-state output via the drive’s STO (Safe Torque Off) input — a configuration commonly implemented using ABB’s FSIO-21 safety I/O module or equivalent safety relay modules mounted in the same cabinet.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments where drive trips can trigger emergency shutdowns and product loss, the RETA-01 enables real-time drive monitoring via SCADA over EtherNet/IP. Operators can read drive fault codes, current draw, and thermal status without interrupting the process, allowing predictive maintenance scheduling rather than reactive emergency response.

Power Generation and Substation Auxiliaries: Boiler feed pumps, cooling water pumps, and induced draft fans driven by ACS800 units rely on stable Ethernet communication for load-sharing and interlock coordination. The RETA-01’s dual-port design supports daisy-chain or star topologies, reducing cabling complexity in large switchgear rooms.

Mining and Mineral Processing: Conveyor drives, crusher motors, and slurry pump drives in underground and surface mining operations are subject to extreme vibration, dust ingress, and wide temperature swings. The RETA-01’s compliance with IEC 60068-2-6 vibration standards and its wide operating temperature range make it suitable for these demanding conditions without requiring additional environmental enclosures at the module level.

Water and Wastewater Treatment: Municipal water treatment facilities operating 24/7 cannot afford communication-related drive faults. The RETA-01 supports Modbus TCP polling from SCADA systems, enabling continuous monitoring of pump drive status, energy consumption, and fault history — critical data for both operational efficiency and regulatory compliance reporting.

Port and Marine Applications: Ship-to-shore cranes, container handling equipment, and vessel auxiliary drives operating in salt-air environments benefit from the RETA-01’s corrosion-resistant design and sealed connector interfaces. The module’s ability to maintain stable communication during high-load switching transients — common in crane hoist and trolley operations — prevents nuisance trips that would otherwise halt cargo operations.

Metallurgy and Steel Production: Rolling mill drives and ladle transfer car systems require deterministic communication with cycle times compatible with the RETA-01’s EtherNet/IP implementation. In these applications, the adapter’s watchdog supervision ensures that a network interruption triggers a controlled drive stop rather than an uncontrolled coast-to-rest, protecting both the product and the mechanical drivetrain.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the RETA-01?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional faults under normal operating conditions. If the unit fails to establish or maintain Ethernet communication with a compatible ACS800 drive within the confirmed support period, we will provide a replacement or documented resolution support. The confirmed support period begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on each RETA-01 unit?
Every RETA-01 unit undergoes a full functional test before dispatch. This includes protocol handshake verification on both Modbus TCP and EtherNet/IP, port isolation continuity checks, and firmware version confirmation. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the RETA-01 compatible with all ACS800 drive variants, and can it replace an older RETA-01 unit in the field?
The RETA-01 is compatible with the full ACS800 product family, including single-drive, multidrive, and regenerative variants. It is a direct plug-in replacement for existing RETA-01 units — no drive parameter changes are required for a like-for-like swap. For drives previously configured with RETA-02 or RETA-03 adapters, parameter group 51 (EXT COMM MODULE) must be reconfigured to match the RETA-01’s protocol settings.

Q4: What is the long-term supply commitment for the RETA-01?
We maintain dedicated stock of the RETA-01 to support both planned maintenance programs and emergency replacement requirements. Orders are typically dispatched within 1–3 business days. For customers with critical fleet maintenance schedules, we offer consignment stock arrangements and long-term supply agreements to guarantee availability. Contact our sales team to discuss your specific inventory requirements.
