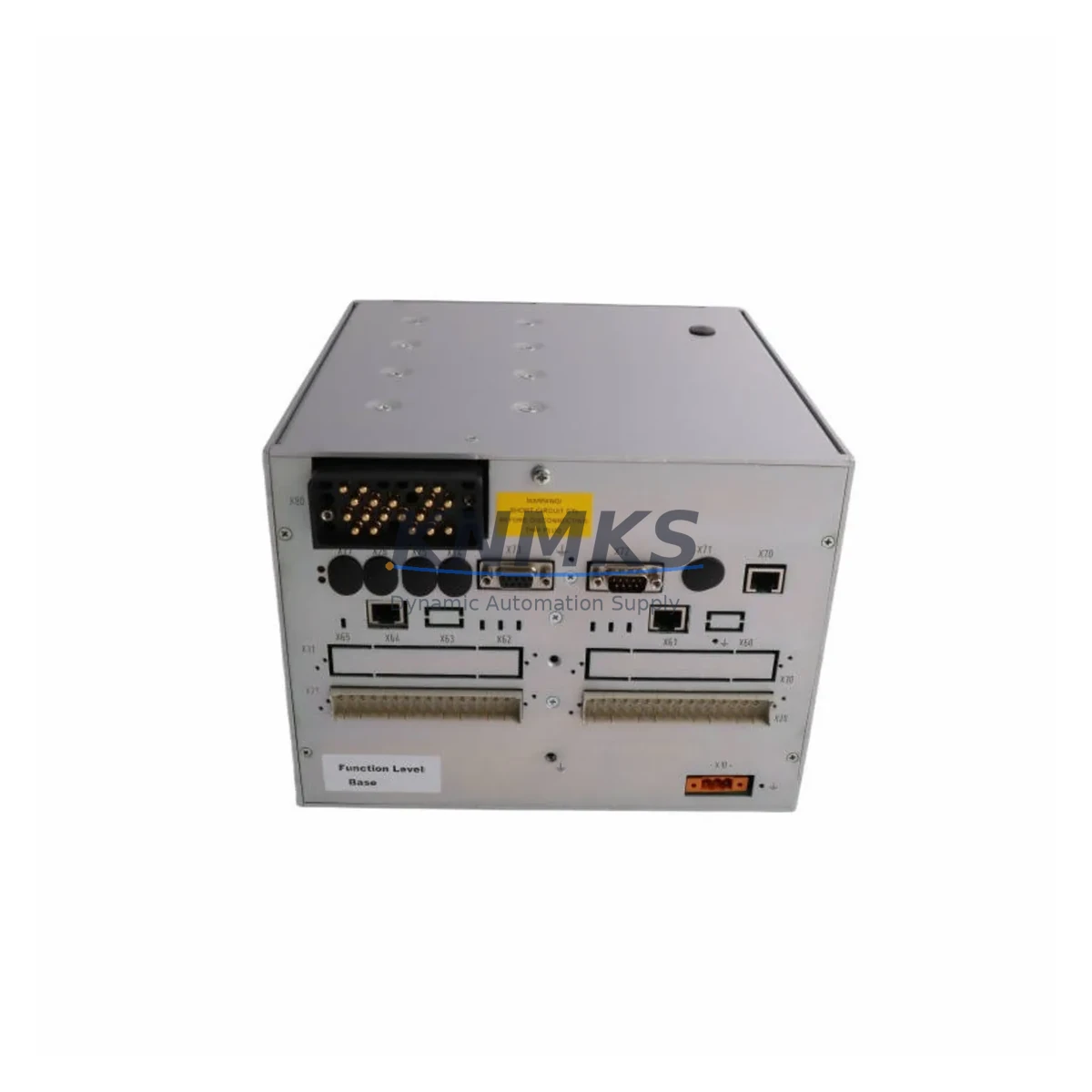

ABB REF542PLUS 2RCA029395-A0031 Maintenance-Proven Spare Part for Factory Uptime

The ABB REF542PLUS 2RCA029395-A0031 is a critical feeder protection relay spare part designed to keep industrial power distribution systems running without interruption. As part of ABB’s REF542PLUS series, this module delivers reliable overcurrent, earth fault, and feeder protection functions essential to medium-voltage switchgear panels and industrial control cabinets. For maintenance engineers managing aging electrical infrastructure, having a verified original spare on the shelf is the single most effective strategy to minimize unplanned downtime and accelerate fault recovery.

Whether you are conducting routine annual inspections, responding to a tripped feeder, or building a strategic spare parts inventory for a critical production line, the REF542PLUS 2RCA029395-A0031 is a direct, tested replacement that restores system integrity without requiring firmware reconfiguration or panel redesign. Its compatibility with the REF542PLUS platform ensures seamless integration into existing protection schemes, reducing commissioning time on-site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the REF542PLUS 2RCA029395-A0031 in the field, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure the protection scheme is fully restored. Maintenance engineers should begin by verifying the 24 VDC or 48 VDC auxiliary power supply feeding the relay — a degraded or fluctuating power source is a common root cause of relay malfunction that is often overlooked during emergency replacements.

Next, inspect the current transformer (CT) secondary wiring and terminal blocks connected to the relay’s analog input channels. Loose or corroded CT connections can introduce measurement errors that trigger nuisance trips or, worse, mask genuine fault conditions. If the panel includes an ABB RIO600 remote I/O module or similar distributed I/O unit communicating with the REF542PLUS over the internal bus, verify that the communication link is intact and that no I/O channel has been inadvertently disabled during the fault event.

For panels equipped with ABB COM600 or COM610 substation communication gateways, confirm that the IEC 61850 or MODBUS RTU configuration mapping for the replaced relay is correctly restored after the module swap. A mismatch in logical node addressing can silently break SCADA visibility without triggering a local alarm. Similarly, if the protection scheme relies on binary output relays — such as ABB’s SPAJ 140C or SPAJ 141C auxiliary relay modules — test each trip and alarm output contact for correct operation before returning the feeder to service.

Annual maintenance checklists for REF542PLUS-based panels should also include inspection of the panel’s 24 VDC fuse holders and miniature circuit breakers protecting the relay auxiliary circuits, as well as a functional test of the HMI display module (REF542PLUS HMI panel) to confirm that event logs and fault records are being correctly stored and accessible for post-trip analysis. Replacing the 2RCA029395-A0031 module without verifying these peripheral components risks a repeat trip within the first operational cycle.

Site Replacement Workflow

The REF542PLUS 2RCA029395-A0031 is a direct plug-in replacement for the corresponding module position within the REF542PLUS relay chassis. Before beginning the swap, de-energize the feeder and follow your site’s lockout/tagout (LOTO) procedure. Record the existing protection settings — overcurrent pickup levels, time-delay curves, and earth fault thresholds — either from the relay’s local HMI or from the REF542PLUS Parameter Setting Tool (PST) software backup file. These settings must be re-entered or uploaded to the replacement module before the feeder is re-energized.

Remove the faulty module by releasing the front panel locking mechanism and carefully disconnecting the rear connector. Insert the new 2RCA029395-A0031 module, ensuring the connector seats fully. Restore the protection parameters via PST software or manual entry, then perform a secondary injection test to verify that the overcurrent and earth fault elements operate at the correct thresholds. Confirm binary output relay operation by simulating a trip condition in test mode. Once all tests pass, re-energize the feeder and monitor the relay’s event log for the first 24 hours to confirm stable operation.

This workflow is compatible with both new REF542PLUS installations and legacy panels that have been in service for 10 or more years, making the 2RCA029395-A0031 an effective solution for extending the operational life of existing protection infrastructure without requiring a full panel replacement.

Spare Parts Support FAQ

Q1: Is the REF542PLUS 2RCA029395-A0031 compatible with all REF542PLUS relay variants?
The 2RCA029395-A0031 is designed for the REF542PLUS series. Compatibility depends on the specific relay configuration and firmware version installed in your panel. We recommend providing your full relay nameplate data and existing module part numbers when placing an order so our technical team can confirm a direct match before shipment.

Q2: What testing is performed before shipment?
Every REF542PLUS 2RCA029395-A0031 unit is functionally tested prior to dispatch to verify electrical integrity and basic operational parameters. A test report is available upon request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can you support long-term or repeat supply for this part number?
Yes. KNMKS maintains stock and sourcing channels for REF542PLUS series spare parts to support customers with ongoing maintenance programs, annual inspection schedules, and strategic spare parts inventory builds. Contact our sales team to discuss volume pricing and reserved stock arrangements.

Q4: What information should I provide to confirm compatibility before ordering?
To ensure the correct spare is supplied, please share the full relay model designation, the existing module part number (2RCA029395-A0031 or variant), the panel nameplate data, and if possible, the REF542PLUS firmware version. This allows our team to verify compatibility and avoid costly mis-shipments.
