ABB RDNA-01 Migration-Ready DeviceNet Adapter for Legacy Control Systems

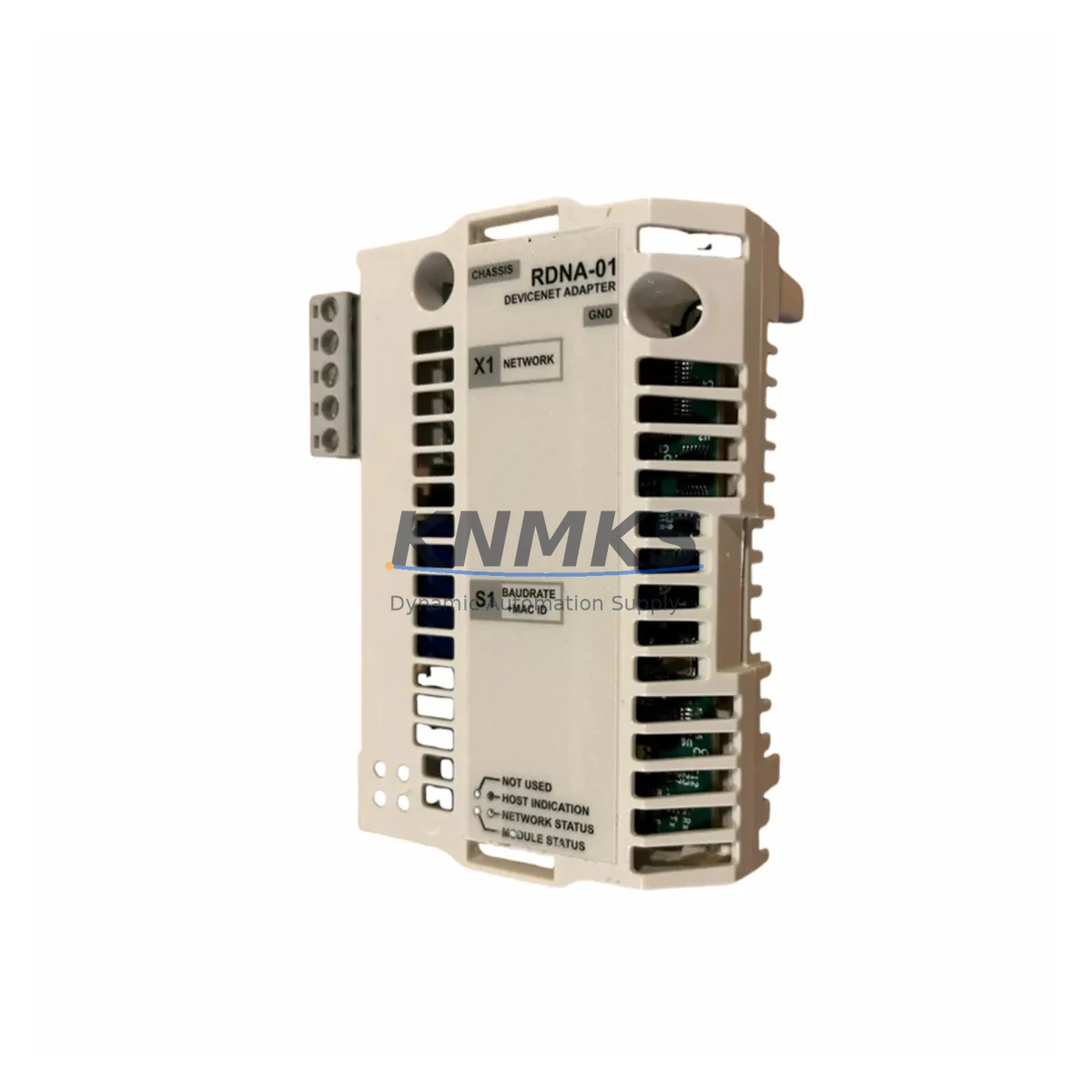

The ABB RDNA-01 is a DeviceNet fieldbus adapter module engineered for seamless integration with ABB ACS800 and ACS880 series variable frequency drives. As legacy control architectures face increasing pressure from discontinued support, aging backplane infrastructure, and evolving communication protocol requirements, the RDNA-01 serves as a critical migration component — enabling plant engineers to extend the operational life of existing drive systems or execute structured upgrades without full cabinet replacement.

Designed to mount directly into the option slot of compatible ABB drives, the RDNA-01 provides a DeviceNet interface that bridges the drive’s internal control logic with plant-level SCADA, DCS, or PLC networks. For facilities running legacy Allen-Bradley ControlLogix or CompactLogix controllers with DeviceNet scanner cards, the RDNA-01 allows the ABB drive to participate natively in the existing network topology — eliminating the need for protocol converters or gateway devices that introduce latency and additional failure points.

When replacing a failed or end-of-life RDNA-01 in an active production line, engineers must verify several critical parameters before installation. Power supply capacity within the drive’s option slot must be confirmed against the adapter’s draw specification. Terminal wiring for the DeviceNet connector — including CAN_H, CAN_L, shield, V+ and V− — must be mapped against the original installation drawing to prevent polarity errors during commissioning. The module address (MAC ID) configured on the original unit must be documented and replicated on the replacement to avoid network conflicts with other DeviceNet nodes such as remote I/O blocks, valve manifolds, or distributed sensor modules.

Program compatibility is a key concern during RDNA-01 replacement. The drive’s parameter set — including process reference scaling, fault response configuration, and fieldbus control word mapping — should be backed up via the ABB Drive Composer or DriveWindow tool prior to module swap. If the host PLC’s EDS file references the original RDNA-01 firmware version, a firmware mismatch on the replacement unit may require an EDS update and re-download to the scanner. HMI screens that display drive status via DeviceNet-mapped tags should be validated post-commissioning to confirm correct data mapping and alarm behavior.

In retrofit scenarios where the ACS800 drive itself is being replaced with an ACS880, the RDNA-01 remains compatible with the newer platform, provided the correct option slot assignment is observed. This cross-generation compatibility makes the RDNA-01 a preferred adapter in phased upgrade projects where the network infrastructure is retained while the drive hardware is modernized. During such migrations, the RDNA-01 can be transferred from the legacy ACS800 to the new ACS880 frame, reducing spare parts procurement scope and preserving the existing DeviceNet node configuration.

For control cabinets undergoing broader modernization, the RDNA-01 is frequently deployed alongside the ABB AIMA-01 analog I/O extension module, DDCS fiber optic communication boards, and NETA-21 remote monitoring adapters. In multi-drive installations, the RDNA-01 enables coordinated speed and torque reference distribution from a single DeviceNet master, supporting synchronized motion profiles across conveyor lines, pump stations, and compressor banks. Installation space within the drive’s option slot is fixed, and no additional DIN rail or panel cutout is required — a significant advantage in densely populated control cabinets where space constraints limit retrofit options.

All RDNA-01 units supplied are subject to pre-shipment functional testing, including DeviceNet communication verification, option slot interface check, and firmware version confirmation. Stock is maintained across multiple warehouse locations to support emergency replacement requirements with rapid global dispatch. Each unit is covered by a support terms confirmed by quotation from the date of shipment.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful RDNA-01 integration into an existing automation system requires a structured pre-retrofit assessment. Engineers should begin by auditing the DeviceNet network segment to which the drive will be connected, confirming total node count, cable length, termination resistor placement, and available MAC IDs. In installations where the DeviceNet scanner is hosted on an Allen-Bradley 1756-DNB or 1769-SDN card, the RDNA-01’s node parameters must be pre-configured to match the scanner’s expected device profile before network power-up.

For cabinets that also house ABB AIMA-01 analog I/O extension modules or DDCS-based peer-to-peer communication boards, the option slot assignment must be carefully planned to avoid conflicts. In ACS880 frames with multiple option slots, the RDNA-01 is typically assigned to slot 1 or slot 2 depending on the drive’s parameter configuration. The NETA-21 remote monitoring adapter, if present, occupies a separate slot and does not interfere with RDNA-01 operation — but both must be accounted for in the drive’s option module map.

Where the retrofit involves replacing an older communication protocol — such as migrating from Profibus DP (handled by the RPBA-01) to DeviceNet — the RDNA-01 installation must be accompanied by a full review of the PLC program’s drive control logic. Control word and status word bit assignments differ between fieldbus protocols, and any existing function blocks or AOIs referencing the drive must be updated to reflect the DeviceNet-specific mapping defined in the RDNA-01 user manual. Programming cables and laptop-based commissioning tools should be on-site during the cutover window to support real-time parameter adjustment.

Downtime Control During System Migration

Minimizing unplanned downtime during RDNA-01 replacement requires preparation before the maintenance window begins. A full parameter backup of the affected drive should be completed using ABB Drive Composer, with the backup file stored both locally and on a network share accessible to the commissioning engineer. The DeviceNet network should be placed in idle mode or the affected node taken offline before the old adapter is removed, preventing network fault propagation to other drives or I/O devices on the same segment.

During the swap, the replacement RDNA-01 should be pre-configured with the correct MAC ID and baud rate using a standalone DeviceNet configuration tool or via the drive’s keypad parameter interface before insertion into the option slot. This eliminates the need for network-live configuration and reduces the risk of address conflicts during power-up. Once installed, the drive should be powered up in local control mode first, with fieldbus control enabled only after the DeviceNet scanner confirms successful node registration.

Original program logic in the host PLC should not be modified during the replacement procedure unless a firmware mismatch requires an EDS update. In that case, the scanner’s device list should be updated offline and downloaded during the maintenance window, with a rollback plan in place if the new EDS causes unexpected behavior. HMI tag validation should be the final step before returning the drive to automatic control, confirming that all process values, fault codes, and control commands are correctly reflected on the operator interface.

Retrofit Support FAQ

Q: Is the RDNA-01 a direct replacement for a failed unit in an ACS800 drive?
A: Yes. The RDNA-01 is a direct drop-in replacement for existing RDNA-01 units installed in ACS800 option slots. No mechanical modification is required. The replacement unit must be configured with the same MAC ID and baud rate as the original before installation to maintain network continuity.

Q: Can the RDNA-01 be used in an ACS880 drive during an upgrade from ACS800?
A: Yes. The RDNA-01 is compatible with ACS880 option slots, making it suitable for phased upgrade projects where the DeviceNet network infrastructure is retained. Option slot assignment and parameter mapping should be verified against the ACS880 firmware version in use.

Q: What pre-shipment testing is performed on RDNA-01 units?
A: Each unit undergoes DeviceNet communication interface verification, option slot connector inspection, and firmware version confirmation prior to dispatch. Units are supplied with a support terms confirmed by quotation from the shipment date, covering manufacturing defects and functional failures under normal operating conditions.

Q: How quickly can an RDNA-01 be dispatched for an emergency replacement?
A: Stock is maintained across multiple warehouse locations to support urgent requirements. Global dispatch is available, with lead times confirmed at the time of order based on destination and shipping method. Contact the sales team directly for emergency stock confirmation and expedited shipping options.
