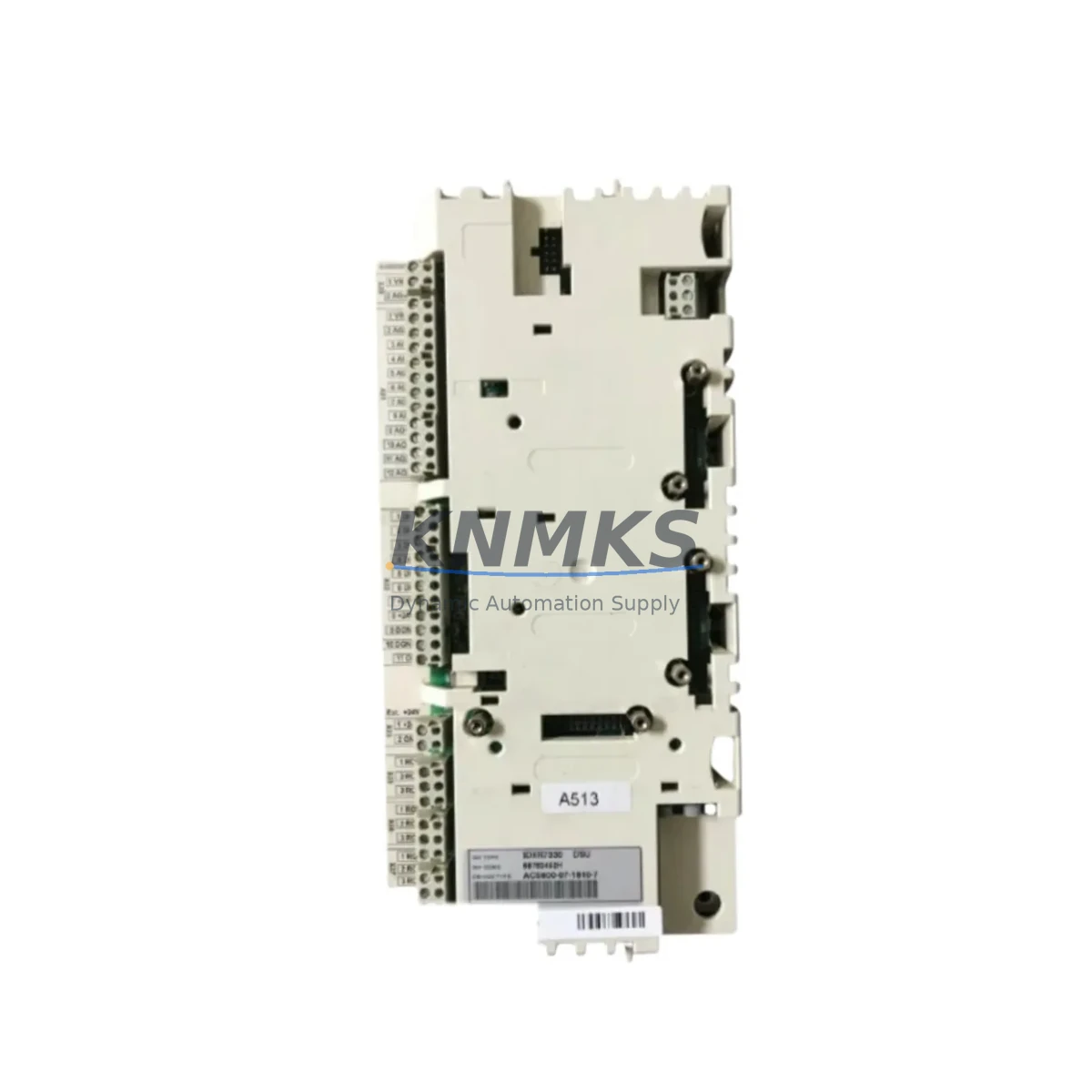

ABB RDCU-12C ASXR7360 Migration-Ready Drive Control Unit

Overview

ABB RDCU-12C ASXR7360 Migration-Ready Drive Control Unit: Legacy System Retrofit & Compatibility Upgrade

The ABB RDCU-12C (part number ASXR7360) is a migration-ready drive control unit engineered for direct replacement and retrofit applications within the ACS800 and ACS600 drive families. As legacy ABB drive platforms approach end-of-life and spare parts become increasingly scarce, the RDCU-12C provides a reliable, drop-in upgrade path that preserves existing control logic, minimizes downtime, and extends the operational lifespan of installed automation systems. Whether you are managing a planned modernization project or responding to an unplanned failure on a critical production line, the RDCU-12C is a proven solution for engineers and maintenance teams working within ABB drive ecosystems.

The RDCU-12C serves as the primary control board for ACS800 series variable frequency drives, handling all core functions including motor control algorithms, I/O signal processing, fieldbus communication, and fault diagnostics. Its DDCS (Distributed Drive Control System) fiber-optic interface enables seamless integration with ABB’s NDBU-95 branching unit and NINT-41 DDCS communication adapters, making it fully compatible with existing multi-drive configurations and master-follower topologies without requiring rewiring or protocol conversion.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the RDCU-12C into an existing automation system requires careful pre-installation planning. Before removing the legacy control board, engineers should back up all drive parameters using ABB DriveWindow software or the ACS800 assistant control panel (ACS-CP-C). This ensures that motor control settings, speed references, torque limits, and application-specific macro configurations can be fully restored after the board swap, eliminating the need for a full recommissioning cycle from scratch.

Terminal block wiring on the ACS800 I/O interface is retained during a direct RDCU-12C replacement, as the board maintains the same physical connector layout as the original. However, technicians should verify the integrity of the DDCS fiber-optic cables connecting to any NDBU-95 branching units in multi-drive systems, as degraded fiber connections are a common source of communication faults following board replacement. If the installation includes NINT-41 DDCS communication adapters for Profibus or DeviceNet integration, confirm that the adapter firmware version is compatible with the replacement board’s control software revision.

For control cabinets that also house AINT-02 or AINT-14 inverter control boards, the RDCU-12C retrofit should be coordinated with a review of the overall power section health. Capacitor aging, DC bus voltage ripple, and IGBT gate driver integrity should be assessed before returning the drive to service. In systems where the ACS800 is paired with an APBU-44 pulse encoder interface unit for closed-loop speed control, verify that encoder signal routing and parameter settings for speed feedback are correctly restored after the board replacement.

Where the legacy system includes an ABB Panel Bus (PPCS) connection to an AC800M controller or a third-party PLC via a RAIO-01 analog I/O extension module, confirm that the module address settings and I/O channel assignments are consistent with the restored parameter set. Signal isolation requirements between the drive and the control system should also be reviewed, particularly in environments with high electromagnetic interference from large motor loads or variable-speed compressor drives operating on the same bus.

Downtime Control During System Migration

Minimizing production downtime during an RDCU-12C board replacement is achievable with proper preparation. The physical board swap itself typically takes under 30 minutes for an experienced technician, but the total outage window is determined by the time required for parameter restoration, functional testing, and sign-off. Pre-staging a fully configured replacement board — with parameters loaded and verified offline using DriveWindow — can reduce the live commissioning phase to a simple parameter upload and motor rotation check.

Where continuous process control is critical, consider scheduling the replacement during a planned maintenance window and coordinating with the process control team to implement manual bypass or alternative control paths for the affected drive. For multi-drive systems using DDCS master-follower configurations, isolating the affected drive from the fiber-optic ring before board removal prevents communication faults from propagating to other drives in the system and disrupting the broader production line.

After installation, perform a systematic fault log review using the ACS800 diagnostic menu to confirm that no residual fault codes are present from the previous board failure. Verify motor rotation direction, speed reference tracking, and torque response under no-load conditions before returning the drive to full production load. Document the firmware version, parameter set checksum, and installation date for future maintenance records and support terms reference.

Retrofit Support FAQ

Q1: Is the RDCU-12C a direct drop-in replacement for my existing ACS800 control board?
Yes. The RDCU-12C (ASXR7360) is designed as a direct board-level replacement for ACS800 series drives. It uses the same backplane connector, I/O terminal layout, and DDCS fiber-optic interface as the original board. No mechanical modifications or rewiring are required for a standard swap. Parameter restoration via DriveWindow or the ACS800 control panel is required after installation.

Q2: How do I verify firmware compatibility before installing the replacement board?
Check the firmware version label on the original RDCU-12C board or retrieve it from the ACS800 fault log and parameter list (parameter 33.01 in standard firmware). Compare this with the firmware version pre-loaded on the replacement board. If a firmware update is required, use ABB DriveWindow with a compatible RUSB-02 USB adapter or RDCO-01 DDCS communication module to flash the correct version before commissioning.

Q3: What testing is performed before shipment, and what does the support terms confirmed by quotation cover?
Each RDCU-12C unit undergoes functional power-on testing and communication interface verification prior to shipment. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental contamination. Support requests are supported with proof of purchase and a fault description.

Q4: Is stock available for immediate shipment, and what are the lead times?
Yes. The RDCU-12C (ASXR7360) is maintained availability confirmed by RFQ for immediate dispatch. Standard orders are processed within 1–2 business days, with international shipping options available to support urgent retrofit and breakdown recovery requirements. Contact our sales team for volume pricing, expedited shipping, and availability confirmation for large-quantity orders.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

RDCU-12C-ASXR7360
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB RDCU-12C-ASXR7360
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
