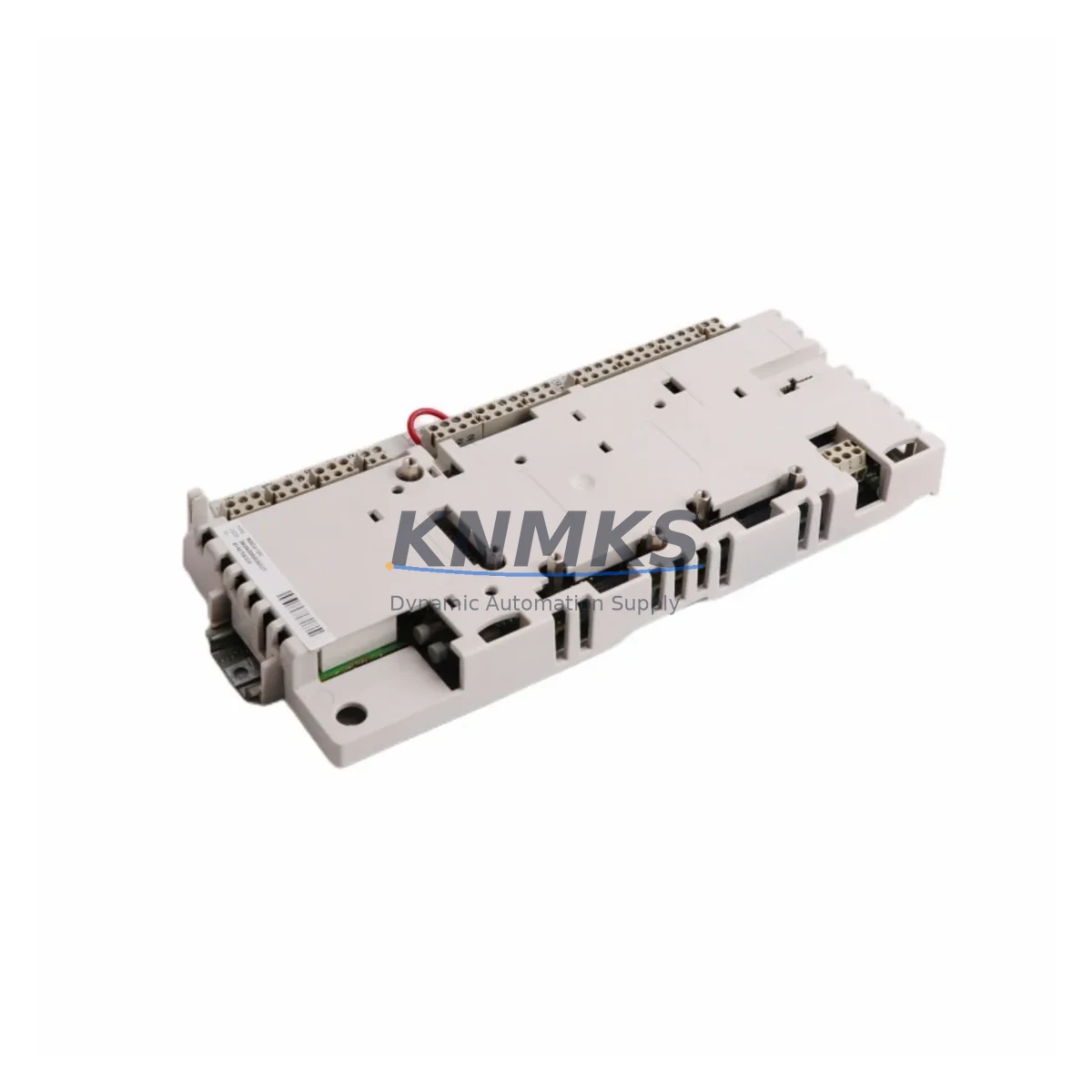

ABB RDCU-12C 3AUA0000036521 Maintenance-Proven Spare ACS800

Overview

ABB RDCU-12C 3AUA0000036521 Maintenance-Proven Spare ACS800: Keeping Your Drive Systems Running Without Interruption

The ABB RDCU-12C (part number 3AUA0000036521) is the dedicated drive control unit for the ABB ACS800 series variable frequency drives — one of the most widely deployed drive platforms in global industrial automation. As the central intelligence of the ACS800 drive, the RDCU-12C manages motor control algorithms, I/O signal processing, fieldbus communication, and fault diagnostics. When this board fails, the entire drive is rendered inoperable, making it one of the highest-priority spare parts in any ACS800-equipped facility.

At KNMKS, every RDCU-12C unit is sourced as an original ABB component, individually inspected, and pre-shipment tested to confirm firmware compatibility, communication interface integrity, and control signal response. Each unit ships with a support terms confirmed by quotation and full traceability documentation, giving maintenance engineers and procurement teams the confidence to stock and deploy with minimal risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The RDCU-12C does not operate in isolation. In a typical ACS800 drive cabinet, it interfaces with a network of components that must be evaluated simultaneously during any planned or emergency replacement. Maintenance engineers should treat an RDCU-12C failure as a trigger for a broader cabinet inspection rather than a single-component swap.

Begin with the AINT-02C or AINT-14C auxiliary interface board, which bridges the RDCU-12C to the power electronics section. A failing auxiliary board can cause intermittent RDCU faults that are misdiagnosed as control unit failures. Inspect the APBU-44C or APBU-12C pulse encoder interface unit if the drive is used in closed-loop speed control — encoder signal corruption will persist even after an RDCU replacement if the interface board is degraded.

Check the RDCO-01 or RDCO-03 fieldbus adapter module seated on the RDCU-12C itself. These plug-in communication modules are frequently overlooked during board swaps and can introduce network faults post-replacement. For drives integrated into PROFIBUS or DeviceNet architectures, verify the adapter’s node address and baud rate settings before commissioning the replacement unit.

Inspect the 24 VDC auxiliary power supply feeding the control section. Voltage ripple or brownout conditions are a leading cause of RDCU-12C premature failure and will damage a replacement board if not corrected. Use a calibrated multimeter to confirm supply stability under load. Similarly, review the main contactor and pre-charge circuit — a welded contactor or degraded pre-charge resistor can subject the RDCU to abnormal DC bus transients during startup.

For drives with external I/O wiring, inspect all terminal block connections on the X1 and X2 I/O strips. Loose or corroded terminals cause intermittent analog reference signal errors that are logged as RDCU faults. If the installation includes signal isolators or galvanic separation modules between the PLC and the drive’s analog inputs, verify their output range and offset calibration matches the RDCU-12C’s expected 0–10 V or 4–20 mA input configuration.

Finally, document the existing parameter set (macro) stored in the drive’s RMIO or memory unit before removing the RDCU-12C. Restoring the parameter backup to the replacement board is the single most time-critical step in minimizing restart downtime on production lines.

Site Replacement Workflow

Step 1 — Isolation and Safety: De-energize the ACS800 drive and wait a minimum of 5 minutes for DC bus capacitors to discharge. Verify bus voltage with a calibrated meter before opening the cabinet.

Step 2 — Parameter Backup: If the existing RDCU-12C is still partially functional, use the ABB DriveWindow or DriveStudio software to export the full parameter set. Alternatively, retrieve the backup from the RMIO memory unit if previously saved.

Step 3 — Board Removal: Disconnect the DDCS fiber optic cables, the RDCO fieldbus adapter (if fitted), and all ribbon cable connectors from the RDCU-12C. Note the cable routing and connector positions before removal.

Step 4 — Replacement Installation: Seat the new RDCU-12C, reconnect all cables in reverse order, and confirm the RDCO adapter is firmly locked. Verify the DIP switch settings on the replacement board match the original configuration (node address, termination resistor).

Step 5 — Parameter Restore and Commissioning: Power up the drive in local control mode. Restore the parameter backup via DriveWindow or manually re-enter critical parameters (motor nameplate data, control macro, I/O configuration). Run a no-load motor identification routine before returning the drive to production.

Step 6 — System Verification: Confirm fieldbus communication is re-established with the PLC or DCS. Verify analog and digital I/O signal mapping. Log the replacement in the site maintenance record with the new board’s serial number and support terms start date.

This workflow is applicable to both single-drive ACS800 units and multi-drive configurations using the RDCU-12C in master/follower topologies. For legacy ACS600 installations being migrated to ACS800, the RDCU-12C replacement also provides an opportunity to upgrade the control platform while retaining existing motor and cabinet infrastructure.

Spare Parts Support FAQ

Q1: Is the RDCU-12C (3AUA0000036521) compatible with all ACS800 variants?
The RDCU-12C is the standard control unit for the ACS800 single-drive series. Compatibility with specific ACS800 variants (ACS800-01, -04, -07, -11, -17, -31, -37) depends on the drive’s hardware revision and firmware version. KNMKS provides compatibility verification based on your drive’s type designation and serial number before shipment. Multi-drive configurations using the ACS800-104 or ACS800-304 may require the RDCU-12C in conjunction with specific APBU or AINT interface boards — contact our technical team to confirm your exact configuration.

Q2: What pre-shipment testing is performed on each RDCU-12C unit?
Every RDCU-12C shipped by KNMKS undergoes a structured pre-shipment test protocol: power-on self-test, DDCS fiber optic port continuity check, digital and analog I/O signal verification, and RDCO adapter slot functional test. Units that fail any test stage are quarantined and not shipped. Test records are retained for traceability and are available upon request for quality-critical procurement processes.

Q3: Can KNMKS support long-term or blanket order agreements for the RDCU-12C?
Yes. KNMKS offers 12–36 month supply agreements for the RDCU-12C and related ACS800 spare parts. Blanket orders allow facilities to lock in pricing, guarantee stock reservation, and reduce emergency procurement lead times. This is particularly valuable for multi-site operations or facilities running large fleets of ACS800 drives where a single RDCU-12C failure can trigger a production stoppage. Contact [email protected] to discuss volume and delivery schedule requirements.

Q4: What does the support terms confirmed by quotation cover, and how is a support terms claim processed?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the specified environmental range. To initiate a support terms claim, contact KNMKS with the unit’s serial number, purchase date, and a description of the failure mode. KNMKS will arrange return shipping and provide a replacement or repair within an agreed lead time. Support requests are processed directly — no third-party authorization is required.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

RDCU-12C 3AUA0000036521
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB RDCU-12C 3AUA0000036521
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
