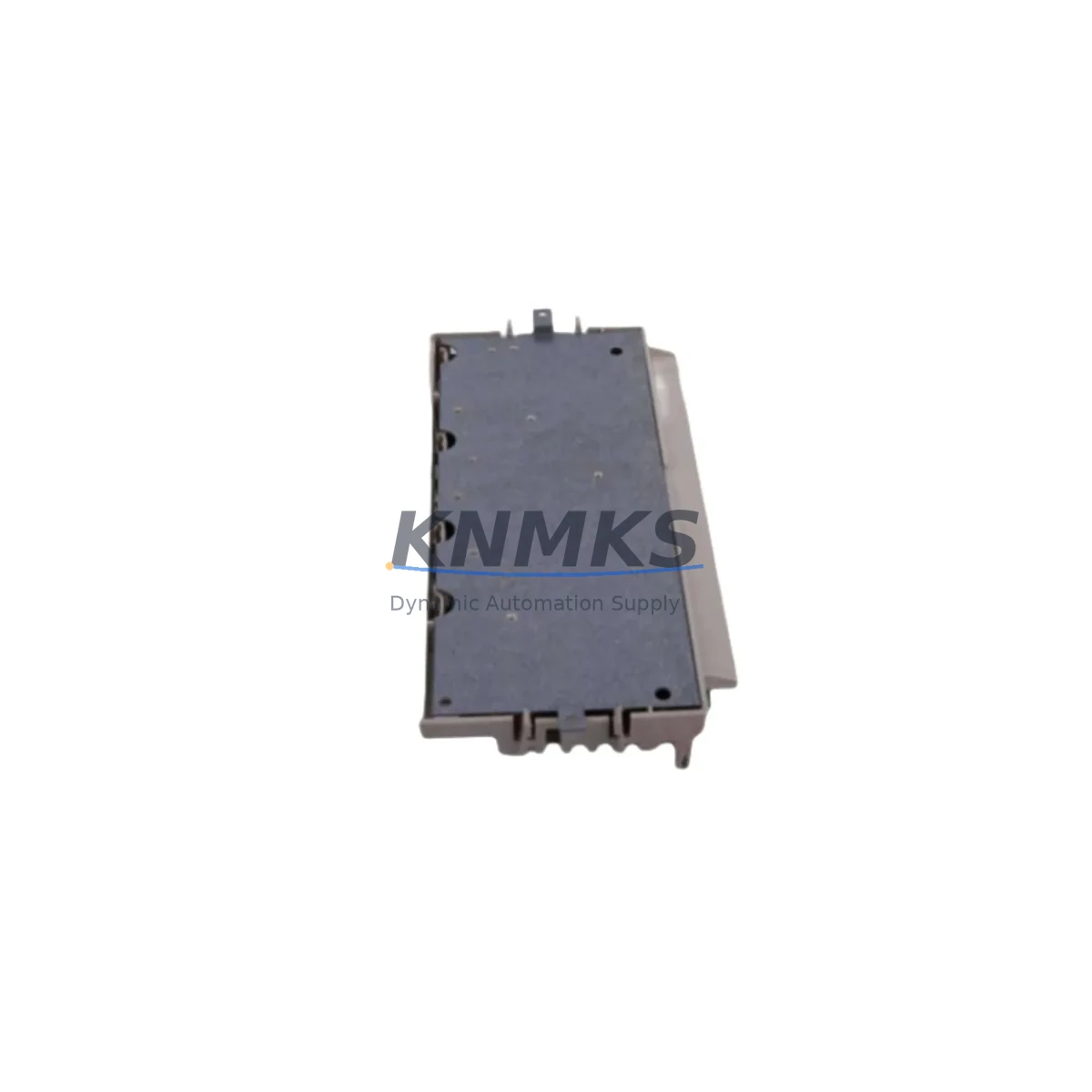

ABB RDCU-02C AMXR7130 Fail-Safe Drive Control Unit

Overview

ABB RDCU-02C AMXR7130 Fail-Safe Drive Control Unit: Fault Protection and Critical Industrial Field Reliability

In continuous production environments where an unplanned drive shutdown can cascade into hours of lost output, the ABB RDCU-02C AMXR7130 serves as the intelligent nerve center of the ACS800 drive system. Engineered to ABB’s exacting standards for industrial control reliability, this drive control unit delivers fail-safe signal processing, robust fault detection, and deterministic communication performance across the most demanding field conditions — from petrochemical compressor stations and steel mill rolling lines to port crane hoists and water treatment pump arrays.

The RDCU-02C AMXR7130 is designed to eliminate the root causes of control interruption. Its onboard firmware continuously monitors motor feedback, encoder signals, and fieldbus communication integrity. When signal drift, voltage fluctuation, or communication anomaly is detected, the unit executes a controlled fault response rather than an abrupt trip — protecting both the driven load and the upstream control architecture. This behavior is critical in safety interlock circuits where a nuisance trip can trigger a full-line shutdown or, worse, an unsafe process state.

In high electromagnetic interference environments — common in heavy motor rooms, arc furnace bays, and variable-frequency drive cabinets — the RDCU-02C AMXR7130 maintains signal integrity through its shielded PCB layout and EMI-hardened communication interfaces. When paired with the AINT-02C or RDIO-01 I/O extension modules within the same ACS800 control cabinet, the system forms a tightly integrated, noise-immune control loop that resists the cross-coupling interference that degrades lesser control boards.

Power supply stability is equally addressed. The RDCU-02C AMXR7130 operates reliably across its rated supply voltage range, tolerating the transient surges and micro-interruptions that are endemic to industrial power distribution networks. In installations where the APBU-44C or APBU-12C power supply units are deployed alongside the ACS800 drive, the RDCU-02C AMXR7130 maintains stable operation through supply events that would otherwise cause control board resets or parameter corruption.

For installations in dusty, humid, or high-vibration environments — including mining conveyor drives, cement plant kiln drives, and offshore platform motor control centers — the RDCU-02C AMXR7130’s conformal-coated PCB provides a critical barrier against moisture ingress and particulate contamination. This coating, combined with the unit’s vibration-tolerant connector design, ensures that the control board remains operational through the mechanical stresses of continuous heavy-duty cycling.

Fieldbus communication reliability is a core design priority. The RDCU-02C AMXR7130 supports DDCS fiber-optic communication to the ACS800 inverter unit, eliminating galvanic coupling paths that introduce ground loop noise in large drive systems. When the NDBU-95C or NDBU-85C branching units are used to extend the DDCS network across multiple drive modules, the RDCU-02C AMXR7130 maintains synchronous, low-latency communication that is essential for coordinated multi-drive applications such as winder tension control and crane anti-sway systems.

Spare parts availability and supply continuity are built into our service model. KNMKS maintains dedicated buffer stock of the RDCU-02C AMXR7130 to support emergency replacement requirements, with same-day dispatch capability for critical field breakdowns. Every unit shipped undergoes pre-delivery functional testing covering power-up sequencing, communication link verification, and parameter memory integrity — ensuring that the replacement board is field-ready upon arrival.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable ACS800 control cabinet is a system-level achievement, not a single-component outcome. The RDCU-02C AMXR7130 anchors the control layer, but its fail-safe performance depends on the integrity of the surrounding architecture. In a well-engineered cabinet, the AINT-02C inverter control interface manages the power stage communication, while the RDIO-01 digital and analog I/O extension module handles field signal conditioning — both relying on the RDCU-02C AMXR7130’s DDCS backbone for deterministic data exchange.

On the power supply side, the APBU-44C auxiliary power supply unit provides the regulated 24 VDC rail that feeds the control board and I/O modules. Any instability in this rail — caused by load transients from contactor switching or capacitor bank charging — can manifest as spurious faults on the RDCU-02C AMXR7130. Maintaining a properly rated and tested APBU unit is therefore a prerequisite for stable drive control operation.

For multi-drive installations, the NDBU-95C DDCS branching unit distributes the fiber-optic control network from the RDCU-02C AMXR7130 to multiple inverter modules, enabling coordinated control without electrical interference between drive sections. In high-power applications where cabinet thermal management is critical, ensuring adequate airflow across the RDCU-02C AMXR7130 and its neighboring modules prevents the thermal derating that can reduce control board lifespan and increase fault frequency.

Safety relay modules and emergency stop circuits interfacing with the ACS800 should be validated against the RDCU-02C AMXR7130’s digital input response times to ensure that safety commands are executed within the required reaction window — a critical consideration for SIL-rated interlock systems in process industries.

Critical Industrial Safety Applications

In petrochemical plants, the RDCU-02C AMXR7130 controls compressor and pump drives that operate continuously in classified hazardous areas. Its controlled fault response prevents the uncontrolled process upsets that can result from abrupt drive trips in pressurized fluid systems. In electric power generation facilities, the unit manages boiler feed pump and induced draft fan drives where a control board failure during peak load can force a unit derating or emergency shutdown.

Mining operations rely on the RDCU-02C AMXR7130 in conveyor, hoist, and ventilation fan drives where continuous availability is a safety requirement, not merely an operational preference. In water and wastewater treatment plants, the unit controls high-duty-cycle pump drives that must maintain flow continuity to meet regulatory discharge standards. Metallurgical facilities — including rolling mills and electric arc furnace auxiliaries — depend on the RDCU-02C AMXR7130’s EMI immunity to maintain control integrity in environments saturated with high-frequency electrical noise.

Port and terminal operations use the unit in crane hoist and gantry travel drives where precise speed control and fault-tolerant operation directly affect load safety and throughput. In continuous manufacturing — paper mills, textile lines, and food processing conveyors — the RDCU-02C AMXR7130’s non-volatile parameter memory ensures that drive configuration is preserved through power interruptions, eliminating the manual re-commissioning that would otherwise delay production restart.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover for the RDCU-02C AMXR7130?
A: The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional faults identified under normal operating conditions from the date of shipment. Units that fail within the confirmed support period are replaced or repaired at no charge, with priority dispatch to minimize field downtime.

Q: What pre-shipment testing is performed on each RDCU-02C AMXR7130?
A: Every unit undergoes a structured pre-delivery test sequence covering power-up initialization, DDCS fiber-optic communication link verification, digital and analog I/O channel continuity, and non-volatile parameter memory read/write integrity. This ensures the board is fully functional before it leaves our facility.

Q: Is the RDCU-02C AMXR7130 compatible with all ACS800 variants?
A: The RDCU-02C AMXR7130 is designed for the ABB ACS800 single drive and multidrive platform. Compatibility should be verified against the specific ACS800 hardware revision and firmware version in the target installation. Our technical team can assist with compatibility confirmation based on your drive nameplate data.

Q: Can long-term supply continuity be assured for the RDCU-02C AMXR7130?
A: KNMKS maintains dedicated buffer inventory of the RDCU-02C AMXR7130 to support both planned maintenance programs and emergency replacement requirements. We actively manage stock levels to ensure availability for customers operating ACS800 drives beyond the standard OEM support lifecycle.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

RDCU-02C AMXR7130
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB RDCU-02C AMXR7130
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
