ABB RDCU-02C 64607901 F Migration-Ready Drive Control Unit

Overview

ABB RDCU-02C 64607901 F Migration-Ready Drive Control Unit: Legacy ACS800 System Retrofit & Upgrade

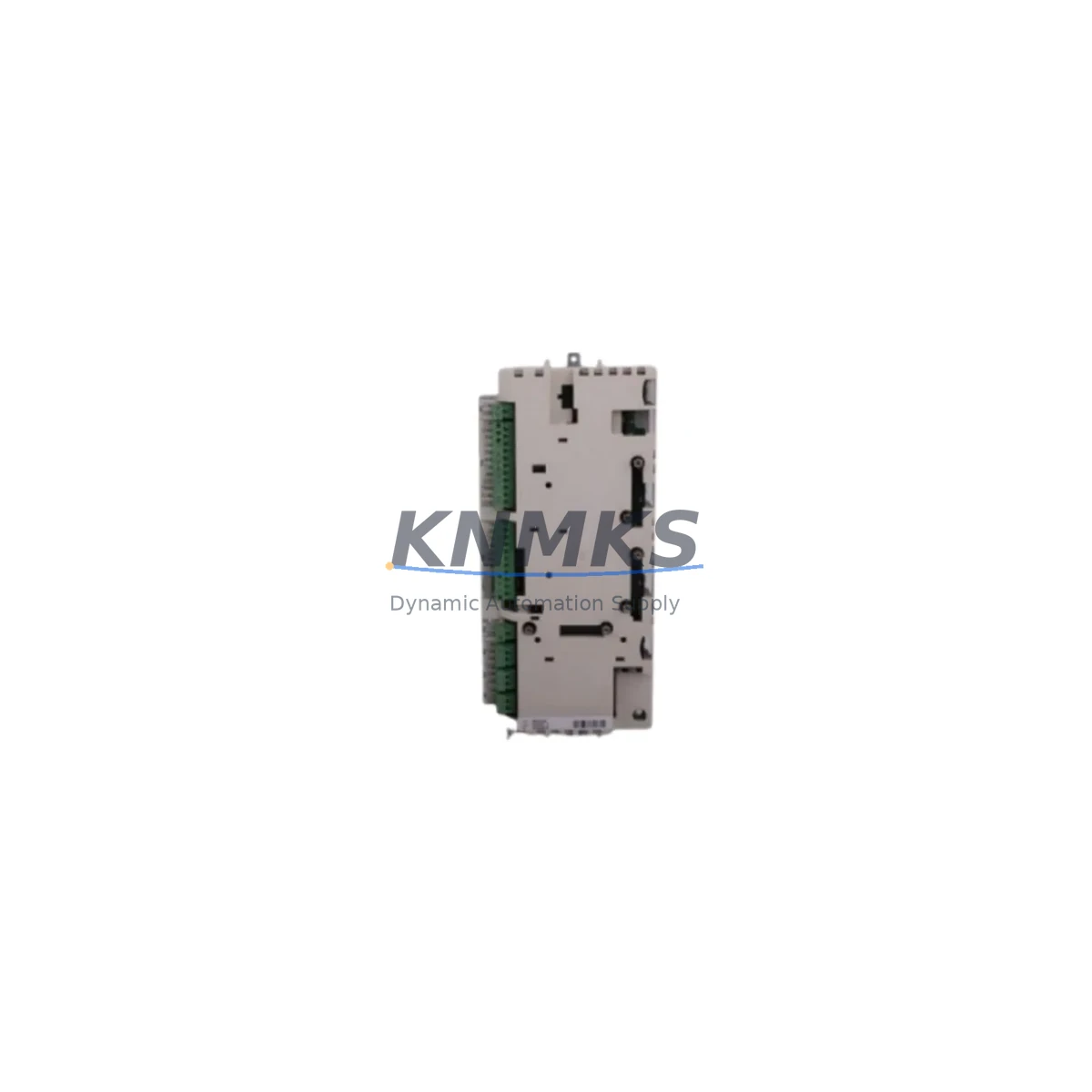

The ABB RDCU-02C (part number 64607901, revision F) is a drive control unit designed for the ACS800 series of AC drives. As legacy ACS800 installations approach end-of-support milestones, maintenance engineers and automation managers face increasing pressure to source verified replacement control boards that preserve existing wiring layouts, program logic, and communication configurations without triggering a full drive replacement. The RDCU-02C addresses this challenge directly: it is a drop-in compatible control unit that retains the original backplane connector pinout, supports the ACS800 firmware ecosystem, and allows field engineers to restore drive functionality with minimal downtime.

Whether you are replacing a failed control board in a paper mill drive cabinet, upgrading a fleet of ACS800 units in a water treatment facility, or executing a phased retrofit across a multi-drive conveyor system, the RDCU-02C provides a reliable, inventory-backed solution with a support terms confirmed by quotation and pre-shipment functional testing on every unit.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful RDCU-02C replacement begins well before the new board arrives on site. Engineers should start by backing up the full parameter set from the existing ACS800 using DriveWindow Light or DriveStudio, saving the parameter file to a secure location. This backup is critical: it preserves motor data, speed references, PID tuning, fault history thresholds, and any application-specific macro configurations that would otherwise require manual re-entry after the swap.

Next, confirm the installed communication adapter. Many ACS800 installations use the RDCO-02 or RDCO-04 fiber optic communication module for DDCS-based master-follower or fieldbus gateway connections. The RDCU-02C retains the RDCO slot, so the existing adapter can be transferred directly. If the drive communicates via PROFIBUS DP, the RPBA-01 adapter mounted on the control board slot should also be inspected for firmware compatibility before reinstallation. Modbus RTU users relying on the RMBA-01 adapter will similarly find the interface unchanged.

For sites running I/O-intensive applications — such as multi-pump control panels or process line drives with extensive analog feedback — verify that the RAIO-01 analog I/O extension and RDIO-01 digital I/O extension modules are seated correctly after the control board swap. These modules connect via the internal I/O extension bus and do not require re-wiring, but their parameter assignments should be confirmed against the restored parameter file.

Power supply capacity within the control cabinet deserves attention during retrofit planning. The RDCU-02C draws its logic supply from the ACS800 internal SMPS; however, if the cabinet also powers external 24 VDC devices — such as safety relays, HMI panels, or signal isolators — confirm that the auxiliary power supply (often an APBU-44 or similar unit) has sufficient headroom. Overloaded auxiliary supplies are a common source of intermittent faults after control board replacements.

HMI panel compatibility should also be reviewed. Sites using the CDP312R control panel or an external operator panel connected via the panel bus will find that the RDCU-02C supports the same panel communication protocol. After parameter restore, verify that the HMI displays correct speed, current, and fault status values before returning the drive to service. If the site uses a SCADA system with OPC connectivity through a DriveWindow server, confirm that the drive node address and communication speed settings match the restored configuration.

Finally, document the physical installation: note the module address set on any DDCS ring, the fiber optic channel assignments on the RDCO adapter, and the DIP switch settings on any installed fieldbus adapter. These settings are not stored in the parameter backup and must be manually verified during commissioning.

Downtime Control During System Migration

Minimizing production downtime during an ACS800 control board replacement requires a structured approach. The recommended sequence is: parameter backup → drive isolation and lockout/tagout → control board removal → RDCU-02C installation → adapter transfer → parameter restore → functional test → return to service. With a pre-tested replacement unit and a current parameter backup, experienced engineers typically complete this sequence in under two hours for a single drive.

To protect original program logic, never perform a factory reset on the replacement board before restoring the parameter backup. The RDCU-02C ships with default parameters; restoring the site-specific backup immediately after installation ensures that motor data, application macros, and fieldbus node addresses are correctly applied before the first test run.

For critical production lines where even brief unplanned stops carry significant cost, consider staging the replacement during a scheduled maintenance window. Pre-configure the RDCU-02C off-line using DriveStudio with a copy of the parameter file, verify communication adapter settings on the bench, and prepare all tools and documentation before entering the cabinet. This preparation reduces on-site installation time to the minimum and limits exposure to unplanned fault conditions during the swap.

Where the ACS800 drive is part of a master-follower DDCS ring — for example, in a multi-drive winder or crane application — coordinate the replacement sequence with the control system operator to ensure that the master drive or PLC does not generate fault responses during the brief period when the replaced follower drive is offline. In many cases, the PLC program can be placed in a maintenance mode that suppresses drive-not-ready faults during the swap window, preserving overall line continuity.

After parameter restore and before returning the drive to automatic control, perform a no-load test run to verify rotation direction, speed reference tracking, and fault-free operation. Confirm that the RDCO fiber optic link status LED indicates active communication and that the fieldbus adapter shows a healthy network connection. Only after these checks should the drive be returned to the automatic control loop.

Retrofit Support FAQ

Q: Is the RDCU-02C 64607901 F a direct replacement for earlier RDCU-02C revisions?
A: Yes. The revision F board is backward compatible with earlier RDCU-02C revisions installed in ACS800 drives. The backplane connector, form factor, and firmware compatibility are unchanged. We recommend verifying the installed firmware version using DriveWindow before the swap to ensure the parameter backup is compatible with the replacement board’s firmware baseline.

Q: Can I transfer my existing RDCO fiber optic adapter and RPBA-01 PROFIBUS adapter to the replacement board?
A: Yes. Both the RDCO communication module and the RPBA-01 PROFIBUS adapter are mounted in dedicated slots on the RDCU-02C and can be transferred directly from the failed board to the replacement unit. Retain the existing DIP switch and node address settings on the adapters during transfer.

Q: What pre-shipment testing is performed, and what does the support terms confirmed by quotation cover?
A: Every RDCU-02C unit undergoes functional testing prior to dispatch, including power-on verification, communication interface checks, and I/O functionality confirmation. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units damaged by incorrect installation, overvoltage, or environmental factors outside ABB specifications are not covered under support terms.

Q: Do you hold stock, and what is the typical delivery time?
A: Yes, the RDCU-02C 64607901 F is held availability confirmed by RFQ and ships same or next business day from order confirmation. For urgent breakdown situations, contact our sales team directly to confirm availability and arrange priority dispatch.
