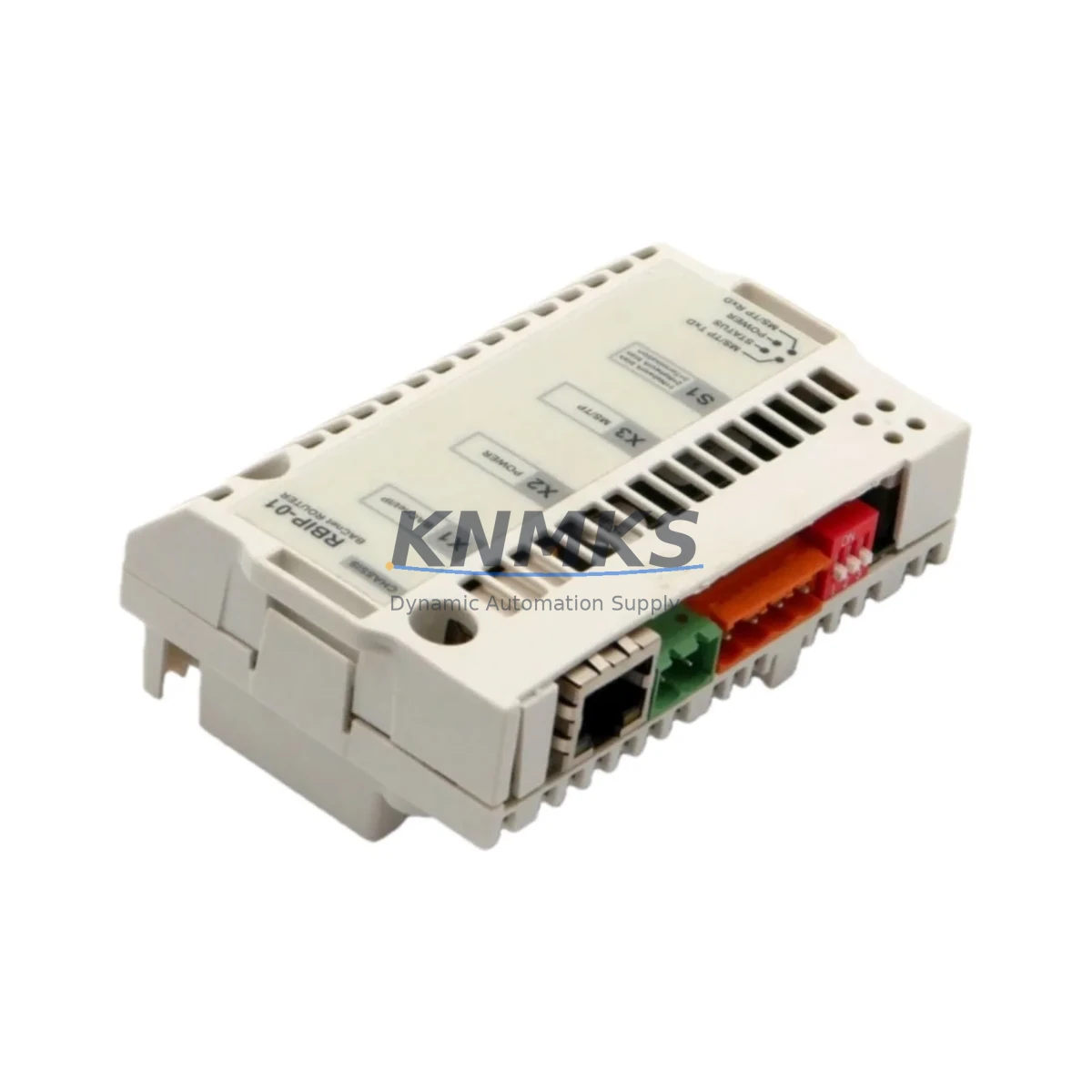

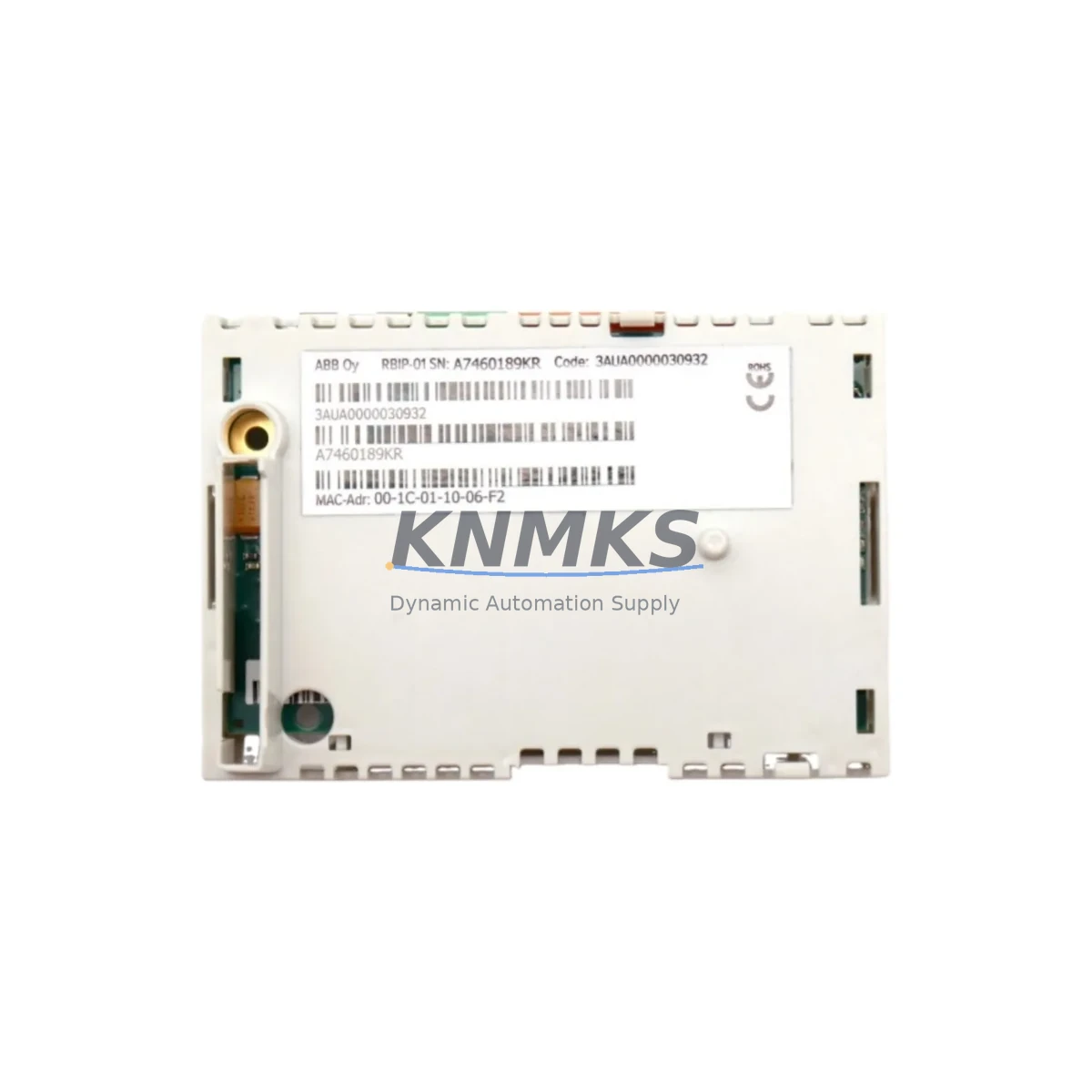

ABB RBIP-01 Fail-Safe BACnet/IP Router for Industrial Control

Overview

ABB RBIP-01 Fail-Safe BACnet/IP Router for Industrial Control Reliability

The ABB RBIP-01 is a hardened BACnet/IP to BACnet MS/TP communication router engineered for continuous operation in demanding industrial and building automation environments. Designed to bridge Ethernet-based BACnet/IP networks with RS-485 BACnet MS/TP field buses, the RBIP-01 delivers deterministic, fail-safe data routing that keeps critical control loops intact even under adverse site conditions — including high electromagnetic interference, voltage surges, temperature extremes, vibration, dust, and humidity.

In petrochemical plants, power generation facilities, water treatment stations, and continuous manufacturing lines, communication integrity is not optional — it is a safety prerequisite. The RBIP-01 addresses this requirement directly by providing robust protocol conversion with built-in surge tolerance, stable RS-485 signal conditioning, and reliable IP-layer communication that resists packet loss and signal drift. When integrated into a well-designed control cabinet alongside ABB’s AC500 PLC series and compatible I/O modules, the RBIP-01 forms a communication backbone that minimizes unplanned downtime and reduces the risk of control interruption during peak production cycles.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable BACnet communication in a control cabinet depends on more than a single router. The RBIP-01 performs at its best when deployed as part of a coordinated protection architecture. In high-density control panels serving HVAC, process automation, or energy management systems, the RBIP-01 is commonly paired with ABB CP600 HMI panels for local operator visibility, allowing field technicians to monitor BACnet device status and diagnose communication faults without remote access dependency.

On the power supply side, a stable 24 VDC rail — typically sourced from ABB CP-E or equivalent DIN rail power supply units — is essential to prevent voltage sag from triggering router resets during load switching events. For MS/TP bus integrity, proper RS-485 termination resistors and ABB-compatible surge protection modules installed at cable entry points significantly reduce the risk of signal corruption caused by ground potential differences or nearby variable frequency drives (VFDs).

In cabinets where ABB AC500 PLCs manage safety-critical interlocks, the RBIP-01 serves as the communication bridge between the PLC’s BACnet/IP stack and downstream MS/TP field devices such as VAV controllers, zone damper actuators, and energy meters. Integrating the RBIP-01 with ABB’s CM575 or CM577 communication modules on the AC500 platform creates a unified, diagnostics-capable network that supports remote fault detection and reduces mean time to repair (MTTR) during unplanned events.

For installations in high-vibration or high-dust environments — such as mining substations or port logistics facilities — DIN rail locking clips and cabinet-level IP54 or IP65 enclosures complement the RBIP-01’s IP20 rating, ensuring the overall system meets site protection requirements without compromising the router’s thermal performance.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments where BACnet-based building management systems interface with safety instrumented systems (SIS), the RBIP-01 provides the communication layer that keeps fire and gas detection panels, emergency ventilation controllers, and process area HVAC systems synchronized. Communication dropout in these environments can trigger false alarms or mask genuine hazard signals — the RBIP-01’s deterministic routing behavior reduces this risk.

Power Generation and Substation Automation: Substations operating under IEC 61850 or hybrid BACnet/SCADA architectures benefit from the RBIP-01’s ability to segment MS/TP field buses from the IP backbone, preventing broadcast storms and reducing latency on time-sensitive control loops. The router’s tolerance for 24 VDC supply fluctuations — common in battery-backed substation panels — ensures continuous operation during grid disturbances.

Water Treatment and Pumping Stations: Remote pumping stations with limited maintenance access require communication hardware that operates reliably for extended periods without intervention. The RBIP-01’s compact DIN rail form factor and low power consumption make it well-suited for unmanned enclosures where thermal management is constrained. Its stable MS/TP polling behavior prevents communication timeouts that could cause pump controllers to enter fail-safe shutdown modes unnecessarily.

Metallurgy and Heavy Manufacturing: In steel mills and aluminum smelters, high electromagnetic interference from arc furnaces and large motor drives is a persistent threat to RS-485 communication. The RBIP-01, when installed with proper cable shielding and grounding practices, maintains MS/TP bus integrity in these environments, supporting continuous monitoring of cooling systems, fume extraction units, and energy consumption meters.

Port and Maritime Logistics: Shore power systems and vessel berthing facilities increasingly rely on BACnet-based energy management. The RBIP-01 enables integration between shipside BACnet/IP systems and pier-side MS/TP metering infrastructure, supporting accurate energy billing and load balancing without manual data entry.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the RBIP-01?
The support terms confirmed by quotation cover all manufacturing defects and functional failures occurring under normal operating conditions from the date of shipment. This includes communication failures, power input faults, and hardware component defects. Support requests are supported with replacement unit dispatch and return logistics coordination through our sales team.

Q2: What outgoing inspection does the RBIP-01 undergo before shipment?
Every RBIP-01 unit undergoes a full functional test prior to dispatch. This includes power-on verification, Ethernet link establishment, MS/TP bus communication test, and firmware version confirmation. Units that do not pass inspection are quarantined and not shipped. A test record is available upon request for critical project documentation.

Q3: Is the RBIP-01 compatible with third-party BACnet/IP controllers and MS/TP devices?
Yes. The RBIP-01 complies with ASHRAE BACnet standard (ANSI/ASHRAE 135) and is interoperable with BACnet/IP controllers from major automation vendors as well as MS/TP field devices from any BACnet-certified manufacturer. Compatibility has been validated in multi-vendor environments including Siemens, Honeywell, and Johnson Controls BACnet ecosystems.

Q4: Can long-term supply and spare part availability be guaranteed for the RBIP-01?
We maintain dedicated stock of the RBIP-01 to support ongoing project requirements, planned maintenance cycles, and emergency replacement needs. Long-term supply commitments are available for customers with multi-site or multi-year maintenance contracts. Contact our sales team to discuss volume reservation and lead time guarantees for your facility.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

RBIP-01

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB RBIP-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
