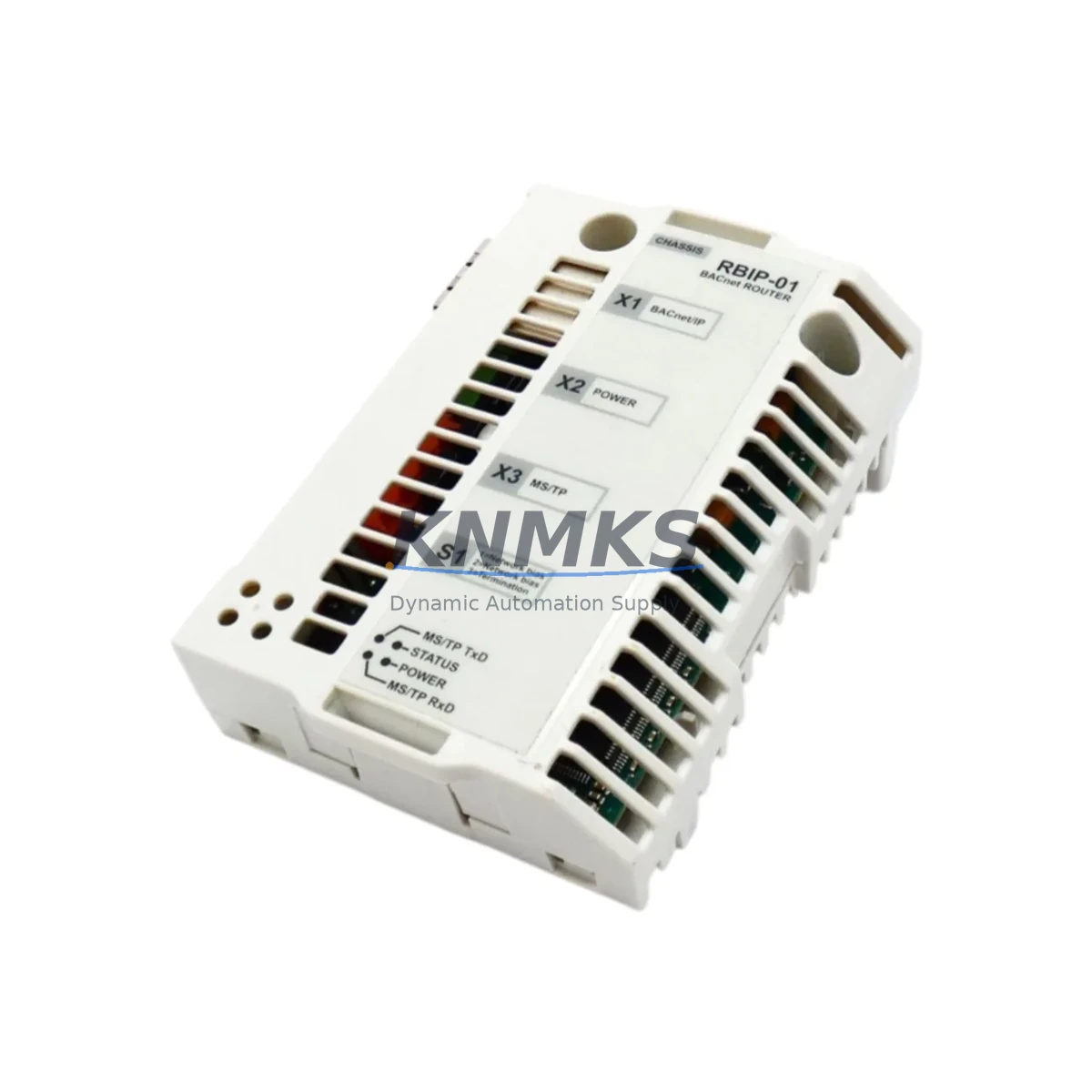

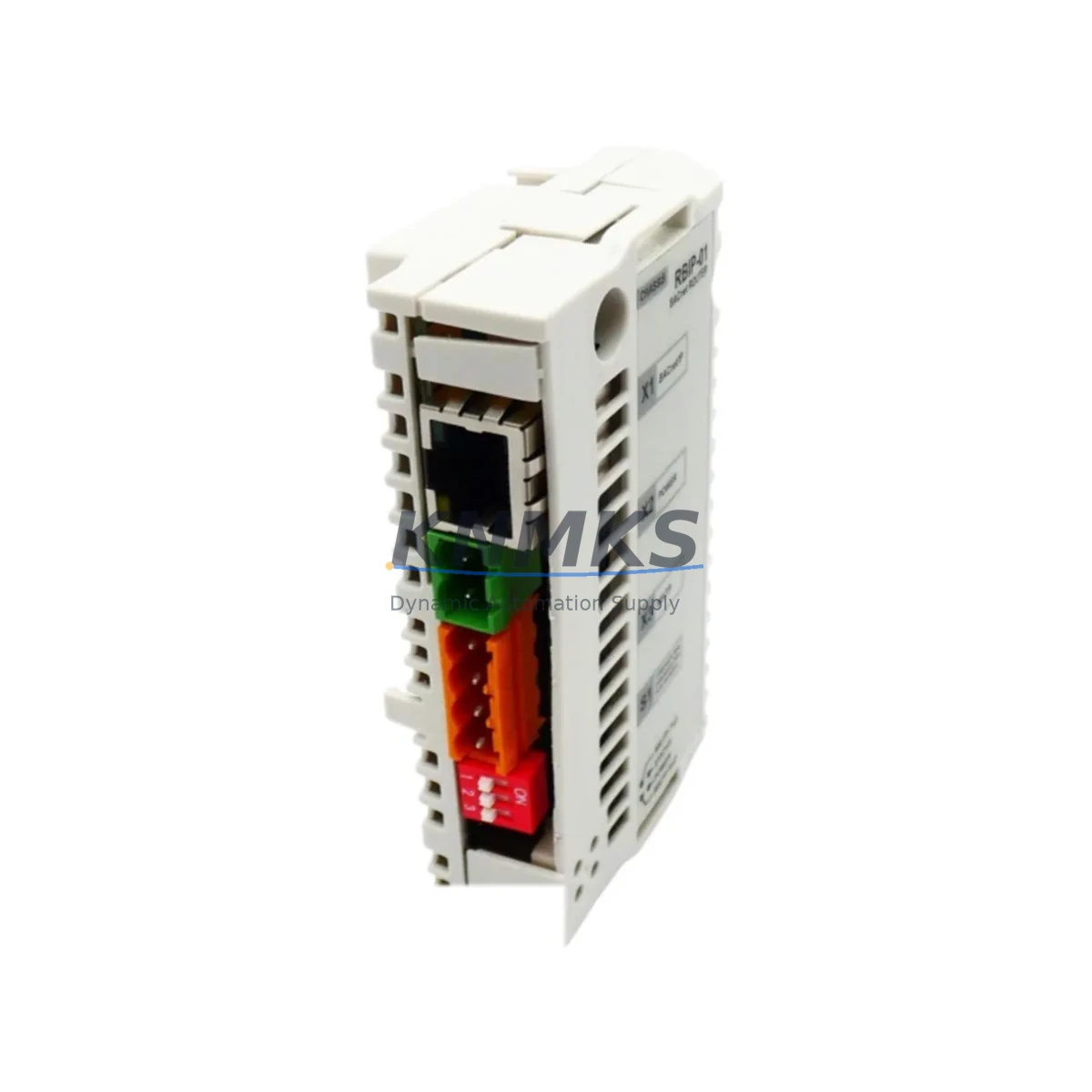

ABB RBIP-01 3AUA0000030932 Migration-Ready BACnet/IP Module

Overview

ABB RBIP-01 3AUA0000030932 Migration-Ready BACnet/IP Module: Legacy System Migration and Compatible Upgrade

The ABB RBIP-01 (part number 3AUA0000030932) is a BACnet/IP communication module designed for ABB ACS800, ACS550, and ACS355 series variable frequency drives. As building automation systems and industrial control networks transition away from legacy fieldbus architectures, the RBIP-01 provides a direct, validated migration path for facilities that need to integrate aging drive platforms into modern BACnet/IP-based supervisory control and data acquisition (SCADA) or building management system (BMS) environments. Whether you are replacing a failed communication adapter, upgrading a discontinued fieldbus module, or retrofitting an entire motor control center, the RBIP-01 delivers the protocol compatibility and physical form factor required to minimize engineering rework and reduce commissioning time on the plant floor.

Before initiating a retrofit with the RBIP-01, engineers should confirm several critical parameters. First, verify that the host drive’s option slot is compatible with the RBIP-01 form factor — the module installs into the drive’s option slot 1 or slot 2 depending on the ACS series. Power supply capacity within the drive’s internal bus must be sufficient to support the communication module without exceeding the slot’s rated current draw. Terminal wiring for the RJ-45 Ethernet port should be reviewed against the existing network topology, particularly if the legacy system used a dedicated BACnet MS/TP segment that is now being migrated to BACnet/IP over standard Ethernet infrastructure. IP address assignment, subnet mask, and default gateway parameters must be configured via the drive’s control panel or the ABB Drive Composer commissioning tool before the module can communicate with the BMS controller.

Module address configuration is another area requiring careful attention during migration. In systems where the drive was previously addressed as a BACnet MS/TP device, the BACnet device instance number must be reassigned to match the new BACnet/IP network map. This is particularly important in facilities running Johnson Controls Metasys, Siemens Desigo CC, or Honeywell EBI platforms, where device instance conflicts can cause supervisory control failures. The RBIP-01 supports standard BACnet objects including Analog Input, Analog Output, Binary Input, Binary Output, and Multi-State Value objects, ensuring that existing HMI graphics and trend logs can be remapped without requiring full screen rebuilds.

Program compatibility should be validated before cutover. If the drive’s application macro or parameter set was configured for a legacy RCAN-01 CANopen module or an RDNA-01 DeviceNet adapter, the communication-related parameter groups (group 51 and group 53 in ACS800 firmware) must be reconfigured to reflect BACnet/IP operation. Backup the existing parameter set using the ABB Drive Composer or the ACS-CP-C control panel before removing the old module. This preserves the motor control logic, PID tuning values, and fault history, allowing the retrofit to proceed without loss of process data. In multi-drive installations, the ABB RMBA-01 Modbus adapter or RDNA-01 DeviceNet module may remain active on other drives within the same control cabinet while the RBIP-01 is commissioned on the target drive, enabling a phased migration approach that avoids a full system shutdown.

Installation space confirmation is straightforward for most ACS800 and ACS550 cabinets, as the RBIP-01 occupies a standard option slot and does not require additional DIN rail mounting or external power wiring. However, in compact ACS355 installations or retrofit enclosures where cable management is constrained, the RJ-45 patch cable routing should be planned in advance to avoid interference with the drive’s cooling airflow path. Firmware version compatibility must also be verified — the RBIP-01 requires ACS800 firmware version 7.x or later for full BACnet/IP object support. Drives running earlier firmware versions may require a firmware upgrade using the ABB Flash Drop tool prior to module installation.

For facilities managing spare parts lifecycle and backup inventory, the RBIP-01 is a recommended stocking item for any site operating ABB ACS-series drives in BACnet-networked environments. The module’s long production history and broad compatibility across the ACS800, ACS550, and ACS355 platforms make it a versatile replacement component. Sites that previously stocked the RBIP-01’s predecessor, the RBIP-01C, should note that the current 3AUA0000030932 revision maintains backward compatibility with existing wiring and parameter configurations, simplifying emergency replacement scenarios. In control rooms where the ABB ACS-CP-C assistant control panel or the DPMP-01 panel bus module is already installed, the RBIP-01 can be added to the drive’s option slot without disrupting the panel communication link, allowing operators to maintain local HMI access throughout the network migration process.

Each RBIP-01 unit supplied by KNMKS undergoes pre-shipment functional testing to verify Ethernet link establishment, BACnet device instance registration, and object read/write response. Units are shipped with original ABB packaging and documentation. All orders include a support terms confirmed by quotation covering manufacturing defects and communication failures under normal operating conditions. In-stock inventory is maintained to support urgent replacement requirements, with same-day dispatch available for orders confirmed before the daily shipping cutoff.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful RBIP-01 retrofit begins with a thorough audit of the existing drive network. In a typical ACS800 installation, the drive may be sharing a control cabinet with an ABB AC500 PLC or a third-party controller connected via the RMBA-01 Modbus RTU adapter. During the migration planning phase, document all active communication parameters in parameter group 51 (Data Comm) and group 53 (EFB Protocol) before any hardware changes are made. If the control cabinet also houses an ABB DPMP-01 panel bus module for local operator interface, confirm that the panel bus communication remains active on a separate option slot so that local speed reference and fault reset functions are not interrupted during the BACnet/IP commissioning phase.

In multi-drive systems, the migration sequence should prioritize drives with the lowest process criticality first, allowing the commissioning team to validate BACnet object mapping and BMS integration before cutting over production-critical drives. The ABB RDNA-01 DeviceNet adapter or RCAN-01 CANopen module on adjacent drives can remain in service during this phased approach, as the BACnet/IP network operates independently on its own Ethernet segment. Once the RBIP-01 is installed and the drive’s BACnet device instance is registered in the BMS, verify that all analog speed reference, run/stop command, and fault status objects are reading and writing correctly before removing the legacy fieldbus wiring. For I/O-intensive applications, confirm that the drive’s standard I/O terminals — including the analog input for speed reference and the digital inputs for run/stop and fault reset — are still wired correctly, as the RBIP-01 supplements rather than replaces the drive’s hardwired I/O. In installations where an ABB RAIO-01 analog I/O extension module is fitted, verify that the RAIO-01’s parameter assignments are not affected by the communication module change.

Downtime Control During System Migration

Minimizing unplanned downtime during a BACnet/IP migration requires a structured cutover procedure. Begin by installing the RBIP-01 into the drive’s option slot while the drive is powered down and locked out. After power restoration, use the ACS-CP-C control panel to navigate to parameter group 98 (Option Modules) and confirm that the RBIP-01 is recognized by the drive firmware. Configure the BACnet device instance, IP address, and subnet parameters before connecting the RJ-45 patch cable to the building Ethernet network. This sequence prevents IP address conflicts and ensures that the BMS does not attempt to poll the new device before its parameters are fully configured.

To protect the original program logic, export the drive’s full parameter set using ABB Drive Composer before the cutover and store the backup file in a secure location accessible to the site’s maintenance team. If the drive is running a custom application macro with modified speed ramp times, PID parameters, or fault response settings, these values will be preserved in the parameter backup and can be restored immediately if the retrofit requires a rollback. During the commissioning phase, maintain local control capability by keeping the ACS-CP-C panel connected and operational, allowing operators to issue run/stop commands and monitor drive status independently of the BACnet/IP network. Once BMS integration is confirmed and all BACnet objects are responding correctly, the legacy fieldbus wiring can be removed and the drive can be returned to automatic BMS control. This structured approach typically allows a single-drive RBIP-01 retrofit to be completed within a planned four-hour maintenance window, significantly reducing the risk of extended production interruptions.

Retrofit Support FAQ

Q: Is the RBIP-01 (3AUA0000030932) a direct replacement for the RBIP-01C?
A: Yes. The RBIP-01 (3AUA0000030932) is the current production revision and is backward compatible with the RBIP-01C in terms of physical installation, parameter configuration, and BACnet/IP functionality. No wiring changes or parameter group restructuring is required when replacing an RBIP-01C with the current revision.

Q: What commissioning steps are required after installing the RBIP-01?
A: After physical installation, navigate to parameter group 51 on the drive to activate the option slot communication. Set the BACnet device instance, IP address, subnet mask, and gateway in the RBIP-01 configuration parameters. Connect the RJ-45 cable to the BACnet/IP Ethernet network and verify device registration in the BMS. Confirm that all required BACnet objects (speed reference, run/stop, fault status) are reading and writing correctly before returning the drive to automatic control.

Q: Can the RBIP-01 be used alongside other option modules in the same drive?
A: Yes. The RBIP-01 occupies one option slot and can coexist with other ABB option modules installed in the drive’s remaining slots, such as the DPMP-01 panel bus module or the RAIO-01 analog I/O extension. Confirm slot assignment compatibility with the specific ACS drive model before ordering.

Q: What support terms and testing does KNMKS provide with the RBIP-01?
A: Every RBIP-01 unit is pre-tested for Ethernet link establishment, BACnet device instance registration, and BACnet object read/write response before shipment. A support terms confirmed by quotation is included, covering manufacturing defects and communication failures under normal operating conditions. In-stock inventory is maintained for urgent replacement requirements.
