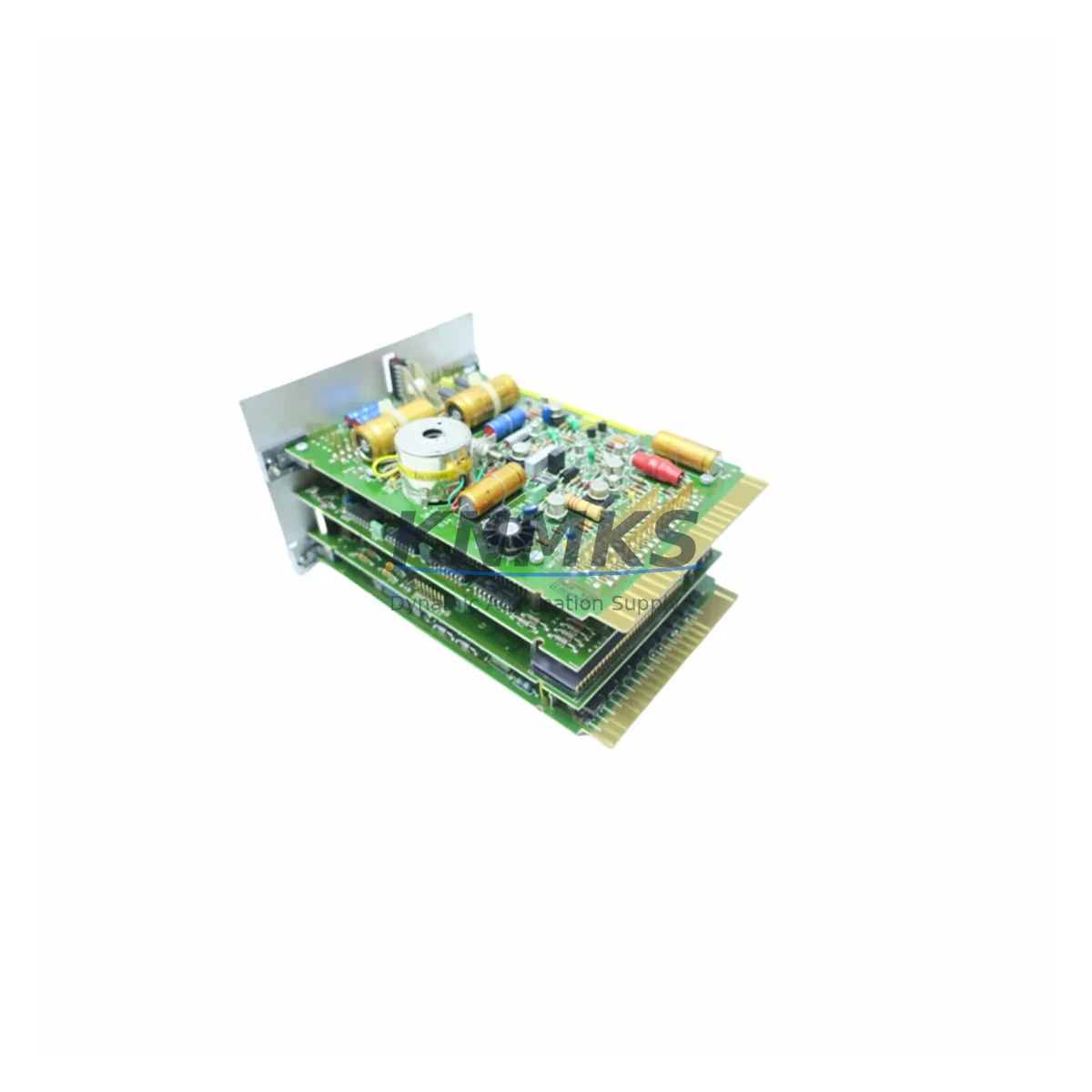

ABB PT8153B-E Migration-Ready CPU for Legacy Control Systems

Overview

ABB PT8153B-E Migration-Ready CPU for Legacy Control Systems

The ABB PT8153B-E is a migration-ready CPU module engineered for engineers and maintenance teams managing end-of-life AC500 control platforms. As legacy ABB AC500 systems approach end-of-support milestones, the PT8153B-E provides a verified drop-in replacement path that preserves existing rack architecture, I/O wiring, and program logic — minimizing retrofit risk and unplanned downtime across critical production environments.

This CPU is fully compatible with the AC500 V2 backplane ecosystem, allowing direct installation into existing PM554, PM564, and PM583 rack configurations without mechanical modification. Engineers replacing a failed or obsolete CPU can retain the existing TB521 and TB541 terminal base assemblies, preserving field wiring integrity and eliminating the need for full cabinet rewiring. Power supply modules such as the PS501 and PS560 remain compatible, reducing the bill of materials for a controlled replacement event.

Before installation, engineering teams should verify the following: available backplane slot addressing, firmware version compatibility between the PT8153B-E and any co-installed communication modules (including CI501-PNIO for PROFINET or CI502-PNIO for PROFIBUS DP), HMI screen tag mapping against the existing CP600 or CP620 operator panel configuration, and available DIN rail space within the control cabinet. Program migration from older AC500 V1 CPUs requires a Automation Builder project export and re-import cycle, with careful attention to I/O channel mapping and function block library version alignment.

For installations involving Modbus RTU or Modbus TCP communication links, the PT8153B-E supports both protocols natively, allowing existing SCADA and DCS integration points to remain unchanged during the CPU swap. Where PROFIBUS DP segments are in use, the CI590-CS31-HA coupler and associated DP slave configurations should be validated against the new CPU’s firmware before live commissioning. Communication link continuity is critical in process industries where a dropped fieldbus segment can trigger a plant-wide safety interlock.

Pre-shipment testing is performed on every PT8153B-E unit prior to dispatch. Each module is bench-tested under simulated rack load conditions, with firmware verified against the latest ABB release. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Multi-region stock is maintained to support both emergency same-day dispatch and scheduled outage windows, with units available for immediate shipment to Asia-Pacific, Europe, and the Americas.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PT8153B-E retrofit begins with a structured pre-outage audit. Start by documenting the existing CPU slot address, backplane configuration, and all connected I/O modules — including any DC532 digital I/O modules or AX522 analog I/O modules installed in adjacent slots. Confirm that the existing PS501 power supply can sustain the PT8153B-E’s current draw alongside the full I/O load; in high-density racks, a PS560 upgrade may be warranted to maintain voltage stability under peak scan cycle conditions.

Communication module validation is the next critical step. If the control cabinet includes a CI501-PNIO PROFINET coupler or a CI502-PNIO PROFIBUS DP interface module, verify that the firmware versions of these modules are compatible with the PT8153B-E before the outage window begins. Mismatched firmware between the CPU and communication modules is a leading cause of extended commissioning time during unplanned replacements.

For systems using a CP620 HMI panel, export the existing screen project and verify all tag addresses against the new CPU’s I/O map before the cutover. Signal isolators installed between field instruments and the I/O rack should be checked for loop power compatibility, particularly in 4–20 mA analog loops where the PT8153B-E’s AX522 analog input channels are in use. Programming cables (e.g., USB-to-serial adapters for legacy RS-232 programming ports) should be prepared in advance to allow rapid Automation Builder connection during commissioning.

Downtime Control During System Migration

Minimizing downtime during a PT8153B-E CPU replacement requires a disciplined pre-outage preparation protocol. Before the planned maintenance window, perform a full Automation Builder project backup, export all HMI screen configurations, and photograph or document all terminal wiring on the TB521 or TB541 terminal bases. This documentation serves as the recovery baseline if commissioning issues arise during the swap.

During the outage, follow a structured sequence: power down the rack via the PS501 or PS560 supply, remove the failed CPU, install the PT8153B-E into the same slot, restore power, and confirm backplane communication with all I/O modules before downloading the program. Avoid downloading the program before I/O communication is confirmed — a partial I/O scan during program initialization can corrupt output states and trigger downstream safety interlocks.

After program download, perform a controlled output test in manual mode before returning the system to automatic operation. Verify all Modbus or PROFIBUS communication links are active, confirm HMI tag updates are reflecting live process values, and document the commissioning completion time. With pre-tested units and a structured protocol, most PT8153B-E replacements are completed within a single 4–8 hour planned maintenance window.

Retrofit Support FAQ

Q: Is the PT8153B-E a direct drop-in replacement for the PM564 CPU?
A: Yes. The PT8153B-E is mechanically and electrically compatible with the AC500 V2 backplane used by the PM564. Program migration requires an Automation Builder project re-import, with I/O channel mapping verified before commissioning.

Q: Does the unit ship with firmware pre-installed?
A: Yes. Every PT8153B-E is pre-tested and shipped with the latest compatible ABB firmware installed. Firmware version is documented on the shipment certificate included with each unit.

Q: What is the support terms coverage?
A: All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed directly through KNMKS.

Q: Can you supply multiple units for a phased migration project?
A: Yes. Multi-unit orders are supported from multi-region stock. Contact the sales team to confirm availability and lead times for scheduled outage or phased rollout programs.
