ABB PPC907BE 3BHE024577R0101 Migration-Ready Drive Control Board

Overview

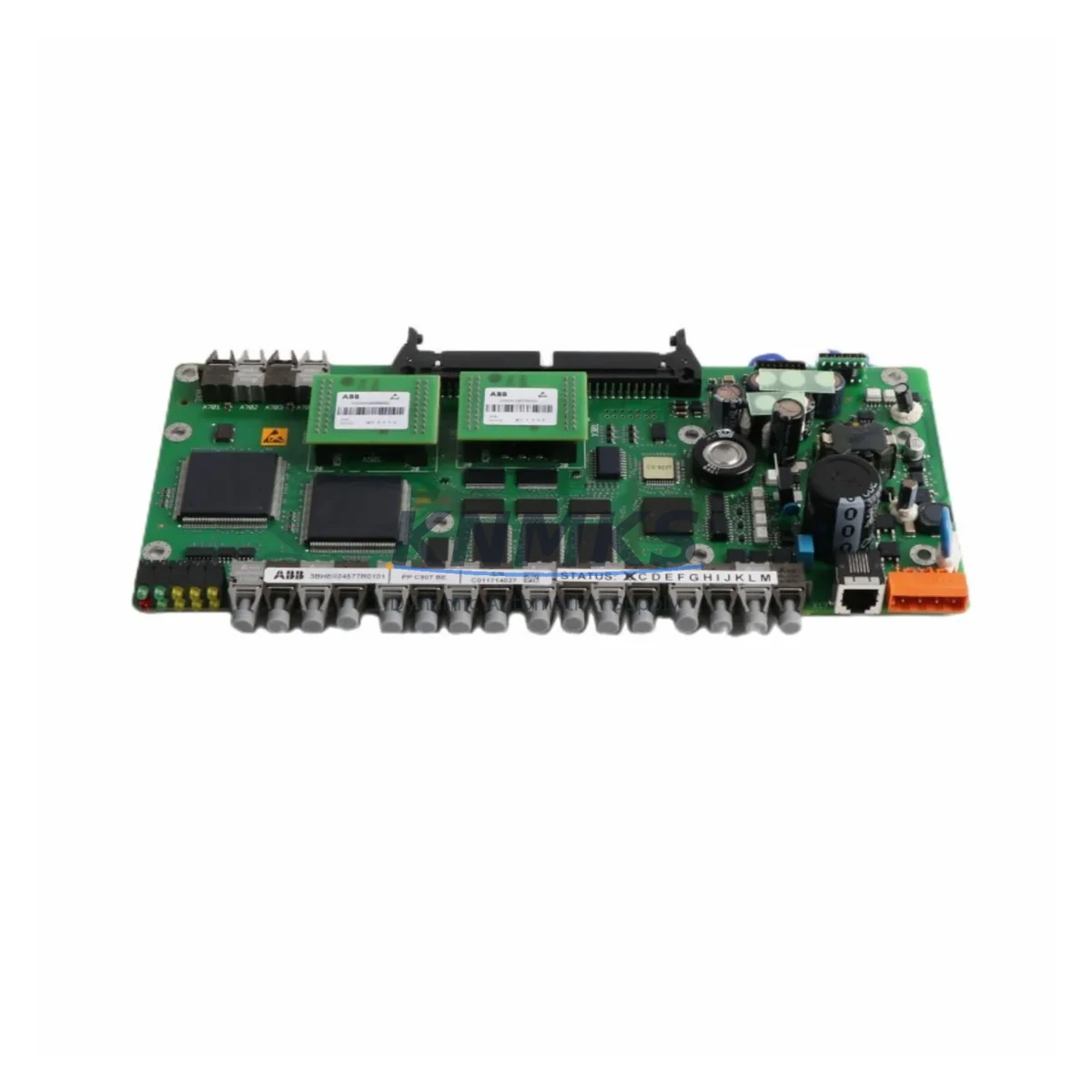

ABB PPC907BE 3BHE024577R0101 Migration-Ready Drive Control Board: Legacy System Retrofit & Compatibility Upgrade

The ABB PPC907BE (part number 3BHE024577R0101) is a high-performance control board designed for the ACS800 series variable frequency drive platform. As industrial facilities face increasing pressure to modernize aging automation infrastructure, this board has become a critical component in legacy system migration projects — offering a direct, drop-in replacement path for sites still operating first- and second-generation ACS800 drive cabinets. Whether you are managing a planned retrofit, responding to an unexpected drive failure, or extending the service life of an existing control system, the PPC907BE delivers the compatibility and reliability that industrial engineers require.

In retrofit and upgrade scenarios, the PPC907BE is commonly deployed alongside the AINT-02C auxiliary interface board, RDCO-02C DDCS communication option module, and RMIO-11C motor control and I/O board — all of which share the same ACS800 backplane architecture. When upgrading a full drive cabinet, engineers frequently pair the PPC907BE with the APBU-44C branching unit and IOEC-04 I/O extension module to preserve existing field wiring and minimize re-termination work. For sites migrating from older DRIVEBUS or DDCS communication topologies to modern PROFIBUS-DP or Ethernet-based networks, the RDCO-02C communication module is typically installed in the same retrofit cycle as the PPC907BE control board replacement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the PPC907BE into an existing ACS800 installation requires careful pre-retrofit planning. Before removing the failed or aging control board, engineers should perform a full parameter backup using the ACS800 DriveWindow or DriveWindow Light software tool, or retrieve the parameter set stored on the optional MFDT-01 FlashDrop memory unit if one is installed in the drive. This backup is essential for restoring motor data, application macros, speed and torque references, and all I/O assignments after the new board is seated.

Power supply capacity is a key verification point. The ACS800 internal SMPS (switch-mode power supply) board — often the APOW-01 or APOW-02 — must be confirmed as functional and capable of supplying the correct 24 VDC and 5 VDC rails to the new PPC907BE. A degraded power supply board is a common secondary failure in aging drive cabinets and should be inspected as part of any control board replacement project.

Terminal wiring on the RMIO-11C motor control and I/O board, which interfaces directly with the PPC907BE via the internal DDCS fiber link, should be documented and photographed before disassembly. Analog input scaling, digital input logic levels, and relay output assignments must all be verified against the original commissioning documentation. In multi-drive systems using an APBU-44C branching unit, the DDCS node addresses assigned to each drive must be confirmed to avoid address conflicts after the board swap.

For facilities operating ACS800 drives in conjunction with ABB AC500 or AC800M control systems, the communication link between the PLC and the drive — whether via PROFIBUS-DP, Modbus RTU, or DDCS — must be tested end-to-end after the PPC907BE replacement. HMI screens referencing drive status words, fault codes, and speed feedback should be validated against the restored parameter set to confirm that all display values and alarm triggers remain correctly mapped.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a control board in a running production environment. For the PPC907BE replacement, the recommended approach is to pre-configure the replacement board off-line where possible, using a known-good parameter backup file and a laptop running DriveWindow Light. This allows the commissioning engineer to verify firmware version compatibility and load the parameter set before the board is installed in the drive cabinet, reducing live commissioning time to parameter verification and I/O functional testing only.

Where a parameter backup is not available — a common situation with legacy drives that have never been connected to a PC tool — the commissioning engineer must reconstruct the parameter set from the original drive order documentation, motor nameplate data, and any available as-built wiring diagrams. In these cases, allow additional time for motor identification runs and speed reference calibration. The ACS800 standard application firmware includes an automated motor identification routine (ID Run) that significantly reduces the time required to re-establish accurate motor control after a cold-start commissioning.

To protect original program logic and control continuity, never clear the RMIO-11C I/O board configuration during a PPC907BE swap unless a full re-commissioning is planned. The I/O board retains its configuration independently of the control board, and preserving this configuration eliminates the need to re-wire or re-scale analog and digital signals. For drives integrated into safety circuits — including emergency stop, safe torque off (STO), or fire mode functions — all safety-related I/O must be functionally tested and documented before the drive is returned to service.

Retrofit Support FAQ

Q: Is the PPC907BE 3BHE024577R0101 a direct replacement for the original board in my ACS800 drive?
A: Yes. The PPC907BE 3BHE024577R0101 is a direct plug-in replacement for the original control board in compatible ACS800 drives. No hardware modification to the drive cabinet is required. Verify your drive type code against the ACS800 hardware manual to confirm the correct control board variant before ordering.

Q: What commissioning steps are required after installing the PPC907BE?
A: After installation, restore the drive parameter set from a backup file using DriveWindow or DriveWindow Light. If no backup is available, re-enter motor nameplate data and run the motor ID routine. Verify all I/O assignments, communication link status, speed and torque references, and HMI display values before returning the drive to automatic operation.

Q: How do I confirm firmware compatibility between the PPC907BE and my existing ACS800 application software?
A: Check the firmware version loaded on the replacement PPC907BE against the firmware version documented in your drive’s commissioning records. The ACS800 firmware version is readable via parameter 33.01 (Software version) using DriveWindow. If a firmware update is required, contact your ABB service representative or use the ABB Drive Composer tool for supported firmware versions.

Q: What does the support terms confirmed by quotation cover, and what is the supply lead time?
A: The support terms confirmed by quotation cover manufacturing defects and functional failures under normal industrial operating conditions from the date of shipment. Units are inspected and function-tested prior to dispatch. Stock is available for immediate shipment; standard lead time is 3–7 business days for international orders. Contact [email protected] or +86 18359268345 for current stock confirmation and expedited shipping options.
