ABB PP865A 3BSE042236R2 Maintenance-Proven Spare for Panel 800

Overview

ABB PP865A 3BSE042236R2 Maintenance-Proven Spare for Panel 800: Reliable HMI Replacement for Factory Uptime

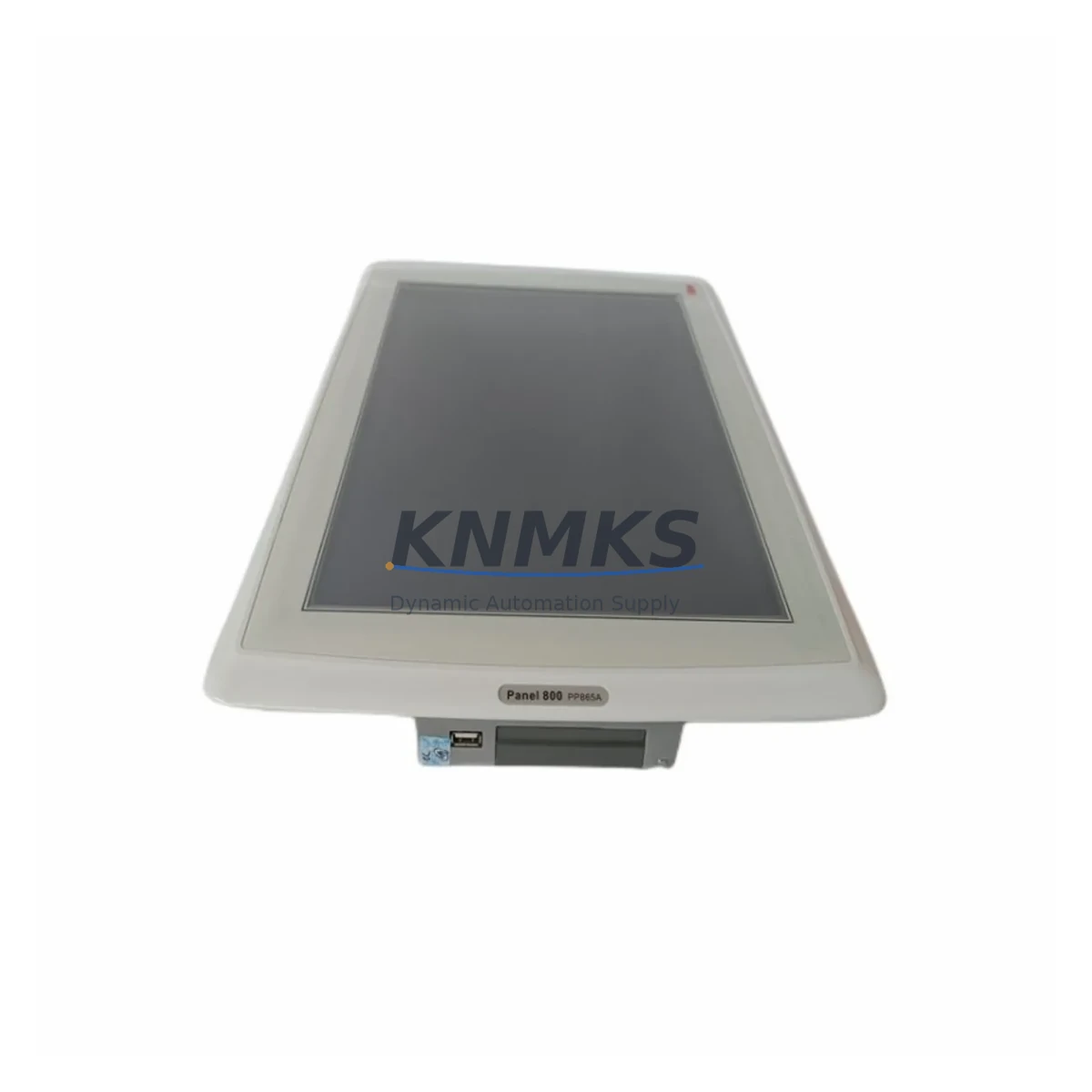

The ABB PP865A (3BSE042236R2) is a high-performance operator panel designed for the ABB Panel 800 series HMI platform, widely deployed across process automation, power distribution, and discrete manufacturing environments. As a maintenance-proven spare part, the PP865A supports rapid field replacement to minimize unplanned downtime and restore operator visibility to critical control loops without requiring system reconfiguration or software migration.

For maintenance engineers managing aging ABB control architectures, the PP865A represents a direct, plug-compatible replacement for failed or degraded operator panels in Panel 800 installations. Its compatibility with the Panel 800 communication stack and display interface ensures that existing project files, alarm pages, and trend displays remain fully functional after swap-out — a critical advantage when production schedules cannot accommodate extended commissioning windows.

Procurement engineers sourcing this unit for strategic spare parts inventory will benefit from its long-term availability through authorized industrial distribution channels. Each unit shipped by KNMKS undergoes pre-shipment functional verification, including display integrity, touchscreen response, and communication port continuity checks, backed by a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial service conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the PP865A in a Panel 800 cabinet, a thorough site inspection of adjacent components is essential to prevent repeat failures and ensure system stability. Begin by verifying the 24 VDC panel power supply — units such as the ABB CP-E 24/5.0 or equivalent DIN-rail power supply should be load-tested to confirm output voltage remains within ±1% under full cabinet load. A degraded power supply is a common root cause of premature HMI failure and is frequently overlooked during reactive maintenance.

Inspect the Ethernet communication cable and RJ45 connector integrity between the PP865A and the AC500 PLC CPU module (e.g., PM591 or PM595). Loose or corroded connectors can cause intermittent communication faults that manifest as HMI freeze or blank-screen events, often misdiagnosed as panel hardware failure. Replace patch cables with industrial-grade shielded Cat5e or Cat6 cable where cable runs exceed 5 meters or pass through electrically noisy environments.

Check the 24 VDC fuse or circuit breaker protecting the HMI supply branch. A 2A slow-blow fuse is typical for this panel class; replace with an identical rating and verify the fuse holder contact resistance. For cabinets using terminal blocks (e.g., ABB ENTRELEC or Phoenix Contact series), inspect for oxidation or loose wire ferrules on the HMI power terminals, as high-resistance connections can cause voltage drop under load.

If the Panel 800 system includes a communication gateway or protocol converter — for example, an ABB CI854 PROFIBUS DP module or a Modbus TCP/RTU bridge — verify that the gateway firmware version is compatible with the replacement PP865A panel software revision. Mismatched firmware can prevent the HMI from establishing a stable connection to field devices after replacement.

For sites running legacy ABB Advant or MOD 300 systems interfaced to Panel 800 via serial links, inspect the RS-232 or RS-485 signal isolator in the communication chain. Signal isolators degrade over time in high-EMI environments and can introduce communication errors that appear as HMI data loss. Replacing the isolator as a preventive measure during the PP865A swap-out is a low-cost, high-value maintenance action.

Annual maintenance schedules for Panel 800 installations should include a cabinet thermal audit. Verify that cabinet cooling fans are operational and that air filters are clean. Elevated ambient temperatures above 45°C significantly reduce the service life of LCD backlights and touchscreen overlays. Documenting the PP865A installation date and scheduling a proactive backlight inspection at 40,000 operating hours supports a predictive maintenance strategy and reduces unplanned HMI outages.

Site Replacement Workflow

Step 1 — Preparation: Download and archive the existing PP865A project file from the Panel Builder 800 engineering workstation before beginning any hardware work. Confirm the software version and project checksum. Obtain the replacement PP865A (3BSE042236R2) and verify the order code label matches the installed unit.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. Isolate the 24 VDC supply to the HMI branch circuit. Confirm zero voltage at the panel terminals before disconnecting cables.

Step 3 — Hardware Swap: Disconnect the Ethernet, USB, and power cables from the existing PP865A. Remove the panel from the cabinet cutout by releasing the mounting clamps. Install the replacement unit, reconnect all cables, and verify connector seating. Restore power.

Step 4 — Software Restore: Using Panel Builder 800, download the archived project file to the replacement PP865A. Verify that all screens, alarm pages, and communication tags load correctly. Confirm live data from the AC500 PLC is displayed accurately on all operator screens.

Step 5 — Functional Verification: Perform a full touchscreen calibration if required. Test all operator inputs, alarm acknowledgment functions, and trend displays. Document the replacement in the site maintenance log, including the new unit serial number and installation date.

This workflow supports a target downtime of under 2 hours for a trained maintenance technician, preserving production continuity and avoiding the extended delays associated with sourcing non-stocked spare parts at the time of failure.

Spare Parts Support FAQ

Q1: Is the PP865A 3BSE042236R2 a direct replacement for all Panel 800 HMI installations?
The PP865A 3BSE042236R2 is designed as a direct replacement for existing PP865A installations within the ABB Panel 800 series. Compatibility with specific cabinet configurations and software revisions should be confirmed against the installed Panel Builder 800 project version. KNMKS technical support can assist with compatibility verification prior to order.

Q2: What pre-shipment testing is performed on each unit?
Every PP865A unit shipped by KNMKS undergoes functional verification covering display backlight and pixel integrity, touchscreen response across the full active area, and communication port continuity for Ethernet and USB interfaces. A test report is available upon request for quality-critical procurement processes.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and operational failures under normal industrial service conditions, including display failure, communication port malfunction, and power input circuit faults. Support requests are processed with a replacement-first policy to minimize site downtime. Physical damage, incorrect installation voltage, or environmental exposure beyond rated limits are excluded.

Q4: Can KNMKS support long-term or blanket purchase orders for Panel 800 spare parts?
Yes. KNMKS supports long-term supply agreements and blanket purchase orders for the PP865A and related Panel 800 components. Dedicated stock reservation is available for customers with annual maintenance programs or multi-site ABB installations. Contact admin@knmks.com or +86 18359268345 to discuss inventory planning and lead time commitments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PP865A 3BSE042236R2

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PP865A 3BSE042236R2
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
