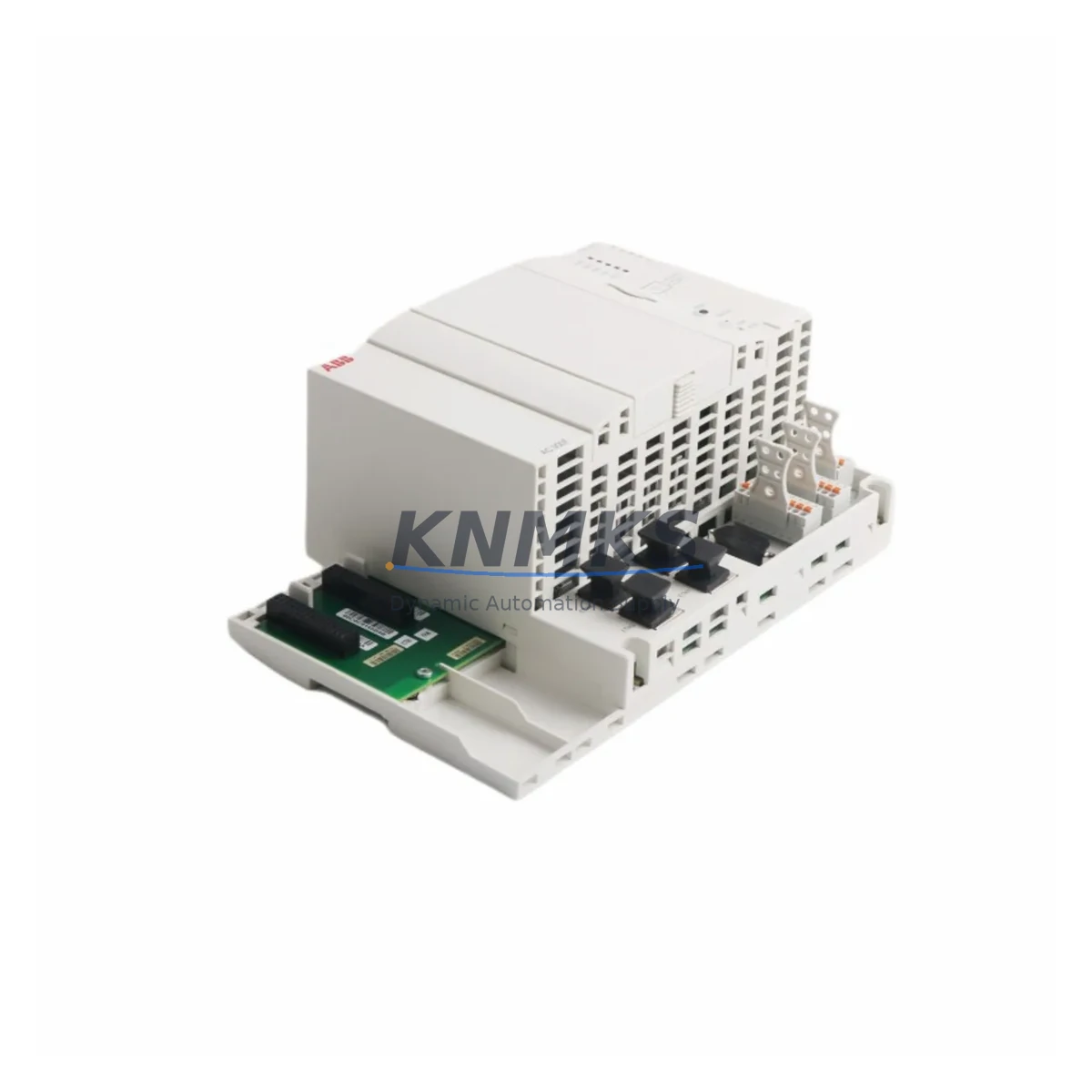

ABB PM902F 3BDH001000R0001 Fail-Safe PLC CPU Module

Overview

ABB PM902F 3BDH001000R0001 Fail-Safe PLC CPU Module: Fault Protection and Critical Industrial Reliability

The ABB PM902F (3BDH001000R0001) is a high-performance CPU module from ABB’s AC500 series programmable logic controller platform — engineered for continuous production environments where control interruption is not an option. Designed to meet the rigorous demands of industrial safety loops, critical interlock systems, and heavy-duty control cabinets, the PM902F delivers deterministic scan-cycle execution, robust fault-tolerance, and sustained reliability across the harshest field conditions.

In facilities where unplanned downtime translates directly to production loss, safety incidents, or regulatory non-compliance, the PM902F provides the processing backbone that keeps control logic running without deviation. Its architecture supports IEC 61131-3 programming standards, enabling seamless integration into existing ABB AC500 control architectures and reducing engineering risk during system upgrades or spare-part replacements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the PM902F does not operate in isolation — it functions as the decision-making core of a layered protection architecture. To maintain cabinet-level reliability, the CPU module is typically paired with ABB CP502 or CP503 power supply modules, which provide stable, regulated DC power and protect against input voltage fluctuations that could otherwise cause CPU resets or data corruption during grid disturbances.

On the I/O side, ABB DC532 digital input modules and DA501 analog input modules feed real-time field signals into the PM902F’s scan cycle. In high-EMI environments — common in motor control centers, variable frequency drive (VFD) cabinets, and arc furnace control rooms — shielded I/O wiring combined with ABB’s TU515 or TU516 terminal units ensures signal integrity is maintained without introducing ground loops or common-mode noise that could cause signal drift or false triggering.

For communication-critical applications, the PM902F integrates with ABB CM572-DP PROFIBUS DP communication modules, enabling deterministic fieldbus communication to distributed I/O racks, intelligent motor controllers, and remote safety relay panels. In architectures where redundant communication paths are required — such as in power generation or chemical processing — the addition of an CM589-PNIO PROFINET module provides a secondary high-speed Ethernet backbone, ensuring that a single communication fault does not propagate into a control system outage.

Cabinet thermal management is equally critical. In high-ambient-temperature environments such as outdoor substations or enclosed process skids, the PM902F’s thermal design supports continuous operation without derating, reducing the risk of cabinet overheating that can accelerate component aging across the entire control system.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous hydrocarbon processing, the PM902F supports emergency shutdown (ESD) interlock logic, burner management sequences, and compressor protection systems where a single control failure can trigger cascading safety events. Its deterministic cycle time ensures that safety-critical outputs respond within defined reaction windows.

Electric Power Generation & Substation Automation: The PM902F is deployed in turbine governor control, transformer protection relay coordination, and bus-tie switching logic. Its EMI-hardened design withstands the high-frequency interference generated by high-voltage switching operations and capacitor bank switching transients.

Mining & Mineral Processing: In underground and open-pit mining operations, the PM902F controls conveyor interlock systems, crusher protection logic, and ventilation safety sequences. Its vibration tolerance and wide operating temperature range make it suitable for both surface control rooms and underground electrical substations.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the PM902F for pump station sequencing, chemical dosing control, and overflow protection interlocks. Its resistance to humidity and condensation is particularly valuable in wet process environments where lesser-rated CPUs suffer accelerated corrosion.

Metallurgy & Steel Production: In electric arc furnace (EAF) and rolling mill control systems, the PM902F manages high-current switching sequences, cooling water interlock logic, and fume extraction safety systems — all in environments characterized by extreme electromagnetic interference and thermal cycling.

Port & Marine Automation: Shore power management, crane PLC control, and vessel loading arm interlock systems benefit from the PM902F’s robust communication capabilities and its ability to maintain reliable operation in salt-air, high-humidity coastal environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB PM902F 3BDH001000R0001?
All units are covered by a 12-month quality support terms from the date of shipment. If a confirmed manufacturing defect or functional failure occurs within the confirmed support period under normal operating conditions, we provide replacement or repair support. Support requests are processed with documented test reports.

Q2: How is each unit tested before shipment?
Every ABB PM902F unit undergoes a full functional pre-shipment inspection, including power-on verification, communication interface testing, and visual inspection for physical integrity. Units that do not pass inspection are not dispatched. Test records are available upon request for critical procurement applications.

Q3: Is the PM902F compatible with existing ABB AC500 control systems and I/O configurations?
Yes. The PM902F is a native AC500 series CPU module and is fully compatible with ABB’s AC500 I/O bus architecture, including existing digital, analog, and communication expansion modules. It supports IEC 61131-3 programming, allowing existing control programs to be transferred or adapted with minimal re-engineering effort.

Q4: Can long-term supply and replacement support be guaranteed for critical production lines?
We maintain dedicated stock of the PM902F and other AC500 series components to support ongoing spare-part programs for critical infrastructure operators. For facilities with planned maintenance cycles or multi-year supply agreements, we recommend confirming stock reservation in advance. Our team provides compatibility verification and replacement guidance to ensure field-safe substitution without control system disruption.
