ABB PM592-ETH 1SAP350200R0271 Spare Part for AC500: Maintenance-Proven CPU for Factory Uptime

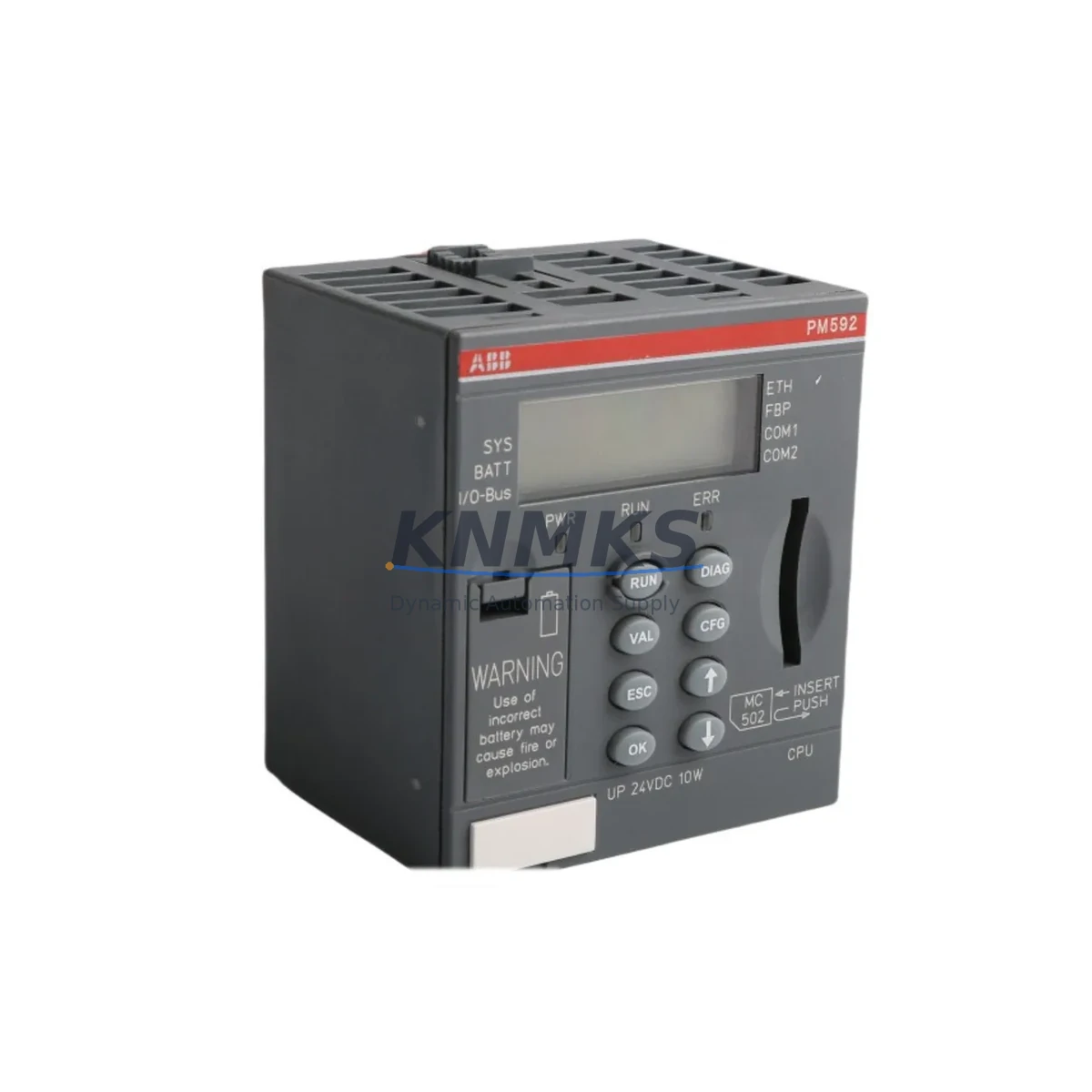

The ABB PM592-ETH (catalog reference 1SAP350200R0271) is a high-performance Ethernet-enabled CPU module for the ABB AC500 PLC platform — one of the most widely deployed programmable logic controllers in process automation, machine control, and utility infrastructure worldwide. Sourced as an original spare, this unit is fully tested prior to shipment and backed by a support terms confirmed by quotation, making it a reliable choice for maintenance engineers managing aging AC500 installations or building strategic spare parts inventory against unplanned downtime.

Whether you are responding to a CPU fault alarm, executing a planned annual overhaul, or pre-positioning critical spares for a remote site, the PM592-ETH delivers the processing power and Ethernet connectivity required to restore control system operation with minimal disruption. Its compatibility with both V2 and V3 AC500 hardware generations means it can serve as a direct replacement across a broad installed base without requiring firmware re-engineering or hardware redesign.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or pre-staging the PM592-ETH in an AC500 control cabinet, a thorough maintenance review of the surrounding electrical environment is essential to avoid repeat failures and ensure a clean system restart. Begin with the AC500 power supply module (such as the CP502 or CP503 series) — verify output voltage stability under load, as CPU modules are sensitive to supply ripple and voltage dips during startup sequences. Inspect the terminal block wiring on adjacent I/O modules for signs of oxidation, loose ferrules, or insulation degradation, particularly in high-vibration or high-humidity environments.

Check all digital and analog I/O expansion modules (SM560-S, SM560-S-XC, or equivalent) for correct addressing and firmware revision alignment with the replacement CPU. Mismatched firmware between the CPU and I/O modules is a common cause of post-replacement communication faults. If the installation uses MODBUS TCP or PROFIBUS DP fieldbus communication, verify that the network configuration stored on the SD memory card is current and that the IP address assignment is correctly documented before swapping the CPU.

For installations with ABB CP600 or CP620 HMI panels connected via Ethernet, confirm that the HMI project references the correct CPU IP address and that the communication driver version is compatible with the PM592-ETH firmware. Additionally, inspect signal isolators and surge protection devices on analog input channels — these components are frequently overlooked during CPU replacement but can be the root cause of recurring analog signal errors after the new CPU is commissioned. Finally, check 24 VDC fuse holders and miniature circuit breakers in the control cabinet to ensure no upstream protection device has been weakened by the fault event that triggered the CPU replacement.

Site Replacement Workflow

Step 1 — Documentation: Before powering down, export the current PLC program from the running CPU using ABB Automation Builder or PS501 Control Builder Plus. Save the project file and note the current firmware version, IP configuration, and I/O module rack layout.

Step 2 — Safe Shutdown: Follow the site lockout/tagout (LOTO) procedure. Power down the AC500 rack via the upstream MCB. Allow capacitors to discharge for a minimum of 30 seconds before handling the CPU module.

Step 3 — Module Swap: Remove the SD memory card from the faulty PM592-ETH and retain it. Slide the replacement PM592-ETH into the CPU slot on the AC500 backplane. Insert the SD card into the new module — the AC500 platform supports program restore from SD card on first boot, significantly reducing recommissioning time.

Step 4 — Power-Up and Verification: Restore power and observe the CPU status LEDs. Confirm RUN status, Ethernet link activity, and I/O module recognition via the system diagnostics screen on the connected HMI or via Automation Builder online mode. Verify all I/O channels are reporting correctly before releasing the process to production.

Step 5 — Compatibility Note: The PM592-ETH is backward compatible with AC500 V2 racks and fully native to V3 hardware. No hardware modification is required for cross-generation replacement. Firmware upgrade may be required if migrating from a significantly older CPU revision — consult ABB document 3ADR010066 for firmware compatibility matrices.

Spare Parts Support FAQ

Q1: Is the PM592-ETH 1SAP350200R0271 still in production, and can I secure long-term supply?
The PM592-ETH remains an active catalog item within the ABB AC500 V3 platform. KNMKS maintains buffer stock and can support blanket purchase orders for customers requiring guaranteed availability over 12–36 month maintenance windows. Contact our team to discuss scheduled delivery programs.

Q2: How is the unit tested before shipment?
Each PM592-ETH unit undergoes functional power-on testing, Ethernet port verification, and firmware version confirmation prior to dispatch. Units are packed in anti-static ESD bags with foam cushioning to prevent transit damage. A test report is available upon request.

Q3: Can this CPU replace an older PM591 or PM590 installed in an existing AC500 rack?
Yes, with configuration review. The PM592-ETH is upward compatible with AC500 racks previously housing PM590 or PM591 CPUs. The expanded Ethernet capability and increased memory of the PM592-ETH may require minor project adaptation in Automation Builder, but no physical rack modification is needed. KNMKS technical support can assist with compatibility verification.

Q4: What does the support terms confirmed by quotation cover?
The support terms covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the rated specification. Support requests are processed with return shipping support and priority replacement dispatch.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PM592-ETH 1SAP350200R0271
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PM592-ETH 1SAP350200R0271
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
