ABB PM592-ETH 1SAP150200R0271 Migration-Ready CPU

Overview

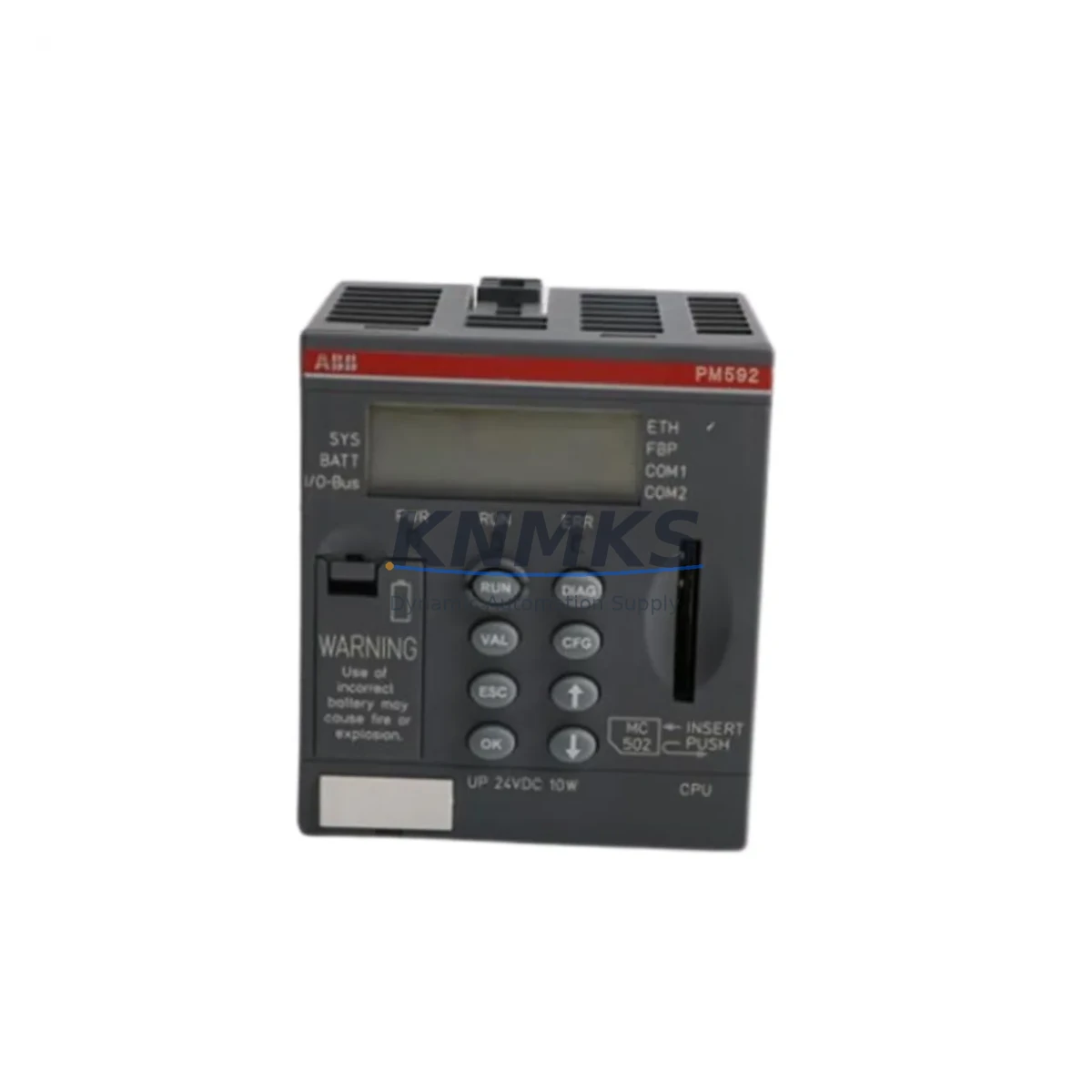

ABB PM592-ETH 1SAP150200R0271 Migration-Ready CPU for Legacy AC500 Control Systems

The ABB PM592-ETH (catalog number 1SAP150200R0271) is a high-performance CPU module designed for the ABB AC500 PLC platform, purpose-built to serve as a direct migration path from discontinued or aging predecessors such as the PM581 and PM582. With integrated Ethernet connectivity, expanded memory capacity, and full IEC 61131-3 programming compatibility, the PM592-ETH enables industrial facilities to modernize their control architecture without scrapping existing field wiring, I/O infrastructure, or operator interface investments.

For maintenance engineers and system integrators managing legacy control panels, the PM592-ETH represents a low-risk, high-value upgrade. It slots into the same AC500 backplane positions as earlier CPU generations, preserving rack geometry and minimizing cabinet rework. Before committing to a swap, engineers should verify power supply capacity — the TB521-ETH or TB541 terminal base must be confirmed compatible — and review the existing 24 VDC bus loading across all installed I/O modules such as the DC532 digital input module and AX522 analog I/O module. Backplane slot addressing and module order must be documented prior to removal to ensure the replacement CPU correctly maps all I/O channels after restart.

Program migration from PM581 or PM582 projects is straightforward using ABB Automation Builder. Existing Structured Text, Ladder Diagram, and Function Block Diagram logic can be imported and recompiled with minimal modification. Engineers should audit any hardware-specific function blocks tied to the legacy CPU’s communication drivers — particularly if the original system used serial RS-232 or RS-485 links via a CM572-DP PROFIBUS module — and verify that Ethernet-based equivalents are correctly configured in the new project. HMI screens built on CP600 or CP620 panels typically require only an IP address update and communication driver re-mapping rather than a full screen rebuild.

The PM592-ETH’s onboard Ethernet port supports MODBUS TCP, FTP, and HTTP protocols natively, making it compatible with SCADA systems, MES platforms, and remote monitoring solutions without additional communication modules. For installations that previously relied on a CM589-PNIO PROFINET adapter or a CM578-CN ControlNet module, the PM592-ETH’s Ethernet port can often absorb those communication roles, reducing module count and freeing backplane slots for additional I/O expansion.

Installation space confirmation is a critical pre-migration step. The PM592-ETH occupies a single CPU slot on the AC500 backplane (TB511, TB521, or TB541 series). Cabinet depth, DIN rail clearance, and front-panel cable routing should be measured before ordering. The module’s 430 g weight and standard AC500 form factor mean no structural modifications are typically required, but thermal management should be reassessed if the cabinet’s ventilation was sized for the lower-power PM581.

Firmware compatibility should be verified against the installed version of Automation Builder. ABB recommends running firmware version 3.x or later on the PM592-ETH for full feature support. Firmware can be updated via the onboard Ethernet port using the ABB firmware update utility, eliminating the need for a dedicated programming cable in most retrofit scenarios. For sites still using a TK501 USB programming cable, the PM592-ETH retains the USB programming interface for local access.

All units supplied by KNMKS are tested for power-on functionality, communication port integrity, and firmware version verification prior to dispatch. Each PM592-ETH 1SAP150200R0271 ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained for immediate dispatch, supporting urgent breakdown replacements and planned maintenance windows alike.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PM592-ETH retrofit begins with a full audit of the existing AC500 rack configuration. Document every module installed on the backplane — including DC532 digital input modules, DA501 analog output modules, and any CM572-DP PROFIBUS communication modules — along with their slot positions and configured I/O addresses. This baseline ensures that after the CPU swap, the Automation Builder project correctly reflects the physical hardware layout and no I/O channel is inadvertently remapped.

Power supply loading is the next critical checkpoint. Calculate the total current draw of all installed I/O and communication modules against the rated output of the installed PS501 or PS560 power supply module. The PM592-ETH’s onboard Ethernet interface draws marginally more power than a non-Ethernet CPU, so confirm the power budget has sufficient headroom before proceeding. If the existing power supply is operating near its rated limit, a power supply upgrade should be scheduled alongside the CPU replacement.

For systems with CP600 or CP620 HMI panels, update the communication driver configuration to point to the PM592-ETH’s Ethernet IP address. Most CP-series panels support MODBUS TCP natively, so the transition from a serial link to Ethernet typically improves HMI response time and eliminates the RS-232 cable as a potential failure point. Signal isolators installed between field devices and I/O modules do not require reconfiguration, as the PM592-ETH preserves all existing I/O channel assignments.

Downtime Control During System Migration

Minimizing production downtime during a CPU migration requires preparation that begins weeks before the physical swap. Start by creating a full backup of the existing PLC project using Control Builder Plus or Automation Builder, and store copies both locally and off-site. Export all data block values, retain settings, and communication parameters so they can be restored immediately after the new CPU is commissioned.

Schedule the physical swap during a planned maintenance window. With the PM592-ETH pre-configured and the Automation Builder project compiled and tested in simulation mode, the on-site changeover — removing the old CPU, seating the PM592-ETH, restoring the program, and verifying I/O — can typically be completed within two to four hours for a standard AC500 rack. Ethernet commissioning, including IP address assignment and SCADA reconnection, adds minimal time compared to the serial link reconfiguration required by legacy CPUs.

Keep the original PM581 or PM582 on-site as a fallback until the PM592-ETH has completed at least one full production cycle without fault. This rollback option protects against unforeseen compatibility issues and gives the commissioning team confidence to proceed without pressure. Once the system is stable, the legacy CPU can be returned to spare stock or decommissioned.

Retrofit Support FAQ

Q: Is the PM592-ETH 1SAP150200R0271 a direct drop-in replacement for the PM581 or PM582?
A: Yes. The PM592-ETH uses the same AC500 CPU slot and terminal base interface as the PM581 and PM582. Existing backplane wiring and I/O modules do not require modification. The Automation Builder project from the legacy CPU can be imported, recompiled, and downloaded to the PM592-ETH with minimal changes.

Q: What commissioning steps are required after installing the PM592-ETH?
A: After seating the module, assign an Ethernet IP address via the front-panel rotary switches or through Automation Builder. Download the compiled project, verify all I/O channel states against the field, and confirm communication links to any HMI panels or SCADA systems. A full I/O force test is recommended before returning the system to automatic mode.

Q: Does KNMKS test the PM592-ETH before shipping?
A: Yes. Every unit undergoes power-on testing, Ethernet port verification, and firmware version confirmation before dispatch. Units are shipped with original ABB packaging where available and include a support terms confirmed by quotation against manufacturing defects and functional failures.

Q: What is the lead time and support terms for the PM592-ETH 1SAP150200R0271?
A: Stock units are available for same-day or next-business-day dispatch. All units supplied by KNMKS carry a support terms confirmed by quotation. For urgent breakdown requirements, contact the sales team directly to confirm real-time stock availability and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PM592-ETH 1SAP150200R0271
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PM592-ETH 1SAP150200R0271
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
