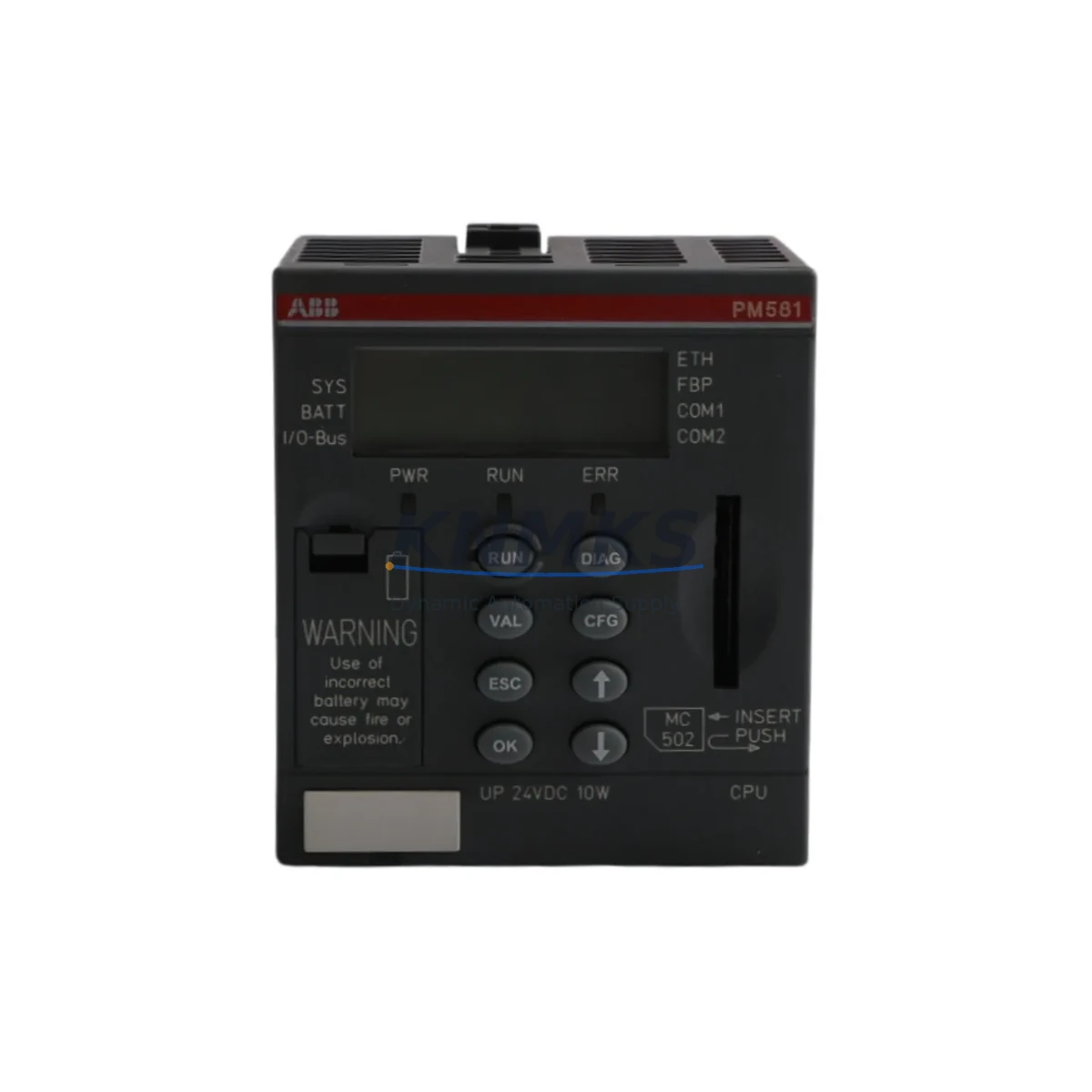

ABB PM581-ETH 1SAP140100R0170 Migration-Ready CPU

Overview

ABB PM581-ETH 1SAP140100R0170 Migration-Ready CPU for Legacy Control Systems

The ABB PM581-ETH (part number 1SAP140100R0170) is a high-performance CPU module designed for the AC500 programmable logic controller platform, and it stands as one of the most reliable migration-ready replacements for aging or discontinued control system hardware in industrial automation environments. Whether you are retiring an obsolete PM554-T, PM564-R, or PM571-ETH and need a direct upgrade path, the PM581-ETH delivers the processing power, communication flexibility, and I/O scalability required to modernize legacy control cabinets without a full system overhaul.

Engineered for seamless integration into existing AC500 backplane architectures, the PM581-ETH supports the standard TB521 and TB541 terminal base units, allowing engineers to slot the new CPU into the same DIN-rail footprint as the predecessor module. This physical compatibility dramatically reduces installation space concerns and eliminates the need for cabinet redesign during a retrofit project. The onboard Ethernet port supports MODBUS TCP and CS31 communication protocols, enabling the module to interface directly with existing HMI panels, SCADA systems, and field devices without requiring protocol converters or additional communication gateways.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the first module is removed from the control cabinet. When planning a migration from a PM554-T or PM564-R to the PM581-ETH, the engineering team must first audit the existing I/O configuration. The AC500 S500 series digital input modules (such as DI524 and DI572) and analog output modules (AO523) remain fully compatible with the PM581-ETH backplane bus, meaning the field wiring and terminal assignments can be preserved without modification. This is a critical cost-saving factor in brownfield retrofit projects where re-termination labor represents a significant portion of the project budget.

Power budget verification is equally important. The PM581-ETH draws its operating power through the TB521 or TB541 terminal base, and the upstream CP502 or PS501 power supply module must be confirmed to provide sufficient current headroom for the new CPU plus all connected I/O modules. In systems where the original power supply was sized tightly for the predecessor CPU, an upgrade to a higher-capacity supply unit may be necessary before commissioning the PM581-ETH.

Communication architecture review is another mandatory step. If the legacy system relied on a CM572-DP PROFIBUS master module or a CM577-ETH Ethernet communication module for SCADA connectivity, the PM581-ETH’s onboard Ethernet port may allow consolidation of communication functions, reducing the number of modules in the rack and freeing up backplane slots for additional I/O expansion. Engineers should verify that the HMI panel — whether a CP620 or CP635 operator panel — has its tag database updated to reflect any address changes introduced by the new CPU’s memory mapping.

For systems involving serial field devices connected through a CM578-CN CANopen module or legacy RS485 links, a protocol migration plan should be developed in parallel with the hardware swap. The PM581-ETH’s MODBUS TCP capability allows many of these serial devices to be migrated to Ethernet-based communication over time, reducing long-term maintenance complexity and improving network diagnostics visibility.

Before the physical swap, the existing program should be exported from the PS501 Control Builder Plus environment, reviewed for any CPU-specific function blocks that may require updating, and tested in simulation mode against the new CPU’s firmware version. Address mapping for I/O modules, interrupt routines, and watchdog timer settings should all be verified in the offline project before the cutover window begins.

Downtime Control During System Migration

Minimizing production downtime during a CPU migration is the primary concern for plant engineers and maintenance managers. The PM581-ETH retrofit process is designed to support a structured hot-swap preparation methodology that keeps the overall cutover window as short as possible — typically achievable within a planned 2–4 hour maintenance window when pre-migration steps are completed thoroughly.

The recommended approach begins with a full program backup from the existing CPU using the PS501 Control Builder Plus programming environment. The backup should include the complete project archive, symbol table, and any retain variable data that must be preserved across the power cycle. Retain variables — particularly those used for production counters, batch totals, and PID tuning parameters — must be documented and manually re-entered or restored after the new PM581-ETH is initialized, as retain memory is not automatically transferred between CPU modules.

During the physical swap, the S500 I/O modules remain in place on the backplane, and only the CPU module and its terminal base are exchanged. This means field wiring to DI/DO/AI/AO modules is completely undisturbed, and the risk of wiring errors during the cutover is eliminated. Once the PM581-ETH is seated and powered, the program is downloaded via Ethernet using the PS501 environment, I/O module addresses are verified against the hardware configuration, and a controlled restart sequence is executed.

Post-commissioning verification should include a full I/O force test to confirm all field signals are correctly mapped, a communication link check to confirm MODBUS TCP connectivity to the SCADA or HMI system, and a review of the CPU diagnostic buffer for any fault codes generated during startup. With these steps completed systematically, the PM581-ETH migration can be executed with confidence and minimal risk to ongoing production continuity.

Retrofit Support FAQ

Q: Is the PM581-ETH a direct drop-in replacement for the PM571-ETH?
A: Yes, the PM581-ETH is physically and electrically compatible with the same TB521/TB541 terminal base used by the PM571-ETH. The program must be re-compiled in PS501 Control Builder Plus targeting the PM581-ETH CPU type, and any firmware-specific function blocks should be reviewed for compatibility before download.

Q: What wiring changes are required when migrating from a PM554-T to the PM581-ETH?
A: No field wiring changes are required for the S500 I/O modules, as they remain on the backplane. The terminal base connections for the CPU power input (24 VDC) should be verified against the TB521 pinout. If the legacy system used a different terminal base model, a TB541 may be required as a replacement base for the PM581-ETH installation.

Q: Does the PM581-ETH ship with pre-delivery functional testing?
A: Yes. Every PM581-ETH unit supplied by KNMKS undergoes pre-shipment functional verification including power-on self-test, communication port validation, and firmware version confirmation. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability for the PM581-ETH 1SAP140100R0170?
A: KNMKS maintains ready stock of the PM581-ETH to support urgent retrofit and emergency replacement requirements. Standard orders ship within 1–3 business days. For large-quantity project orders or long-term supply agreements, please contact our sales team directly to confirm availability and lead time commitments.

—
