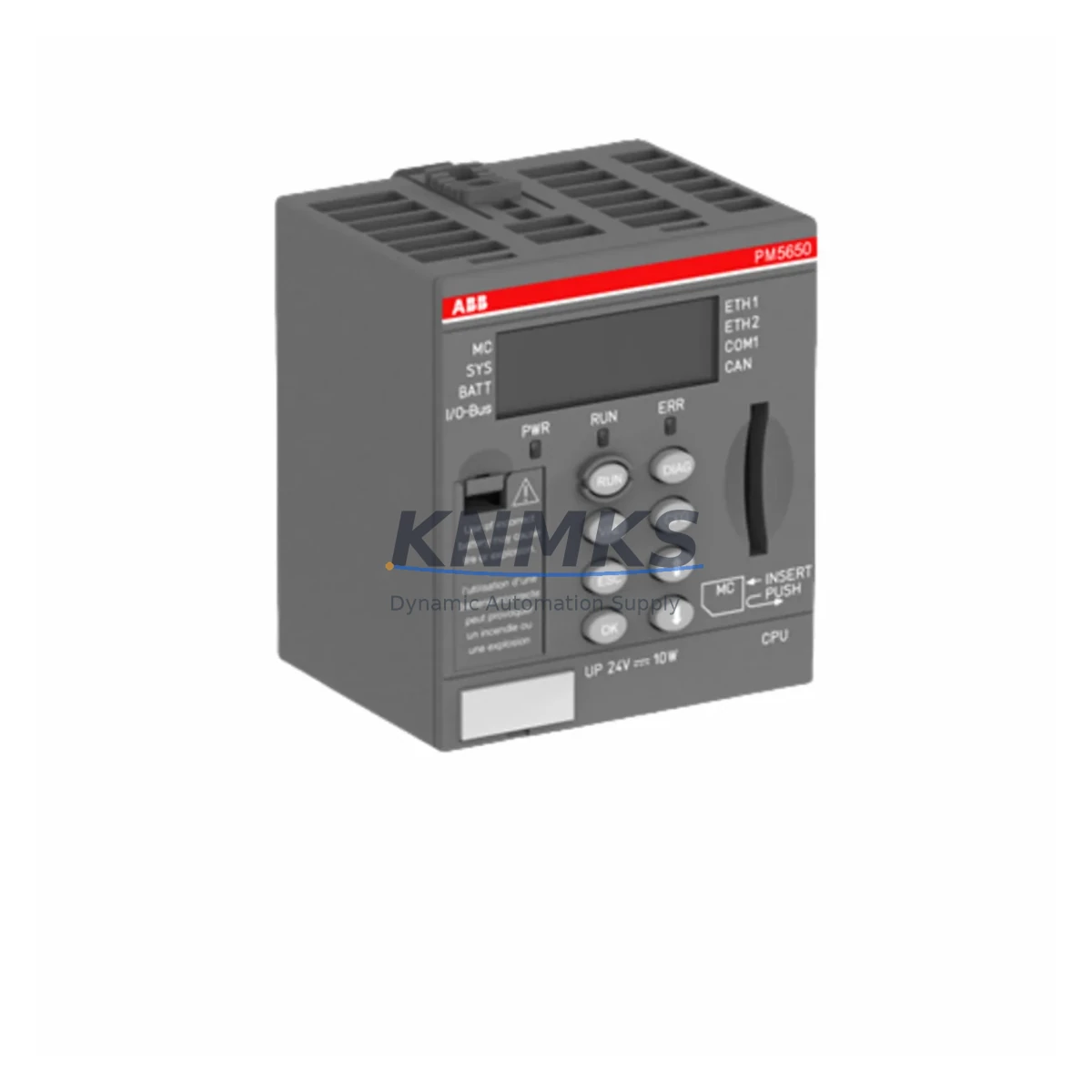

ABB PM5650-2ETH 1SAP141000R0278 Maintenance-Proven Spare Part

Overview

ABB PM5650-2ETH 1SAP141000R0278 Maintenance-Proven Spare Part for Factory Uptime

The ABB PM5650-2ETH (order reference 1SAP141000R0278) is a high-performance dual-Ethernet CPU module designed for the ABB AC500 programmable logic controller platform. As a central processing unit within the AC500 series, this module governs program execution, I/O coordination, and real-time communication across distributed automation architectures. For maintenance engineers managing continuous production lines, power generation assets, or process control systems, maintaining a verified spare of the PM5650-2ETH is a foundational element of any credible uptime strategy.

This unit ships as an original ABB spare part, fully tested prior to dispatch, and backed by a support terms confirmed by quotation. Global logistics support ensures rapid delivery to plant sites across Asia, Europe, the Middle East, and the Americas — minimizing the window between fault detection and system restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the PM5650-2ETH is flagged for replacement during a scheduled outage or emergency fault response, experienced maintenance engineers treat the event as a trigger for a broader control cabinet inspection. The CPU module does not operate in isolation — its performance depends on the integrity of the surrounding hardware ecosystem within the AC500 rack.

Begin by verifying the TB5600 terminal base, which provides the physical backplane connection and 24 VDC supply path to the PM5650-2ETH. A degraded terminal base can cause intermittent CPU faults that are misdiagnosed as module failure. Alongside this, inspect the PS501 or PS502 power supply module for output voltage stability; voltage ripple or brownout conditions are a leading cause of premature CPU wear in AC500 systems.

For systems with distributed I/O, confirm the status of connected SM560-S or SM560 I/O expansion modules. A CPU replacement without verifying I/O module firmware compatibility can introduce communication mismatches that delay restart. Similarly, if the installation uses CM589-PNIO PROFINET communication modules, validate their configuration files against the replacement CPU’s project version in Automation Builder before going live.

Signal integrity should also be assessed at the AI523 or DI524 I/O signal modules — loose field wiring or corroded terminal connections can generate false diagnostics that implicate the CPU. For installations with safety-rated circuits, inspect any SM560-S safety I/O modules and confirm that safety program checksums are preserved after the CPU swap. Finally, review the condition of 24 VDC distribution fuses and surge protection devices on the cabinet DIN rail; these are frequently overlooked during CPU-focused maintenance events but are critical to long-term system reliability.

Stocking a verified PM5650-2ETH spare alongside these associated components — particularly the terminal base and power supply — reduces mean time to repair (MTTR) from hours to under 30 minutes for trained technicians.

Site Replacement Workflow

Replacing the PM5650-2ETH on-site follows a structured sequence to ensure system compatibility and minimize downtime. Before removing the existing module, export the current project from ABB Automation Builder and confirm the firmware version running on the installed CPU. This baseline is essential for matching the replacement unit’s firmware or performing a controlled upgrade.

Power down the AC500 rack via the upstream 24 VDC supply breaker. Disconnect the Ethernet cables from both RJ45 ports, noting their network assignments (typically one for the plant SCADA network and one for a device-level ring or peer-to-peer link). Remove the CPU module from the TB5600 terminal base by releasing the locking mechanism — no tools are required for standard AC500 CPU extraction.

Insert the replacement PM5650-2ETH into the terminal base, ensuring the module seats fully and the locking tab engages. Reconnect Ethernet cables in their original port assignments. Power up the rack and observe the CPU status LEDs: RUN (green), ERR (red off), and ETH link indicators. Use Automation Builder to download the saved project to the replacement CPU, verify I/O mapping, and perform a controlled test cycle before releasing the line to production.

This workflow is compatible with both hot-standby and single-CPU AC500 configurations. For redundant CPU installations, consult the AC500 system manual for switchover validation procedures before declaring the replacement complete.

Spare Parts Support FAQ

Q: Is the PM5650-2ETH 1SAP141000R0278 an original ABB part or a compatible replacement?
A: This is an original ABB spare part carrying the full manufacturer order reference 1SAP141000R0278. It is not a third-party compatible or remanufactured unit. Each unit undergoes pre-shipment functional and communication testing before dispatch.

Q: What is the recommended inventory strategy for the PM5650-2ETH in a multi-line facility?
A: For facilities operating three or more AC500-based control systems, maintaining one PM5650-2ETH spare per production zone is standard practice. CPU modules are not consumables, but their criticality — and the lead time risk for legacy or allocated stock — justifies holding at least one verified spare per site. Annual inspection of stored spares is recommended to confirm firmware currency.

Q: How is compatibility with existing AC500 configurations verified before shipment?
A: Compatibility is confirmed against the AC500 hardware compatibility matrix for the PM5650-2ETH SKU and firmware baseline. Customers are encouraged to provide their current CPU firmware version and Automation Builder project version at the time of order so that any firmware alignment requirements can be flagged before dispatch.

Q: What does the support terms confirmed by quotation cover for this spare part?
A: The support terms confirmed by quotation cover manufacturing defects, communication interface failures, and module-level hardware faults under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified environmental range. Support requests are supported with direct technical assistance and replacement dispatch where applicable.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PM5650-2ETH 1SAP141000R0278
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PM5650-2ETH 1SAP141000R0278
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
