Overview

ABB PM564-RP-ETH-AC Maintenance-Proven Spare Part for Factory Uptime

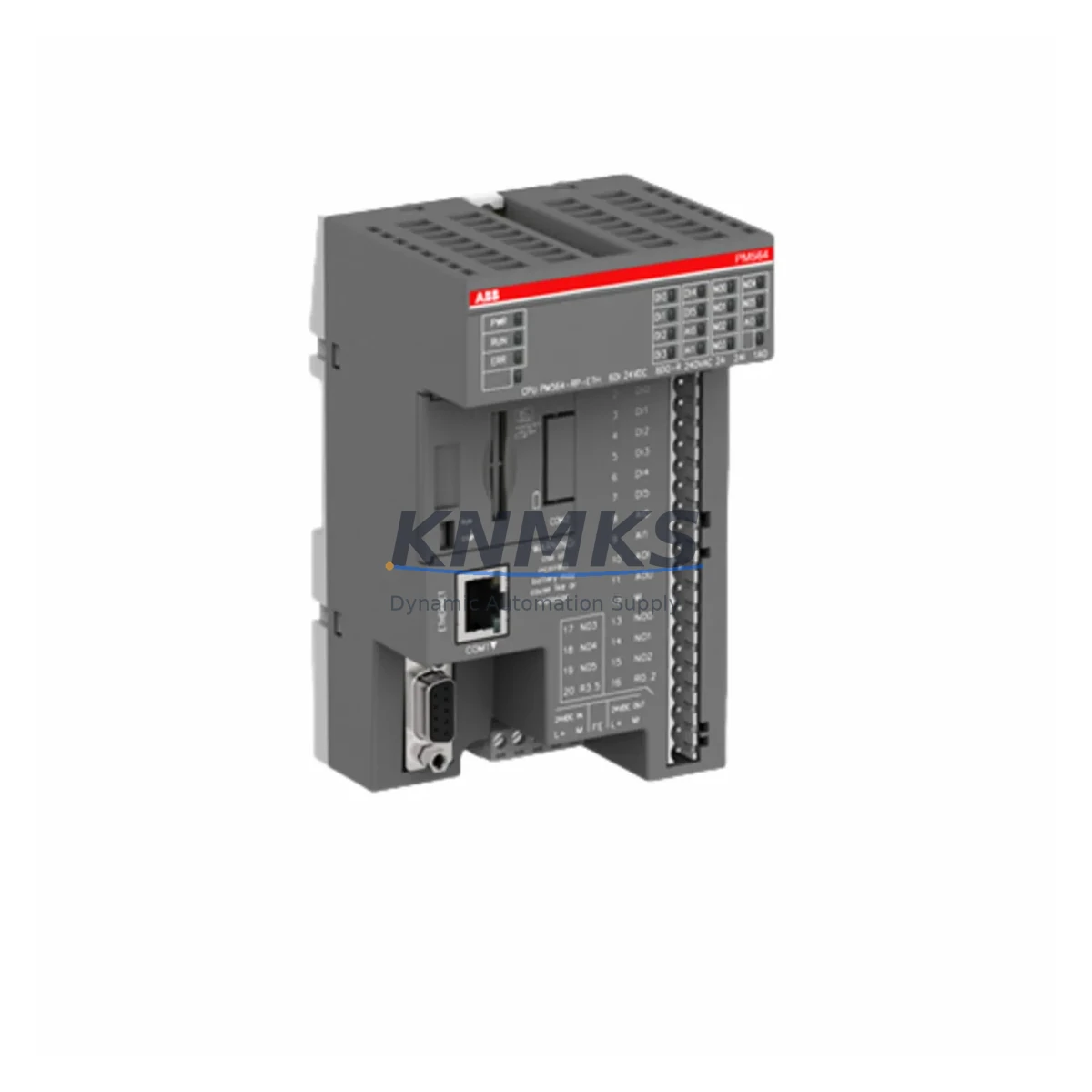

The ABB PM564-RP-ETH-AC is a high-performance CPU module from ABB’s AC500 PLC series, engineered for demanding industrial automation environments. Featuring integrated Ethernet connectivity, real-time program execution, and robust DIN-rail mounting, this module serves as the central processing unit in AC500-based control cabinets across process automation, machine control, and utility infrastructure applications. For maintenance engineers managing aging or mission-critical control systems, securing a verified original spare of the PM564-RP-ETH-AC is a foundational step in any proactive downtime prevention strategy.

At KNMKS, every PM564-RP-ETH-AC unit is sourced as an original ABB component, subjected to pre-shipment functional testing, and dispatched with a support terms confirmed by quotation. Whether you are responding to an unplanned CPU fault, building a buffer stock for annual maintenance cycles, or replacing an end-of-life module in a legacy AC500 rack, this spare is ready for immediate deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PM564-RP-ETH-AC CPU fault is identified during routine inspection or emergency diagnostics, the replacement scope should extend beyond the CPU module itself. A disciplined maintenance engineer will simultaneously audit the surrounding components in the AC500 control cabinet to prevent secondary failures and ensure a clean system restart.

Begin with the AC500 power supply module (e.g., CP502 or CP503 series) — verify output voltage stability and check for capacitor aging, particularly in systems operating beyond five years. A degraded power supply is a common root cause of intermittent CPU resets and communication dropouts. Next, inspect the TB5xx terminal base on which the PM564-RP-ETH-AC is seated; worn connector contacts or cracked housings can introduce signal integrity issues that mimic CPU faults.

For systems relying on Ethernet-based SCADA or HMI communication, validate the integrity of the Ethernet switch or managed switch in the cabinet, as well as the patch cables connecting the CPU to the network backbone. Degraded RJ45 connectors and unshielded cable runs in high-EMI environments are frequent contributors to communication instability. If the installation includes SM5xx I/O expansion modules — such as digital input/output or analog signal modules — inspect their terminal connections and verify that no I/O channel faults are masking the CPU alarm.

In cabinets with relay output modules or DC532 or DC533 digital output modules, check coil voltage and contact wear, especially in high-cycle applications. For process lines using AX522 or AI523 analog input modules, confirm signal scaling and shielding continuity. Additionally, review the SD card or memory module used for program backup on the PM564-RP-ETH-AC — corrupted backup media is a known cause of failed cold-start recovery after CPU replacement.

Procurement engineers should consider maintaining at least one PM564-RP-ETH-AC as a dedicated cold-standby spare, particularly for production lines where AC500 CPUs are the sole controller. Long lead times for original ABB modules in certain regions make buffer stock a critical risk mitigation measure. KNMKS maintains multi-region inventory and supports long-term supply agreements for high-priority SKUs.

Site Replacement Workflow

Replacing the PM564-RP-ETH-AC on-site is a structured process that, when executed correctly, minimizes downtime and eliminates the risk of configuration loss or communication misconfiguration.

Step 1 — Backup: Before powering down, use ABB Automation Builder to export the current PLC program, IP configuration, and I/O mapping from the existing CPU. Save the backup to both the SD card slot on the module and an external engineering workstation.

Step 2 — Power Isolation: Isolate the AC supply to the cabinet using the main disconnect. Verify zero-energy state with a calibrated voltage tester before touching any module. The PM564-RP-ETH-AC operates on AC input — confirm the power supply module is de-energized before removal.

Step 3 — Module Removal: Release the DIN-rail locking tab and carefully slide the CPU module off the TB5xx terminal base. Avoid flexing the backplane connector. Label all Ethernet and serial cables before disconnection.

Step 4 — Replacement Installation: Seat the new PM564-RP-ETH-AC onto the terminal base, ensuring full connector engagement. Reconnect all communication cables. Restore power and observe the diagnostic LEDs — RUN, ERR, and ETH indicators should confirm normal boot sequence.

Step 5 — Program Restore and Verification: Load the backed-up program via Automation Builder or SD card. Verify I/O channel mapping, Ethernet IP address assignment, and SCADA/HMI communication handshake. Conduct a supervised test cycle before returning the line to production.

This workflow is compatible with both AC500 V2 and V3 platform generations, making the PM564-RP-ETH-AC a reliable cross-generation replacement option for sites managing mixed-vintage AC500 installations.

Spare Parts Support FAQ

Q1: Is the PM564-RP-ETH-AC compatible with both AC500 V2 and V3 backplanes?
The PM564-RP-ETH-AC is designed for the AC500 platform and is mechanically and electrically compatible with TB5xx terminal bases used across AC500 V2 and V3 generations. Always verify the firmware version in ABB Automation Builder before deployment to ensure program compatibility with your existing project file.

Q2: What does the support terms confirmed by quotation from KNMKS cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Every unit is pre-shipment tested for basic functionality before dispatch. Support requests are supported with replacement or repair, subject to inspection. Contact [email protected] for support terms registration and claim procedures.

Q3: How quickly can the PM564-RP-ETH-AC be dispatched for emergency downtime recovery?
KNMKS maintains ready stock of the PM564-RP-ETH-AC across multiple inventory locations. Emergency orders are prioritized for same-day or next-business-day dispatch. Contact our team directly at +86 18359268345 to confirm real-time stock availability and expedited shipping options.

Q4: Can KNMKS support long-term supply agreements for AC500 CPU modules?
Yes. For customers managing large AC500 installations or multi-site maintenance programs, KNMKS offers long-term supply agreements with reserved inventory, fixed pricing, and scheduled delivery. This is particularly valuable for legacy AC500 systems where ABB has announced product transitions or extended lead times from standard distribution channels.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PM564-RP-ETH-AC
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PM564-RP-ETH-AC
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
