ABB PM556-TP-ETH Migration-Ready CPU for Legacy Control Systems

Overview

ABB PM556-TP-ETH Migration-Ready CPU for Legacy Control Systems

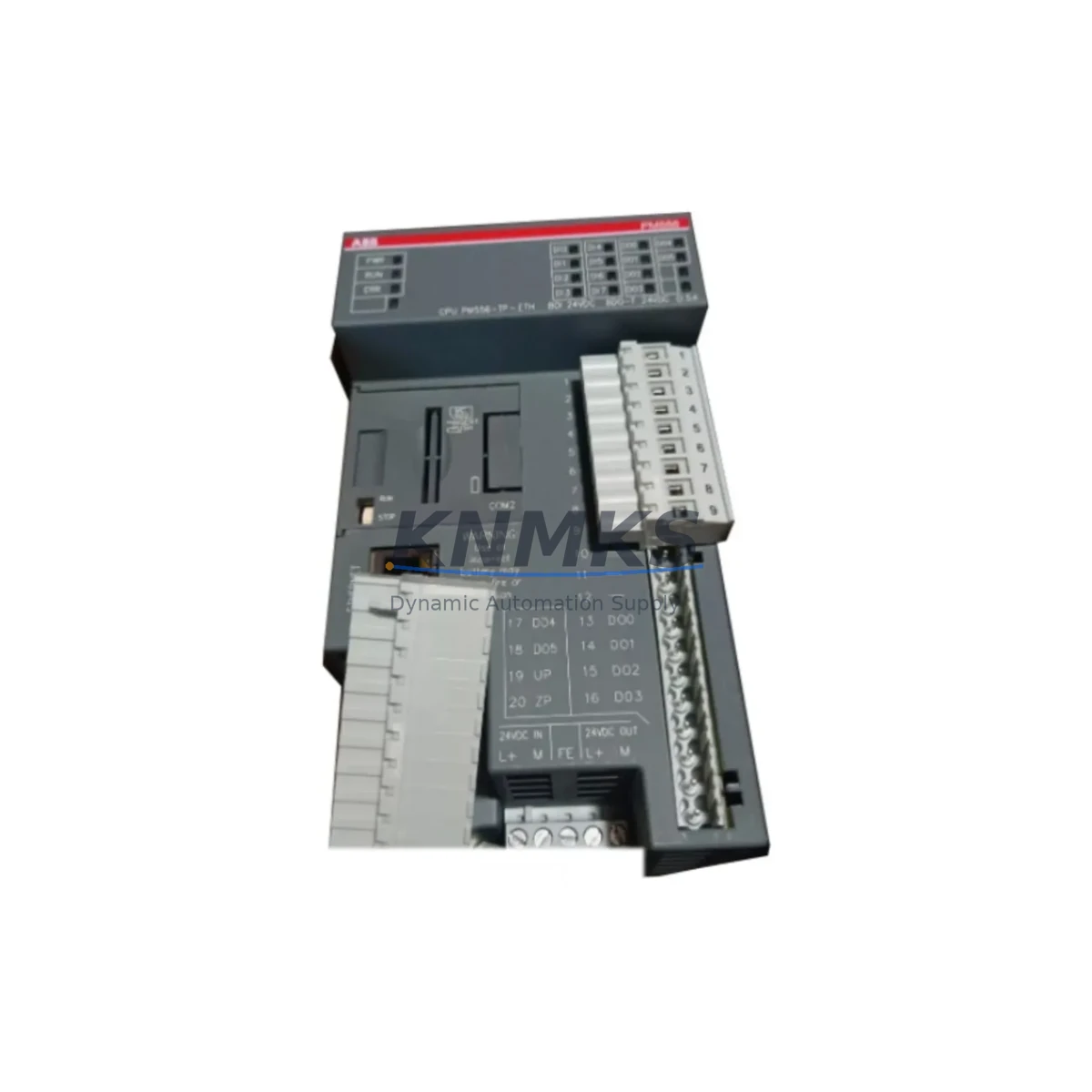

The ABB PM556-TP-ETH is a migration-ready central processing unit designed for the AC500 PLC platform, purpose-built to address the growing demand for legacy control system modernization across manufacturing, process automation, and infrastructure sectors. As older AC500 variants such as the PM554-TP and PM556-TP reach end-of-life or become increasingly difficult to source, the PM556-TP-ETH provides a direct, backward-compatible upgrade path that preserves existing program logic, retains terminal wiring compatibility, and introduces onboard Ethernet connectivity — eliminating the need for a separate communication module in many retrofit scenarios.

For maintenance engineers and automation integrators managing aging control cabinets, the PM556-TP-ETH represents a low-risk, high-value replacement. Its compatibility with the AC500 backplane means it slots directly into existing racks without mechanical modification. Program files developed in PS501 Control Builder Plus can be reloaded with minimal adaptation, and the onboard PROFINET and Modbus TCP support allows seamless integration into modern supervisory networks without replacing the entire control architecture.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PM556-TP-ETH retrofit begins well before the physical swap. Engineers should audit the existing control cabinet to confirm that the installed AC500 power supply — typically a PS501-24VDC or PS560 series unit — can sustain the additional current draw introduced by the Ethernet subsystem. In most cases the delta is modest, but in densely populated racks where multiple I/O modules such as DC532 digital output modules or AX522 analog I/O modules are already drawing near the supply’s rated output, a capacity check is non-negotiable.

Terminal wiring on the TB521 or TB541 terminal base does not need to be disturbed during a CPU swap, which is one of the primary advantages of the AC500 modular architecture. Field wiring connected to downstream I/O modules remains intact, and the CPU replacement is effectively a hot-swap-adjacent procedure — though ABB recommends a controlled shutdown sequence to protect program state and connected field devices.

For systems that previously relied on a separate CM572-DP PROFIBUS communication module to interface with drives, sensors, or remote I/O stations, the PM556-TP-ETH’s onboard Ethernet port opens the possibility of migrating those links to PROFINET or Modbus TCP, reducing module count and simplifying the communication topology. Where PROFIBUS must be retained during a phased migration, the CM572-DP can remain installed alongside the new CPU without conflict.

HMI integration is another critical checkpoint. Sites running CP600 series operator panels connected via serial or Ethernet should verify that the panel firmware and communication driver versions are aligned with the PM556-TP-ETH’s runtime environment. In most cases a driver update in the CP600 project file is sufficient, but this step should be completed and tested in a staging environment before live cutover. Similarly, any SCADA or DCS system polling the AC500 via Modbus TCP should have its polling address map validated against the new CPU’s register layout.

For sites managing multiple control zones, the PM556-TP-ETH’s onboard Ethernet also simplifies peer-to-peer communication between AC500 controllers, replacing older RS-485 serial links with faster, more reliable Ethernet-based data exchange. This is particularly valuable in retrofit projects where a CM589-PNIO PROFINET I/O controller module was previously required to achieve network-level integration.

Downtime Control During System Migration

Minimizing unplanned downtime is the central concern in any live production environment retrofit. For PM556-TP-ETH installations, the recommended approach is a pre-staged swap: the replacement CPU is configured, firmware-loaded, and program-verified offline before the maintenance window opens. Using PS501 Control Builder Plus, the existing project file is compiled and downloaded to the new module on a bench setup, allowing engineers to confirm I/O mapping, communication parameters, and HMI variable bindings without touching the live system.

During the maintenance window itself, the sequence is: controlled PLC shutdown, CPU module extraction from the AC500 backplane, PM556-TP-ETH insertion, power restoration, and program upload verification. With a pre-staged unit, this physical swap typically completes in under 15 minutes. The remaining window is used for communication link verification — confirming that Ethernet connections to upstream SCADA, peer PLCs, and any connected CP600 HMI panels are active and polling correctly.

Original program logic is preserved in its entirety. The IEC 61131-3 project structure used in AC500 programming is fully portable across compatible CPU generations, meaning function blocks, data types, and task configurations do not require rewriting. Retentive data areas and recipe values should be backed up prior to the swap and restored post-commissioning to maintain production continuity. Pre-shipment functional testing performed on every PM556-TP-ETH unit at our facility further reduces the risk of field failures during the critical commissioning phase.

Retrofit Support FAQ

Q: Is the PM556-TP-ETH a direct drop-in replacement for the PM556-TP?
A: Yes. The PM556-TP-ETH is mechanically and electrically compatible with the AC500 backplane used by the PM556-TP. The primary addition is the onboard Ethernet port. Existing terminal base wiring and I/O module configurations are unaffected. A program reload and communication parameter update are required, but no hardware modifications to the rack or cabinet are necessary.

Q: What pre-shipment testing is performed on each unit?
A: Every PM556-TP-ETH unit undergoes functional power-on verification, firmware integrity check, and communication port validation prior to shipment. Units are shipped with a test report confirming operational status. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment.

Q: How do I verify firmware compatibility with my existing HMI and field devices?
A: Cross-reference the firmware version on the PM556-TP-ETH (visible in PS501 Control Builder Plus under device properties) against the communication driver version in your CP600 HMI project and the firmware requirements of any connected field devices. ABB publishes compatibility matrices in the AC500 system documentation. If your site uses a CM572-DP or CM589-PNIO communication module, confirm that the module firmware is also aligned with the new CPU runtime version.

Q: What is the lead time and stock availability?
A: The PM556-TP-ETH is maintained availability confirmed by RFQ for immediate dispatch. Standard lead time for in-stock units is 1–3 business days for domestic shipments and 5–10 business days for international orders, subject to customs clearance. For large-quantity or blanket orders supporting multi-site retrofit programs, please contact our sales team to confirm allocation and arrange staged delivery scheduling.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PM556-TP-ETH
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PM556-TP-ETH
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
