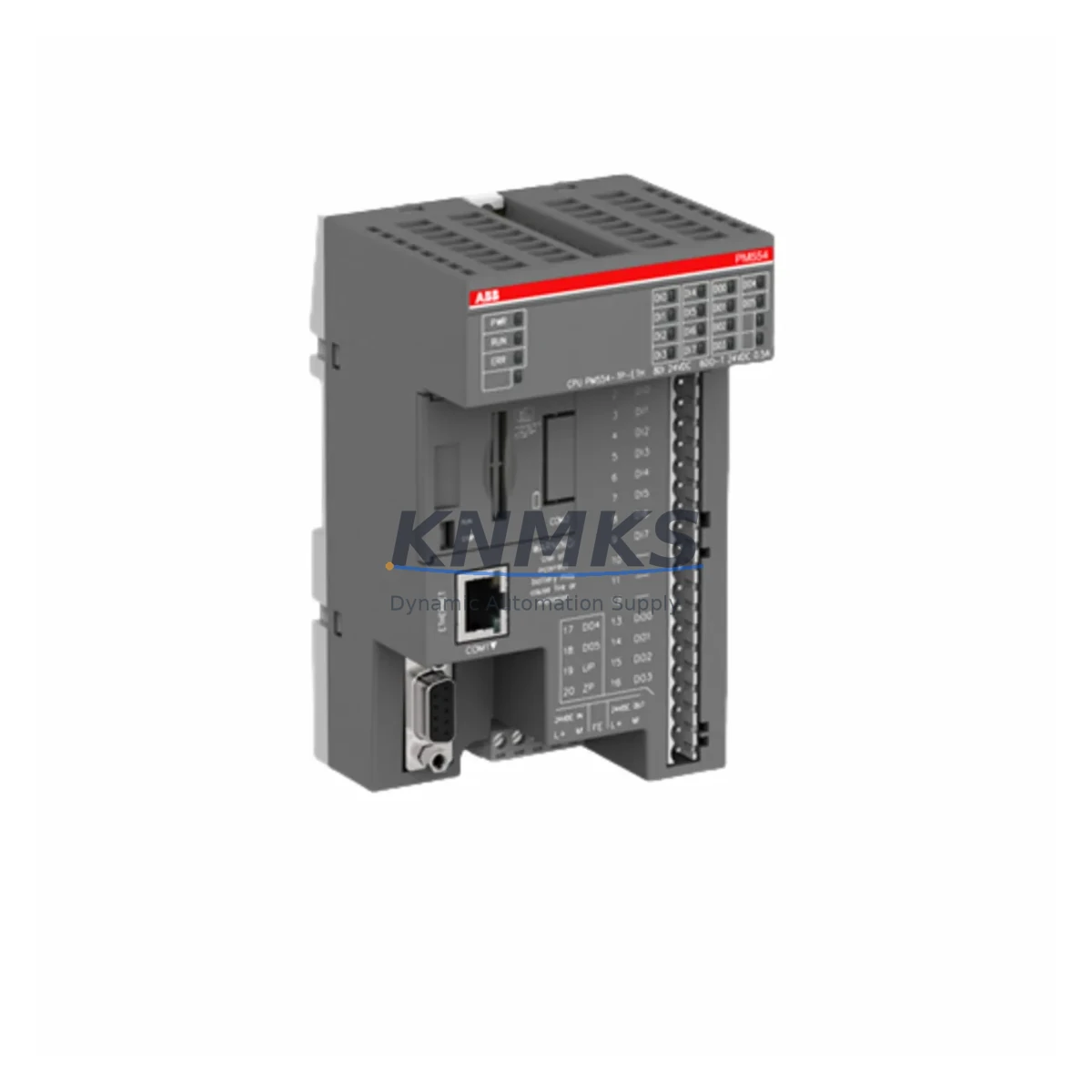

ABB PM554-TP-ETH Migration-Ready CPU for Legacy AC500

Overview

ABB PM554-TP-ETH Migration-Ready CPU for Legacy AC500 Control Systems

The ABB PM554-TP-ETH is a compact, migration-ready central processing unit engineered for the AC500 programmable logic controller platform. Designed to serve as a direct replacement for discontinued or end-of-life CPU modules within legacy AC500 control cabinets, the PM554-TP-ETH supports seamless integration into existing backplane architectures without requiring full system redesign. Its onboard Ethernet port enables Modbus TCP communication, while the built-in PROFIBUS DP interface preserves compatibility with legacy field device networks — a critical advantage when upgrading distributed I/O infrastructure in phased retrofit projects.

For maintenance engineers managing aging DCS or PLC installations, the PM554-TP-ETH provides a reliable upgrade path that minimizes engineering rework. The module retains compatibility with the AC500 SD card-based program storage system, allowing existing IEC 61131-3 application logic — developed in ABB Automation Builder or the legacy PS501 Control Builder — to be transferred and re-executed with minimal modification. This is particularly valuable in facilities where the original programming environment is no longer actively supported and where re-engineering from scratch would introduce unacceptable downtime risk.

When planning a retrofit around the PM554-TP-ETH, engineers should verify the power supply capacity of the existing TB521-ETH or TB541-ETH terminal base, as the CPU’s current draw must be balanced against co-installed I/O modules such as the DC532 digital input/output module or the AX522 analog I/O module. Backplane slot addressing must be re-confirmed after module swap, particularly in multi-rack configurations where the CI590-CS31-HA communication interface module or CI501-PNIO PROFINET adapter is used for remote I/O expansion. Incorrect slot addressing is a common source of startup faults during migration commissioning.

Communication link integrity is another key validation step. If the existing installation uses a CI854-1 PROFIBUS DP master module for field instrument connectivity, the PM554-TP-ETH’s onboard DP port can serve as a direct replacement interface — but baud rate settings, GSD file versions, and slave address assignments must be re-verified against the original network configuration. Similarly, if Modbus TCP is used to interface with SCADA or HMI systems, the IP address scheme, function code mapping, and register table layout must be preserved or remapped in the new CPU configuration to avoid data integrity issues at the supervisory level.

Installation space confirmation is essential before ordering. The PM554-TP-ETH occupies a standard AC500 CPU slot on the terminal base and does not require additional DIN rail space beyond the existing footprint — a significant advantage in densely populated control cabinets where panel real estate is constrained. Firmware version compatibility between the CPU and any co-installed communication modules, including the CM589-PNIO or CM578-CN CANopen master, should be validated against ABB’s published compatibility matrix prior to commissioning.

Pre-shipment functional testing is performed on every PM554-TP-ETH unit prior to dispatch. Each module is verified for Ethernet port integrity, PROFIBUS DP communication, onboard I/O response, and SD card read/write functionality. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial service conditions. Multi-unit stock is maintained for emergency replacement scenarios, with rapid global dispatch available to minimize unplanned downtime.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PM554-TP-ETH retrofit begins with a thorough audit of the existing control cabinet. Engineers should document the current terminal base model — typically the TB521-ETH or TB541-ETH — and confirm that the power supply module, such as the PS501 or an equivalent third-party 24 VDC rail supply, can sustain the combined current draw of the replacement CPU alongside all co-installed I/O modules. In multi-rack systems, the CI590-CS31-HA communication interface module linking remote S500 I/O racks must be re-addressed and re-tested after the CPU swap to ensure uninterrupted I/O scanning.

For installations that include analog signal conditioning, the AX522 analog I/O module’s channel scaling parameters and filter settings should be exported from the original project before the CPU is replaced. Similarly, if digital I/O expansion is handled by the DC532 module, the I/O mapping table must be preserved and re-imported into the new CPU project file. Any signal isolators or marshalling panels connected to the I/O terminals should be verified for loop integrity before the system is returned to service.

Where the existing system uses a CI854-1 PROFIBUS DP master for field instrument connectivity — common in installations with legacy transmitters, valve positioners, or variable frequency drives — the GSD files and slave configuration must be re-imported into the new Automation Builder project. CANopen-based field networks managed through a CM578-CN master module require similar re-validation of node IDs and PDO mapping. HMI screens connected via Modbus TCP must have their register address tables verified against the new CPU’s data block layout to prevent tag mismatches that could cause incorrect process displays or control errors.

Downtime Control During System Migration

Minimizing unplanned downtime during a PM554-TP-ETH migration requires a structured changeover plan. The recommended approach is to export the complete project from the existing CPU using ABB Automation Builder or PS501 Control Builder before any hardware is disturbed. The project file — including all POU logic, variable declarations, I/O configuration, and communication settings — should be archived to a secure location and verified for completeness. A duplicate of the project should be compiled and tested in offline simulation mode on the replacement CPU before the physical swap is initiated.

During the physical changeover, the terminal base remains in place, preserving all field wiring connections. Only the CPU module is removed and replaced, which eliminates the risk of wiring errors and significantly reduces the time the process is offline. After the new PM554-TP-ETH is seated and powered, the project is downloaded via Ethernet, and a controlled startup sequence is executed — verifying I/O response, communication link status, and HMI data integrity before the system is returned to automatic control. This structured approach typically reduces migration-related downtime to under two hours for a single-rack AC500 installation.

For critical processes where even brief interruptions are unacceptable, a parallel run strategy can be employed: the replacement CPU is configured and tested on a bench setup replicating the I/O and communication environment before the live system is touched. This approach, combined with pre-shipment testing of the PM554-TP-ETH unit, provides the highest level of confidence that the replacement module will perform correctly from first power-on.

Retrofit Support FAQ

Q: Is the PM554-TP-ETH a direct drop-in replacement for the PM554-T or PM554-TP?
A: Yes. The PM554-TP-ETH is mechanically and electrically compatible with the TB521-ETH and TB541-ETH terminal bases used by the PM554-T and PM554-TP. The addition of the onboard Ethernet port does not affect backplane compatibility. Existing IEC 61131-3 project files can be reused with minor review of communication configuration settings.

Q: What commissioning steps are required after replacing the CPU?
A: After seating the PM554-TP-ETH, engineers should re-confirm backplane slot addresses, re-download the project via Ethernet, verify PROFIBUS DP slave communication status, check Modbus TCP register mapping against the SCADA or HMI system, and perform a controlled I/O scan before enabling automatic control. HMI tag bindings and alarm setpoints should also be verified.

Q: Can the existing field wiring be retained during the CPU swap?
A: Yes. Because the terminal base remains in place during the CPU module replacement, all field wiring connected to the I/O modules is undisturbed. This is one of the primary advantages of the AC500 modular architecture for retrofit projects — wiring integrity is maintained throughout the changeover.

Q: What support terms and testing are provided with each unit?
A: Every PM554-TP-ETH unit undergoes pre-shipment functional testing covering Ethernet port integrity, PROFIBUS DP communication, SD card read/write, and onboard I/O response. Each unit is supplied with a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and operational failures under normal industrial service conditions. Multi-unit stock is available for immediate dispatch to support emergency replacement requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PM554-TP-ETH
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PM554-TP-ETH
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
