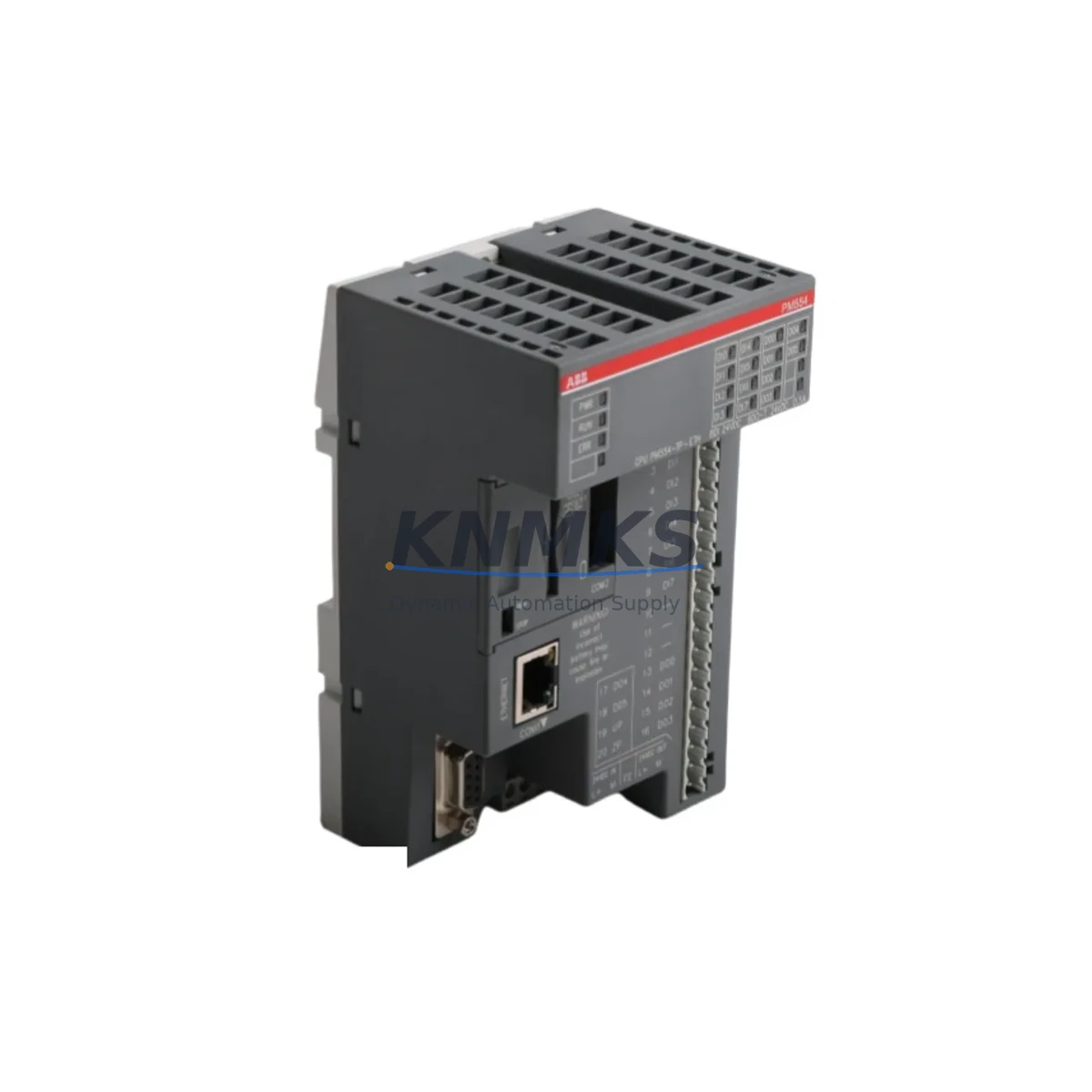

ABB PM554-TP-ETH-1SAP120600R0071 Fail-Safe CPU AC500

Overview

ABB PM554-TP-ETH-1SAP120600R0071 Fail-Safe CPU AC500: Fault-Tolerant Control for Critical Industrial Sites

The ABB PM554-TP-ETH-1SAP120600R0071 is a high-performance, fail-safe CPU module from ABB’s proven AC500 PLC series, engineered for continuous operation in the most demanding industrial environments. Designed to meet the rigorous requirements of safety-critical automation, this CPU delivers deterministic control, robust Ethernet connectivity, and exceptional resilience against electrical noise, thermal stress, and mechanical vibration — making it the backbone of reliable control cabinet architectures across global process industries.

In continuous production facilities — from petrochemical refineries and power generation plants to mining operations and water treatment infrastructure — unplanned downtime is not merely a cost issue; it is a safety risk. The PM554-TP-ETH-1SAP120600R0071 addresses this directly through its fail-safe architecture, which ensures that in the event of a processor fault, communication loss, or power anomaly, the system transitions to a defined safe state rather than an undefined or hazardous condition. This behavior is fundamental to safety interlock systems, emergency shutdown (ESD) circuits, and critical process control loops where a missed signal or spurious output can trigger cascading failures.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The PM554-TP-ETH-1SAP120600R0071 is most effective when deployed as part of a coordinated control cabinet protection strategy. In high-electromagnetic-interference environments — such as those found near variable frequency drives, large motor starters, or arc furnaces — the CPU’s robust signal processing must be complemented by proper cabinet-level protection. Surge protection devices such as the ABB OVR series surge arresters are commonly installed upstream of the CPU power supply rail to absorb transient overvoltages and prevent damage to the processor’s internal logic circuits.

Power quality is equally critical. The AC500 CPU family, including the PM554-TP-ETH, is typically paired with ABB CP-E series 24VDC power supply units, which provide regulated, low-ripple DC power with built-in overload protection. In applications where power continuity is non-negotiable — such as safety interlock panels or emergency shutdown systems — an ABB UPS module or buffer capacitor module is integrated into the cabinet to bridge short power interruptions without triggering a CPU reset or loss of safe state.

For distributed I/O architectures, the PM554-TP-ETH-1SAP120600R0071 communicates with remote I/O stations via its Ethernet interface, often working alongside ABB TU515 or TU516 terminal units and compatible SM560-S safety I/O modules. This architecture allows safety signals — including emergency stop circuits, safety gate interlocks, and pressure relief triggers — to be processed with the determinism and fault tolerance required by IEC 62061 and ISO 13849 safety standards. In dusty, humid, or chemically aggressive environments, conformal-coated variants and sealed terminal blocks further protect the signal integrity of the entire control loop.

Cabinet thermal management is another dimension of protection. When the PM554-TP-ETH is installed in densely populated control cabinets alongside multiple I/O modules, communication cards, and relay output modules, thermal monitoring via cabinet thermostat controllers or PT100 temperature sensors connected to the AC500 analog input modules ensures that operating temperatures remain within specification, preventing thermal-induced CPU faults or premature component aging.

Critical Industrial Safety Applications

The PM554-TP-ETH-1SAP120600R0071 has established a strong track record across a broad spectrum of safety-critical industrial applications:

Petrochemical and Refinery Operations: In continuous process plants handling flammable or toxic media, the CPU serves as the core of emergency shutdown (ESD) and process safety management (PSM) systems. Its fail-safe behavior ensures that valve actuators, pump controls, and burner management systems default to a safe position upon any detected fault — preventing runaway reactions, overpressure events, or uncontrolled releases.

Power Generation and Substation Automation: In thermal, hydro, and renewable energy facilities, the AC500 CPU manages turbine control sequences, generator protection relays, and grid synchronization interlocks. The integrated Ethernet port enables real-time SCADA communication while maintaining local autonomous control — critical for black-start scenarios and grid fault isolation.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The PM554-TP-ETH’s industrial-grade construction and extended temperature range make it suitable for conveyor safety systems, crusher interlock panels, and ventilation control in hazardous zones.

Water and Wastewater Treatment: Municipal and industrial water treatment plants rely on continuous, uninterrupted control of pumping stations, chemical dosing systems, and filtration processes. The CPU’s Ethernet connectivity supports remote monitoring and alarm management, while its fail-safe logic prevents dosing errors or pump cavitation damage during communication faults.

Metallurgy and Heavy Industry: In steel mills, aluminum smelters, and foundries, the combination of high ambient temperatures, intense electromagnetic fields from induction furnaces, and heavy mechanical vibration creates one of the harshest environments for control electronics. The PM554-TP-ETH-1SAP120600R0071’s EMI immunity and thermal resilience make it a preferred choice for rolling mill automation, ladle transfer controls, and furnace temperature regulation.

Port Logistics and Marine Applications: Container crane control systems, ship-to-shore loaders, and vessel automation platforms demand high availability and precise motion control. The AC500 CPU’s deterministic scan cycle and robust communication architecture support safe load handling, anti-sway control, and emergency stop functions in salt-air, high-humidity marine environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the PM554-TP-ETH-1SAP120600R0071?
Every unit supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the confirmed support period. Support requests are processed with priority to minimize your site downtime.

Q2: Is pre-shipment functional testing performed on this CPU module?
Yes. All PM554-TP-ETH-1SAP120600R0071 units undergo a full functional test before dispatch, including power-on verification, communication port validation, and I/O interface checks. This ensures that every unit arrives at your site in confirmed working condition, reducing commissioning risk and eliminating the possibility of receiving a DOA (dead-on-arrival) unit.

Q3: Is this CPU compatible with existing ABB AC500 control system architectures?
The PM554-TP-ETH-1SAP120600R0071 is fully compatible with the ABB AC500 hardware ecosystem, including standard and safety I/O modules, communication expansion cards, and AC500 programming software (Automation Builder). It supports IEC 61131-3 programming languages, enabling direct program migration from other AC500 CPU variants with minimal engineering effort. Compatibility with third-party Ethernet devices via standard Modbus TCP and PROFINET protocols is also supported.

Q4: Can KNMKS support long-term or repeat supply requirements for this part?
KNMKS maintains dedicated inventory for ABB AC500 series components, including the PM554-TP-ETH-1SAP120600R0071, to support long-term spare parts agreements and scheduled maintenance programs. We can accommodate blanket orders, consignment stock arrangements, and multi-site supply contracts for industrial operators requiring guaranteed availability over 12–36 month horizons. Contact our technical sales team to discuss your specific supply continuity requirements.
