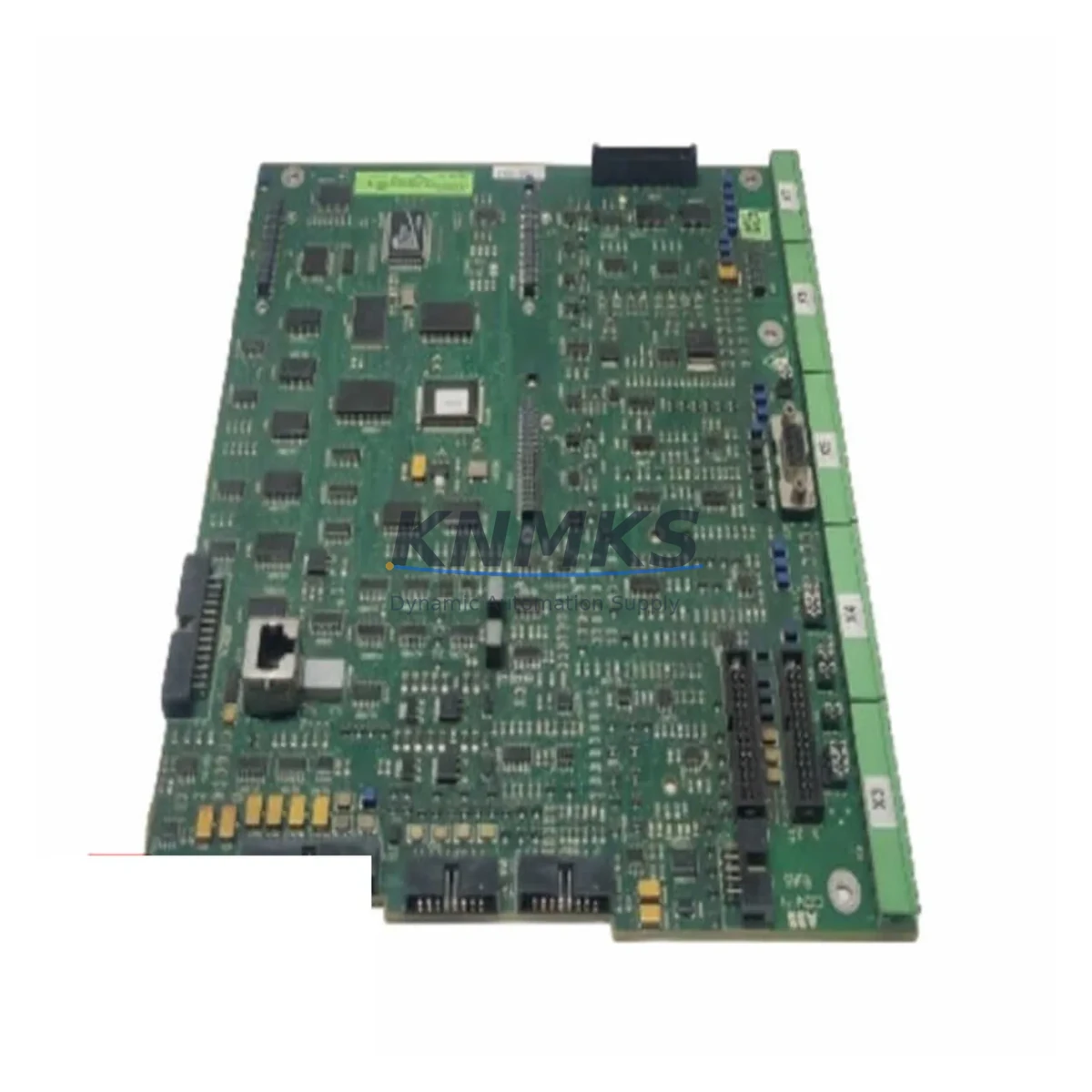

ABB PM554-RP-AC Maintenance-Proven Spare for AC500

Overview

ABB PM554-RP-AC Maintenance-Proven Spare for AC500 Factory Uptime

The ABB PM554-RP-AC is a central processing unit module within the ABB AC500 programmable logic controller series — one of the most widely deployed automation platforms in process industries, discrete manufacturing, and utility infrastructure worldwide. Sourced as an original spare part and pre-shipment tested to ABB functional specifications, the PM554-RP-AC is engineered to restore control system availability with minimal downtime and maximum confidence. Whether you are responding to an unplanned fault, executing a scheduled annual overhaul, or building a strategic spare parts buffer for a multi-site facility, this module delivers the reliability and long-term supply assurance that maintenance and procurement engineers demand.

The PM554-RP-AC operates on AC power input and integrates onboard I/O with communication interfaces suited for both standalone and networked control architectures. Its compact form factor and compatibility with the AC500 backplane ecosystem make it a direct replacement for aging or failed units without requiring hardware redesign or software re-engineering. All units supplied by KNMKS are individually inspected, functionally verified, and shipped with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the PM554-RP-AC in a live or recently faulted AC500 system is rarely an isolated task. Experienced maintenance engineers treat a CPU module replacement as a trigger for a broader cabinet inspection to prevent secondary failures and ensure the restored system operates within specification. Before returning the control cabinet to service, the following associated components should be inspected or replaced as part of the same maintenance window.

The AC500 power supply module (such as the CP502 or CP503 series) should be load-tested to confirm it can sustain the CPU and I/O bus under full operational demand. A degraded power supply is a common root cause of intermittent CPU faults and should never be overlooked when a PM554-RP-AC has failed unexpectedly. Similarly, the TB511-ETH or TB521-ETH terminal base on which the CPU mounts should be inspected for contact wear, corrosion, or mechanical damage — a faulty terminal base can cause the replacement CPU to fail prematurely.

On the I/O side, the DC532 digital I/O expansion module and AI523 analog input module connected to the same backplane should be checked for firmware compatibility with the replacement CPU firmware version. Mismatched firmware between the CPU and I/O modules is a known source of communication errors after a CPU swap. If the system uses CM572-DP PROFIBUS communication modules or CM589-PNIO PROFINET interface modules, verify that the fieldbus configuration stored in the CPU program matches the physical network topology before restarting.

Fuse protection within the control cabinet — particularly the 24 V DC auxiliary fuse rail feeding sensor inputs and relay coils — should be inspected and replaced if any fuse shows signs of thermal stress. Relay output modules such as the DO531 digital output module should be tested for contact integrity, especially in high-cycle applications. Finally, if the system includes an ABB CP600 or CP620 HMI panel communicating with the AC500 CPU via Ethernet or serial link, confirm that the HMI project file and communication parameters are backed up and compatible with the replacement CPU configuration before commissioning.

Site Replacement Workflow

Step 1 — Backup and Documentation: Before removing the failed PM554-RP-AC, use ABB Automation Builder or the onboard SD card slot to extract the current PLC program, configuration, and I/O mapping. Confirm the backup is readable and complete.

Step 2 — Safe Isolation: De-energize the control cabinet following your site LOTO (Lockout/Tagout) procedure. Verify zero voltage on the AC input terminals and the 24 V DC bus before touching any module.

Step 3 — Module Removal: Release the CPU module from the terminal base by pressing the release lever and sliding the module upward. Inspect the terminal base contacts for debris or corrosion before installing the replacement.

Step 4 — Replacement Installation: Align the PM554-RP-AC with the terminal base guide rails and press firmly until the locking mechanism engages. Do not force the module — misalignment can damage both the CPU and the terminal base.

Step 5 — Program Restore and Firmware Check: Power up the cabinet and load the backed-up program via Automation Builder or SD card. Verify that the CPU firmware version is compatible with your I/O module firmware. Update if necessary before going online.

Step 6 — Functional Verification: Run a full I/O check, confirm fieldbus communication status, and verify HMI connectivity before returning the system to automatic mode. Document the replacement in your maintenance management system (CMMS) with the new module serial number and installation date.

This structured workflow minimizes re-work risk, reduces total downtime to under two hours in most installations, and ensures the replacement PM554-RP-AC is commissioned to the same operational standard as the original factory configuration.

Spare Parts Support FAQ

Q1: Is the PM554-RP-AC compatible with all AC500 terminal bases?
The PM554-RP-AC is designed for use with ABB AC500 TB5xx and TA5xx series terminal bases. Compatibility depends on the specific terminal base variant and the system generation. Always cross-reference the ABB AC500 system catalog or contact KNMKS with your existing terminal base part number to confirm a direct fit before ordering.

Q2: How is each unit tested before shipment?
Every PM554-RP-AC supplied by KNMKS undergoes a functional power-on test and communication interface verification prior to packaging. Units that do not pass the test protocol are not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and operational failures arising under normal industrial operating conditions as defined in the ABB AC500 product specification. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. Support requests are processed directly through KNMKS with a target response time of 48 hours.

Q4: Can KNMKS support long-term supply agreements for the PM554-RP-AC?
Yes. KNMKS offers long-term supply agreements for the PM554-RP-AC and related AC500 spare parts, with contract terms of 12 to 36 months available. These agreements include reserved stock allocation, priority shipment, and fixed pricing — designed specifically for maintenance managers and procurement engineers who need supply continuity for legacy automation systems without exposure to spot-market price volatility.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PM554-RP-AC
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PM554-RP-AC
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
