ABB PM554-RP 1SAP120700R0001 Fail-Safe CPU Industrial

Overview

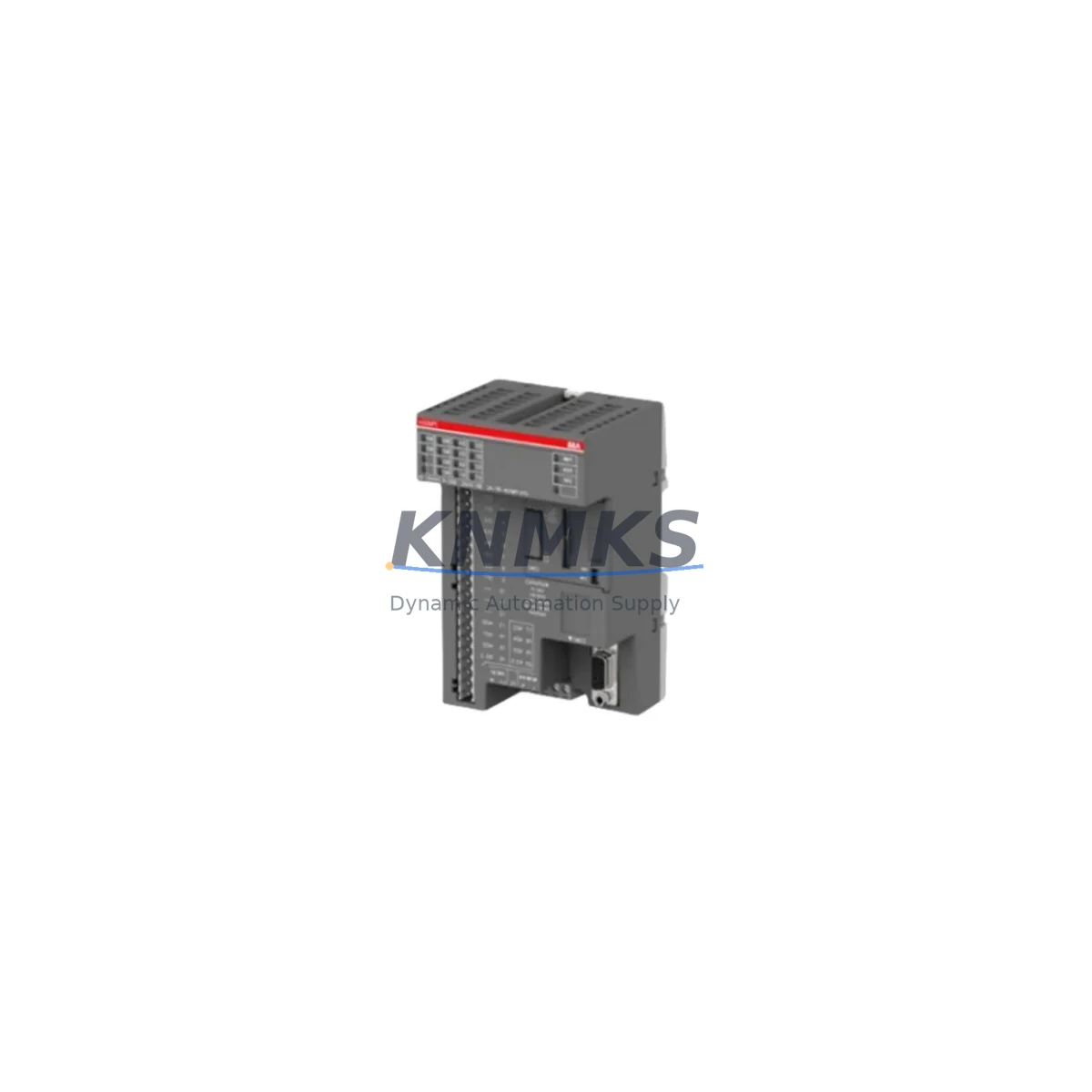

ABB PM554-RP 1SAP120700R0001 Fail-Safe CPU Industrial: Fault-Protected Reliability for Critical Industrial Sites

The ABB PM554-RP (1SAP120700R0001) is a ruggedized, fail-safe CPU module from ABB’s proven AC500 series, engineered to deliver uninterrupted control performance in the most demanding industrial environments. Designed for continuous production lines, critical interlock circuits, and high-load control cabinets, this CPU module addresses the core reliability challenges that define modern industrial automation: control interruption, spurious trips, signal drift, power fluctuation, communication anomalies, surge impact, cabinet overheating, and unplanned downtime.

Whether deployed in petrochemical processing, power generation, mining extraction, water treatment, metallurgical smelting, port logistics, marine vessel control, or continuous discrete manufacturing, the PM554-RP provides the deterministic, fault-tolerant execution environment that safety-critical applications demand. Its ruggedized hardware platform is rated for extended temperature ranges, high-vibration mechanical environments, and elevated humidity or dust exposure — conditions that routinely compromise standard PLC hardware.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the PM554-RP does not operate in isolation — it functions as the central processing node within a coordinated protection architecture. To achieve full fail-safe performance, the CPU must be paired with complementary components that address every layer of cabinet-level risk.

On the power supply side, the ABB CP604 AC500 power supply module provides regulated 24 VDC with built-in overload protection, ensuring the PM554-RP receives stable, clean power even during grid fluctuations or inrush events from heavy motor loads. For surge and transient protection at the cabinet entry point, a dedicated surge protective device (SPD) — such as those from the ABB OVR series — should be installed on both the power rail and signal lines to prevent transient energy from reaching the CPU backplane.

Communication integrity is equally critical. The PM554-RP’s dual Ethernet ports support PROFINET and Modbus TCP architectures; pairing it with ABB CM592-DP PROFIBUS DP communication modules extends fieldbus reach to legacy I/O stations and drives without compromising the CPU’s deterministic scan cycle. For distributed I/O expansion in remote cabinet sections or field junction boxes, ABB TU515 or TU516 terminal units combined with SM560-S safety I/O modules extend the fail-safe I/O architecture beyond the main cabinet while maintaining SIL-rated signal integrity.

Cabinet thermal management is a frequently underestimated failure vector. In high-ambient or densely packed enclosures, sustained temperatures above 55°C accelerate capacitor aging and processor throttling. Integrating a cabinet cooling unit or thermostat-controlled fan assembly alongside the PM554-RP installation ensures the CPU operates within its rated thermal envelope, preserving both performance and service life. The PM554-RP’s ruggedized design provides a wider thermal margin than standard AC500 variants, but proactive thermal management remains best practice for 24/7 continuous operation.

Critical Industrial Safety Applications

Petrochemical & Refinery: The PM554-RP is well-suited for emergency shutdown (ESD) and burner management system (BMS) applications where IEC 61511 compliance and deterministic response times are mandatory. Its surge-hardened design withstands the high-voltage transients common near large motor control centers and transformer switchgear.

Power Generation & Utilities: In turbine control, boiler sequencing, and substation automation, the CPU’s dual Ethernet ports support redundant SCADA communication paths, reducing single-point-of-failure exposure. The extended temperature rating accommodates outdoor or semi-outdoor switchgear installations.

Mining & Mineral Processing: Underground and surface mining environments subject control hardware to extreme vibration, coal dust ingress, and wide temperature swings. The PM554-RP’s IEC 60068-2-6 vibration compliance and sealed module design maintain reliable operation in conveyor control, crusher sequencing, and ventilation interlock systems.

Water & Wastewater Treatment: Continuous pump station control, chemical dosing automation, and SCADA-integrated monitoring benefit from the PM554-RP’s long-term operational stability. Its resistance to high-humidity environments prevents the condensation-related failures that plague standard PLC hardware in wet process areas.

Metallurgy & Steel: Rolling mill control, furnace temperature regulation, and ladle crane automation demand CPUs that tolerate electromagnetic interference from large induction furnaces and variable frequency drives. The PM554-RP’s EN 61000-series EMC compliance ensures signal integrity in these high-noise environments.

Port & Marine: Crane PLC systems, vessel automation, and cargo handling equipment require hardware rated for salt-air corrosion resistance and wide operating temperature ranges. The PM554-RP’s ruggedized AC500 platform meets these requirements while supporting the Modbus TCP and PROFINET protocols common in port automation infrastructure.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the PM554-RP 1SAP120700R0001?
The support terms confirmed by quotation cover all manufacturing defects, functional failures under normal operating conditions, and hardware faults identified during the confirmed support period. Coverage begins from the date of shipment. Support requests are supported with direct technical assistance and replacement unit coordination through KNMKS. Contact [email protected] for support terms registration and claim procedures.

Q2: What pre-shipment testing is performed before dispatch?
Every PM554-RP unit undergoes full functional verification prior to shipment. This includes power-on self-test (POST) validation, communication port integrity checks, I/O bus connectivity confirmation, and visual inspection for physical damage. Test records are retained and available upon request. This protocol ensures that units arrive at site ready for immediate installation and commissioning.

Q3: Is the PM554-RP 1SAP120700R0001 compatible with existing AC500 V2 and V3 installations?
The PM554-RP is designed for integration within the ABB AC500 hardware ecosystem. It is compatible with AC500 V2 and V3 I/O modules, terminal units, and communication modules when used with the appropriate Automation Builder software version. For mixed-generation cabinet upgrades or retrofit projects, KNMKS provides pre-sales compatibility consultation to confirm hardware and firmware alignment before order placement.

Q4: Can KNMKS support long-term spare parts supply for the PM554-RP?
Yes. KNMKS maintains dedicated inventory reserves for critical AC500 series components, including the PM554-RP, to support long-term spare parts agreements of 12 to 36 months. This is particularly relevant for facilities operating continuous production lines where unplanned CPU failure would result in significant downtime costs. Multi-site procurement contracts and scheduled delivery programs are available. Contact our team to discuss supply agreement terms tailored to your maintenance strategy.
