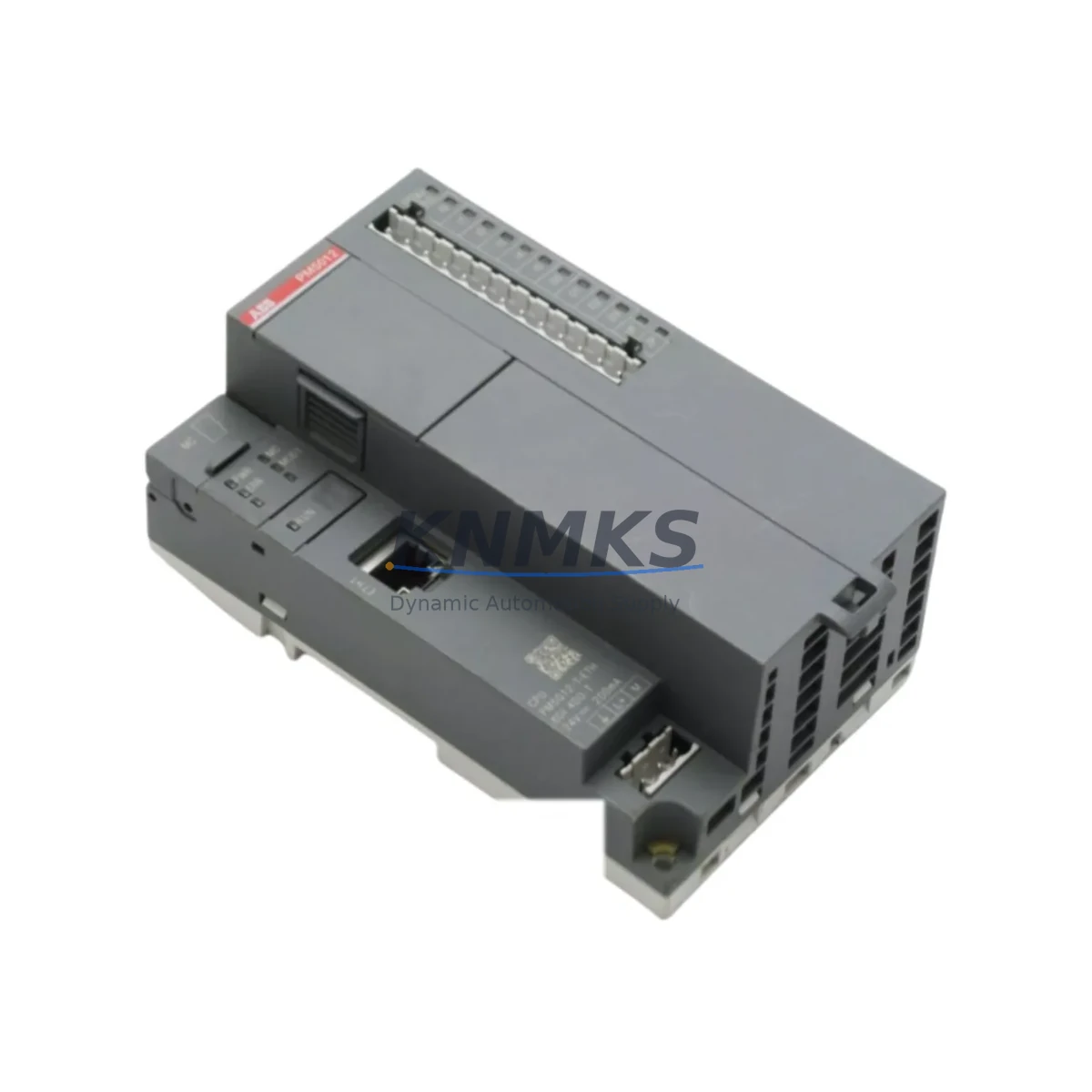

ABB PM5015-T-ETH 1SAP122600R0172 AC500 Spare Part: Maintenance-Proven for Factory Uptime

The ABB PM5015-T-ETH (order reference 1SAP122600R0172) is a high-performance power meter module designed for the ABB AC500 programmable logic controller platform. As a maintenance-proven spare part, it plays a critical role in sustaining continuous factory operation across energy-intensive industrial environments including manufacturing lines, process automation cells, water treatment facilities, and building management systems. KNMKS stocks verified original units with full compatibility confirmation, pre-shipment electrical testing, and a support terms confirmed by quotation — ensuring your maintenance team can restore operations with confidence and minimal downtime.

For maintenance engineers managing AC500-based control cabinets, the PM5015-T-ETH provides integrated Ethernet connectivity alongside real-time power measurement, enabling remote diagnostics and energy monitoring without additional gateway hardware. Its compact form factor and DIN-rail mounting make it a direct fit for existing AC500 backplane configurations, reducing replacement time during scheduled or emergency maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the PM5015-T-ETH in an AC500 control cabinet, a disciplined maintenance engineer will treat the swap as an opportunity to inspect the entire electrical circuit surrounding the module — not just the failed component. The 24 V DC supply rail feeding the PM5015-T-ETH should be verified with a calibrated multimeter; voltage sag below 20.4 V DC is a common root cause of intermittent communication faults that are often misdiagnosed as module failure. If the cabinet uses an ABB CP-E 24/5.0 or equivalent 24 V DC power supply module, check its output capacitors and terminal connections for signs of thermal stress or corrosion before reinstalling a new PM5015-T-ETH.

The Ethernet port on the PM5015-T-ETH connects directly to the plant network or a dedicated automation VLAN. During replacement, inspect the RJ45 patch cable and the managed switch port for link errors or CRC faults — a degraded cable is frequently the actual cause of MODBUS TCP timeouts attributed to the power meter module. For cabinets using ABB CI502-PNIO or CI504-PNIO PROFINET communication modules on the same AC500 backplane, verify that backplane bus termination resistors are correctly seated after the PM5015-T-ETH is reseated, as improper termination can cause cascading communication errors across all modules.

I/O modules adjacent to the PM5015-T-ETH — particularly ABB DI524 digital input modules or AI523 analog input modules — should be inspected for loose terminal block connections during the same maintenance window. Vibration-induced terminal loosening is a leading cause of spurious I/O faults in high-cycle manufacturing environments. Similarly, the fuse protecting the 24 V DC supply to the PM5015-T-ETH segment should be tested for continuity; a marginally blown fuse may pass visual inspection but fail under load.

For facilities running ABB CP600 series HMI panels connected to the AC500 system, confirm that the HMI communication parameters (IP address, MODBUS TCP slave ID) are updated to match the replacement PM5015-T-ETH configuration before returning the line to production. Failure to update HMI addressing is a common cause of post-replacement alarm floods that delay production restart. Signal isolators on analog measurement loops connected to the power meter should also be checked for drift — ABB PISO series or equivalent DIN-rail isolators are recommended for long cable runs in electrically noisy environments.

Procurement engineers should consider maintaining at least one PM5015-T-ETH unit as a cold-standby spare in the site spare parts store, particularly for facilities with multiple AC500 installations. The module’s long production lifecycle within the AC500 platform makes it a cost-effective inventory item with low obsolescence risk over a 5–10 year planning horizon.

Site Replacement Workflow

Step 1 — Isolation and Safety: De-energize the AC500 rack following site LOTO (Lockout/Tagout) procedures. Confirm 24 V DC supply is isolated at the cabinet breaker. Allow 30 seconds for internal capacitors to discharge before opening the cabinet door.

Step 2 — Module Extraction: Note the slot position of the PM5015-T-ETH on the backplane. Disconnect the Ethernet cable and any CS31 bus connectors. Release the module locking tab and slide the unit out of the backplane slot. Avoid touching the backplane connector pins.

Step 3 — Compatibility Verification: Confirm the replacement PM5015-T-ETH carries order reference 1SAP122600R0172. Cross-check the firmware version label if the site runs a specific AC500 firmware baseline — contact KNMKS at [email protected] if firmware compatibility guidance is required for your specific AC500 CPU version.

Step 4 — Installation: Seat the replacement module firmly into the same backplane slot until the locking tab clicks. Reconnect the Ethernet cable and CS31 bus connectors. Restore 24 V DC power and observe the module status LEDs — a steady green RUN LED confirms successful initialization.

Step 5 — Configuration Restore: If the PM5015-T-ETH stores local configuration (IP address, MODBUS slave parameters), restore the configuration from the site backup using ABB Automation Builder or the module’s web interface. Verify communication with the AC500 CPU and HMI before releasing the line.

Step 6 — Functional Test: Confirm power measurement readings are within expected range. Check MODBUS TCP polling from the SCADA or HMI layer. Log the replacement in the site maintenance record and update the spare parts inventory.

This workflow is compatible with direct replacement of legacy PM5015 variants without the Ethernet option, provided the control program is updated to utilize the additional communication capability of the PM5015-T-ETH.

Spare Parts Support FAQ

Q1: Is the PM5015-T-ETH 1SAP122600R0172 compatible with all AC500 backplane variants?
The PM5015-T-ETH is designed for the ABB AC500 PLC platform and is compatible with standard AC500 backplanes supporting the PM5xx module family. Compatibility with specific backplane generations (TB511, TB521, TB541) should be confirmed against the ABB AC500 system manual or by contacting KNMKS at [email protected] with your existing backplane part number. KNMKS performs pre-shipment compatibility checks for customers who provide their full system configuration.

Q2: What pre-shipment testing does KNMKS perform on the PM5015-T-ETH?
Every PM5015-T-ETH unit shipped by KNMKS undergoes a power-on functional verification test confirming module initialization, LED status, and Ethernet link establishment. Units that fail any stage of testing are quarantined and not shipped. A support terms confirmed by quotation cover all units against manufacturing defects and functional failure under normal operating conditions.

Q3: Can KNMKS support long-term or blanket order supply of the PM5015-T-ETH?
Yes. KNMKS supports blanket purchase orders and scheduled delivery programs for maintenance teams managing multiple AC500 installations. Long-term supply agreements help procurement engineers lock in pricing, guarantee availability, and reduce emergency procurement risk. Contact [email protected] or call +86 18359268345 to discuss volume pricing and delivery scheduling.

Q4: What should I do if the replacement PM5015-T-ETH does not initialize after installation?
First, verify that the 24 V DC supply voltage at the backplane connector is within the 20.4–28.8 V DC operating range. Check that the module is fully seated in the backplane slot and the locking tab is engaged. Inspect the Ethernet cable and switch port for link activity. If the module still does not initialize, contact KNMKS technical support at [email protected] — our team can assist with remote diagnostics and, if necessary, arrange an expedited replacement under the support terms confirmed by quotation.
