ABB PM151-3BSE003642R1 Migration-Ready CPU for Legacy Control Systems

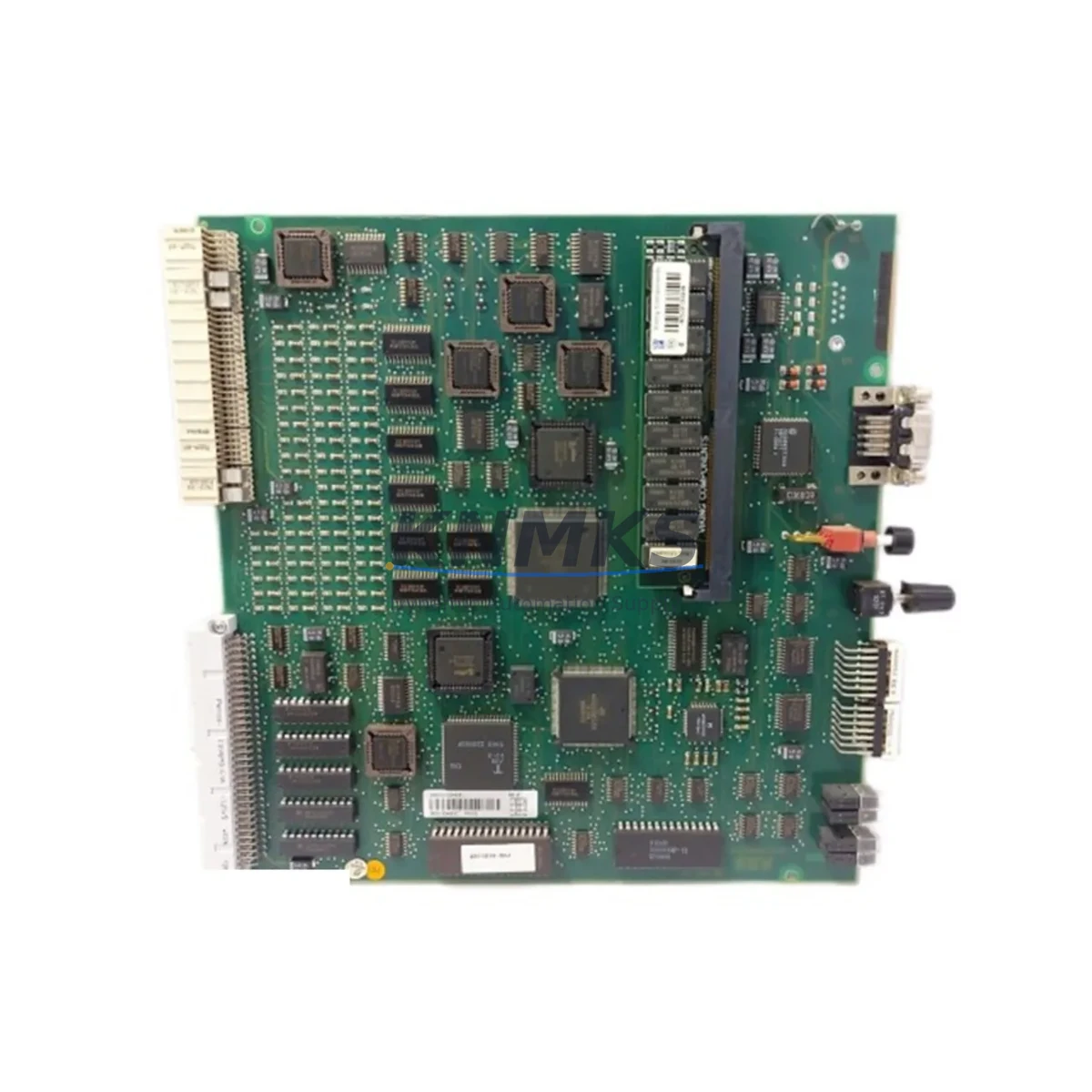

The ABB PM151-3BSE003642R1 is a compact, high-performance CPU module from the ABB AC500 series, purpose-built for industrial automation environments where legacy PLC infrastructure must be modernized without full system overhaul. Designed as a direct migration path for aging ABB Advant, AC31, and early AC500 controllers, the PM151-3BSE003642R1 delivers the processing power, communication flexibility, and I/O compatibility required to sustain continuous production while reducing long-term maintenance risk.

For engineering teams managing end-of-life control systems, the PM151-3BSE003642R1 addresses the most critical retrofit challenges: terminal wiring compatibility, backplane interface alignment, program logic preservation, and HMI screen continuity. The module supports standard IEC 61131-3 programming environments, enabling direct migration of existing ladder logic and function block diagrams from legacy controllers with minimal rework. Its compact DIN-rail form factor fits within existing control cabinet footprints, eliminating the need for panel redesign during scheduled outages.

When replacing discontinued ABB CPU modules, engineers must verify power supply capacity at the rack level. The PM151-3BSE003642R1 operates within the standard AC500 power budget, making it compatible with existing TB521-ETH and TB541-ETH terminal base units already installed in the field. If the legacy system uses older TB511 or TB521 bases without Ethernet, a base swap to TB521-ETH is recommended to unlock full communication capability without replacing the entire rack assembly.

Communication protocol migration is a key consideration during AC500 CPU replacement. The PM151-3BSE003642R1 supports PROFIBUS DP, Modbus RTU, and Modbus TCP natively, allowing it to interface directly with existing field devices, variable frequency drives, and remote I/O stations without gateway hardware. For sites running legacy PROFIBUS networks connected to ABB ACS550 or ACS800 drives, the PM151-3BSE003642R1 maintains master-slave communication continuity, protecting existing drive parameterization and process setpoints.

I/O expansion during migration is handled through the AC500 S500 I/O module family. Digital input modules such as the DI524 and digital output modules such as the DO524 can be added to the existing rack or mounted on extension racks connected via the internal bus. Analog signal modules including the AI523 support 4–20 mA and 0–10 V field instruments, preserving existing sensor wiring during the transition. Module addressing is configured in Automation Builder, and address mapping from the legacy program can be replicated directly to minimize logic changes.

HMI continuity is maintained by retaining existing CP600 or CP620 operator panels connected via Ethernet or serial links. The PM151-3BSE003642R1 supports standard OPC DA and Modbus TCP communication to HMI platforms, ensuring that existing screen layouts, alarm configurations, and trend displays remain functional after CPU replacement. Where legacy HMI panels use RS-232 serial connections, a serial communication module such as the CM572-DP can be added to the AC500 rack to bridge the interface without panel replacement.

Firmware compatibility should be confirmed before commissioning. The PM151-3BSE003642R1 is supported under Automation Builder 2.x and later, and firmware updates are applied via USB or Ethernet using the standard ABB update procedure. Pre-shipment firmware verification is included with every unit supplied by KNMKS, ensuring the module arrives ready for immediate installation and program download.

Every PM151-3BSE003642R1 unit supplied by KNMKS is pre-tested under load conditions prior to dispatch, with full functional verification of CPU boot sequence, communication port initialization, and I/O bus handshake. Multi-region stock is maintained to support emergency replacement dispatch and scheduled maintenance windows globally. A support terms confirmed by quotation cover all supplied units against manufacturing defects and functional failure under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the PM151-3BSE003642R1 into an existing control system begins with a rack-level audit. Engineers should document the current CPU slot position, terminal base model, and I/O module addresses before initiating any hardware change. Where the legacy system uses TB511 terminal bases, replacement with TB521-ETH units allows the PM151-3BSE003642R1 to operate with full Ethernet connectivity while reusing existing DIN-rail mounting positions.

Power supply verification is the next critical step. The AC500 PS501-PROG or PS560 power supply modules must be confirmed to provide sufficient current for the PM151-3BSE003642R1 plus all connected S500 I/O modules. If the existing power supply is undersized, a PS560 replacement can be installed in the same rack slot without cabinet modification. Signal isolation between legacy field wiring and new I/O modules should be evaluated, particularly for analog channels where ground loops may affect measurement accuracy.

For sites with extended I/O requirements, the AC500 supports remote I/O expansion via PROFIBUS DP or Modbus RTU using additional S500 racks. DI524 digital input modules and AI523 analog input modules can be added to remote racks and addressed through the PM151-3BSE003642R1 master configuration in Automation Builder. Programming cables for initial configuration and firmware download are connected via the front USB port, eliminating the need for a dedicated programming network during commissioning.

Where legacy systems include third-party communication modules or signal conditioners, the PM151-3BSE003642R1’s multi-protocol support allows direct integration without gateway hardware. PROFIBUS DP master functionality enables continued communication with existing field devices, drives, and remote I/O stations, preserving the existing network topology and reducing migration scope.

Downtime Control During System Migration

Minimizing downtime during CPU replacement requires a structured pre-migration checklist. Before removing the legacy CPU, engineers should perform a full program backup using Automation Builder, export all data block values and retain files, and document all communication node addresses and baud rate settings. HMI tag databases should be exported and verified against the replacement CPU’s variable list to confirm address continuity.

Physical installation of the PM151-3BSE003642R1 follows the standard AC500 module insertion procedure: power down the rack, remove the legacy CPU from the terminal base, insert the PM151-3BSE003642R1, and restore power. The module performs a self-test on boot, and the Automation Builder project is downloaded via USB or Ethernet. I/O module addresses are automatically recognized from the existing rack configuration, reducing commissioning time to the program download and communication verification steps.

To protect original program logic, KNMKS recommends retaining the legacy CPU as a cold standby during the initial commissioning period. If the replacement system requires adjustment, the original CPU can be reinstalled within minutes, maintaining field control continuity. Once the PM151-3BSE003642R1 has been verified in production for a defined stabilization period, the legacy unit can be archived as a long-term spare.

Communication link verification should be completed before returning the system to automatic mode. PROFIBUS DP node diagnostics, Modbus TCP connection status, and HMI communication health should all be confirmed live before operator handover. KNMKS provides pre-shipment test reports for each unit, reducing on-site diagnostic time and supporting faster return to production.

Retrofit Support FAQ

Q: Is the PM151-3BSE003642R1 a direct drop-in replacement for earlier ABB AC500 CPU modules?
A: Yes. The PM151-3BSE003642R1 is mechanically and electrically compatible with the AC500 terminal base family. For systems using TB511 bases, a base upgrade to TB521-ETH is recommended to enable Ethernet communication. Existing I/O modules, wiring, and rack assemblies are retained without modification.

Q: What programming tools are required for commissioning?
A: ABB Automation Builder 2.x or later is required for program download, I/O configuration, and firmware management. The module connects via front USB port or Ethernet. Existing IEC 61131-3 programs from legacy AC500 or AC31 controllers can be imported directly with minimal adaptation.

Q: Does KNMKS provide pre-shipment testing for this module?
A: Yes. Every PM151-3BSE003642R1 unit is tested prior to dispatch, including CPU boot sequence verification, communication port initialization, and I/O bus handshake confirmation. A test report is available on request. All units are covered by a support terms confirmed by quotation against manufacturing defects and functional failure.

Q: What is the typical lead time and stock availability?
A: KNMKS maintains multi-region stock of the PM151-3BSE003642R1 to support both emergency replacement and scheduled maintenance programs. Standard dispatch is within 2–5 business days. Express dispatch for critical outage situations is available on request. Contact [email protected] or +86 18359268345 for current stock confirmation and lead time.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PM151-3BSE003642R1
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB PM151-3BSE003642R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
