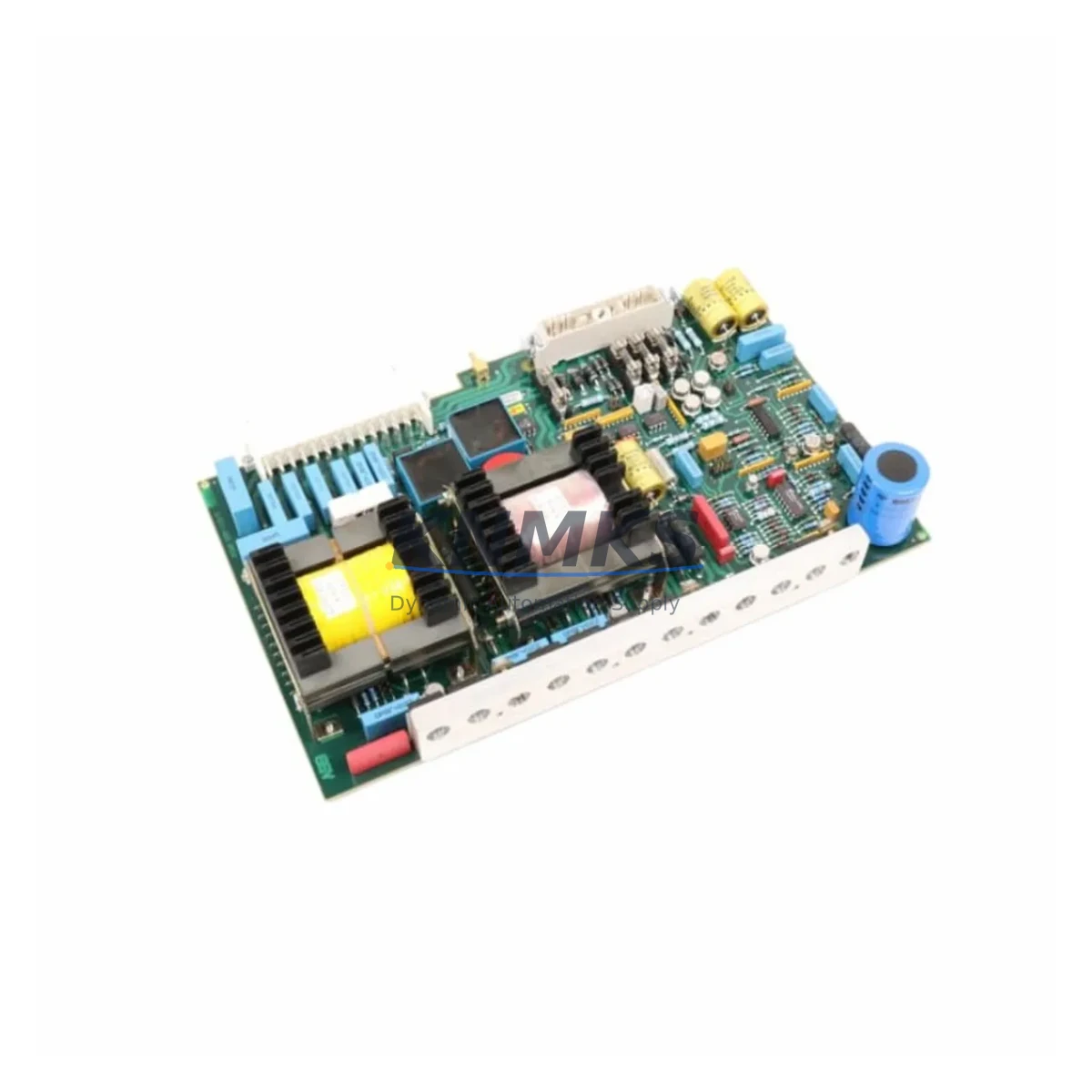

ABB PFSK102 YM322001-EG Fail-Safe DCS Power Supply Module

Overview

ABB PFSK102 YM322001-EG Fail-Safe DCS Power Supply Module: Fault Protection and Critical Industrial Field Reliability

The ABB PFSK102 YM322001-EG is a safety-grade DCS power supply module engineered for the ABB AC800M distributed control system platform. Designed to sustain uninterrupted power delivery in the most demanding industrial environments, this module serves as the backbone of control cabinet power integrity — protecting critical control loops, safety interlocks, and field instrumentation from the consequences of power instability, surge events, and electromagnetic interference.

In continuous production facilities — including petrochemical plants, power generation stations, metallurgical smelters, and water treatment infrastructure — even a momentary power disruption to the DCS backbone can trigger cascading shutdowns, process upsets, or safety system activations. The PFSK102 YM322001-EG is purpose-built to eliminate this risk. Its regulated DC output maintains stable voltage under load transients, while its EMC-hardened design suppresses conducted and radiated interference that is endemic to high-voltage switchgear environments, variable frequency drives, and heavy motor control centers.

The module’s surge protection architecture guards against voltage spikes introduced through shared power rails or external grid disturbances — a critical safeguard in mining substations, port crane control rooms, and offshore vessel automation panels where grid quality is inherently variable. Signal drift caused by supply voltage fluctuation is a known failure mode in analog I/O cards and transmitter loops; the PFSK102 YM322001-EG’s tight output regulation directly mitigates this risk, preserving the accuracy of 4–20 mA process signals and HART device communication.

Thermal management is equally addressed. The module is rated for operation across the full industrial temperature range, making it suitable for outdoor control enclosures in tropical climates, high-altitude installations, and cabinet environments where cooling is constrained. Its vibration tolerance supports deployment in rotating machinery control panels, compressor skids, and shipboard automation systems where mechanical stress is continuous.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust AC800M control cabinet is never built around a single component. The PFSK102 YM322001-EG operates in concert with a coordinated set of protection, control, and communication modules to deliver system-level fault tolerance. In a typical safety-critical cabinet architecture, the power supply module works alongside the ABB PFSK101 processor module, which handles real-time control execution and requires a stable, noise-free power source to prevent watchdog resets or CPU faults under electrical stress.

On the I/O side, modules such as the ABB PFSK107 and PFSK108 analog and digital I/O cards depend directly on the quality of cabinet power for accurate signal acquisition. A fluctuating supply voltage introduces offset errors in analog measurements and can cause spurious digital transitions — both of which represent safety hazards in interlock-critical applications. The PFSK102 YM322001-EG’s regulated output eliminates this failure pathway.

For communication integrity, the ABB PFSK152 fieldbus communication module — used for PROFIBUS or Modbus connectivity to field devices — is sensitive to power rail noise that can corrupt data frames and trigger communication timeouts. Pairing it with a clean, surge-protected power supply is a standard engineering practice in high-reliability DCS installations.

In cabinets where redundant power is required, the PFSK102 YM322001-EG is typically deployed alongside a secondary power supply module in a hot-standby or load-sharing configuration, ensuring that a single power supply failure does not interrupt control system operation. This architecture is mandatory in SIL-rated safety instrumented systems and is strongly recommended for any continuous process where unplanned shutdown carries significant safety or financial consequence.

External surge protection devices — such as DIN-rail mounted SPDs on incoming AC lines — and UPS systems providing battery-backed AC input further extend the protection envelope, ensuring the PFSK102 YM322001-EG operates within its rated input voltage window even during grid disturbances.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, DCS power supply reliability is a process safety requirement. The PFSK102 YM322001-EG supports continuous operation of burner management systems, emergency shutdown (ESD) controllers, and compressor anti-surge control loops — applications where a control system power failure can escalate to a safety incident.

Power Generation and Grid Substations: Turbine control systems, excitation regulators, and protection relay panels in power plants demand power supply modules with high noise immunity and stable output. The PFSK102 YM322001-EG’s EMC hardening makes it suitable for environments with high-frequency switching transients from power electronics.

Mining and Mineral Processing: Underground and surface mining operations subject control cabinets to vibration, dust ingress, and wide temperature swings. The PFSK102 YM322001-EG’s environmental robustness supports reliable operation of conveyor control systems, crusher automation, and ventilation safety interlocks.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities require 24/7 control system availability for pump sequencing, chemical dosing, and effluent monitoring. The module’s surge protection is particularly valuable in facilities where lightning exposure on long field cable runs is a recurring risk.

Metallurgy and Steel Production: Electric arc furnace control, rolling mill automation, and ladle handling systems generate extreme electromagnetic interference. The PFSK102 YM322001-EG’s EMC-hardened design ensures control system integrity in these high-interference environments.

Port and Marine Automation: Shipboard automation panels and port crane control systems face salt-air corrosion, vibration, and variable power quality from diesel generators. The PFSK102 YM322001-EG provides the stable, protected power supply these applications require for safe and reliable operation.

Safety and Quality FAQ

Q: What support terms coverage is provided for the PFSK102 YM322001-EG?
A: Every PFSK102 YM322001-EG supplied by KNMKS carries a support terms confirmed by quotation covering functional defects under normal operating conditions. Support terms support includes replacement or repair, with technical assistance available throughout the coverage period.

Q: What outgoing inspection and testing is performed before shipment?
A: Each unit undergoes a full functional test prior to dispatch, verifying output voltage regulation, surge protection response, and communication integrity. Modules that do not meet specification are quarantined and not shipped. Test records are available upon request.

Q: Is the PFSK102 YM322001-EG compatible with my existing AC800M system?
A: The PFSK102 YM322001-EG is designed for the ABB AC800M DCS platform. Compatibility depends on your specific system revision and cabinet configuration. KNMKS technical staff can verify compatibility based on your existing system documentation or hardware revision details — contact [email protected] with your system information.

Q: Can KNMKS support long-term supply and emergency replacement requirements?
A: Yes. KNMKS maintains stock of the PFSK102 YM322001-EG and related AC800M modules to support both planned maintenance schedules and emergency replacement scenarios. For critical facilities requiring guaranteed availability, standing stock arrangements and priority dispatch can be arranged. Contact our team to discuss your supply continuity requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
