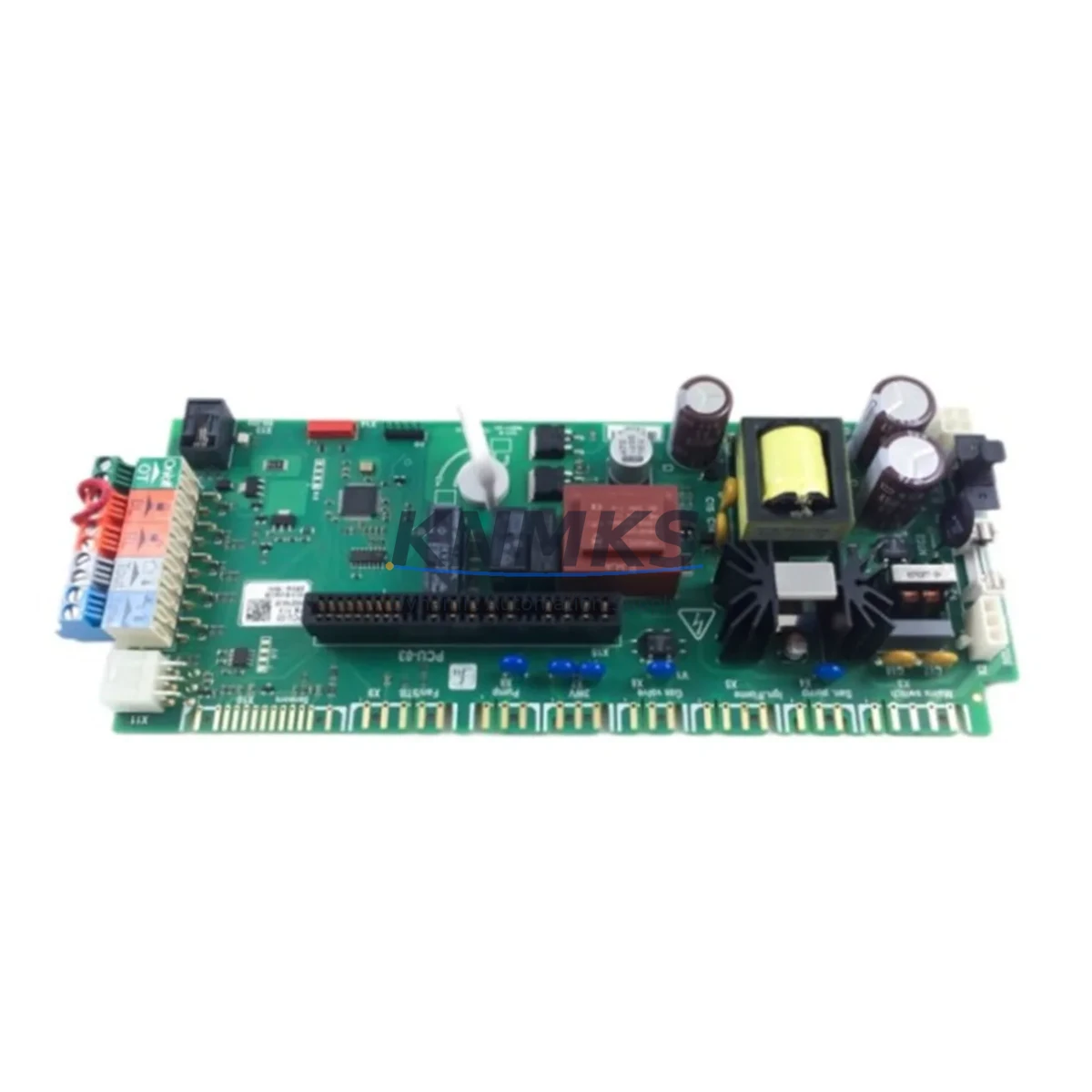

ABB PCU-03 Migration-Ready Purging Control for ACS800

Overview

ABB PCU-03 Migration-Ready Purging Control for ACS800: Legacy System Retrofit & Compatibility Upgrade

The ABB PCU-03 (SKU: PCU-03) is a dedicated purging control unit engineered for the ABB ACS800 series variable frequency drives deployed in hazardous-area (Ex p) environments. As industrial facilities transition away from aging drive platforms and discontinued control architectures, the PCU-03 serves as a critical migration component — enabling engineers to preserve explosion-protection compliance while upgrading surrounding control infrastructure without full drive replacement.

Whether you are replacing a failed purging controller on an existing ACS800 installation, retrofitting a legacy control cabinet to meet updated Ex p certification requirements, or extending the operational life of a drive system pending a full platform migration, the PCU-03 provides a verified, drop-in-compatible solution backed by a support terms confirmed by quotation and pre-shipment functional testing.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful PCU-03 integration into a legacy ACS800 installation requires a structured pre-retrofit assessment. Engineers should begin by auditing the existing ACS800 main control board (RMIO) to confirm the purging interlock signal routing and verify that the drive’s I/O configuration has not been customized in ways that affect the purge-ready permissive logic. In many retrofit scenarios, the ACS800 RDCO communication adapter or RDNA DeviceNet adapter remains in service alongside the PCU-03, and care must be taken to ensure that the purging interlock does not conflict with fieldbus command priorities.

Cabinet-level power distribution should be reviewed before installation. The PCU-03 draws auxiliary power from the control cabinet supply, and in older installations the 24 VDC SITOP or equivalent DIN-rail power supply may already be operating near capacity. Adding the PCU-03 without verifying available current headroom risks nuisance tripping during purge cycles — a failure mode that can trigger unnecessary drive shutdowns in hazardous-area processes.

Terminal wiring adaptation is frequently required when replacing earlier-generation purging controllers. The original PCU-01 or PCU-02 wiring harness may use a different terminal pitch or connector type. In such cases, a short wiring loom fabricated to the PCU-03 terminal specification eliminates the need to re-pull field cables, significantly reducing retrofit labor time. Signal isolation should be verified for any 4–20 mA pressure transmitter inputs connected to the purging circuit; a signal isolator or loop-powered barrier may be required if the transmitter ground reference differs from the PCU-03 input common.

Where the retrofit is part of a broader control system modernization — for example, migrating from a legacy ABB AC500 PLC or Freelance DCS platform to a current-generation controller — the PCU-03 can be retained as a standalone purging management device while the supervisory control layer is upgraded independently. This decoupled approach allows the hazardous-area drive system to remain operational during the PLC migration, avoiding the need for simultaneous shutdown of both the drive and the process control system.

HMI screen updates are often overlooked during purging controller replacements. If the existing ABB CP600 or CP400 operator panel displays purge status via a dedicated faceplate, the status bit mapping should be verified against the PCU-03 output signal definitions to ensure that alarm and ready indications are correctly reflected on the operator interface after replacement.

Downtime Control During System Migration

Minimizing process downtime during a PCU-03 replacement requires advance preparation rather than reactive troubleshooting. The recommended approach is to photograph and document all existing terminal connections, parameter settings, and purge-cycle timing values before powering down the cabinet. The ACS800 drive’s full parameter set should be uploaded to a PC using DriveWindow Light or the ACS800 control panel before any hardware is disturbed, ensuring that the drive configuration can be restored exactly if the replacement process encounters unexpected complications.

Physical replacement of the PCU-03 is typically straightforward, but the post-installation commissioning sequence requires careful attention. The purge cycle must be manually initiated and verified to complete successfully before the drive is permitted to start. This involves confirming that the enclosure pressure rises to the required threshold, that the purge timer runs to completion, and that the PCU-03 issues the drive-enable permissive without fault. Any deviation from the expected sequence should be investigated before returning the drive to automatic control.

Where process continuity is critical, a parallel-commissioning strategy can be employed: the replacement PCU-03 is wired and bench-tested against a spare ACS800 drive or a test rig before the live cabinet is touched. This approach allows the commissioning team to confirm correct operation of the new unit in advance, reducing the live-cabinet intervention to a straightforward swap-and-verify procedure. Combined with pre-tested wiring looms and a pre-loaded parameter file, this strategy routinely achieves PCU-03 replacements with less than two hours of drive downtime — acceptable for most scheduled maintenance windows in continuous-process industries.

All replaced units should be retained for a minimum of 30 days post-commissioning to serve as a fallback in the event of an unexpected compatibility issue. Once the replacement is confirmed stable, the original unit can be returned for evaluation or disposed of in accordance with local WEEE regulations.

Retrofit Support FAQ

Q1: Is the PCU-03 a direct drop-in replacement for the PCU-01 and PCU-02?
The PCU-03 is functionally compatible with ACS800 Ex p drives previously equipped with PCU-01 or PCU-02 units, but it is not always a mechanical drop-in. Terminal layout and connector types may differ between generations. Verify the mounting footprint, terminal pitch, and wiring diagram before ordering. In most cases, a short wiring adapter loom resolves any connector differences without requiring field cable replacement.

Q2: What commissioning steps are required after installing the PCU-03?
After physical installation and wiring verification, the purge-cycle timing parameters must be re-entered or confirmed. A full manual purge cycle should be initiated and observed to completion before the drive is returned to service. Verify that the drive-enable permissive is correctly issued by the PCU-03 at the end of the purge cycle, and confirm that any HMI purge-status displays are updating correctly. Document all commissioning results for the site maintenance record.

Q3: How is pre-shipment testing performed, and what does the support terms confirmed by quotation cover?
Each PCU-03 unit undergoes functional verification prior to dispatch, confirming power-up behavior, output signal integrity, and basic purge-cycle logic. The support terms confirmed by quotation cover manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or operation outside the specified environmental ratings. Support requests are supported by our technical team at [email protected].

Q4: What is the typical lead time, and do you maintain stock?
We maintain inventory of the PCU-03 to support urgent replacement requirements. Standard orders are dispatched within 1–3 business days. For large-quantity orders or projects requiring multiple units for a phased retrofit program, contact our sales team in advance to confirm stock availability and reserve allocation. Express shipping options are available for critical breakdown situations.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PCU-03
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB PCU-03
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
