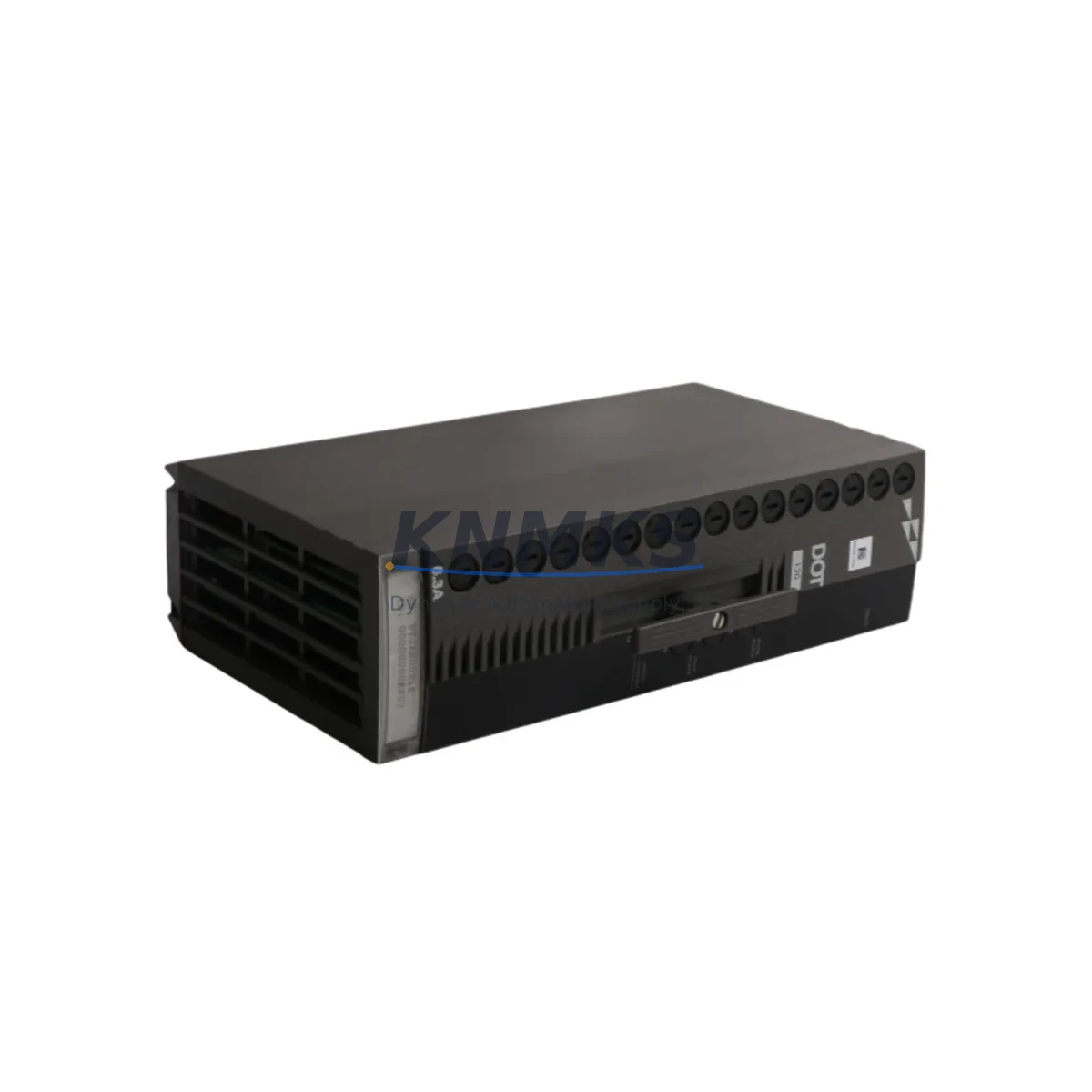

ABB P-HB-DOT-12010000 Fail-Safe Safety Digital Output

Overview

ABB P-HB-DOT-12010000 Fail-Safe Safety Digital Output — Fault-Tolerant Control for Critical Industrial Sites

The ABB P-HB-DOT-12010000 is a SIL3-rated safety digital output module engineered for the AC500-S Safety PLC platform, designed to deliver uncompromising fail-safe performance in the most demanding industrial environments. With 12 channels of 24 VDC digital output, IEC 61508 and IEC 62061 certification, and a robust hardware architecture built for harsh-site deployment, this module is the backbone of safety-critical control loops where unplanned downtime, signal drift, or output misfire carry severe operational and human-safety consequences.

In continuous production facilities — petrochemical plants, power generation stations, metallurgical smelters, and port terminal automation — the P-HB-DOT-12010000 provides the deterministic, diagnostics-rich output switching that safety instrumented systems (SIS) demand. Its internal self-test routines and cross-channel monitoring detect short circuits, open loads, and voltage deviations before they propagate into process upsets, enabling the control system to execute a controlled safe-state transition rather than an uncontrolled trip.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the P-HB-DOT-12010000 within a safety control cabinet requires a coordinated protection architecture. The module operates on the AC500-S backplane alongside the ABB PM5650-2ETH safety CPU, which handles the SIL3 logic execution and communicates safety-relevant data over PROFINET or EtherNet/IP. For input-side integrity, the ABB P-HB-DIT-08010000 safety digital input module provides the corresponding SIL3-rated field signal acquisition, ensuring the full I/O loop maintains certified safety performance.

Power supply stability is critical in high-load safety cabinets. The ABB CP-E 24/10.0 SMPS power supply — or equivalent 24 VDC regulated source — should be sized with adequate headroom to prevent voltage sag during simultaneous output switching. For surge and transient protection at the cabinet entry point, a coordinated SPD (Surge Protective Device) such as the ABB OVR T2 series limits transient energy before it reaches the module’s output drivers, complementing the module’s own IEC 61000-4-5 internal protection.

In safety loops involving emergency shutdown (ESD) or fire-and-gas (F&G) systems, the P-HB-DOT-12010000 output channels are typically wired to solenoid valve drivers, motor contactors, or safety relay modules such as the ABB JOKAB RT6 series safety relay, which provides the final hardwired interlock layer between the PLC output and the field actuator. This layered architecture — certified PLC output → safety relay → actuator — satisfies the redundancy and diagnostic requirements of SIL3 safety instrumented functions (SIF).

For communication-intensive installations where the AC500-S exchanges safety data with remote I/O or distributed control nodes, the ABB AC500-S PROFIsafe communication module ensures that safety telegrams are transmitted with CRC integrity checks and watchdog supervision, preventing communication faults from causing spurious actuator trips or undetected dangerous failures.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the P-HB-DOT-12010000 drives ESD solenoids and blowdown valve actuators within SIL2/SIL3 safety instrumented systems, where a single undetected output failure could result in a loss-of-containment event. Its high diagnostic coverage and fail-safe de-energization behavior align with IEC 61511 functional safety requirements for process industry SIS.

In electric power generation and substation automation, the module controls protection relay trip coils and circuit breaker actuators in generator protection panels, where response time and output integrity under high-EMI conditions are non-negotiable. The module’s IEC 61000-4-3 radiated immunity rating ensures stable operation adjacent to high-voltage switchgear and transformer bays.

In mining and mineral processing plants — where conveyor interlock systems, crusher protection circuits, and ventilation safety loops operate in dusty, vibration-intensive environments — the P-HB-DOT-12010000’s wide temperature range and vibration compliance (IEC 60068-2-6) provide the mechanical robustness required for reliable long-term field operation without nuisance trips caused by connector fatigue or thermal cycling.

In water and wastewater treatment facilities, the module manages pump interlock outputs, chemical dosing valve controls, and overflow protection actuators within safety loops that must maintain continuous operation across humid, corrosive atmospheres. Its non-condensing humidity rating and IP20 module protection, combined with IP54+ cabinet enclosures, deliver the environmental resilience these installations demand.

In port and maritime terminal automation, where crane anti-collision systems, mooring winch interlocks, and fire suppression actuators require deterministic, fail-safe output control, the P-HB-DOT-12010000 provides the SIL-certified switching reliability that prevents equipment damage and protects personnel in high-throughput, safety-critical logistics operations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the P-HB-DOT-12010000?
All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes pre-shipment functional testing — including output channel verification, diagnostic self-test confirmation, and bus communication validation — before dispatch. Support requests are supported with direct technical assistance and replacement unit coordination.

Q2: Is the P-HB-DOT-12010000 compatible with existing AC500-S safety PLC installations?
Yes. The module is designed for direct integration into the ABB AC500-S backplane system and is compatible with AC500-S CPUs including the PM5650 and PM5630 series. It is fully supported by ABB Automation Builder engineering software for SIL3 safety application programming, I/O configuration, and diagnostic monitoring. Compatibility with specific firmware versions should be confirmed against the ABB AC500-S system compatibility matrix.

Q3: Can this module be used in SIL3 safety loops without additional external relays?
The P-HB-DOT-12010000 is SIL3-capable as part of a complete AC500-S safety system, including the safety CPU and certified application software. For final actuator switching in SIL3 SIFs, the overall safety loop architecture — including field wiring, actuator diagnostics, and proof-test intervals — must be validated per IEC 61511. In many architectures, a certified safety relay or solenoid driver provides the final hardwired de-energization layer, which is standard practice for SIL3 ESD and F&G applications.

Q4: What is the lead time and long-term supply availability?
Units are maintained in forward stock to support urgent replacement and planned maintenance schedules. Standard dispatch is available for in-stock units, with expedited shipping options for critical site requirements. Long-term supply continuity is supported through buffer stock programs, and customers with recurring demand are encouraged to discuss scheduled supply agreements to eliminate lead-time risk during OEM allocation periods.
