Overview

ABB NWIO-01 Maintenance-Proven Spare Part for Factory Uptime

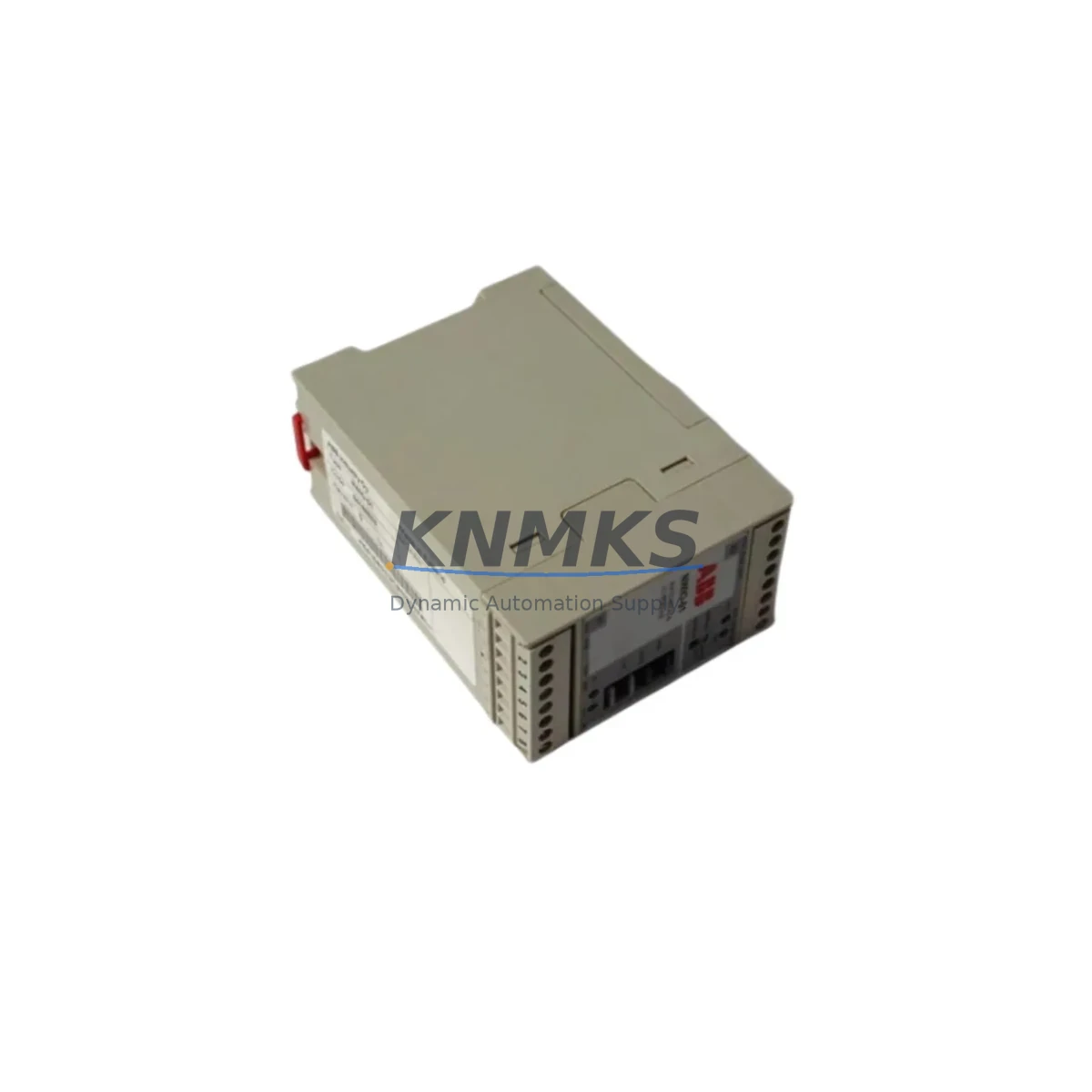

The ABB NWIO-01 is an analogue I/O extension option module designed for ABB NWIO series variable speed drives. For maintenance engineers managing continuous production lines in petrochemical plants, water treatment facilities, power generation stations, and heavy industrial environments, the NWIO-01 represents a critical interface component between the drive control system and field instrumentation. Unplanned drive downtime caused by a failed I/O option module can cascade into process shutdowns, product loss, and costly emergency callouts. Stocking a verified NWIO-01 spare eliminates that risk entirely.

At KNMKS, every NWIO-01 unit is sourced as an original ABB component, subjected to pre-shipment functional verification, and dispatched with a support terms confirmed by quotation. Our global logistics network supports urgent spare parts requirements across Asia-Pacific, Europe, the Middle East, and the Americas — ensuring your maintenance team receives a tested, ready-to-install module without delay.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the NWIO-01, the scope of inspection should extend beyond the module itself. The NWIO-01 interfaces directly with the drive’s analogue signal chain, meaning any degradation in connected components can mask or replicate symptoms of a failed I/O module. During the same maintenance window, engineers should verify the condition of the ABB NWIO series drive’s main control board, as firmware mismatches or corrupted parameter sets can cause the option module to report faults even after replacement. The drive’s power supply section — including the internal DC bus capacitors and the 24 VDC auxiliary supply — should be checked for ripple and voltage stability, since supply noise directly affects analogue signal accuracy on the NWIO-01’s input channels.

Field wiring connected to the NWIO-01’s analogue terminals should be inspected for insulation breakdown, loose ferrules, and ground loops, particularly in environments with high electromagnetic interference such as motor rooms and switchgear panels. Signal isolators or analogue signal conditioners installed upstream of the NWIO-01 inputs should be tested for drift and calibration accuracy — a degraded isolator can introduce offset errors that appear as NWIO-01 faults. Terminal blocks and DIN rail mounting hardware within the control cabinet should be torqued to specification and checked for corrosion, especially in coastal or high-humidity installations.

For drives integrated into a PLC or DCS architecture, the communication link between the ABB drive and the supervisory controller — whether via PROFIBUS, PROFINET, Modbus RTU, or an ABB FDNA-01 / FENA-21 fieldbus adapter — should be validated after NWIO-01 replacement to confirm that analogue reference scaling and process feedback mapping remain intact. If the installation includes an ABB ACS880 or ACS580 series drive in the same control cabinet, cross-referencing the I/O configuration parameters between drives during the maintenance visit is recommended to prevent commissioning errors. Fuses protecting the analogue signal circuits and the drive’s option slot supply should also be inspected and replaced as part of a proactive spare parts strategy.

Site Replacement Workflow

Replacing the NWIO-01 on-site is a straightforward procedure when the correct spare is available and the drive has been safely isolated. Begin by recording all drive parameters using the ABB drive panel or PC tool (Drive Composer) before powering down — this preserves the analogue I/O scaling, reference channel assignments, and process feedback configurations that will need to be restored after module swap. Power down the drive and wait for the DC bus to discharge fully before opening the control cabinet.

Remove the existing NWIO-01 from the option slot by releasing the retention latch and disconnecting the analogue signal wiring from the module terminals. Note the terminal assignments before disconnection. Install the replacement NWIO-01 by aligning it with the option slot guide rails and pressing firmly until the retention latch engages. Reconnect the analogue signal wiring to the correct terminals, verifying polarity and signal type (voltage vs. current) against the original wiring diagram.

After power-up, restore the saved parameter set and verify that the drive recognises the NWIO-01 option module in the drive’s parameter menu. Perform a live signal test by injecting a known reference signal at the analogue input terminals and confirming the drive’s displayed feedback value matches. This end-to-end verification confirms both the module and the signal chain are functioning correctly before returning the drive to service. Total on-site replacement time for a prepared maintenance team is typically under 30 minutes, minimising production downtime.

Spare Parts Support FAQ

Q1: Is the KNMKS NWIO-01 an original ABB component or a compatible replacement?
Every NWIO-01 supplied by KNMKS is an original ABB component. We do not supply counterfeit, remanufactured, or third-party compatible substitutes. Each unit is individually verified for functionality prior to shipment.

Q2: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. If a unit fails within the confirmed support period, KNMKS will arrange replacement or repair at no additional cost. Support requests are supported by our technical team with documented failure analysis on request.

Q3: How quickly can the NWIO-01 be shipped, and do you support urgent orders?
Standard orders are dispatched within 1–3 business days. For urgent maintenance situations, KNMKS offers expedited shipping options with same-day or next-day dispatch for in-stock units. Contact our sales team directly at admin@knmks.com or +86 18359268345 to confirm stock availability and arrange priority shipment.

Q4: Can KNMKS support long-term spare parts supply for multi-site ABB drive installations?
Yes. KNMKS specialises in long-term spare parts supply for industrial automation systems, including legacy and end-of-life ABB drive option modules. We can support scheduled procurement programmes, blanket orders, and consignment stock arrangements to ensure your maintenance team always has critical spares available without lead-time risk.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

NWIO-01

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB NWIO-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
