ABB NRED-61-E Migration-Ready Output Relay for Legacy Control Systems

Overview

ABB NRED-61-E Migration-Ready Output Relay for Legacy Control Systems

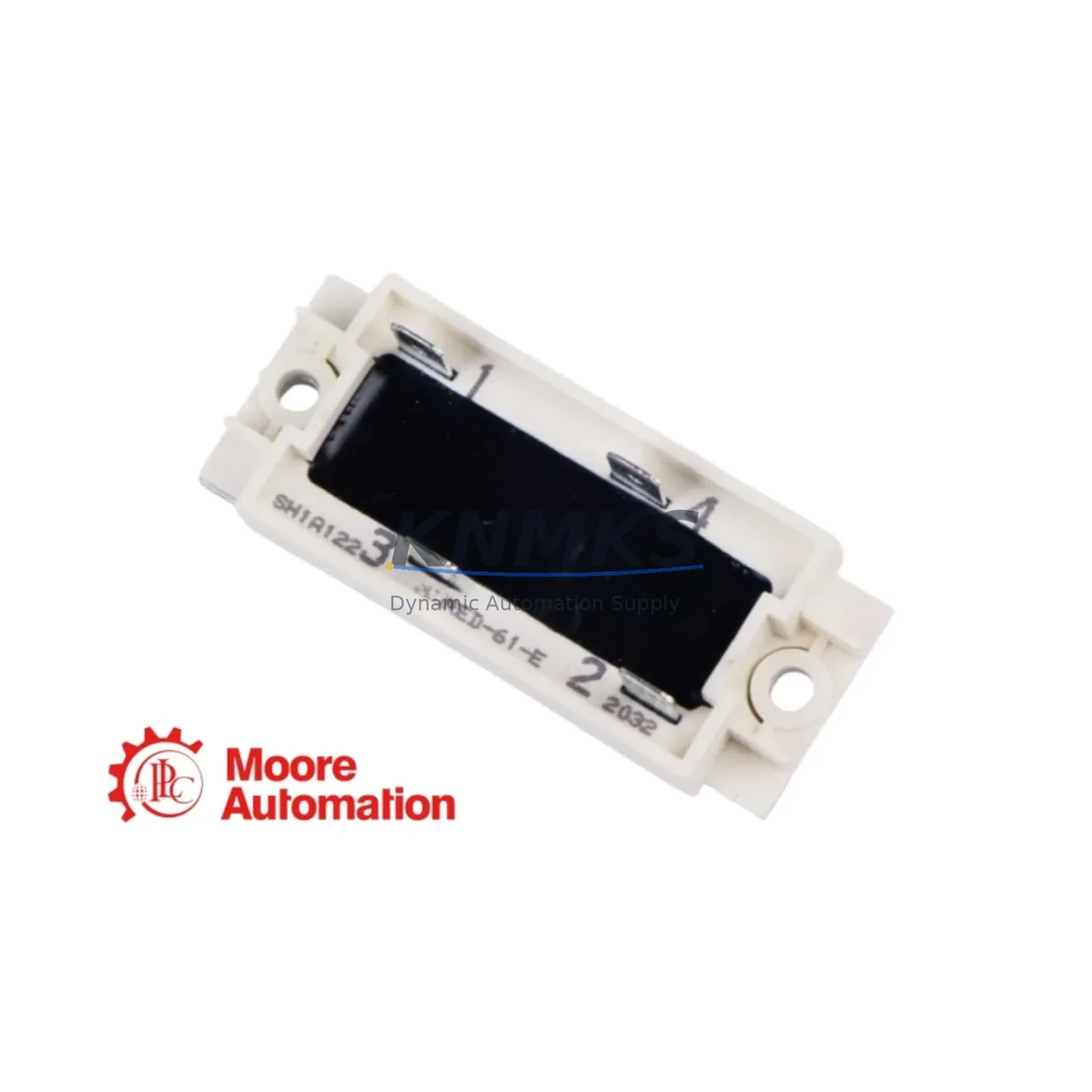

The ABB NRED-61-E is a relay output extension module engineered for ABB ACS800 and ACS880 series variable frequency drives. As legacy automation systems approach end-of-support cycles and original spare parts become increasingly difficult to source, the NRED-61-E has become a critical component in retrofit projects, control cabinet upgrades, and production line modernization programs across process industries, marine applications, and heavy manufacturing environments. This module provides additional relay output capacity directly on the drive’s option slot, enabling engineers to extend digital output signaling without modifying the main control board or rewiring the existing terminal layout.

For facilities running ACS800 multi-drive systems or transitioning to ACS880 industrial drives, the NRED-61-E supports a controlled migration path that preserves existing wiring infrastructure and minimizes the scope of PLC program changes. Engineers planning a retrofit must verify the drive’s option slot assignment, confirm that the relay output addresses do not conflict with existing RDIO-01 or RDIO-02 digital I/O extension modules already installed in adjacent slots, and validate that the firmware version on the ACS800 or ACS880 control unit supports the NRED-61-E’s relay mapping parameters. ABB’s DriveStudio or Drive Composer commissioning software should be used to confirm parameter group 14 (relay output) assignments before energizing the upgraded cabinet.

When replacing a failed or end-of-life relay output module in an operating production environment, the replacement procedure requires careful attention to terminal block wiring. The NRED-61-E uses a standard screw-terminal interface compatible with the ACS800’s X1 option slot connector. Before removal of the legacy module, engineers should document all relay output wiring connections, photograph the terminal layout, and verify that the control program’s relay output parameter assignments match the physical wiring. If the existing system also uses an AINT-02 or AINT-11 fieldbus adapter module in an adjacent slot, confirm that the slot addressing sequence is not disrupted during the swap, as incorrect slot configuration can cause the drive to fault on startup.

In multi-drive cabinet installations where the ACS800 is paired with an RDCU-02C control unit or an RMIO-11C main I/O board, the NRED-61-E integrates directly into the drive’s internal option bus. This eliminates the need for external relay expansion panels and reduces wiring complexity in space-constrained control cabinets. For ACS880 retrofit projects, the module’s compatibility with the ACS880’s BCU-12 or BCU-22 control unit should be confirmed against the drive’s hardware manual, as slot assignments and relay parameter groups differ between the ACS800 and ACS880 platforms. In cases where the ACS880 is being introduced as a replacement for a legacy ACS800 frame, the NRED-61-E can be retained from the original drive if the module’s condition passes a pre-installation functional test.

For system integrators managing protocol migration projects — particularly transitions from PROFIBUS DP to PROFINET or from Modbus RTU to EtherNet/IP — the NRED-61-E’s relay outputs are commonly used to signal drive status, fault conditions, and run/stop states to the supervisory PLC or DCS. When the communication adapter is being upgraded from an RPBA-01 PROFIBUS adapter to an FENA-21 EtherNet/IP adapter, the relay output wiring and parameter assignments on the NRED-61-E typically remain unchanged, which simplifies the protocol migration and reduces the risk of introducing new wiring errors during the changeover. HMI screen updates should be validated against the new communication word mapping before the system is returned to production.

Stock of the NRED-61-E is maintained across multiple regional warehouses to support urgent breakdown replacement and planned maintenance schedules. All units are subject to pre-shipment functional testing and are supplied with a support terms confirmed by quotation covering manufacturing defects and relay contact integrity. Units are shipped in anti-static packaging with full traceability documentation to support quality management system requirements in regulated industries.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful NRED-61-E retrofit begins with a thorough audit of the existing control cabinet. Engineers should map all occupied option slots on the ACS800 or ACS880 drive, noting the positions of any RDIO-01 digital I/O extension modules, AINT-02 fieldbus adapters, and RMIO-11C main I/O boards. The NRED-61-E must be installed in a slot that does not conflict with these existing modules, and the drive’s parameter set must be updated to reflect the new slot assignment before the cabinet is re-energized.

For control cabinets that include an ABB ACS800-04 regenerative drive unit or an ACS800-07 cabinet-built drive, the physical installation space for the NRED-61-E should be confirmed against the drive’s dimensional drawings. In retrofit projects where the original drive is being replaced with an ACS880-07 cabinet drive, the NRED-61-E from the legacy system may be reused if it passes a contact resistance test and the ACS880’s BCU-22 control unit firmware supports the module. The RDCU-02C control unit used in many ACS800 installations has a different option slot pinout than the ACS880’s BCU-12, so physical compatibility must be verified before reuse.

When the retrofit scope includes upgrading the system’s power supply from a legacy 24 VDC panel supply to a new ABB CP-D 24/1.3 DIN-rail power supply, engineers should confirm that the total current draw of all installed option modules — including the NRED-61-E, any RDIO-01 modules, and the FENA-21 EtherNet/IP fieldbus adapter — does not exceed the new supply’s rated output. Signal isolators may be required between the NRED-61-E relay outputs and the PLC input cards if the existing wiring runs exceed recommended lengths or pass through electrically noisy environments. For projects involving an RPBA-01 PROFIBUS adapter being replaced by an FENA-21, the relay output wiring on the NRED-61-E typically carries over unchanged, reducing the scope of the protocol migration. Pre-shipment testing of the NRED-61-E includes relay contact closure verification at rated voltage to ensure reliable signal integrity in these demanding installation conditions.

Downtime Control During System Migration

Minimizing production downtime during an NRED-61-E replacement requires advance preparation and a structured changeover procedure. Before the maintenance window begins, the replacement module should be on-site and pre-tested, the drive’s parameter backup should be saved to a PC using DriveStudio or Drive Composer Pro, and all relay output wiring should be documented with terminal numbers and signal descriptions. A wiring photograph taken before disconnection provides a reliable reference during reconnection and reduces the risk of miswiring errors that could cause a drive fault or unintended output activation on restart.

During the changeover, the drive should be isolated from the supply using the main isolator switch, and the DC bus should be confirmed as discharged before any option module is removed or installed. The NRED-61-E can typically be swapped in under 15 minutes by an experienced engineer, with the majority of the maintenance window consumed by parameter verification and functional testing of the relay outputs. After installation, the drive’s parameter set should be restored from the saved backup, and the relay output assignments in parameter group 14 should be verified against the original documentation before the drive is re-energized.

Once the drive is powered up, a staged functional test should confirm that each relay output on the NRED-61-E operates correctly in response to the corresponding drive status signals. The PLC or DCS operator should monitor the HMI screen for correct status indication before the production line is restarted. If the system uses an FENA-21 EtherNet/IP adapter for communication, the drive’s IP address and EtherNet/IP assembly instance configuration should be confirmed as unchanged before the network connection is restored. If the original control program references relay output addresses that were mapped to the NRED-61-E, those address assignments should be validated in the PLC project file before the first production cycle runs. This structured approach consistently achieves changeover times of under two hours, including functional testing, for experienced maintenance teams.

Retrofit Support FAQ

Q: Is the NRED-61-E a direct drop-in replacement for the original ABB module?
A: Yes. The NRED-61-E is the original ABB part number and is a direct replacement for any existing NRED-61-E installed in an ACS800 or ACS880 option slot. No parameter changes are required if the replacement module is installed in the same slot position as the original. Firmware compatibility should be confirmed if the drive’s RDCU-02C or BCU-22 control unit firmware has been updated since the original module was installed.

Q: What wiring and terminal checks are required before installation?
A: Before installing the NRED-61-E, confirm that the relay output terminal wiring matches the original documentation, that the terminal screw torque meets ABB’s specification (typically 0.5–0.6 Nm for the relay output terminals), and that no wiring insulation damage occurred during removal of the legacy module. If the relay outputs are wired to inductive loads such as contactors or solenoid valves, confirm that suppression diodes or RC snubbers are installed across the load to protect the relay contacts. Where signal isolators are used between the relay outputs and PLC input cards, verify isolator polarity and signal level compatibility before energizing.

Q: How is the module tested before shipment, and what documentation is provided?
A: All NRED-61-E units supplied by KNMKS are subject to pre-shipment functional testing, including relay contact closure verification at rated voltage and insulation resistance testing. Units are supplied with a test report on request and are packaged in anti-static bags with foam protection to prevent transit damage. Traceability documentation is available to support quality management system requirements in regulated industries.

Q: What support terms coverage and stock availability can I expect?
A: KNMKS maintains regional stock of the NRED-61-E to support both urgent breakdown replacement and planned maintenance schedules. All units are supplied with a support terms confirmed by quotation from the shipment date, covering manufacturing defects and relay contact integrity. For large-quantity or blanket order requirements, contact the sales team to discuss lead times, pricing, and consignment stock arrangements.
