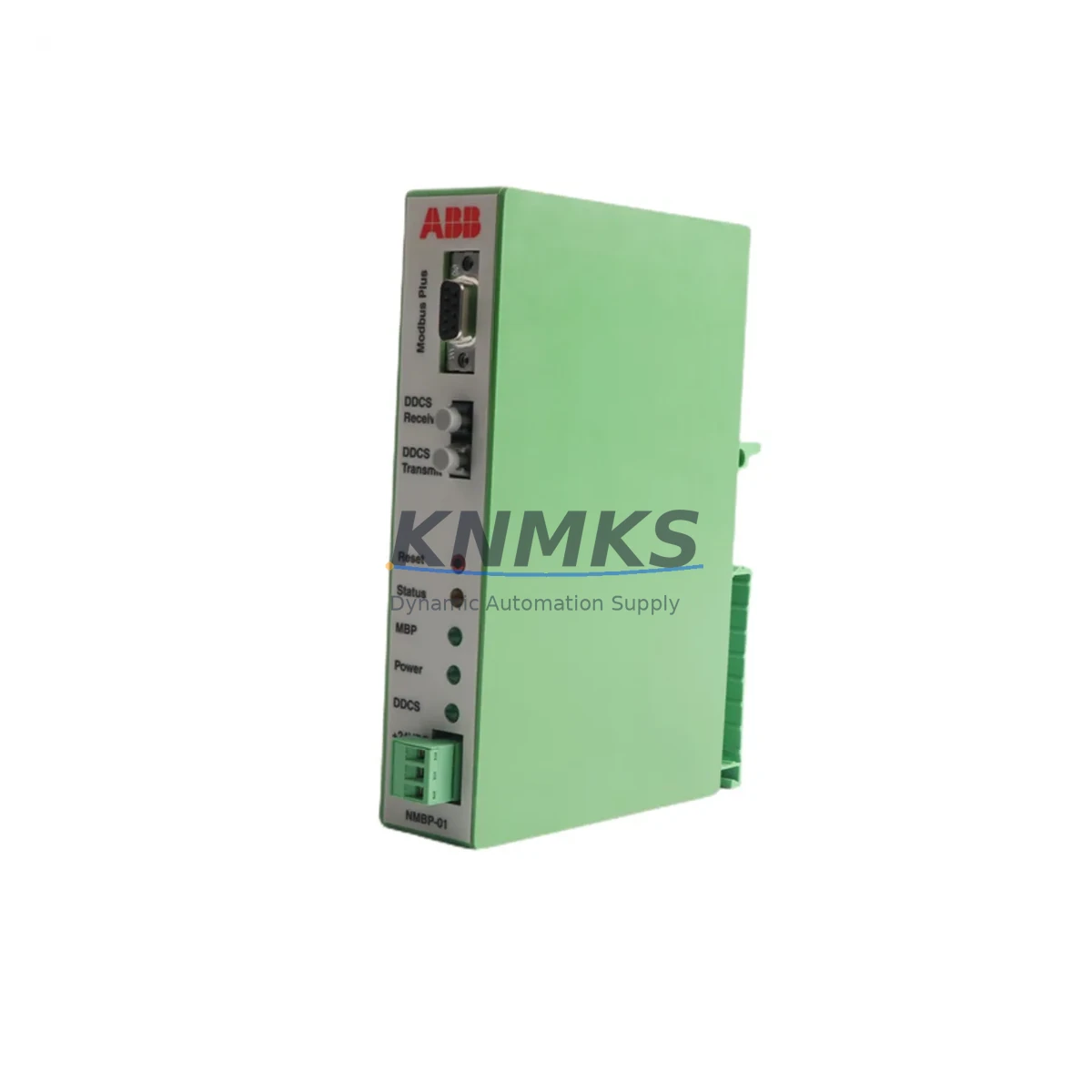

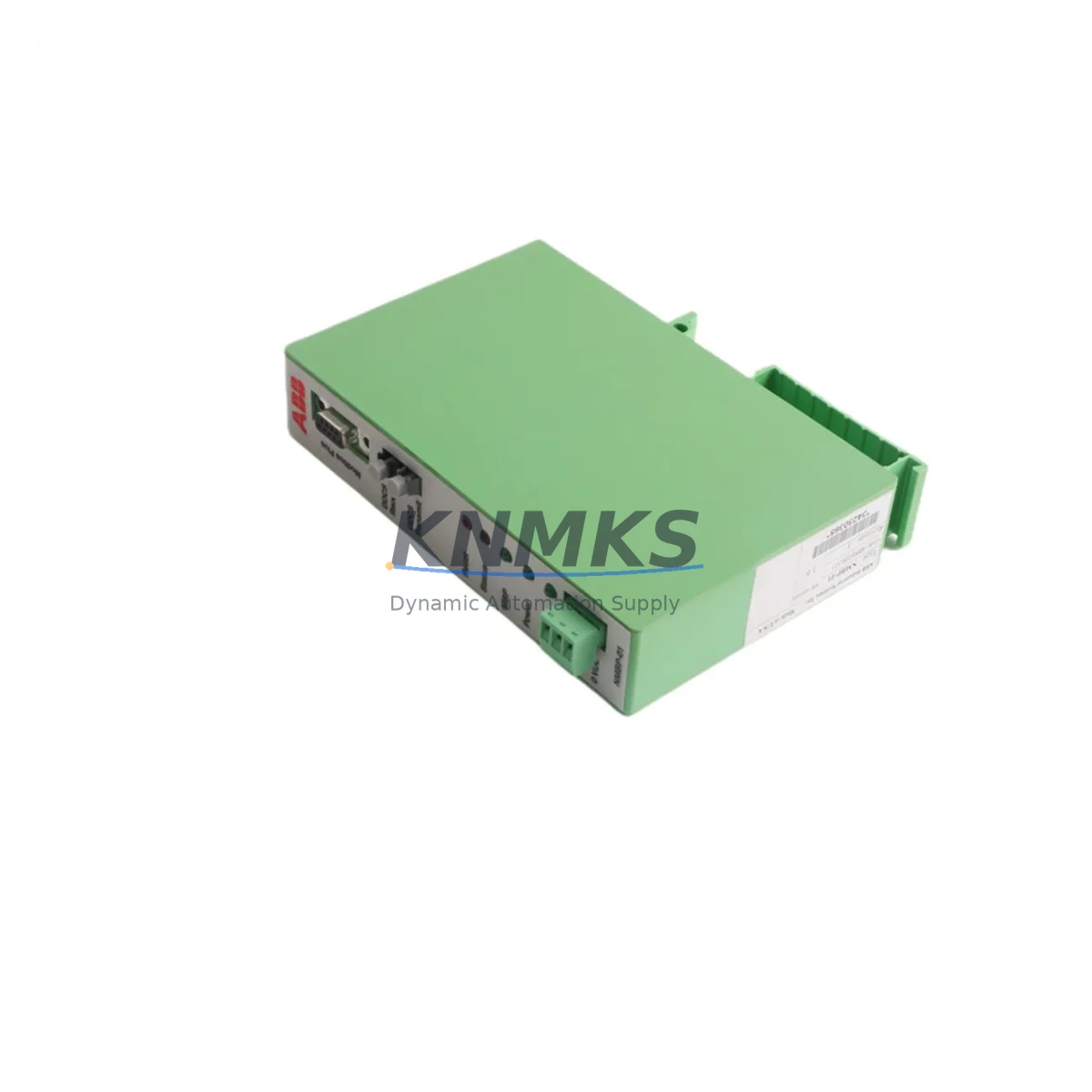

ABB NMBP-01 Fail-Safe Modbus Plus Fieldbus Adapter

Overview

ABB NMBP-01 Fail-Safe Modbus Plus Fieldbus Adapter: Fault-Protected Industrial Communication Reliability

In continuous production environments where communication failure is not an option, the ABB NMBP-01 Modbus Plus fieldbus adapter delivers the fault-tolerant, fail-safe connectivity that critical industrial control systems demand. Engineered for ABB ACS-series variable frequency drives — including the ACS550, ACS800, and ACS600 — the NMBP-01 provides a hardened communication bridge between the drive and Modbus Plus fieldbus networks, ensuring uninterrupted signal integrity even under the most demanding field conditions.

Industrial sites operating in petrochemical processing, power generation, mining, water treatment, metallurgy, port logistics, and continuous manufacturing face a common adversary: unplanned downtime triggered by communication anomalies. Signal drift, electromagnetic interference, power surges, and thermal stress can silently degrade fieldbus performance until a critical interlock fails or a drive trips unexpectedly. The NMBP-01 is purpose-built to eliminate these failure vectors, providing a stable, low-latency communication path that keeps your control loop closed and your process running.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet is only as reliable as its weakest communication link. When deploying the ABB NMBP-01 in a high-availability control architecture, system integrators typically pair it with complementary protection and communication components to form a complete fault-tolerant system.

On the power supply side, a ABB CP-E 24/5.0 or equivalent 24 VDC SMPS module provides stable, regulated power to the control bus, preventing voltage sag from propagating into the fieldbus layer. Upstream, a surge protection device (SPD) rated for IEC 61643-11 Class II is recommended at the cabinet entry point to absorb transient overvoltages before they reach sensitive communication hardware like the NMBP-01.

For drive-level safety interlocking, the ABB FSIO-21 safety I/O extension module or an equivalent SIL-rated digital I/O card can be integrated into the same ACS800 drive slot architecture, enabling hardwired emergency stop and safe torque off (STO) functions to operate independently of the Modbus Plus communication path — ensuring that a fieldbus fault never compromises the safety circuit.

In cabinets with high thermal loads, a cabinet cooling unit or thermostat-controlled fan assembly maintains ambient temperature within the NMBP-01’s rated operating range, preventing thermal-induced communication errors. For multi-drive systems, a Modbus Plus repeater or bridge module extends network reach and isolates segment faults, preventing a single node failure from cascading across the entire fieldbus ring. Finally, a ABB RDCO-03 DDCS fiber optic adapter can complement the NMBP-01 in dual-network architectures where optical isolation is required between the drive and the master controller, providing complete galvanic separation and immunity to ground loop interference.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous distillation and reactor control systems, the NMBP-01 maintains real-time speed and torque feedback from ACS800 drives controlling pumps, compressors, and agitators. Any communication interruption in these loops can trigger emergency shutdowns or, worse, uncontrolled process excursions. The NMBP-01’s deterministic Modbus Plus protocol ensures that the DCS or PLC receives drive status data within the scan cycle, supporting safe process interlocking.

Power Generation & Utilities: In coal-fired, hydroelectric, and gas turbine auxiliary systems, variable speed drives on cooling water pumps, induced draft fans, and fuel feed conveyors must maintain communication with the plant DCS under high-EMI conditions generated by large generators and switchgear. The NMBP-01’s industrial-grade EMI shielding and surge-tolerant design ensures reliable fieldbus operation even in high-voltage switchyard environments.

Mining & Mineral Processing: Underground and surface mining operations subject control hardware to extreme vibration, dust ingress, and humidity. Installed within the sealed enclosure of an ACS550 or ACS800 drive, the NMBP-01 is protected from the ambient environment while maintaining communication with the mine’s SCADA system for conveyor speed control, hoist management, and ventilation fan regulation — all safety-critical functions under mining regulations.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on precise pump speed control for flow regulation, pressure management, and chemical dosing. The NMBP-01 enables the SCADA system to monitor and command ACS-series drives on submersible pumps, blowers, and filter press drives, with fail-safe communication ensuring that pump trip events are immediately reported to the control room for operator response.

Metallurgy & Steel Mills: Rolling mill and continuous casting lines operate at high cycle rates with zero tolerance for communication latency. The 1 Mbit/s Modbus Plus network supported by the NMBP-01 provides the deterministic, low-latency data exchange required for coordinated multi-drive speed synchronization, tension control, and emergency braking — functions where a missed communication frame can result in material defects or equipment damage.

Port & Marine Applications: Ship-to-shore cranes, container handling equipment, and vessel propulsion systems increasingly rely on ABB ACS-series drives for variable speed control. The NMBP-01 enables integration of these drives into the vessel’s or terminal’s Modbus Plus control network, supporting remote monitoring, load management, and fault diagnostics from the central control room.

Safety and Quality FAQ

Q1: What support terms does the NMBP-01 carry, and what does it cover?
The ABB NMBP-01 is supplied with a support terms confirmed by quotation covering manufacturing defects, component failures, and functional non-conformance under normal operating conditions. Support requests are processed with priority, and replacement units are dispatched from in-stock inventory to minimize your downtime exposure.

Q2: What outgoing inspection and testing is performed before shipment?
Every NMBP-01 unit undergoes a full functional test prior to dispatch, including communication protocol verification, power supply integrity check, and physical inspection for connector and PCB condition. Units that do not pass the outgoing test are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the NMBP-01 compatible with all ACS-series drives, and how do I confirm compatibility for my specific drive revision?
The NMBP-01 is compatible with ABB ACS550, ACS800, and ACS600 drives equipped with the standard option slot for communication adapters. Compatibility depends on the drive’s firmware version and option slot type. If you are unsure about compatibility with a specific drive serial number or firmware revision, contact our technical team with your drive nameplate data and we will confirm compatibility before order placement.

Q4: Can you guarantee long-term supply and replacement support for the NMBP-01?
Yes. We maintain dedicated stock of the NMBP-01 and its compatible ABB drive communication adapters to support both planned maintenance schedules and emergency replacement requirements. For facilities with critical uptime requirements, we recommend establishing a consignment or blanket order arrangement to ensure immediate availability. Our team can also source and test equivalent replacement units if the original part reaches end-of-life status.
