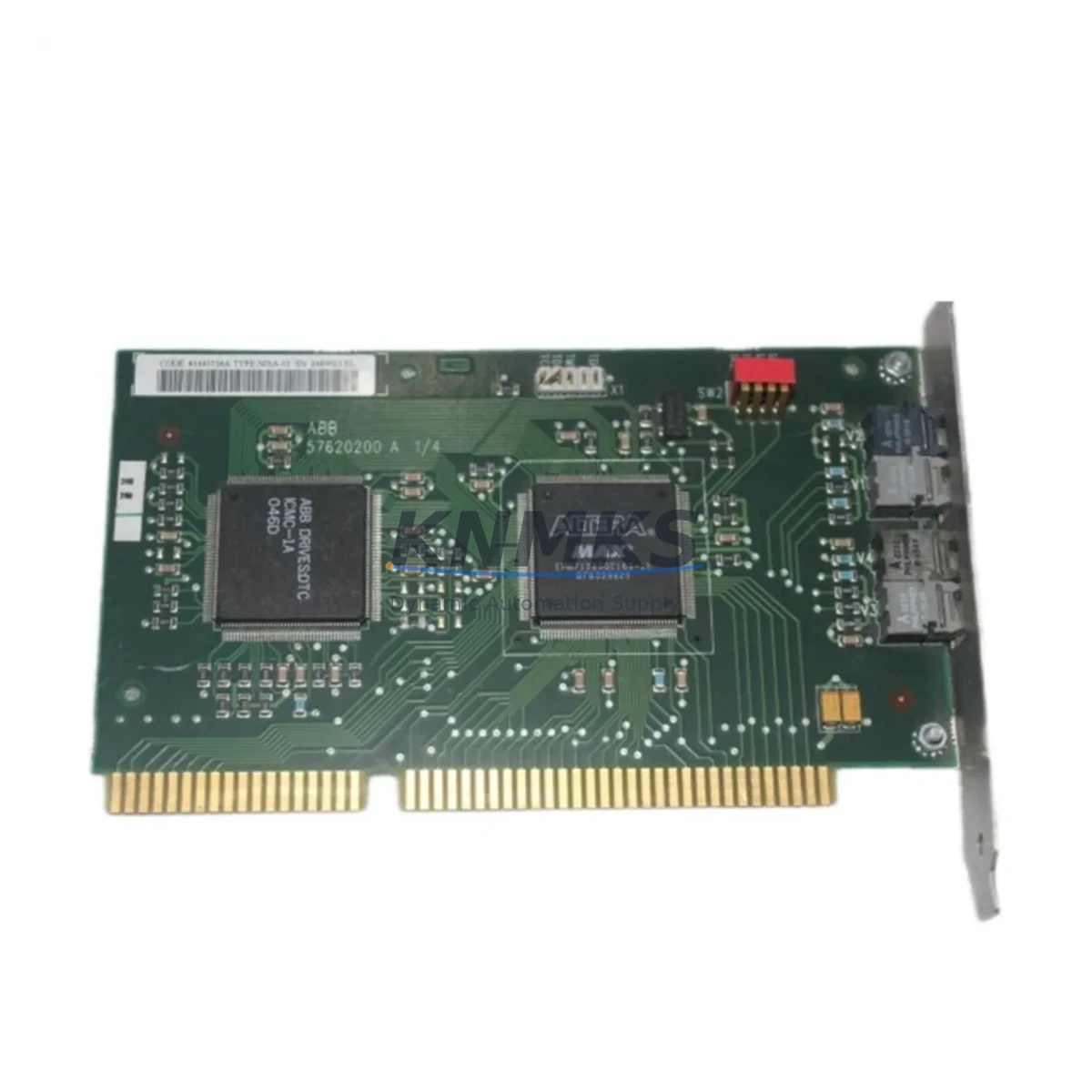

ABB NISA-03 Fail-Safe Fiber-Optic DDCS Module

Overview

ABB NISA-03 Fail-Safe Fiber-Optic DDCS Module: Fault Protection & Critical Industrial Reliability

The ABB NISA-03 is a DDCS (Distributed Drive Control System) fiber-optic communication module engineered for mission-critical industrial control environments. Designed to interface ABB AC500 PLC systems and ACS-series variable frequency drives, the NISA-03 eliminates copper-wire susceptibility to electromagnetic interference — a leading cause of signal drift, communication faults, and unplanned shutdowns in high-noise industrial cabinets. With its optical isolation architecture, the module maintains stable, high-integrity data links even in the presence of heavy motor switching transients, inverter harmonics, and ground potential differences that routinely disrupt conventional fieldbus wiring.

In continuous production facilities — petrochemical plants, power generation stations, metallurgical lines, and port crane systems — a single communication dropout between a drive and its controller can trigger emergency stops, process upsets, or safety interlock activations. The NISA-03 addresses this risk directly: its fiber-optic channel provides galvanic isolation rated to withstand high common-mode voltages, ensuring that surge events on the power distribution network do not propagate into the control loop. When paired with ABB ACS800 or ACS880 drives and an AC500 safety PLC, the NISA-03 forms a hardened communication backbone that supports both standard process control and SIL-rated safety functions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet for drive-intensive applications requires more than a single high-quality communication module. The NISA-03 performs at its best when the surrounding cabinet infrastructure is equally hardened. In typical heavy-duty installations, the module is deployed alongside the ABB RDCO-03 DDCS communication option board, which provides the drive-side fiber-optic interface that pairs directly with the NISA-03 on the controller side — together they form a complete, isolated DDCS link. For power quality protection, cabinet designers frequently integrate ABB SACE Tmax XT series molded-case circuit breakers to guard against overcurrent events that could otherwise damage drive input stages and indirectly stress communication hardware.

In cabinets where multiple drives share a common DC bus or a centralized power supply, the ABB PSR series soft starters or ACS355 compact drives are often co-located with the NISA-03-equipped main drive, all supervised through the same AC500 PLC node. Surge protection on the 24 VDC auxiliary supply rail — typically provided by ABB OVR series surge protective devices — prevents voltage spikes from reaching the module’s logic circuitry. For cabinet thermal management in high-ambient or high-load environments, proper spacing and the use of ABB cabinet climate control units (fan-and-filter assemblies) ensure the NISA-03 and adjacent modules remain within their rated operating temperature, preventing thermally induced communication errors and premature component aging.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous-area motor control centers, the NISA-03 enables reliable DDCS communication between safety PLCs and large ACS880 drives controlling pumps, compressors, and agitators. Fiber-optic isolation prevents ground faults in the field from propagating into the control room, supporting SIL 2 interlock integrity.

Power Generation & Utilities: Boiler feed pump drives and induced-draft fan drives in thermal power stations operate in environments with extreme electromagnetic noise from high-voltage switchgear. The NISA-03’s optical link maintains communication continuity during bus transfer events and generator synchronization transients — conditions that routinely cause copper-based fieldbus dropouts.

Metallurgy & Steel Mills: Rolling mill main drives and ladle crane hoists demand zero-tolerance for communication interruptions. A DDCS link via NISA-03 ensures that torque reference and speed feedback signals between the AC500 controller and ACS800 drives remain error-free even during arc furnace firing cycles that generate severe harmonic disturbances across the facility power network.

Mining & Mineral Processing: Conveyor belt drives, ball mill drives, and slurry pump stations in underground or open-pit mines face dust ingress, humidity, and vibration. The NISA-03’s fiber medium is inherently immune to the conductive dust contamination that degrades copper connector contacts, reducing maintenance intervention frequency and unplanned downtime.

Water & Wastewater Treatment: Variable-speed pump drives in water treatment plants operate in high-humidity, chemically aggressive environments. Fiber-optic communication via NISA-03 eliminates corrosion-related signal degradation on communication lines, supporting continuous, unattended operation of critical pumping infrastructure.

Port & Marine Applications: Ship-to-shore crane drives and vessel propulsion control systems require communication modules that tolerate salt-laden air, vibration, and wide temperature swings. The NISA-03’s robust optical interface and galvanic isolation make it a preferred choice for marine-grade drive control panels where electrical noise from thruster inverters is a persistent challenge.

Safety and Quality FAQ

Q1: What support terms does the NISA-03 carry, and what does it cover?
The NISA-03 is supplied with a support terms confirmed by quotation from the date of shipment. Coverage includes manufacturing defects and functional failures under normal operating conditions. Each unit undergoes outgoing functional testing before dispatch to verify communication integrity and optical channel performance.

Q2: How is the NISA-03 tested before shipment?
Every NISA-03 unit is function-tested prior to shipment. Testing verifies optical transmitter/receiver operation, DDCS protocol handshake capability, and power supply integrity. Units that do not pass inspection are quarantined and not shipped, ensuring that only verified, field-ready modules reach customers.

Q3: Is the NISA-03 compatible with all ABB ACS and AC500 variants?
The NISA-03 is designed for ABB DDCS-based systems, primarily the AC500 PLC platform and ACS800 / ACS880 drive series. Compatibility with ACS600 and other legacy DDCS-capable drives should be confirmed against the specific drive’s option slot specification. Our technical team can assist with compatibility verification prior to order.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain dedicated stock of the NISA-03 and related ABB DDCS communication components to support both new installations and field replacement requirements. For critical production sites requiring guaranteed spare availability, we recommend discussing a consignment or reserved-stock arrangement with our sales team to eliminate lead-time risk during unplanned failures.
