ABB NINT-73C Migration-Ready DDCS Interface for Legacy Drives

Overview

ABB NINT-73C Migration-Ready DDCS Interface for Legacy Control Systems

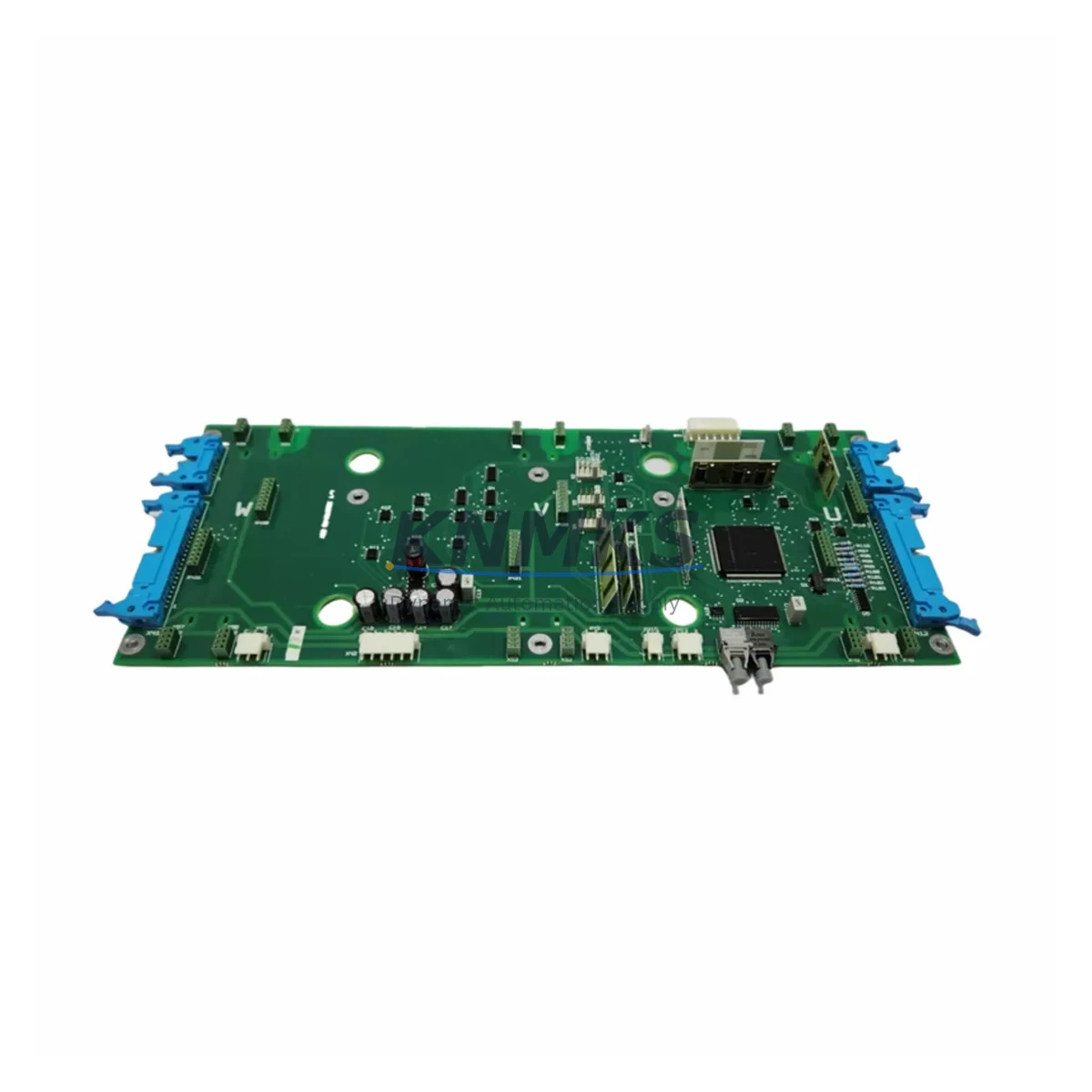

The ABB NINT-73C is a DDCS (Distributed Drive Control System) fiber optic interface board designed for the ACS800 series of AC drives. As legacy ACS800 installations approach end-of-support milestones, the NINT-73C has become a critical spare and migration component for engineering teams managing controlled phase-outs, emergency replacements, and full drive cabinet upgrades. This unit is supplied pre-tested, firmware-verified, and backed by a support terms confirmed by quotation, with multi-region stock available for fast global dispatch.

Whether you are executing a planned retrofit of an aging ACS800 drive line or responding to an unplanned failure in a critical production environment, the NINT-73C provides a verified drop-in replacement path that preserves existing DDCS fiber topology, minimizes rewiring, and reduces commissioning time on the plant floor. Engineering teams working across pulp and paper, metals, marine, and process industries have relied on this interface board to maintain drive-to-controller communication continuity during multi-phase modernization projects.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful NINT-73C retrofit begins well before the replacement unit arrives on site. Engineering teams should audit the existing ACS800 drive configuration, confirm the firmware revision loaded on the control board, and verify that the DDCS fiber ring or star topology is intact and free of degraded fiber segments. In multidrive cabinets where an NDBU-95C or NDBU-85C branch unit distributes the DDCS signal to multiple drives, the branch unit’s node address assignments must be documented before any board swap to avoid address conflicts during recommissioning.

For sites running ABB AC500 PLCs or Symphony Plus DCS as the upstream controller, the DDCS node address configured on the NINT-73C must match the address expected by the controller’s drive communication function block. Mismatched node addresses are the most common cause of failed communication after a board replacement and can be resolved through the ACS800 control panel or DriveWindow PC tool before the drive is returned to service. Teams using DriveWindow Light or DriveWindow 2 should confirm software compatibility with the installed ACS800 firmware version prior to the maintenance window.

Where the retrofit is part of a broader cabinet upgrade — for example, replacing aging ACS800 units with ACS880 drives — the NINT-73C may serve as a bridging component to maintain DDCS communication on drives that are not yet scheduled for replacement in Phase 1. In this scenario, the NINT-73C extends the operational life of the legacy drive while the new ACS880 units, equipped with RDCO-04 DDCS communication modules, are integrated into the same fiber ring. This phased approach allows production to continue on unaffected lines while the upgrade proceeds drive by drive.

Additional components commonly required during an ACS800 retrofit include the RMIO-11C or RMIO-12C main control boards, AINT-02C or AINT-14C inverter control interface boards, and APOW-01C power supply boards. In cabinet-level upgrades, the NINT-73C is typically replaced alongside the main control board to ensure all option slot interfaces are at a consistent hardware revision. Spare DDCS fiber patch cables and ST connector cleaning kits should also be staged on site to address any fiber degradation discovered during the maintenance window.

Downtime Control During System Migration

Minimizing unplanned downtime during an ACS800 NINT-73C replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the existing drive parameter set should be uploaded using DriveWindow or the ACS800 control panel’s parameter backup function. This backup preserves motor control parameters, speed references, torque limits, fault history, and all application-specific settings, ensuring that the drive can be restored to its pre-outage configuration within minutes of the new board being seated and the fiber connections re-established.

During the board swap, the DDCS fiber ring should be temporarily looped out at the branch unit to prevent communication faults from propagating to other drives on the same ring. Once the NINT-73C is installed and the fiber connections are secured, the drive should be powered up in local control mode and the DDCS communication verified at the branch unit before the upstream controller is reconnected. This staged recommissioning approach isolates the replaced drive from the live control system until communication integrity is confirmed, protecting the broader production process from spurious faults or unexpected drive responses.

For sites where the ACS800 drive controls a critical process — such as a main line conveyor, compressor, or pump — a cold standby drive or a pre-configured spare ACS800 unit with a pre-installed NINT-73C can reduce the total outage window to the time required for a mechanical drive swap rather than a full board-level repair. KNMKS maintains pre-tested NINT-73C units availability confirmed by RFQ specifically to support this rapid-swap strategy, with express dispatch available to minimize the gap between failure and restoration.

Retrofit Support FAQ

Q1: Is the NINT-73C a direct drop-in replacement for the NINT-73 and NINT-73B?
Yes. The NINT-73C is the current hardware revision and is backward compatible with earlier NINT-73 and NINT-73B installations. No wiring changes are required for a like-for-like fiber optic replacement. Confirm the ACS800 firmware version is ≥ 7.x to ensure full feature compatibility with the NINT-73C hardware revision.

Q2: How do I verify DDCS communication after installing the NINT-73C?
After seating the board and reconnecting the fiber cables, power up the ACS800 in local mode and check parameter 70.01 (DDCS CH0 NODE ADDR) to confirm the node address is correctly set. Use the ACS800 control panel or DriveWindow to monitor the DDCS communication status register. A steady green LED on the NINT-73C indicates an active fiber link; a flashing or off LED indicates a fiber fault or address conflict.

Q3: What is included with the NINT-73C shipment and what support terms applies?
Each NINT-73C is supplied as a tested board assembly. All units undergo functional and communication loop testing prior to dispatch. A support terms confirmed by quotation from the date of shipment covers manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available for emergency replacement scenarios.

Q4: Can the NINT-73C be used in a mixed ACS800 / ACS880 DDCS ring?
Yes, provided the ACS880 drives are equipped with RDCO-04 DDCS communication modules and the branch unit (NDBU-95C or NDBU-85C) supports mixed-generation nodes. Each drive must have a unique node address assigned. Verify the branch unit firmware supports the total node count in the mixed ring before commissioning.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

NINT-73C
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB NINT-73C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
