ABB NINT-72C 64425552A Spare Part for ACS800 Factory Uptime

Overview

ABB NINT-72C 64425552A Spare Part for ACS800 Factory Uptime

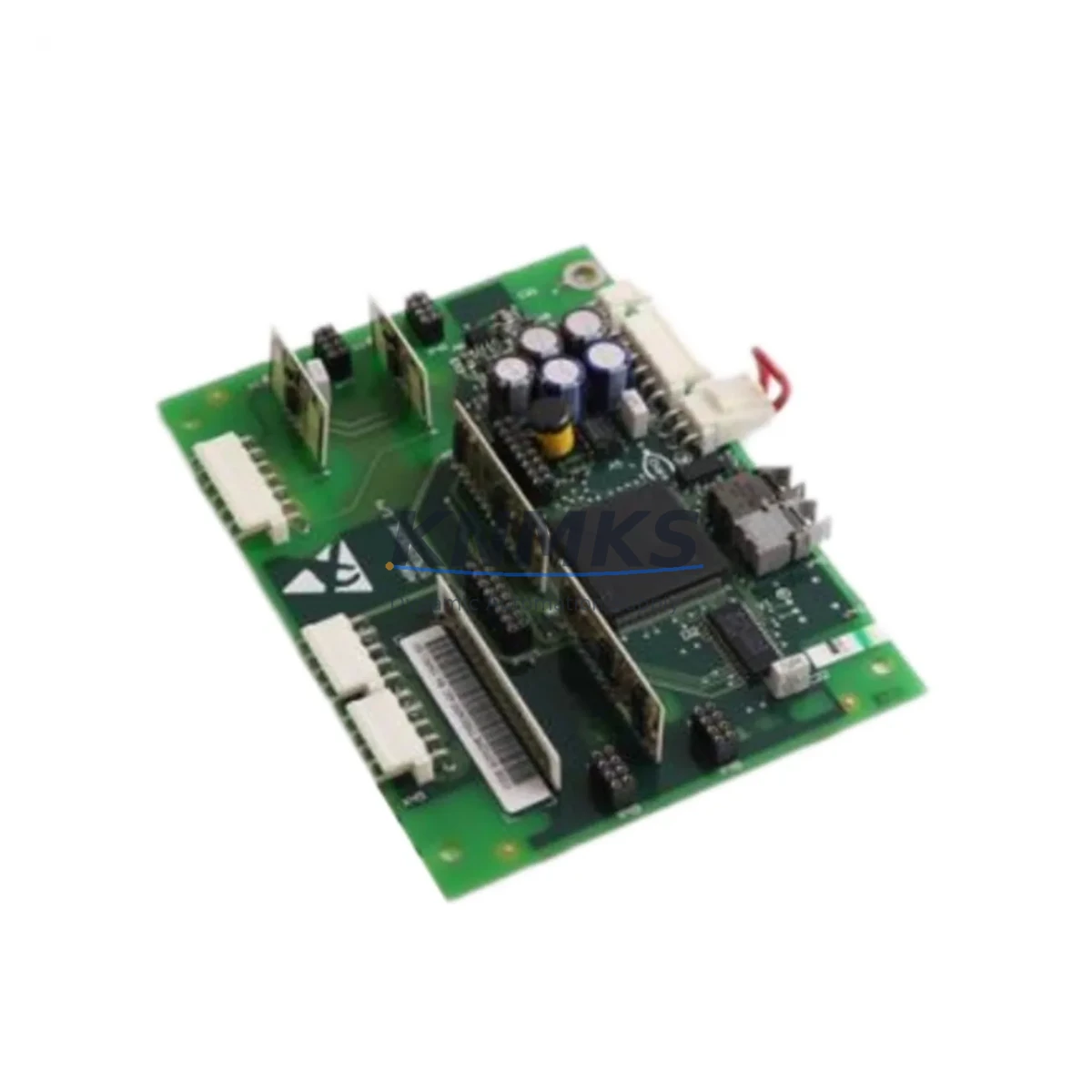

The ABB NINT-72C (part number 64425552A) is the dedicated inverter interface board for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families in process automation, material handling, and heavy manufacturing environments. When this board fails, the entire drive goes offline, halting production lines and triggering costly unplanned downtime. Stocking a verified replacement unit of the NINT-72C 64425552A is the single most effective measure a maintenance team can take to protect ACS800 drive availability.

This listing supplies an original ABB NINT-72C 64425552A sourced through established industrial channels. Every unit undergoes functional inspection and bench testing prior to shipment. Packaging is anti-static and shock-protected to preserve board integrity during transit. A support terms confirmed by quotation cover defects in materials and workmanship from the date of delivery, giving procurement engineers the confidence to commit to long-term spare parts planning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The NINT-72C 64425552A does not operate in isolation. It sits at the intersection of the ACS800’s control architecture and its power conversion stage, making it a critical node in the drive’s signal path. A disciplined maintenance plan for any ACS800 installation should treat the NINT-72C as part of a broader spare parts ecosystem.

When scheduling an annual inspection or responding to a drive fault, maintenance engineers should simultaneously evaluate the condition of the RMIO-02 control board, which handles the drive’s main I/O, fieldbus communication, and application programming. A degraded RMIO-02 can produce fault codes that mimic NINT-72C failures, so having both boards available on the shelf eliminates diagnostic ambiguity and accelerates fault isolation. Similarly, the AINT-02 or AINT-14 auxiliary interface board — depending on the specific ACS800 variant — should be inspected for corrosion on connector pins and signs of thermal stress.

Power supply integrity is equally important. The ACS800’s internal SMPS (switched-mode power supply) board provides the low-voltage logic rails that feed the NINT-72C. If the SMPS output is marginal, the interface board may exhibit intermittent communication errors or fail prematurely after replacement. Verifying SMPS output voltages with a calibrated meter before installing a new NINT-72C is a mandatory step in any professional replacement workflow.

On the I/O side, inspect the RDIO-01 digital I/O extension module and any installed RAIO-01 analog I/O extension for loose terminal connections and insulation breakdown. These modules connect to the RMIO board and share the same control cabinet environment as the NINT-72C; contamination or vibration-induced loosening in one area typically affects adjacent components. Terminal blocks and DIN-rail mounted fuse holders protecting the 24 VDC control circuit should also be checked and replaced if discoloration or heat damage is visible.

For sites running ACS800 drives with fieldbus communication — PROFIBUS, Modbus RTU, or DeviceNet — the RPBA-01, RMBA-01, or RDNA-01 fieldbus adapter mounted on the RMIO board should be included in the inspection checklist. A failing fieldbus adapter can cause the PLC or DCS to lose drive status feedback, triggering nuisance shutdowns that are often misattributed to the inverter interface board. Keeping a spare fieldbus adapter alongside the NINT-72C 64425552A in the site’s critical spares cabinet is a low-cost insurance policy against extended communication-related downtime.

Site Replacement Workflow

Step 1 — Fault Confirmation: Before ordering or installing a replacement NINT-72C 64425552A, retrieve the active fault log from the ACS800 control panel (CDP or ACS-CP-C). Fault codes F-0001 through F-0009 and A-0001 through A-0009 related to internal communication loss between the control unit and inverter section are the primary indicators of NINT-72C failure. Document the fault history for the maintenance record.

Step 2 — Drive Isolation: Follow the ACS800 hardware manual lockout/tagout procedure. Confirm that the DC bus voltage has discharged below 50 V using a calibrated meter before opening the drive cabinet. The DC bus capacitors in ACS800 units retain hazardous charge for up to 5 minutes after mains disconnection.

Step 3 — Board Removal: The NINT-72C connects to the inverter module via a direct board-to-board connector. Release the retaining clips, disconnect the board with a straight pull — do not rock or lever — and place the removed board in an anti-static bag for return or failure analysis.

Step 4 — Installation: Align the replacement NINT-72C 64425552A with the connector guides and press firmly until the retaining clips engage. Verify that no connector pins are bent or misaligned before applying power.

Step 5 — Commissioning: Power up the drive and confirm that the control panel displays no internal communication faults. Run the drive at low speed under no-load conditions for 5 minutes before returning to production. Record the replacement in the site maintenance log with the new board’s serial number and installation date.

This workflow is compatible with all ACS800 single-drive variants and applies equally to multi-drive cabinet configurations where the NINT-72C is installed in individual inverter modules. The replacement procedure does not require drive parameter re-entry, as parameters are stored on the RMIO board, not the NINT-72C.

Spare Parts Support FAQ

Q: Is this NINT-72C 64425552A compatible with all ACS800 drive ratings?
A: The NINT-72C 64425552A is the standard inverter interface board used across the ACS800 single-drive range. Compatibility should be confirmed against the drive’s type designation label and the hardware manual (3AFE64527592). If your ACS800 unit uses a different interface board variant, contact us with the drive type code and we will verify the correct part before shipment.

Q: How do you test the board before shipment?
A: Each NINT-72C 64425552A unit is bench-tested for communication integrity and connector continuity prior to packaging. Units that do not pass functional inspection are not shipped. A test report is available on request for critical infrastructure applications.

Q: What does the support terms confirmed by quotation cover?
A: The support terms covers manufacturing defects and functional failures under normal operating conditions for 12 months from the delivery date. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the ACS800’s specified environmental limits. Support requests are processed within 5 business days of receiving the returned unit.

Q: Can you support long-term supply for multi-site maintenance programs?
A: Yes. We maintain stock of the NINT-72C 64425552A and can support blanket purchase orders, scheduled releases, and consignment arrangements for customers managing ACS800 fleets across multiple facilities. Contact our sales team to discuss volume pricing and supply agreements.
