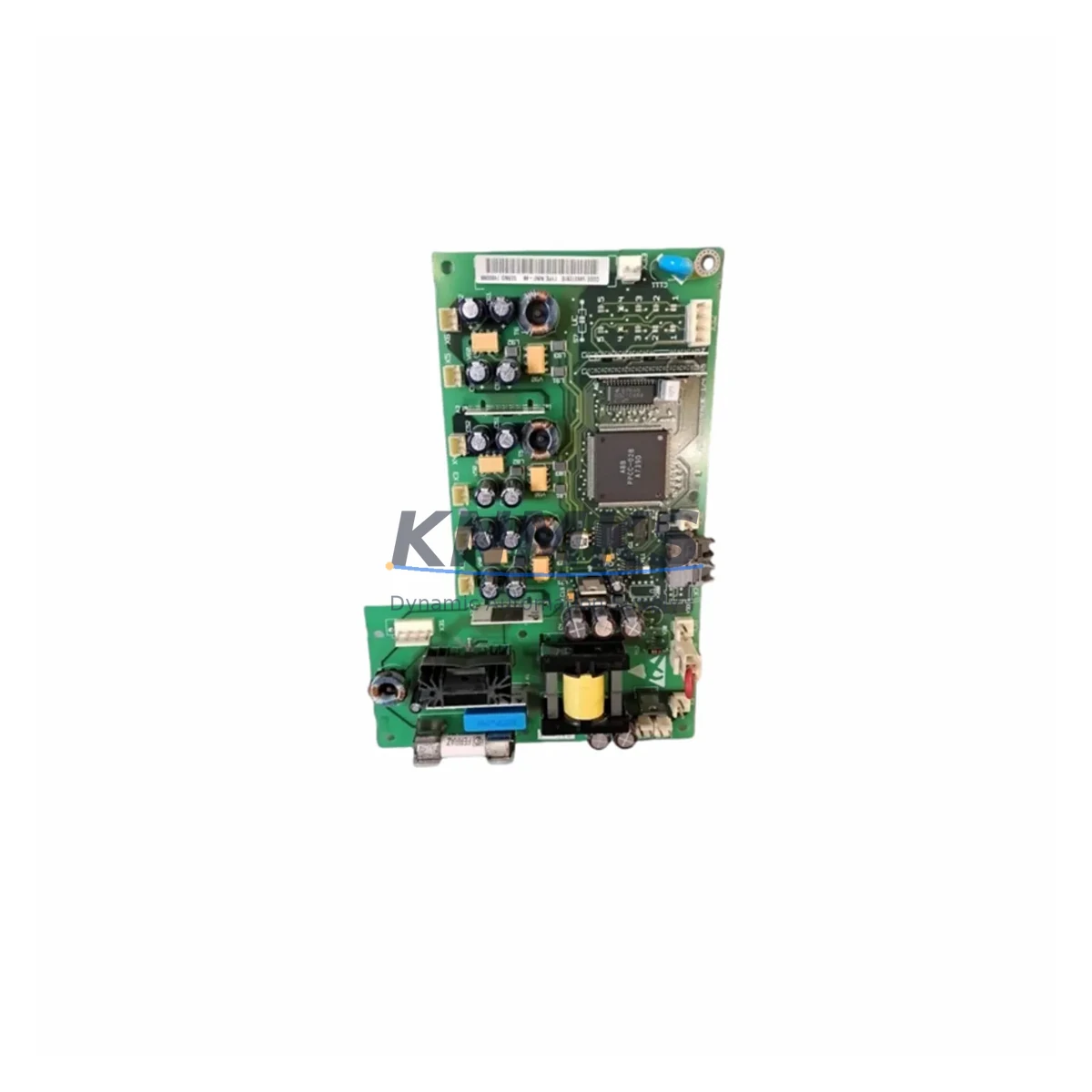

ABB NINT-46 Fail-Safe Drive Interface for Industrial Control

Overview

ABB NINT-46 Fail-Safe Drive Interface for Industrial Control: Fault Protection and Critical Field Reliability

The ABB NINT-46 is a DDCS (Distributed Drives Communication System) fiber optic interface board engineered for the ACS800 series variable speed drives. Designed to operate in the most demanding industrial environments, the NINT-46 provides a high-integrity communication link between the ACS800 drive and external control systems, including DCS platforms, safety PLCs, and supervisory SCADA networks. Its fiber optic architecture eliminates galvanic coupling, delivering inherent immunity to ground loops, high-frequency electromagnetic interference, and surge transients that routinely compromise copper-based communication links in heavy industrial cabinets.

In continuous production facilities — petrochemical plants, power generation stations, mineral processing operations, and port logistics terminals — an unplanned drive communication fault can cascade into a full process shutdown. The NINT-46 addresses this risk at the hardware level. Its fiber optic signal path is immune to the conducted and radiated EMI generated by large motor starters, variable frequency drives, arc furnaces, and high-current bus bars sharing the same control cabinet. Signal integrity is maintained even when the NINT-46 operates alongside high-density I/O modules, relay output cards, and power supply units within a tightly packed ACS800 drive cabinet.

The board supports the DDCS protocol at data rates suited for real-time torque and speed reference transmission, status word feedback, and fault word monitoring. This enables the host control system to detect drive faults, communication timeouts, and process deviations within milliseconds — a critical requirement for safety interlock loops in applications such as emergency shutdown systems, fire and gas detection-linked motor control, and overspeed protection circuits. When integrated with ABB’s AC800M controller or a third-party safety PLC via the DDCS master adapter, the NINT-46 forms a deterministic, low-latency communication backbone that supports IEC 61511 functional safety requirements at the field device level.

Thermal stability is a persistent challenge in drive cabinets operating in foundries, cement plants, and offshore platforms. The NINT-46 is rated for the full ACS800 operating temperature range, maintaining stable fiber optic transmission without signal degradation under sustained high-ambient conditions. Its compact board form factor integrates directly into the ACS800 option slot without requiring additional mounting hardware, reducing installation error risk and simplifying cabinet layout. For sites with high dust ingress or condensation risk — common in water treatment facilities, pulp and paper mills, and coastal industrial installations — the fiber optic medium provides an additional layer of protection against the corrosion and contamination that degrade copper connector reliability over time.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust ACS800 drive cabinet protection strategy extends well beyond the NINT-46 interface board itself. The NINT-46 operates as the communication backbone, but its reliability depends on the integrity of the surrounding hardware ecosystem. The AINT-02 or AINT-12 analog input extension modules, when installed in the same ACS800 option rack, provide the process variable feedback channels that the DDCS link transmits upstream — any signal drift or noise on these analog inputs will propagate as erroneous reference data to the host controller. Pairing the NINT-46 with properly shielded AINT modules and verified 4–20 mA signal sources eliminates this failure mode.

On the power supply side, the APOW-01 power supply board within the ACS800 drive provides the internal DC rail that energizes all option boards including the NINT-46. A degraded APOW-01 — common in drives that have operated for more than five years in high-temperature environments — can introduce voltage ripple that causes intermittent resets of the NINT-46 and spurious DDCS communication faults. Proactive replacement of the APOW-01 during scheduled maintenance windows, alongside the NINT-46, eliminates this hidden failure vector.

For drives operating in high-EMI environments such as steel mills or arc furnace facilities, the RDCO-01 or RDCO-03 DDCS communication option modules on the master controller side must be verified for fiber optic cable continuity and connector cleanliness. Contaminated fiber connectors are the leading cause of DDCS link degradation in field installations. The NINT-46’s fiber ports should be inspected and cleaned with IEC 61300-3-35 compliant tools during every planned outage. Additionally, the RMIO-11 or RMIO-12 main control boards within the ACS800 should be confirmed as firmware-compatible with the NINT-46 to prevent protocol handshake failures after drive software updates.

In safety-critical applications, the NINT-46 is frequently deployed alongside the RTAC-01 pulse encoder interface module to provide closed-loop speed verification for overspeed protection circuits. This combination — NINT-46 for DDCS communication and RTAC-01 for encoder feedback — creates a dual-channel verification architecture that supports SIL 2 functional safety assessments in accordance with IEC 61508.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the NINT-46 supports the drive communication layer within emergency shutdown (ESD) architectures. Compressor drives, pump motor controllers, and agitator drives connected via DDCS to a safety PLC rely on the NINT-46 to transmit fault status and receive safe-state commands within the required response time. A communication board failure in this context does not merely cause a process upset — it can prevent the ESD system from commanding a controlled shutdown, creating a hazardous condition. The NINT-46’s fiber optic isolation ensures that high-voltage transients from nearby switchgear operations do not corrupt the safety communication channel.

In electric power generation and transmission facilities, ACS800 drives controlling induced draft fans, boiler feed pumps, and cooling water pumps are integrated into plant DCS systems via DDCS. The NINT-46 provides the physical interface for this integration, and its failure results in the drive reverting to local control or tripping on communication fault — both outcomes that can destabilize plant load balance. Maintaining a verified spare NINT-46 in the plant warehouse, pre-tested and ready for hot-swap installation, is standard practice in power plant spare parts management programs.

Mining and mineral processing operations present some of the most severe environmental challenges for drive communication hardware. Conveyor drives, crusher motor controllers, and slurry pump drives in underground or open-pit installations are exposed to extreme vibration, coal dust, silica dust, and wide temperature swings. The NINT-46’s fiber optic design eliminates the contact resistance degradation that affects copper-based communication boards in these conditions, providing a maintenance-free communication link that outlasts the drive’s mechanical components in high-vibration installations.

In water and wastewater treatment facilities, the NINT-46 enables remote monitoring and control of pump drives from SCADA systems, supporting unattended operation of lift stations and treatment plant motor control centers. Its immunity to the ground potential differences common in large water treatment sites — where multiple buildings share a common process ground with varying impedance — prevents the nuisance communication faults that trigger unnecessary pump trips and alarm floods in control room HMI systems.

Safety and Quality FAQ

Q: What support terms coverage does the NINT-46 carry?
A: Every NINT-46 supplied by KNMKS is covered by a support terms confirmed by quotation against manufacturing defects and functional failure from the date of shipment. Support requests are supported with direct technical assistance and replacement dispatch to minimize site downtime.

Q: How is the NINT-46 tested before shipment?
A: Each unit undergoes full functional verification prior to dispatch, including DDCS communication protocol testing, fiber optic port integrity checks, and power supply rail verification. Units that do not pass all test criteria are not shipped.

Q: Is the NINT-46 compatible with all ACS800 drive variants?
A: The NINT-46 is designed for the ACS800 option slot architecture and is compatible with the standard ACS800 single drive, ACS800 multidrive, and ACS800 cabinet-built drive variants that support DDCS option boards. Compatibility with specific firmware versions should be confirmed against the ACS800 firmware release notes. KNMKS technical support can assist with compatibility verification for your specific drive configuration.

Q: Can long-term supply continuity be guaranteed for the NINT-46?
A: KNMKS maintains multi-region stock of the NINT-46 to support both emergency replacement and planned maintenance programs. For sites with large ACS800 drive populations, we recommend establishing a consignment or scheduled supply agreement to ensure spare availability without lead time risk. Contact our team to discuss a tailored supply program for your facility.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

NINT-46
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB NINT-46
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
