ABB NINT-41C Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB NINT-41C Maintenance-Proven Spare Part for Factory Uptime

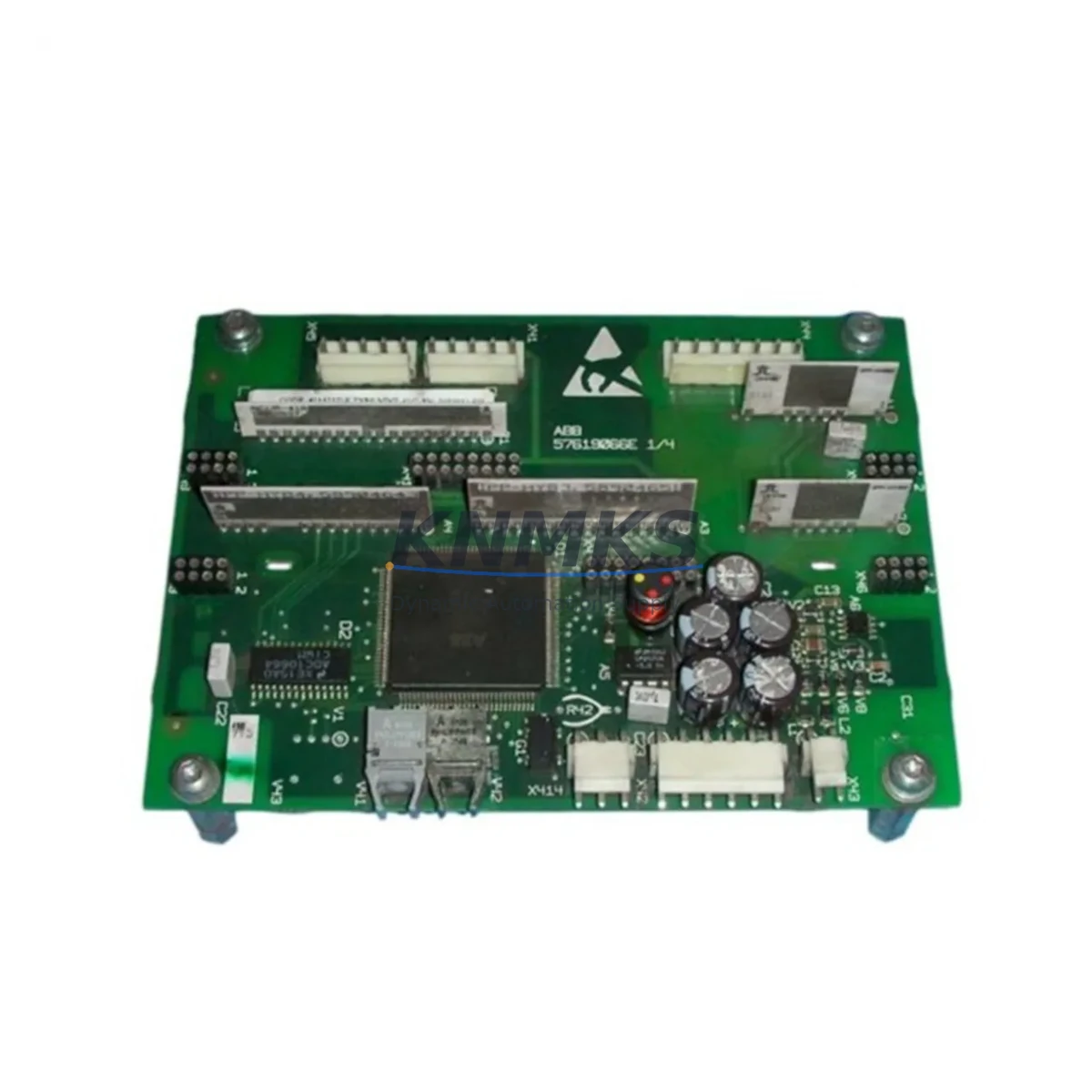

The ABB NINT-41C is an original DDCS (Distributed Drive Control System) fiber-optic communication board designed for ABB ACS800 series AC drives. In industrial facilities where continuous production is non-negotiable, maintaining a verified stock of the NINT-41C is a frontline strategy for minimizing unplanned downtime. Whether you are managing a paper mill, a cement plant, a steel rolling line, or a water treatment facility, the ACS800 drive platform is a cornerstone of your motor control architecture — and the NINT-41C is the communication backbone that keeps it synchronized with your DCS or PLC master controller.

This board enables high-speed, noise-immune fiber-optic communication between the ACS800 drive and external control systems, supporting DDCS protocol at up to 4 Mbps. Its role in the drive’s control chain makes it a critical spare: a failed NINT-41C can halt an entire production line within seconds, with no workaround available until the board is replaced. Procurement engineers and maintenance planners at facilities running ACS800 drives should treat the NINT-41C as a Tier-1 critical spare — stocked on-site, not ordered on demand.

Every NINT-41C unit shipped by KNMKS is sourced from verified supply channels, functionally tested prior to dispatch, and covered by a support terms confirmed by quotation. We support global delivery details confirmed by RFQ to minimize the gap between fault detection and system restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer responds to an ACS800 drive fault — particularly fault codes related to communication loss, DDCS link failure, or option board errors — the NINT-41C is among the first components to inspect. However, a thorough site assessment should extend well beyond the board itself. The fiber-optic cables connecting the NINT-41C to the master controller or to other drives in a multi-drive configuration are a common failure point; plastic fiber degrades over time under UV exposure, mechanical stress, or repeated bending, and should be replaced as a set when the NINT-41C is swapped. HFBR-type connectors at both ends of the fiber link should be cleaned and inspected for contamination.

The ACS800’s RMIO board (the main control board) works in close coordination with the NINT-41C. If communication faults persist after replacing the NINT-41C, the RMIO-11C or RMIO-02C should be evaluated next. Similarly, the APOW-01C power supply board provides the internal 24 VDC logic supply to the option boards; a degraded APOW-01C can cause intermittent communication failures that mimic a faulty NINT-41C. Maintenance planners should stock the APOW-01C alongside the NINT-41C as a paired spare.

For facilities using the ACS800 in a multi-drive or master-follower topology, the NDBU-95C or NDBU-12C DDCS branching unit is the hub through which all fiber-optic communication passes. A fault in the branching unit can disable communication across multiple drives simultaneously. Including the NDBU-95C in your critical spares inventory is strongly recommended for any site with three or more ACS800 drives on a single DDCS ring.

On the I/O side, the AIMA-01C analog I/O extension module and AINT-02C pulse encoder interface board are frequently installed alongside the NINT-41C in multi-slot configurations. During annual maintenance shutdowns, all option boards should be reseated, their connector pins inspected for oxidation, and their firmware versions logged against the drive’s parameter backup. Fuse F1 on the RMIO board and the 24 VDC external supply fuse in the control cabinet should also be checked as part of any communication fault investigation.

Site Replacement Workflow

1. Pre-replacement preparation: Before powering down the drive, record all drive parameters using the ACS800 control panel (CDP-312R) or DriveWindow software. Save the parameter file to a laptop or USB. Note the current NINT-41C node address setting (parameter group 70) and the DDCS ring topology map.

2. Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure. Confirm that the DC bus voltage has discharged to below 50 VDC before opening the drive cabinet. The ACS800 retains dangerous DC bus voltage for several minutes after AC supply disconnection.

3. Board removal and installation: The NINT-41C is installed in one of the ACS800’s option slots (typically slot 1 or slot 2 on the RMIO board). Release the board retaining clip, disconnect the fiber-optic cables (label them before removal), and extract the board. Install the replacement NINT-41C, reconnect the fiber cables in the correct order, and secure the retaining clip.

4. Node address configuration: Set the NINT-41C node address using the DIP switches on the board to match the original address recorded in step 1. Incorrect node addressing is the most common commissioning error after board replacement.

5. Power-up and verification: Restore power and monitor the drive’s fault log. Confirm that the DDCS communication link is established (parameter 70.01 should show the correct node count). Run a no-load test before reconnecting the motor load. Verify that the master controller (PLC or DCS) is receiving drive status data correctly.

6. Documentation: Update the maintenance log with the replacement date, new board serial number, and parameter backup file reference. This record is essential for support requests and future fault tracing.

Spare Parts Support FAQ

Q1: Is the NINT-41C compatible with all ACS800 frame sizes?
The NINT-41C is compatible with ACS800 drives in frame sizes R3 through R8 that are equipped with an RMIO main control board and at least one available option slot. It is not compatible with the ACS800-U4 or ACS800-U7 cabinet-built units that use a different internal architecture. Always verify the drive’s option slot availability and RMIO board revision before ordering.

Q2: How do I verify the NINT-41C is genuine and tested before shipment?
Every NINT-41C supplied by KNMKS undergoes functional verification prior to dispatch. We provide a test report on request, confirming that the board powers up correctly, the fiber-optic transceivers are within specification, and the DDCS communication link is established during bench testing. Units are shipped in anti-static packaging with individual serial number documentation.

Q3: What is the lead time and long-term supply availability for the NINT-41C?
The NINT-41C is a legacy option board for the ACS800 series, which ABB has transitioned to end-of-life support. KNMKS maintains a managed inventory of original surplus stock to support facilities that cannot migrate to newer drive platforms in the short term. We recommend that sites with three or more ACS800 drives stock a minimum of two NINT-41C boards on-site. Contact our team for volume pricing and long-term supply agreements.

Q4: What support terms and return policy applies to the NINT-41C?
All NINT-41C units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. In the event of a support terms claim, KNMKS will arrange replacement or repair with priority handling to minimize your site downtime.
