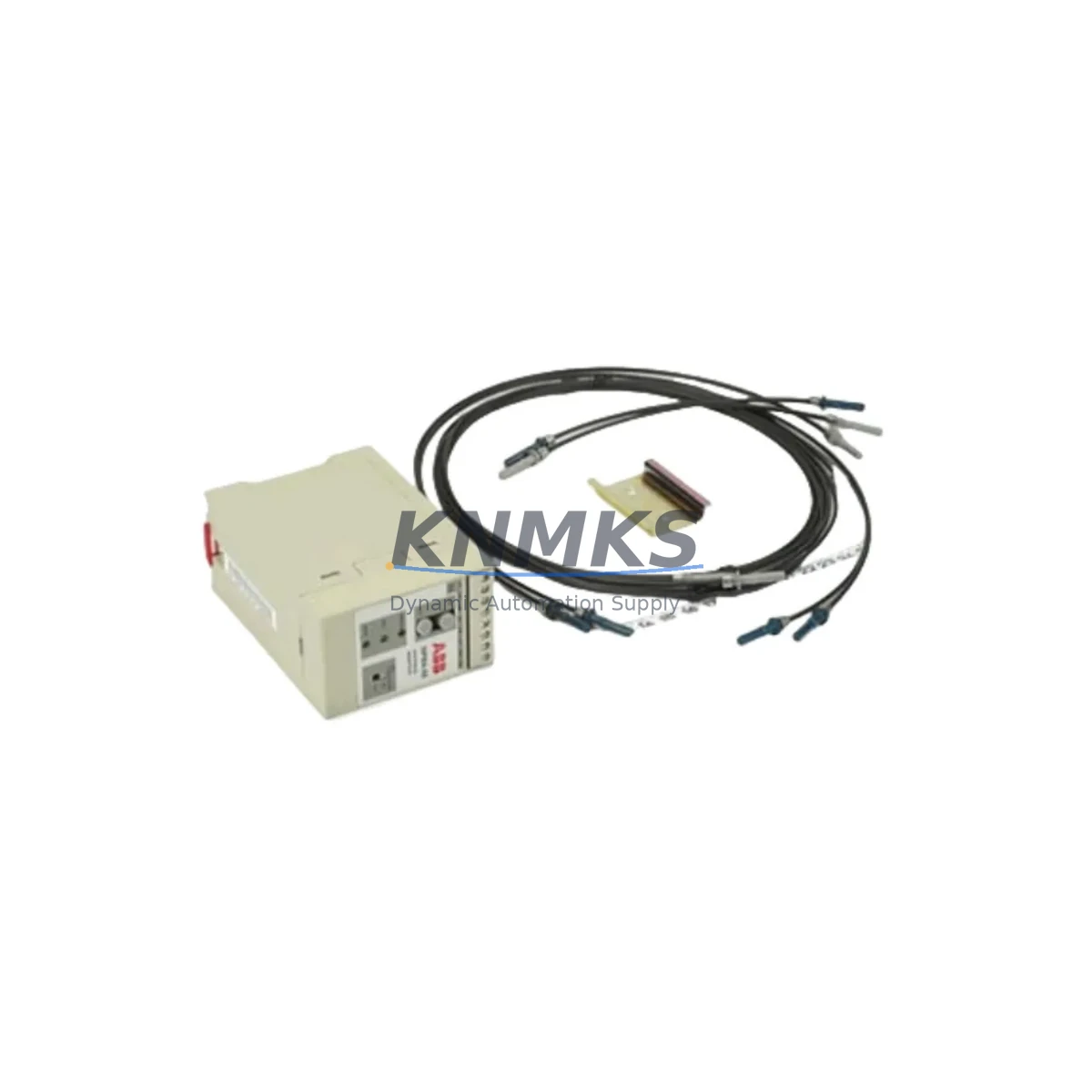

The ABB NINP-21C 64268422D is a PROFIBUS DP communication adapter designed for integration with ABB ACS800 series variable speed drives. In industrial environments where continuous process control depends on reliable fieldbus communication, this adapter serves as a critical interface between the drive and the PROFIBUS DP network — enabling real-time parameter control, status monitoring, and fault diagnostics from a centralized PLC or DCS host. Holding a verified spare unit on-site is one of the most effective strategies for reducing unplanned downtime in automation-intensive facilities.

Maintenance engineers working with ACS800 drive cabinets frequently encounter communication faults that trace back to degraded or failed fieldbus adapter modules. The NINP-21C 64268422D is the factory-specified PROFIBUS DP option module for this drive family, and its failure can result in complete loss of remote control capability — effectively taking the drive offline from the supervisory control layer. Having a tested replacement available eliminates the multi-week lead time associated with sourcing this component through standard distribution channels, particularly for legacy installations where the ACS800 platform has been in service for a decade or more.

From a procurement engineering perspective, the NINP-21C 64268422D should be treated as a Tier-1 critical spare in any facility operating ACS800 drives in PROFIBUS DP-networked configurations. This includes pump stations, compressor drives, conveyor systems, HVAC air handling units, and process line motor control centers where fieldbus communication is the primary control path. A single communication adapter failure in a networked drive system can cascade into broader process disruptions if no replacement is immediately available.

Each unit supplied is sourced as an original ABB component, subjected to pre-shipment functional testing, and dispatched with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions. Global dispatch is supported with typical lead times of 3–7 business days depending on destination region.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the NINP-21C 64268422D in an ACS800 drive cabinet, a thorough site inspection should extend beyond the adapter module itself. The PROFIBUS DP network relies on a chain of components that must all be in serviceable condition to restore reliable communication. Begin by inspecting the PROFIBUS cable termination at the drive end — the DB9 connector and cable shield grounding are common failure points in high-vibration or high-humidity environments. Verify that the bus termination resistors are correctly enabled at the physical endpoints of the PROFIBUS segment.

The ACS800 drive’s main control board (RMIO board) should be checked for firmware version compatibility with the NINP-21C adapter, as mismatched firmware can prevent the option module from being recognized. If the drive has been in service for more than five years, consider scheduling an inspection of the drive’s DC bus capacitors and fan units alongside the adapter replacement — these components share similar aging profiles in continuous-duty applications.

For drives integrated into a larger control cabinet, inspect the 24VDC auxiliary power supply that feeds the control electronics, as well as any signal isolators or surge protection devices installed on the PROFIBUS segment. The NINT-41C or NINT-43 internal adapter boards used in some ACS800 configurations may also require inspection if the drive has dual communication options installed. Additionally, review the status of the ACS800’s I/O extension modules (such as the RAIO or RDIO boards) to confirm that analog and digital I/O signals remain correctly mapped after the adapter replacement.

In multi-drive installations, the PROFIBUS DP master — typically a Siemens S7 PLC, ABB AC500, or equivalent DCS I/O module — should be verified for correct GSD file configuration and node address assignment after any adapter swap. Maintaining a spare PROFIBUS DP cable assembly and a set of bus connectors with integrated termination alongside the NINP-21C 64268422D is recommended practice for facilities with critical uptime requirements.

Site Replacement Workflow

Replacing the NINP-21C 64268422D on-site is a straightforward procedure when the correct replacement unit is available and the drive has been safely isolated. Follow the ACS800 hardware manual procedure for option module removal: de-energize the drive, wait for the DC bus to discharge (minimum 5 minutes after power removal), then carefully extract the existing adapter from its option slot by releasing the retention clips. Inspect the slot connector for bent pins or contamination before inserting the replacement module.

After physical installation, restore power and navigate to the drive’s parameter group 51 (COMM MODULE DATA) to verify that the PROFIBUS DP adapter is recognized and that the node address matches the PROFIBUS master configuration. Confirm that the drive’s control location is set correctly (parameter 10.01) to accept commands from the fieldbus. Perform a test cycle by issuing a start/stop command from the PROFIBUS master before returning the drive to production service.

This replacement workflow is compatible across the ACS800 variant range and does not require drive re-commissioning in most cases, significantly reducing the total downtime window compared to scenarios where the replacement part must be sourced after the failure event. Facilities that pre-position a tested NINP-21C 64268422D spare typically achieve drive restoration within 2–4 hours of fault identification, versus 2–6 weeks when sourcing begins post-failure.

Spare Parts Support FAQ

Q: Is the NINP-21C 64268422D compatible with all ACS800 drive variants?
A: The NINP-21C 64268422D is compatible with the majority of ACS800 single-drive and cabinet-built variants that include a standard option module slot. Compatibility should be confirmed against the specific drive’s hardware manual and option module listing. Contact our technical team with your drive nameplate data for confirmation prior to ordering.

Q: How is the unit tested before shipment?
A: Each NINP-21C 64268422D unit undergoes a functional pre-shipment test that verifies the PROFIBUS DP communication interface, option slot connector integrity, and module identification response. Units that do not pass testing are not dispatched. A test report is available upon request.

Q: What is the support terms coverage and how is it claimed?
A: All units are supplied with a support terms confirmed by quotation from the date of dispatch, covering manufacturing defects and operational failures under normal industrial service conditions. Support requests are processed by contacting [email protected] with the order reference and a description of the fault. Replacement or refund is arranged based on fault verification.

Q: Can long-term supply be arranged for facilities with multiple ACS800 drives?
A: Yes. Facilities operating multiple ACS800 drives in PROFIBUS DP configurations are encouraged to discuss annual supply agreements or consignment stock arrangements. Long-term supply planning ensures that critical spare availability is maintained without requiring emergency procurement at premium cost. Contact [email protected] or +86 18359268345 to discuss supply program options.
