ABB NGDR-07C Fail-Safe IGBT Gate Driver

Overview

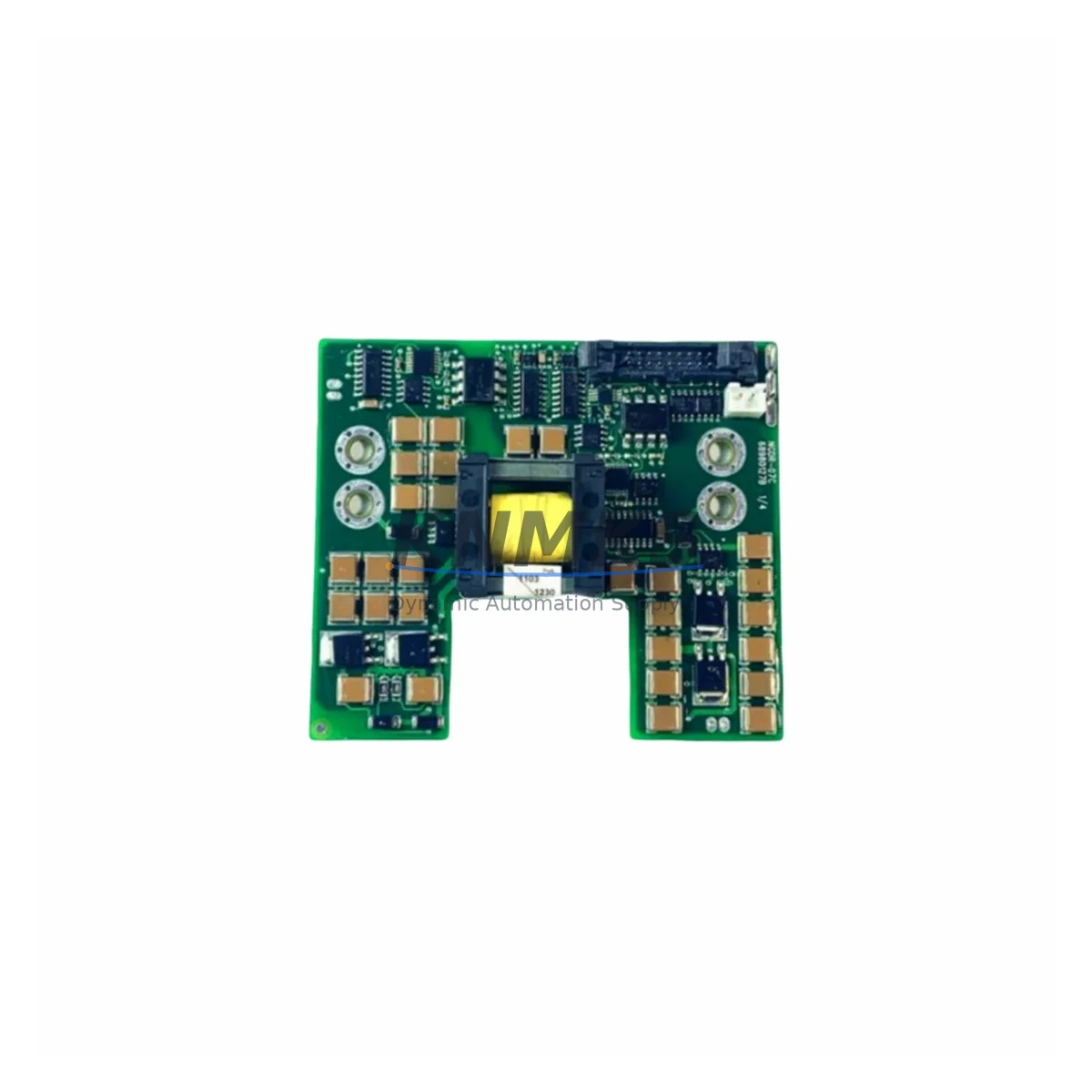

ABB NGDR-07C Fail-Safe IGBT Gate Driver for Industrial Control Reliability

The ABB NGDR-07C is a precision-engineered IGBT gate driver module designed for mission-critical industrial drive systems, including the ABB ACS800 series. In continuous production environments — petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port cranes, and marine propulsion systems — unplanned drive shutdowns translate directly into safety incidents, production losses, and costly emergency interventions. The NGDR-07C is built to eliminate that risk.

Engineered to ABB’s industrial-grade standards, this gate driver delivers stable, low-latency switching signals to IGBT power modules under the most demanding field conditions: high electromagnetic interference (EMI), voltage surges, thermal cycling, mechanical vibration, and elevated ambient humidity. Its robust isolation architecture prevents signal drift and false triggering — two of the most common root causes of nuisance trips and uncontrolled drive shutdowns in heavy industrial cabinets.

Every NGDR-07C unit shipped by KNMKS undergoes pre-shipment functional testing, including gate signal integrity verification, isolation resistance check, and thermal stress screening. This ensures that the module you install performs identically to the original factory specification from day one — with no commissioning surprises in a live production environment.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a properly engineered ACS800 control cabinet, the NGDR-07C does not operate in isolation — it is one node in a layered protection architecture. Reliable drive operation depends on the coordinated performance of multiple components working in concert.

The NGDR-07C interfaces directly with the IGBT power module stack (such as the ABB 5SNA 0800N330100 or equivalent IGBT brick), translating low-power control signals into the precise gate pulses required for high-power switching. Any degradation in gate signal quality — caused by a failing driver board — propagates immediately into switching losses, thermal runaway risk, and potential IGBT destruction. Replacing a suspect NGDR-07C before failure is always more cost-effective than replacing the entire IGBT assembly.

On the control side, the NAMC-11 or NAMC-03 main control board generates the PWM reference signals that the NGDR-07C executes. Ensuring both the control board and gate driver are in verified condition is essential before commissioning a repaired drive. Similarly, the NPOW-41C or NPOW-51C power supply board provides the auxiliary voltages that power the gate driver circuitry — a marginal power supply will cause intermittent gate driver faults even when the NGDR-07C itself is healthy.

For cabinet-level surge and transient protection, the NINT-72 or NINT-73 interface board handles fieldbus communication integrity, while dedicated surge protection devices (SPDs) on the incoming AC supply prevent voltage spikes from reaching sensitive control electronics. In high-EMI environments such as steel mills or arc furnace facilities, shielded cable assemblies and proper cabinet grounding are equally critical to maintaining gate signal fidelity.

When performing a scheduled outage replacement, KNMKS recommends verifying the condition of the NGDR-07C alongside the APBU-44C pulse encoder interface unit and the RDCO-03 DDCS communication module — all of which share the same control voltage rail and are subject to the same aging mechanisms in long-running ACS800 installations.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where drive trips trigger emergency shutdowns and SIL-rated interlock responses, the NGDR-07C’s stable gate switching prevents nuisance trips that could activate safety instrumented systems (SIS) unnecessarily — reducing both production loss and the risk of spurious ESD valve closures.

Power Generation & Utilities: Variable-speed drives controlling boiler feed pumps, cooling water pumps, and induced draft fans in thermal power stations require gate drivers that maintain switching accuracy across wide load ranges. The NGDR-07C’s low-drift output ensures consistent motor torque control even during grid disturbances.

Mining & Mineral Processing: Conveyor drives, ball mill drives, and slurry pump drives in underground and open-pit mining operate in extreme dust, humidity, and vibration conditions. The NGDR-07C’s robust isolation and surge tolerance make it a reliable choice for these high-consequence applications where a drive failure can strand an entire production section.

Water & Wastewater Treatment: Municipal water treatment facilities rely on variable-speed pump drives for precise flow control. Unplanned drive outages in these facilities can compromise water supply reliability. The NGDR-07C’s pre-tested, support terms-backed replacement capability allows maintenance teams to restore drive operation within hours rather than days.

Metallurgy & Steel Mills: Rolling mill drives and ladle crane drives in steel production operate in some of the highest EMI environments in industry. The NGDR-07C’s EMI-resistant gate drive architecture maintains signal integrity even in close proximity to large transformer banks and high-current bus bars.

Port & Marine Applications: Ship propulsion drives and port crane drives require gate drivers that perform reliably in salt-air, high-humidity environments with frequent load transients. The NGDR-07C’s galvanic isolation and surge protection are directly relevant to these demanding marine and port applications.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the NGDR-07C?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions from the date of shipment. KNMKS provides direct replacement or repair support. Support requests are processed with priority to minimize your site downtime.

Q2: What pre-shipment testing is performed on each NGDR-07C unit?
Every unit undergoes a full functional test protocol including gate signal output verification, isolation resistance measurement, auxiliary power input range testing, and thermal stress screening. A test record is available upon request for quality documentation purposes.

Q3: Is the NGDR-07C a direct drop-in replacement for the original ABB module?
Yes. The NGDR-07C supplied by KNMKS is a verified direct replacement compatible with ABB ACS800 series drives. No firmware changes, parameter adjustments, or mechanical modifications are required. The module installs and operates identically to the original factory part.

Q4: Can KNMKS support long-term or scheduled supply agreements for the NGDR-07C?
Yes. KNMKS maintains multi-region inventory of the NGDR-07C to support both emergency replacement orders and planned maintenance schedules. Long-term supply agreements with reserved stock allocation are available for customers with recurring maintenance programs or multi-site operations.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

NGDR-07C
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation
