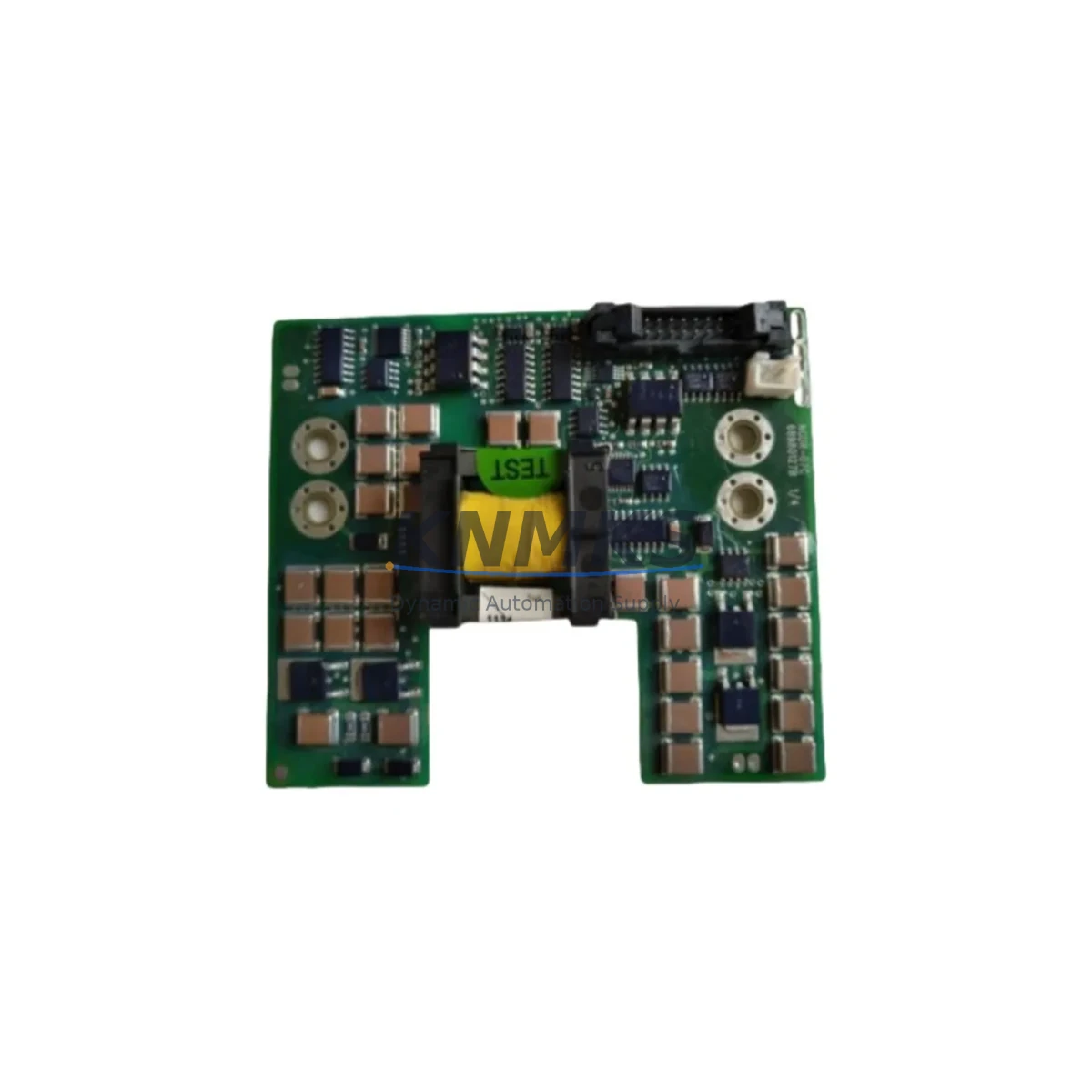

The ABB NGDR-07C (68980135B) is an original drive control board designed for ABB ACS series variable frequency drives deployed across process automation, power distribution, and continuous manufacturing environments. As a maintenance-proven spare part, this board supports rapid fault isolation and same-day swap-out procedures that minimize unplanned downtime in critical production lines. Whether you are managing a scheduled annual overhaul, responding to an emergency drive fault, or building a strategic spare parts inventory for aging ACS drive cabinets, the NGDR-07C 68980135B delivers verified electrical compatibility and reliable long-term performance.

Maintenance engineers working with ABB ACS400, ACS600, and ACS800 drive platforms frequently encounter control board degradation caused by capacitor aging, thermal cycling, and transient voltage stress. The NGDR-07C board governs core drive logic including PWM signal generation, fault diagnostics, and communication handshake with the drive’s RMIO or RDCO option boards. A failed or intermittent NGDR-07C typically presents as drive fault codes F-0001 through F-0010, unexplained trip events, or loss of fieldbus communication — all of which halt production and trigger costly emergency procurement cycles. Stocking a verified NGDR-07C 68980135B eliminates that risk.

Each unit supplied by KNMKS is sourced from controlled inventory channels, inspected for physical integrity, and function-tested prior to shipment. All boards are shipped with anti-static packaging, individual test records, and a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Global logistics support ensures delivery to plant sites across Asia, Europe, the Middle East, and the Americas within standard lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the NGDR-07C 68980135B in the field is rarely an isolated task. A thorough maintenance engineer will treat the control board swap as an opportunity to audit the entire drive cabinet and associated electrical circuit. Before powering up the replacement board, inspect the RMIO-02 main I/O board for corrosion on the terminal strip and verify that all analog and digital I/O signal levels are within specification. A degraded RMIO-02 can cause the new NGDR-07C to report spurious fault codes within hours of commissioning.

Check the RDCO-02 or RDCO-04 DDCS communication option board for fiber-optic connector contamination — a common cause of intermittent fieldbus dropouts that are often misdiagnosed as control board failure. If the drive is integrated into a DCS via PROFIBUS or Modbus, verify the RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter firmware version and parameter mapping before returning the drive to automatic control.

On the power side, inspect the drive’s DC bus capacitor bank and measure capacitance against the nameplate specification. Capacitor degradation is the leading cause of premature control board failure in ACS800 drives operating in high-ambient-temperature environments. Also verify the 24 VDC auxiliary power supply feeding the control section — voltage ripple above 200 mV peak-to-peak can corrupt EEPROM parameter storage on the NGDR-07C board.

For cabinet-level inspection, check all terminal block connections on the control wiring harness, particularly the encoder feedback terminals and the safe torque off (STO) circuit wiring. Loose STO wiring is a frequent cause of nuisance drive trips that are incorrectly attributed to control board faults. Finally, verify that all input fuses and surge protection devices on the control transformer secondary are intact and within rated values before energizing the replacement board.

Site Replacement Workflow

Step 1 — Isolation and Lockout: De-energize the drive, apply LOTO, and wait a minimum of 5 minutes for DC bus capacitors to discharge below 50 VDC before opening the control cabinet door.

Step 2 — Parameter Backup: If the existing NGDR-07C is still partially functional, use the ABB Drive Composer or CDP control panel to upload and save the full parameter set to a PC or memory unit. This eliminates re-commissioning time after the swap.

Step 3 — Board Removal: Photograph all connector positions before disconnecting. Remove the fiber-optic cables from the DDCS port first, then disconnect the flat-ribbon I/O connectors and the 24 VDC power header. Release the board retention clips and slide the NGDR-07C out of the backplane guide rails.

Step 4 — Replacement Installation: Insert the new NGDR-07C 68980135B into the guide rails and seat firmly until the backplane connector engages. Reconnect all cables in reverse order. Verify that the fiber-optic TX/RX connectors are fully seated and the locking tabs are engaged.

Step 5 — Parameter Restore and Commissioning: Power up the drive in local control mode. Restore the saved parameter set. Verify drive ID run completion, motor model parameters, and fieldbus node address. Run a no-load test before returning to automatic production control.

Step 6 — Documentation: Record the replacement date, new board serial number, and post-swap test results in the plant maintenance management system (CMMS). Schedule the next preventive inspection at 12 months or 8,000 operating hours, whichever comes first.

Spare Parts Support FAQ

Q1: Is the NGDR-07C 68980135B a direct drop-in replacement for earlier NGDR-07C revisions?
Yes. The 68980135B assembly code denotes the current production revision of the NGDR-07C board. It is backward compatible with earlier assembly revisions used in ACS400, ACS600, and ACS800 drives. No firmware update or parameter change is required for standard replacement. Verify the drive firmware version is R7.x or later for full feature compatibility.

Q2: How does KNMKS verify the board before shipment?
Each NGDR-07C 68980135B is bench-tested using an ABB-compatible drive test rig that validates power-up sequence, I/O signal integrity, communication port function, and fault relay operation. A printed test record is included with every shipment. Boards that fail any test parameter are quarantined and not shipped.

Q3: What is the recommended spare parts holding strategy for ACS800 drive fleets?
For fleets of 5 or more ACS800 drives, KNMKS recommends holding a minimum of one NGDR-07C 68980135B per 5 drives as a rotating spare. For critical process lines where drive failure causes immediate production loss, a 1:3 ratio is advisable. Combine with one RMIO-02 board and one set of DC bus capacitors per cabinet group to cover the three most common failure modes.

Q4: What is the support terms coverage and what does it include?
All NGDR-07C 68980135B boards supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers functional failure under normal operating conditions, including PCB component failure and communication port malfunction. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. Support requests are processed within 5 business days with advance replacement available for critical applications.
