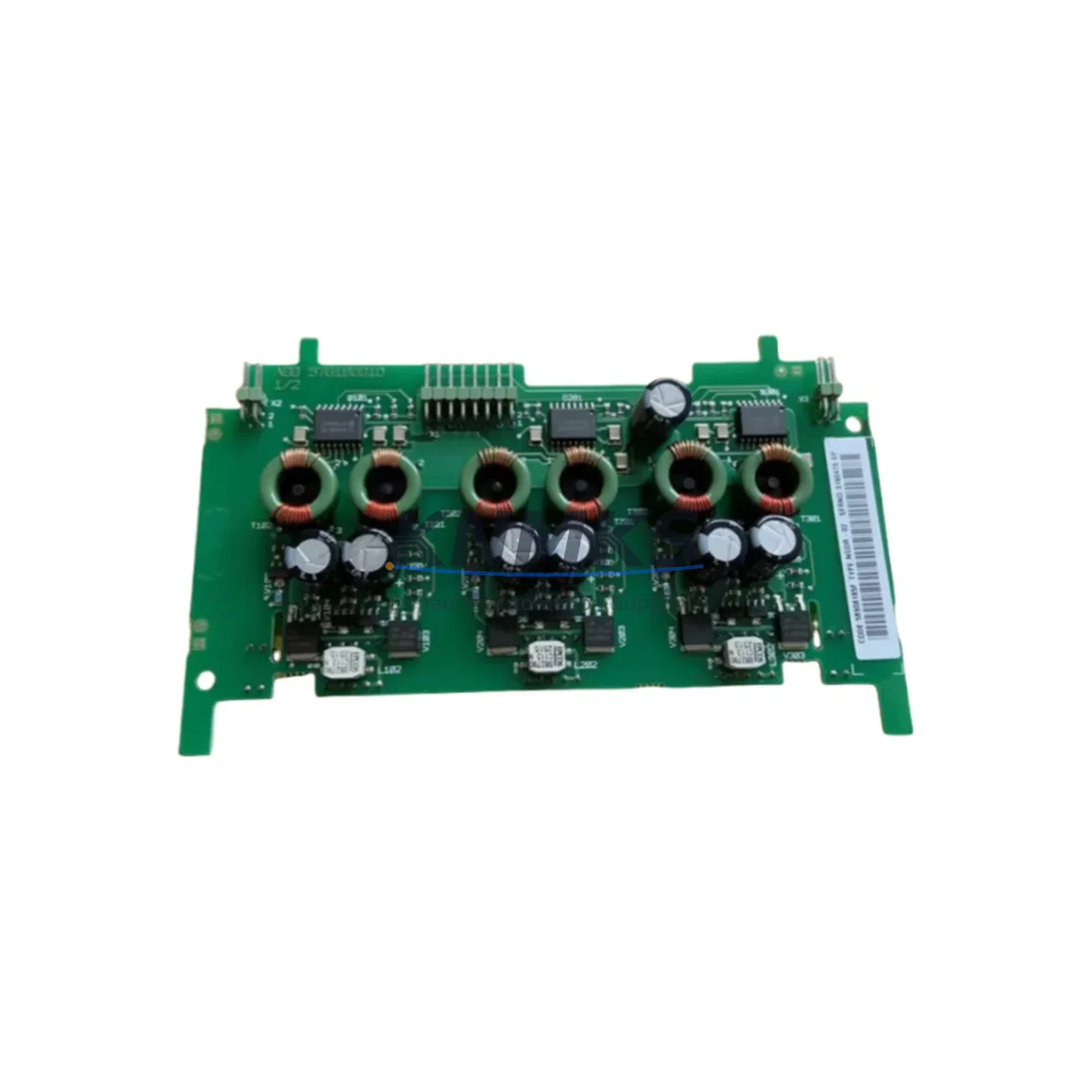

ABB NGDR-07B 68980135A Migration-Ready DCS Module for Legacy Control Systems

The ABB NGDR-07B (68980135A) is a migration-ready DCS control module engineered for direct integration into ABB Advant OCS and System 800xA distributed control architectures. As legacy Advant controllers reach end-of-life and spare part availability tightens across global maintenance programs, the NGDR-07B 68980135A has become a critical component for engineers managing brownfield upgrades, control cabinet modernization, and unplanned outages in process-critical environments.

This module is sourced from verified industrial channels, fully function-tested prior to shipment, and backed by a support terms confirmed by quotation. Stock is maintained across regional warehouses to support urgent dispatch requirements for refineries, chemical plants, power generation facilities, and pulp and paper operations running legacy ABB control platforms.

Whether you are executing a planned migration from Advant Master to System 800xA, replacing a failed module during an unplanned shutdown, or building a buffer stock program for a multi-year maintenance contract, the NGDR-07B 68980135A provides a proven, back-to-back compatible solution that minimizes engineering risk and commissioning time.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the NGDR-07B 68980135A into an existing Advant or 800xA control system requires a structured pre-retrofit assessment. Engineers should begin by auditing the current rack configuration — confirming available slot positions, backplane revision, and the power budget of the installed PM825 or PM856 power supply module. Insufficient power headroom is one of the most common causes of post-installation instability in multi-module Advant racks, and it is frequently overlooked during emergency replacements.

Terminal wiring should be documented before any module removal. The NGDR-07B uses the standard ABB Advant terminal block layout, meaning field wiring can typically remain in place during a direct swap. However, if the retrofit is part of a broader I/O expansion — for example, adding AI810 analog input modules or DI810 digital input modules to extend process monitoring coverage — the wiring schedule must be updated to reflect new channel assignments and signal ranges.

Communication continuity is equally critical. In systems running MasterBus 300 or PROFIBUS DP, the module address and bus segment parameters must be replicated exactly on the replacement unit. Where the migration path involves transitioning from legacy Advant fieldbus to modern PROFIBUS DP or FOUNDATION Fieldbus, a CI854 PROFIBUS DP interface module or CI856 FOUNDATION Fieldbus interface may be required to bridge the protocol gap without modifying the AC800M controller program logic.

For sites running ABB Operator Workplace or 800xA HMI, a 1:1 module replacement will not require HMI reconfiguration. However, if the retrofit involves a module type change or I/O channel remapping, the corresponding 800xA Operator Workplace faceplates and alarm configurations must be updated before returning the loop to automatic control. Coordination with the DCS programming team to verify that the AC800M controller application program references the correct module type and channel index is essential before energizing the replacement unit.

Where physical installation space is constrained — particularly in older control cabinets designed around the original Advant S100 rack geometry — engineers should confirm that the NGDR-07B module depth and connector alignment are compatible with the installed rack before ordering. In most cases, the module fits directly into the existing slot without mechanical modification, but cabinet door clearance and cable management should be verified on-site.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational objective when replacing a failed NGDR-07B 68980135A in a live process environment. The most effective strategy is to maintain a pre-tested spare unit on-site or within rapid-dispatch reach, eliminating the lead time risk associated with sourcing discontinued ABB Advant components through standard distribution channels.

Before initiating the swap, the original control program logic should be backed up from the AC800M controller using ABB Control Builder M. This ensures that if the replacement module triggers an unexpected configuration mismatch — for example, a firmware version conflict or a DIP switch address error — the system can be restored to its last known good state without re-engineering the application logic from scratch.

Where the process permits, the replacement should be performed during a scheduled maintenance window with the affected control loop placed in manual mode at the 800xA Operator Workplace. Field operators should be briefed on the expected duration of the interruption and the manual override procedures for any downstream actuators or safety interlocks that depend on the module’s output signals.

After physical installation, the commissioning sequence should include: confirming module address via DIP switch, verifying bus communication status on the PROFIBUS segment, checking power supply current draw on the PM825 or PM856, and performing a channel-by-channel I/O verification against the existing loop drawings before returning the loop to automatic. A structured commissioning checklist reduces the risk of overlooking a wiring error or address conflict that could cause a process trip immediately after restart.

For sites executing a phased migration from Advant to System 800xA, the NGDR-07B 68980135A can serve as a bridge component — maintaining continuity on legacy I/O loops while the migration team progressively commissions new S800 I/O stations and transfers control logic to the updated platform. This phased approach allows the plant to maintain production throughput throughout the migration rather than requiring a full shutdown for cutover.

Retrofit Support FAQ

Q1: Is the NGDR-07B 68980135A a direct replacement for the original ABB Advant NGDR-07B?
Yes. The 68980135A is the hardware revision identifier for the NGDR-07B module. Units supplied by KNMKS are sourced from verified industrial channels and are functionally equivalent to the original ABB factory specification. Each unit undergoes full functional testing prior to shipment, and a test report is available on request.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, confirm the DIP switch address matches the original module, verify PROFIBUS or MasterBus 300 communication status, check power supply current draw on the installed PM825 or PM856 power module, and perform a channel-by-channel I/O verification before returning the loop to automatic control. No changes to the AC800M application program are required for a 1:1 replacement.

Q3: Can this module be used in a System 800xA environment running firmware v6.x?
Yes. The NGDR-07B 68980135A is compatible with System 800xA firmware v5.x and v6.x. If your site is running an earlier firmware version, we recommend confirming compatibility with your ABB system integrator before installation. Firmware upgrade support documentation is available through ABB’s 800xA technical library.

Q4: What support terms and stock availability does KNMKS provide?
All NGDR-07B 68980135A units supplied by KNMKS are covered by a support terms confirmed by quotation against manufacturing defects and functional failure under normal operating conditions. Stock is maintained across regional warehouses to support urgent dispatch. Contact our team for current inventory status, lead time confirmation, and volume pricing for blanket-stock programs.
