ABB NGDR-03C 61353364D Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB NGDR-03C 61353364D Maintenance-Proven Spare Part for Factory Uptime

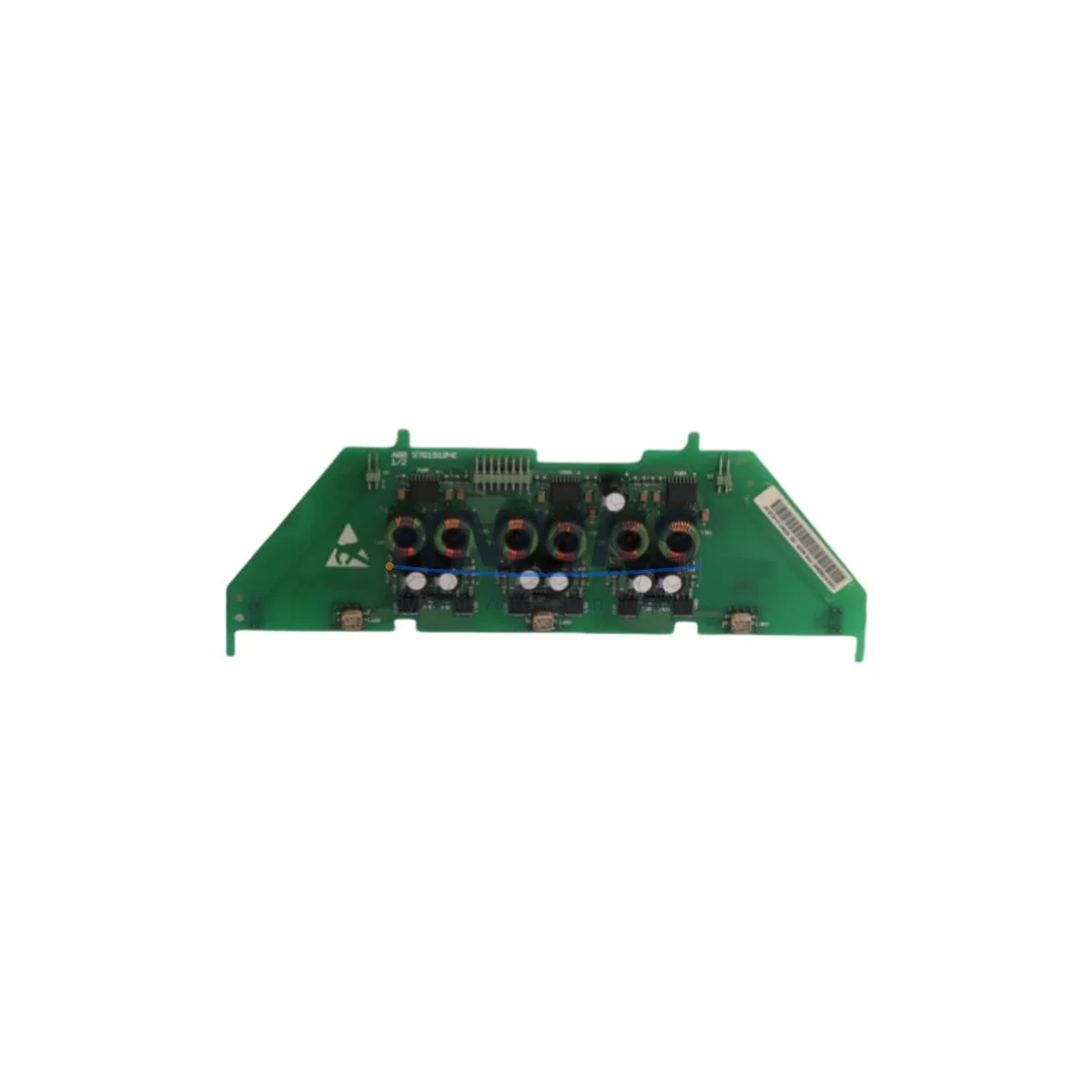

The ABB NGDR-03C (part number 61353364D) is a gate driver board engineered for ABB ACS800 series variable frequency drives. In industrial environments where drive availability directly determines production throughput, maintaining a verified spare of the NGDR-03C is a fundamental element of any proactive maintenance strategy. This board governs the IGBT gate switching signals that control motor output waveform quality, torque response, and thermal protection logic within the ACS800 drive cabinet. A failure of this component typically results in immediate drive trip, loss of motor control, and unplanned production downtime — making rapid access to a tested replacement unit critical for maintenance engineers and plant operations teams alike.

Our NGDR-03C 61353364D units are sourced as original ABB spare parts, subject to pre-shipment functional verification, and dispatched with a support terms confirmed by quotation covering manufacturing defects and operational integrity. Whether you are managing a single ACS800 unit on a critical pump or fan circuit, or maintaining a fleet of drives across a process plant, having this board in your local spare parts inventory eliminates the risk of extended lead times during emergency fault recovery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a gate driver fault is identified in an ACS800 drive, the replacement of the NGDR-03C board should be integrated into a broader fault isolation and cabinet inspection routine. Maintenance engineers should not limit their inspection to the gate driver board alone. The IGBT power module — such as the ABB RINT-5514C or equivalent inverter bridge assembly — must be checked for gate-emitter resistance and forward voltage drop to confirm it has not been damaged by the gate driver fault event. A failed gate driver can expose the power semiconductors to uncontrolled switching transients, and replacing the board without verifying the IGBT condition risks repeat failure within a short operating period.

The DC bus capacitor bank should also be inspected for capacitance drift, ESR increase, and physical swelling, particularly in drives that have been in service for more than five years. Alongside this, the APBU-44C or APBU-12C pulse encoder interface board and the RDCO-03C or RDCO-04C communication option board should be checked for connector integrity and firmware compatibility if the drive is being returned to service after an extended outage.

For drives integrated into DCS or SCADA systems via PROFIBUS or Modbus RTU, the fieldbus adapter module — such as the RPBA-01 or RMBA-01 — should be reseated and communication diagnostics run after the gate driver replacement to confirm signal integrity. The IOEC I/O extension modules connected to the ACS800 should also be verified for correct analog and digital signal mapping before the drive is returned to automatic control mode.

From a procurement planning perspective, facilities managing multiple ACS800 drives should maintain a minimum buffer stock of one NGDR-03C per drive frame size group, alongside spare fuses for the DC bus pre-charge circuit and a set of control cable assemblies for the gate driver interface. This approach supports a target mean-time-to-repair of under four hours for gate driver faults, which is achievable with on-site spares and a trained maintenance technician.

Site Replacement Workflow

Before beginning the NGDR-03C replacement, isolate the ACS800 drive from the supply network and allow a minimum of five minutes for the DC bus to discharge below 50V DC, confirmed with a calibrated multimeter at the DC bus terminals. Record the active fault log and parameter set from the drive control panel or DriveWindow software before powering down, as this data supports root cause analysis and simplifies recommissioning.

Remove the gate driver board by disconnecting the ribbon cable and gate signal connectors in sequence, noting the orientation and locking tab positions. Install the replacement NGDR-03C 61353364D by reversing this sequence, ensuring all connectors are fully seated and locking tabs are engaged. After installation, perform a no-load power-up test with the motor disconnected, confirm that the drive completes its self-test sequence without fault, and verify gate signal output using the drive’s internal diagnostics before reconnecting the motor load.

For legacy ACS800 installations where the original NGDR-03C variant is no longer available through standard distribution channels, the 61353364D revision is the confirmed compatible replacement across the applicable ACS800 frame sizes. Document the replacement in the site maintenance log with the board serial number, installation date, and technician sign-off to support support requests and future audit requirements.

Spare Parts Support FAQ

Q: Is the NGDR-03C 61353364D compatible with all ACS800 drive frame sizes?
A: The NGDR-03C 61353364D is compatible with specific ACS800 frame sizes. Please confirm your drive’s frame size designation and hardware revision from the drive nameplate or documentation before ordering. Our technical team can assist with compatibility verification prior to dispatch.

Q: What pre-shipment testing is performed on the NGDR-03C before dispatch?
A: Each unit undergoes functional verification including gate signal output testing and board-level inspection before dispatch. Units that do not meet specification are not shipped. A support terms confirmed by quotation is provided from the dispatch date covering manufacturing defects and operational integrity under normal operating conditions.

Q: How should the NGDR-03C be stored if purchased as a buffer spare?
A: Store the board in its original anti-static packaging in a dry, temperature-controlled environment between 0°C and 40°C, away from direct sunlight and electromagnetic interference sources. Inspect the board annually for any signs of oxidation on connector pins and replace the anti-static packaging if it shows signs of degradation.

Q: Can you support long-term supply of the NGDR-03C for multi-site maintenance programs?
A: Yes. We maintain multi-region stock of the NGDR-03C 61353364D to support ongoing maintenance programs, annual shutdown schedules, and emergency replacement requirements. Contact our team to discuss volume pricing, reserved stock arrangements, and scheduled delivery programs for your facility.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

NGDR-03C-61353364D
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB NGDR-03C-61353364D
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
