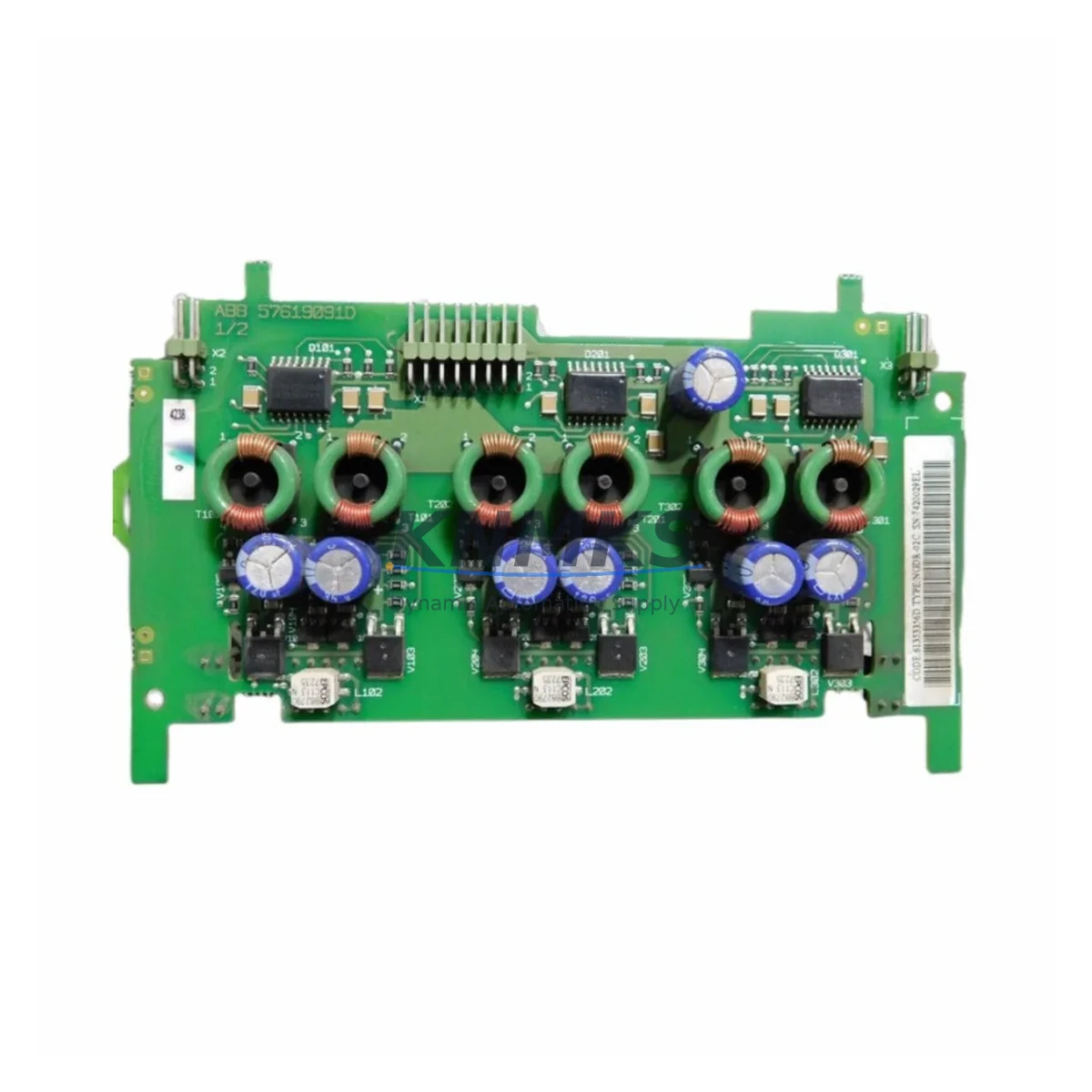

ABB NGDR-02C Migration-Ready IGBT Gate Driver for Legacy Drives

Overview

ABB NGDR-02C Migration-Ready IGBT Gate Driver for Legacy Drives

The ABB NGDR-02C is a precision-engineered IGBT gate driver board designed for deployment within ABB’s ACS800 and DCS800 drive platforms. As legacy variable-speed drive systems approach end-of-life or encounter discontinued spare part shortages, the NGDR-02C serves as a critical migration component — enabling engineers and maintenance teams to restore full drive functionality without committing to a full system replacement. Whether you are managing a planned retrofit or responding to an unplanned drive failure, the NGDR-02C provides a verified, drop-in compatible solution that preserves your existing control architecture and minimizes engineering rework.

In industrial environments where ACS800 and DCS800 drives have been in continuous service for 10–20 years, the IGBT gate driver board is among the most frequently replaced components. Gate driver failures typically manifest as overcurrent trips, IGBT desaturation faults, or asymmetric phase output — all of which can be traced to degraded gate signal integrity. The NGDR-02C restores gate pulse accuracy, protects the IGBT module stack from shoot-through events, and re-establishes the drive’s ability to execute precise torque and speed control commands from the main control board.

Before installing the NGDR-02C, retrofit engineers should confirm several key parameters. DC bus voltage and auxiliary power supply levels (typically +24 VDC and ±15 VDC rails) must be within specification to ensure the gate driver’s internal power stage operates correctly. Terminal wiring to the IGBT module gate and emitter pins must be re-routed according to the NGDR-02C connection diagram, paying close attention to wire length and shielding to prevent EMI-induced false triggering. The backplane interface connector must be inspected for pin corrosion or mechanical damage before seating the new board. Module addressing — particularly in multi-drive or common DC bus configurations — should be verified against the drive’s parameter list to ensure the replacement board is recognized correctly by the RMIO or RDCU main control unit.

Program compatibility is another critical checkpoint. The ACS800’s application program, stored on the RMIO-02 or RMIO-11 control board, does not require modification when replacing the NGDR-02C, as the gate driver operates transparently below the application layer. However, if the drive has been upgraded to a newer firmware version on the control board, engineers should confirm that the gate driver’s hardware revision is compatible with the updated pulse pattern timing. HMI panels connected via the CDP312R or similar operator panel should be checked post-replacement to confirm that drive status signals, fault history, and parameter displays are functioning correctly.

Communication link integrity — whether via PROFIBUS-DP through the RPBA-01 adapter, Modbus RTU via the RMBA-01, or DeviceNet through the RDNA-01 — should be validated after the replacement is complete. A communication fault that appears after a gate driver swap is almost always attributable to a power cycle sequence issue or a parameter reset, not to the NGDR-02C itself. Installation space within the drive cabinet should also be confirmed: the NGDR-02C occupies the same physical footprint as its predecessor, but cable routing clearances must be maintained to prevent thermal stress on adjacent components such as the AINT-02C interface board or the APOW-01 power supply module.

Firmware version compatibility between the NGDR-02C and the drive’s main control board should be documented before commissioning. ABB’s DriveWindow or DriveWindow Light software can be used via the RUSB-02 USB-to-panel link or the RDCO-03 optical fiber interface to read the current firmware version and confirm that no parameter conflicts exist. On-site commissioning should include a no-load run test, followed by a loaded ramp test at 25%, 50%, and 100% of rated current, with gate signal waveforms verified using an oscilloscope at the IGBT module terminals if possible.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful NGDR-02C retrofit begins with a structured audit of the existing drive cabinet. Engineers should document the current configuration of the ACS800 or DCS800 unit, including the installed control board variant (RMIO-02 or RMIO-11), the I/O extension modules in use (such as the RAIO-01 analog I/O extension or the RDIO-01 digital I/O module), and the fieldbus adapter type. This documentation ensures that the replacement gate driver is integrated without disrupting the existing I/O mapping or communication topology.

Power supply integrity is a prerequisite for gate driver reliability. The APOW-01 auxiliary power supply module should be tested for output voltage stability before the NGDR-02C is installed. A degraded power supply is a common root cause of repeated gate driver failures and must be addressed as part of the retrofit plan. Similarly, the AINT-02C interface board, which mediates signals between the control board and the gate driver, should be inspected for solder joint integrity and connector wear.

For systems using optical fiber communication between the control board and the gate driver — common in higher-voltage ACS800 configurations — the RDCO-03 fiber optic interface board should be cleaned and tested. Fiber contamination is a frequent cause of intermittent gate signal loss and can mimic gate driver failure symptoms. If the system includes a CDP312R operator panel or an ACS-AP-I panel, these should remain connected during commissioning to monitor real-time fault codes and drive status.

In multi-drive installations sharing a common DC bus, the replacement sequence should be planned to maintain bus voltage stability. Isolating the affected drive unit, discharging the DC bus capacitors fully, and following ABB’s lockout/tagout procedure are mandatory steps before handling the NGDR-02C. After installation, the drive should be re-energized in stages, with the gate driver’s enable signal held inactive until all power rails are confirmed stable.

Downtime Control During System Migration

Minimizing unplanned downtime during an NGDR-02C replacement requires advance preparation. Stocking a verified spare NGDR-02C unit on-site — particularly for production lines where ACS800 or DCS800 drives are critical to throughput — is the single most effective downtime reduction strategy. When a gate driver fault occurs, a pre-tested spare can be installed and the drive returned to service within 30–60 minutes, compared to days or weeks if the part must be sourced reactively.

Preserving the original program logic is straightforward in ACS800 systems: the application program resides on the RMIO control board, not on the gate driver. Replacing the NGDR-02C does not erase or alter any stored parameters or application macros. Engineers should nonetheless export a parameter backup via DriveWindow before beginning any hardware work, as a precaution against accidental parameter changes during the commissioning process.

Field control continuity can be maintained in some configurations by switching the affected drive to bypass mode (if a bypass contactor is installed) while the gate driver is replaced. This approach is particularly valuable in HVAC, pump, and fan applications where a brief period of across-the-line motor operation is acceptable. For applications requiring continuous variable-speed control — such as winding, extruding, or precision positioning — a hot-standby drive unit or a pre-configured replacement drive should be available before maintenance begins.

Retrofit risk is further reduced by sourcing the NGDR-02C from a supplier that performs pre-shipment functional testing. Each unit supplied by KNMKS is tested for gate signal output integrity, auxiliary power regulation, and protection circuit response before dispatch, ensuring that the replacement board is confirmed operational before it reaches the installation site.

Retrofit Support FAQ

Q1: Is the NGDR-02C a direct drop-in replacement for the original gate driver in my ACS800?
Yes. The NGDR-02C is a direct replacement for the original gate driver board in ACS800 and DCS800 drive units. No mechanical modifications or wiring changes are required beyond reconnecting the existing harness to the new board’s connectors. Confirm the hardware revision of your existing board against the NGDR-02C specification sheet if your drive is a non-standard or customized configuration.

Q2: What pre-shipment testing is performed on the NGDR-02C?
All NGDR-02C units supplied by KNMKS undergo functional testing prior to shipment. Testing covers gate pulse output waveform verification, auxiliary power supply regulation, desaturation protection circuit response, and connector integrity. A test report is available upon request. Units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: Do I need to re-configure any drive parameters after replacing the NGDR-02C?
In standard ACS800 and DCS800 configurations, no parameter changes are required after replacing the NGDR-02C. The gate driver operates below the application layer and does not store drive parameters. After installation, perform a fault history reset via the CDP312R or ACS-AP-I panel, then execute a no-load test run to confirm normal operation before resuming production.

Q4: What is the lead time and stock availability for the NGDR-02C?
KNMKS maintains stock of the NGDR-02C to support urgent retrofit and breakdown replacement requirements. Standard orders are dispatched within 1–3 business days. For large-quantity orders or scheduled maintenance programs requiring multiple units, contact our sales team to confirm availability and arrange priority allocation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

NGDR-02C
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB NGDR-02C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
