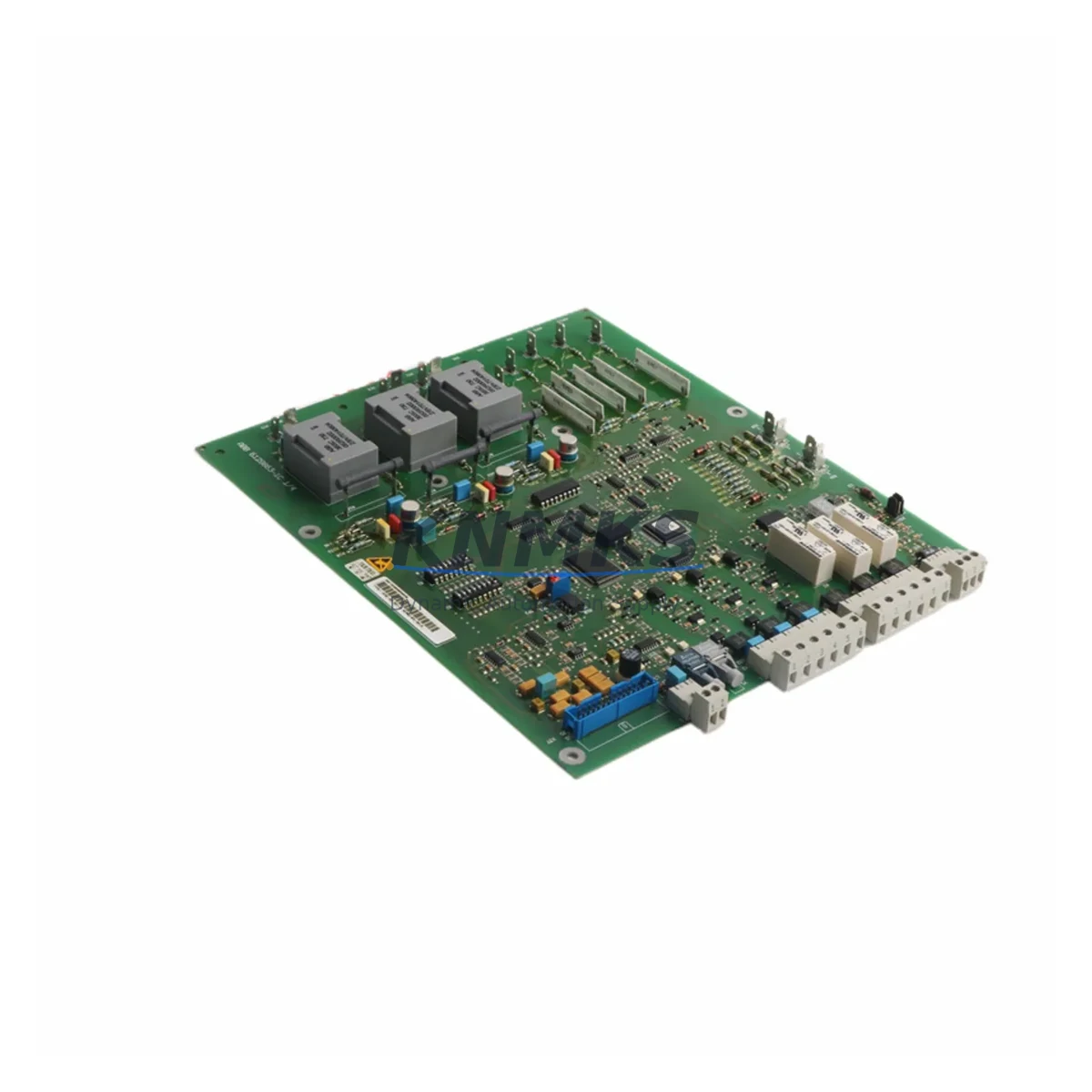

ABB NDSC-02 3ADT220090R0039 Drive Control Board

Overview

ABB NDSC-02 3ADT220090R0039 Drive Control Board: Migration-Ready Replacement for Legacy ACS800 & DCS800 Control Systems

The ABB NDSC-02 (part number 3ADT220090R0039) is a drive control board designed for use in ABB ACS800 and DCS800 series variable frequency drives and DC drive systems. As legacy automation infrastructure ages and original spare parts become increasingly difficult to source, the NDSC-02 serves as a critical migration-ready replacement component for engineers and maintenance teams managing aging control cabinets, retrofit projects, and production line upgrades.

This board governs core drive control functions including speed regulation, torque control, I/O signal processing, and communication interface management within the ACS800 and DCS800 drive platforms. When the original NDSC-02 fails or reaches end-of-life, the entire drive — and often the production line it controls — is at risk of unplanned downtime. Sourcing a verified, tested replacement unit is the fastest path to restoring system operation without committing to a full drive replacement or control architecture redesign.

Before installing a replacement NDSC-02 3ADT220090R0039, engineers should confirm several key parameters. Power supply compatibility within the drive chassis must be verified — the NDSC-02 operates within the internal power architecture of the ACS800/DCS800 and relies on the drive’s internal SMPS board for regulated DC supply. Terminal wiring on the control board connectors, including analog input/output channels, digital I/O, and encoder feedback terminals, must be mapped against the existing wiring diagram before removal of the faulty unit. Backplane interface alignment and board slot positioning within the drive’s control section must also be confirmed to ensure correct seating and signal continuity.

Module addressing and parameter configuration are equally important. The ACS800 and DCS800 platforms store drive parameters in the control unit memory. After installing the replacement NDSC-02, the full parameter set — including motor data, speed references, PID tuning values, and I/O assignments — must be restored from a backup or re-entered manually using DriveWindow or DriveStudio software via the DDCS or PROFIBUS communication link. If the drive communicates upstream with a PLC or DCS via a fieldbus adapter such as the RDCO-02 or RPBA-01, the communication link must be re-established and verified before returning the drive to automatic control mode.

HMI screen configurations and alarm histories linked to the drive should also be reviewed. In systems where the ACS800 is integrated with an ABB Panel Bus or third-party SCADA, the drive node address and communication parameters must remain consistent with the original configuration to avoid disrupting supervisory control visibility.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of an ACS800 or DCS800 drive system requires a structured approach that accounts for all interdependent components within the control cabinet. When replacing the NDSC-02 3ADT220090R0039, the surrounding hardware must be assessed for compatibility and condition.

The drive’s internal power supply board — often the APOW-01 or equivalent SMPS module — should be inspected for capacitor aging and output voltage stability before the new control board is installed. A degraded power supply can cause erratic behavior or premature failure of a replacement control board. Similarly, the AINT-02 or AINF-xx interface board, which manages the connection between the control section and the power section of the ACS800, should be verified for correct operation.

For systems using DDCS-based distributed I/O or remote I/O racks, the fiber optic DDCS link must be tested for signal integrity. Damaged fiber cables or dirty connectors are a common source of communication faults after board replacement. If the system uses a PROFIBUS or MODBUS RTU fieldbus adapter such as the RPBA-01 or RMBA-01, the adapter’s node address and baud rate settings must be confirmed against the PLC or DCS configuration before the drive is returned to service.

In control cabinets where multiple ACS800 drives are installed in a common DC bus configuration, the master-follower communication setup via DDCS must be re-verified after any control board replacement. The master drive’s NDSC-02 governs torque reference distribution to follower drives, and any parameter mismatch can cause synchronization faults across the drive group.

For legacy production lines where the ACS800 interfaces with older ABB AC500 or S800 I/O systems, signal isolation between the drive’s analog outputs and the PLC input modules should be confirmed. Signal isolators or galvanic separators may be required if ground loop interference is detected during commissioning. Programming cables such as the RUSB-02 USB-to-DDCS adapter are recommended for on-site parameter backup and restore operations.

Downtime Control During System Migration

Minimizing production downtime during a drive control board replacement requires advance preparation and a disciplined commissioning sequence. Before the maintenance window begins, a full parameter backup of the existing drive should be extracted using DriveWindow or DriveStudio and stored on a secure local device. This backup serves as the authoritative reference for restoring the drive to its pre-failure operating state.

During the replacement procedure, the original wiring harness and connector positions should be photographed before disconnection. Terminal labels on the NDSC-02’s I/O connectors should be cross-referenced against the drive’s wiring diagram to ensure correct reconnection. Incorrect wiring of analog speed references or digital enable signals is a leading cause of commissioning delays after board replacement.

Once the replacement NDSC-02 3ADT220090R0039 is installed and parameters are restored, a controlled no-load motor run test should be performed before reconnecting the mechanical load. Speed reference tracking, current limit behavior, and fault response should all be verified in manual control mode before switching to automatic PLC control. This staged commissioning approach protects the original program logic, preserves field control continuity, and reduces the risk of secondary equipment damage during the first powered test.

All replacement units supplied by KNMKS are pre-tested prior to shipment. Functional verification, visual inspection, and basic electrical testing are performed on each board before dispatch, reducing the risk of receiving a non-functional unit and further extending the maintenance window.

Retrofit Support FAQ

Q: Is the NDSC-02 3ADT220090R0039 a direct replacement for the original board in my ACS800?
A: Yes. The NDMSC-02 3ADT220090R0039 is a direct board-level replacement for the original NDSC-02 fitted in ACS800 and DCS800 series drives. No mechanical modification is required. Parameter restoration via DriveWindow or DriveStudio is required after installation.

Q: Do I need to update the firmware after installing the replacement board?
A: Firmware compatibility should be verified against the drive’s existing software revision. In most cases, the replacement board ships with compatible firmware. If a firmware update is required, this can be performed via the DDCS link using DriveStudio. Contact our technical team for firmware version guidance specific to your drive serial number.

Q: What wiring checks are required before powering up the drive after board replacement?
A: Verify all I/O connector positions match the original wiring diagram. Confirm analog input/output channel assignments, digital I/O terminal connections, encoder feedback wiring (if applicable), and fieldbus adapter seating. A continuity check on all signal terminals before power-up is strongly recommended.

Q: What support terms and testing does KNMKS provide with this replacement board?
A: All NDSC-02 3ADT220090R0039 units supplied by KNMKS include a support terms confirmed by quotation from the date of shipment. Each unit undergoes pre-shipment functional testing and visual inspection. In-stock units are available for same-day or next-business-day dispatch to minimize your system downtime.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

NDSC-02 3ADT220090R0039
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB NDSC-02 3ADT220090R0039
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
