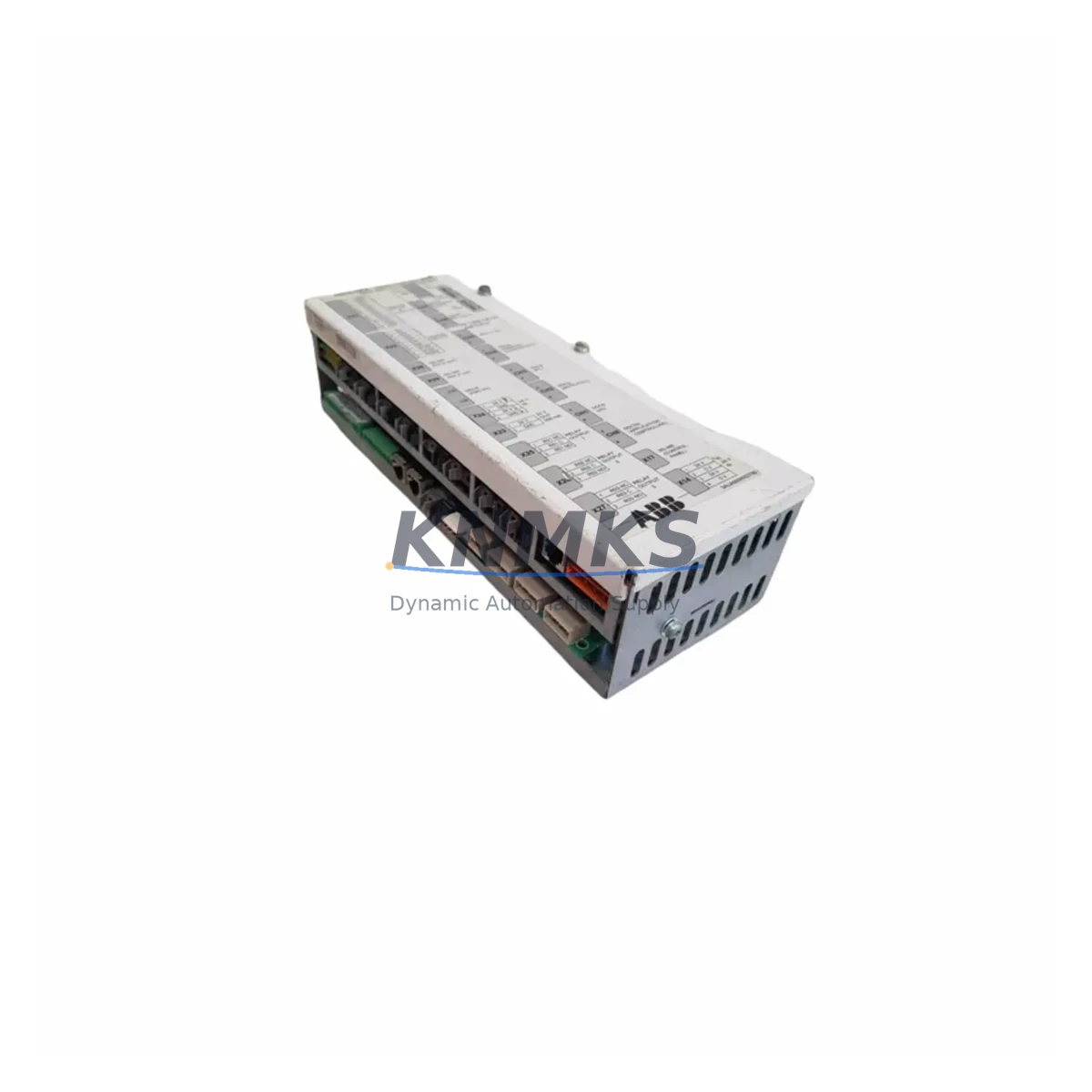

ABB NDCU-33CX 3AUA0000052751 Migration-Ready Drive Control Unit for Legacy ACS800 Systems

The ABB NDCU-33CX (Part No. 3AUA0000052751) is a migration-ready drive control unit engineered for direct replacement and compatibility upgrade within the ACS800 multi-drive and single-drive platform. As legacy ACS800 installations approach end-of-service milestones and OEM spare part availability tightens, the NDCU-33CX provides a verified drop-in solution that preserves existing control architecture, minimizes rewiring, and supports continuity of production without requiring a full drive cabinet overhaul.

This unit is designed for engineers and maintenance teams managing retrofit projects across paper mills, metal processing lines, crane systems, marine propulsion controls, and other heavy-duty industrial environments where ACS800 drives remain the backbone of motion control. The NDCU-33CX integrates directly into the ACS800 backplane, retaining compatibility with the existing DDCS fiber-optic communication links, I/O terminal assignments, and parameter memory structures used in the original installation.

Each unit is pre-shipment tested against ABB factory specifications and ships with a support terms confirmed by quotation covering manufacturing defects and functional performance under rated operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful NDCU-33CX retrofit begins with a structured pre-replacement audit of the existing ACS800 control section. Before removing the legacy control unit, maintenance engineers should document the current parameter set using DriveWindow Light or DriveStudio software, saving a full parameter backup to a PC or USB-connected programming cable. This backup becomes the reference for restoring drive behavior after the new NDCU-33CX is installed.

Power capacity verification is a critical first step. The NDCU-33CX draws its 24 VDC logic supply from the drive’s APOW-01 auxiliary power board or the AINT-xx inverter control board, depending on the cabinet configuration. Confirm that the existing auxiliary supply rail can support the replacement unit without voltage drop under full I/O load. In multi-drive configurations where several NDCU units share a common APOW board, total current draw across all slots must be recalculated before commissioning.

Terminal wiring on the NDCU-33CX follows the standard ACS800 X1 and X2 connector layout. In most retrofit scenarios, existing field wiring to digital inputs, analog inputs, relay outputs, and encoder feedback channels can be reconnected without modification. However, engineers should verify that any application-specific wiring added during the original installation — such as external fault relay circuits or custom interlock signals — is mapped correctly to the replacement unit’s terminal block before energizing the cabinet.

For drives using DDCS fiber-optic communication to a master controller or to an RDCO-02 or RDCO-03 communication adapter board, the fiber connections transfer directly to the NDCU-33CX without reconfiguration. Node addressing and DDCS channel assignments are restored from the parameter backup. In systems where the ACS800 communicates upstream to a PLC via a fieldbus adapter — such as an NPBA-12 PROFIBUS adapter or an NMBP-01 Modbus Plus module — the fieldbus node address and communication parameters must be verified in the restored parameter set before the drive is returned to automatic control.

HMI panel compatibility should be confirmed prior to restart. The CDP312R and ACS-CP-C panels connect to the NDCU-33CX via the standard panel bus port and will display the drive’s parameter structure as expected after parameter restore. If the existing installation uses a remote panel mounted on the cabinet door, the panel cable length and connector type should be checked against the replacement unit’s panel port specification.

In cabinet configurations that include an AINT-xx inverter control board, an APOW-01 auxiliary power supply, or an AIMA-01 I/O extension module, these components remain in place during the NDCU-33CX swap and do not require replacement unless they show independent fault conditions. Similarly, if the drive cabinet includes an RDCO-02 fiber-optic communication adapter or a dedicated signal isolator for analog feedback channels, these modules continue to operate without modification after the control unit is replaced.

Downtime Control During System Migration

Minimizing production downtime during an NDCU-33CX replacement requires preparation before the maintenance window begins. The recommended approach is to complete all parameter backup, wiring documentation, and spare part verification steps during normal operation, so that the physical swap can be executed within a single planned shutdown period.

Once the cabinet is de-energized and the legacy control unit is removed, the NDCU-33CX can be seated into the backplane slot and secured without mechanical modification. Reconnecting the X1/X2 terminal blocks, fiber-optic DDCS cables, and panel bus connector typically takes less than 30 minutes for an experienced technician familiar with the ACS800 platform. After power-up, the parameter backup is loaded via DriveWindow or the CDP312R panel, and the drive is run through a no-load test cycle to verify speed reference response, fault relay operation, and communication link status before returning the motor to load.

For critical production lines where even a brief unplanned stop carries significant cost, it is advisable to keep a pre-configured NDCU-33CX unit on the shelf with a saved parameter file specific to each drive position in the system. This approach reduces mean time to repair to under one hour and eliminates the risk of parameter entry errors during an emergency replacement. KNMKS maintains in-stock inventory of the NDCU-33CX to support same-day or next-business-day dispatch for urgent retrofit and breakdown recovery requirements.

Retrofit Support FAQ

Q1: Is the NDCU-33CX a direct replacement for the NDCU-21C and NDCU-12C in existing ACS800 cabinets?
Yes. The NDCU-33CX is mechanically and electrically compatible with the ACS800 control section slot occupied by earlier NDCU variants. Terminal wiring, backplane connectors, and DDCS fiber ports are retained. Parameter migration is performed via DriveWindow or DriveStudio using a backup file from the original unit.

Q2: What commissioning steps are required after installing the NDCU-33CX?
After seating the unit and reconnecting all terminals and fiber cables, restore the parameter backup from the legacy drive. Verify motor data parameters (Group 99), speed controller tuning (Group 23–26), and fieldbus node address if applicable. Run a no-load test to confirm fault-free operation before returning the drive to production.

Q3: Does the NDCU-33CX ship pre-tested, and what support terms coverage applies?
Yes. Every NDCU-33CX unit undergoes functional pre-shipment testing before dispatch. A support terms confirmed by quotation from the date of shipment covers manufacturing defects and confirmed functional failures under rated operating conditions. Test reports are available on request.

Q4: What is the typical lead time, and can urgent orders be accommodated?
The NDCU-33CX is held availability confirmed by RFQ and available for immediate dispatch. Standard orders ship within 1–2 business days. For breakdown recovery or urgent retrofit requirements, contact the sales team directly to confirm same-day dispatch availability.
