ABB NDCU-11K Fail-Safe Drive Control for Industrial Reliability

Overview

ABB NDCU-11K Fail-Safe Drive Control for Industrial Reliability

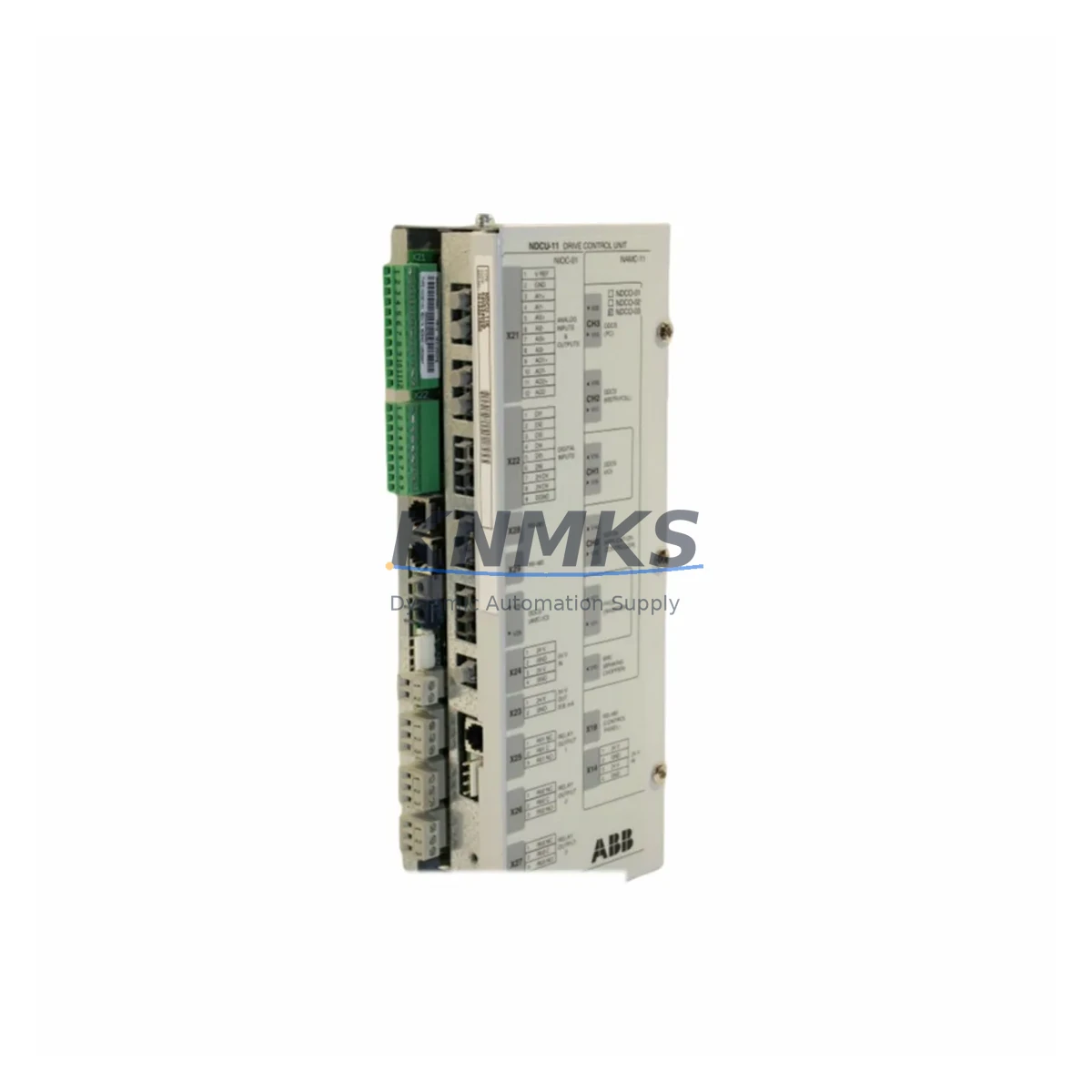

The ABB NDCU-11K is a mission-critical Drive Control Unit (DCU) engineered for the ACS800 series variable frequency drive platform. Designed to sustain continuous, uninterrupted operation in the most demanding industrial environments, the NDCU-11K delivers fail-safe motor control logic, robust signal integrity, and deterministic response under conditions of high electromagnetic interference, voltage transients, mechanical vibration, and extreme thermal cycling. For facilities where unplanned downtime translates directly into production loss, safety incidents, or regulatory non-compliance, the NDCU-11K represents a proven, field-validated solution for drive control reliability.

In heavy industrial settings — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port crane systems, and continuous process manufacturing lines — the drive control unit sits at the heart of every motor control loop. Any failure in the DCU can cascade into conveyor stoppages, pump trips, compressor shutdowns, or loss of critical interlock signals. The NDCU-11K is built to prevent exactly these scenarios. Its internal architecture incorporates surge-protected I/O interfaces, EMI-shielded signal paths, and thermally stable components rated for operation across a wide ambient temperature range, ensuring that control signals remain accurate and responsive even when the surrounding cabinet environment is compromised by heat, dust, or moisture ingress.

When integrated into a properly configured ACS800 control cabinet, the NDCU-11K works in concert with complementary components to form a complete, layered protection strategy. The AINT-02C or AINT-14C fiber optic interface boards eliminate ground loop interference on long cable runs between the drive and the control room. The APBU-44C or APBU-12C branching units distribute DDCS communication reliably across multi-drive configurations, preventing communication timeouts that could trigger spurious fault trips. On the power supply side, the APOW-01C internal power supply module provides stable 24 VDC logic power to the NDCU-11K, isolating the control electronics from mains-side voltage fluctuations and surge events. For applications requiring safe torque-off or emergency stop integration, the AGPS-21C gate driver board and associated safety relay modules in the STO circuit must be verified as compatible and correctly parameterized alongside the NDCU-11K to maintain SIL-rated interlock integrity.

Signal drift is one of the most insidious failure modes in drive control systems. Aging or counterfeit DCU modules may exhibit gradual degradation in analog reference tracking, encoder feedback processing, or fieldbus communication timing — all of which can manifest as subtle speed instability, torque ripple, or intermittent fault codes before a complete failure occurs. The NDCU-11K, supplied as a genuine ABB replacement module, undergoes pre-shipment functional testing that validates all I/O channels, communication ports, and firmware integrity against ABB factory specifications. This testing protocol ensures that the module arrives ready for direct installation without requiring additional bench calibration or parameter re-mapping beyond the standard ACS800 commissioning procedure.

For maintenance engineers managing aging ACS800 fleets, the NDCU-11K is a direct, pin-compatible replacement for worn or failed DCU modules. The replacement process does not require drive hardware modifications, and parameter sets stored in the ACS800 control panel or uploaded via DriveWindow can be restored immediately after module swap, minimizing the commissioning window during planned or emergency outages. Multi-region stock availability ensures that emergency replacement orders can be dispatched globally within standard lead times, supporting both scheduled preventive maintenance programs and unplanned breakdown recovery scenarios.

Every NDCU-11K unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment, reflecting confidence in the quality and traceability of each module. Stock is maintained across multiple regional warehouses to support fast global dispatch, and all units are individually serialized and traceable to pre-shipment test records. Long-term supply agreements are available for customers managing large ACS800 populations or multi-site maintenance contracts.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable ACS800 control cabinet is more than a single module — it is a system of interdependent components, each contributing to overall fault tolerance and operational continuity. The NDCU-11K functions as the central control intelligence, but its performance depends on the integrity of the surrounding hardware. The AINT-02C fiber optic interface board eliminates copper-based signal vulnerabilities on long drive-to-control-room cable runs, preventing ground loop faults that can corrupt speed references or trigger nuisance trips. The APBU-44C branching unit ensures that DDCS communication remains stable across multi-drive configurations, preventing the communication timeouts that can cause the NDCU-11K to enter fault state unnecessarily.

On the power supply side, the APOW-01C internal power supply module provides clean, regulated 24 VDC logic power to the NDCU-11K, decoupling the control electronics from mains-side disturbances including voltage sags, surges, and harmonic distortion common in heavy industrial power systems. For safety-critical applications requiring STO (Safe Torque Off) or emergency stop integration, the AGPS-21C gate driver board must be correctly configured and verified alongside the NDCU-11K to maintain the integrity of the safety interlock chain. Additionally, the RDCO-03C DDCS communication adapter supports integration with higher-level DCS or SCADA systems, enabling centralized monitoring of drive health parameters and early fault detection before a control interruption occurs.

Critical Industrial Safety Applications

The NDCU-11K is deployed across a broad spectrum of critical industrial applications where drive control reliability directly impacts process safety and production continuity. In petrochemical and refinery environments, it controls compressor and pump drives within hazardous area control loops, where any unplanned trip can trigger emergency shutdown sequences with significant safety and financial consequences. In power generation facilities, it manages auxiliary drive systems including cooling fans, feedwater pumps, and fuel handling conveyors, where sustained operation is essential for grid stability and plant safety compliance.

In mining operations, the NDCU-11K supports hoist, conveyor, and ventilation fan drives operating under continuous heavy load cycles and high ambient dust concentrations. Water treatment and desalination plants rely on it for precise pump speed control in dosing and transfer applications, where flow accuracy directly affects water quality and regulatory compliance. In metallurgical mills and steel plants, it manages rolling mill and furnace drive systems subject to extreme thermal gradients and high electromagnetic interference from arc furnaces and induction heating equipment. Port crane and ship-to-shore gantry systems depend on the NDCU-11K for reliable load handling under variable wind loads and high-cycle duty, where control interruptions create both safety hazards and operational delays.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover for the NDCU-11K?
A: The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional non-conformances identified under normal operating conditions consistent with ABB ACS800 installation guidelines. Each unit is individually serialized and traceable to pre-shipment test records, providing full documentation support for support requests.

Q: What pre-shipment testing is performed on each NDCU-11K unit?
A: Every NDCU-11K undergoes a comprehensive functional test protocol prior to shipment, including validation of all digital and analog I/O channels, DDCS fiber optic communication port integrity, firmware version verification, and power supply rail checks. Units that do not meet ABB factory specifications are quarantined and not dispatched.

Q: Is the NDCU-11K a direct replacement for the existing module in my ACS800 drive?
A: Yes. The NDCU-11K is a direct, pin-compatible replacement for the original NDCU-11K module in ACS800 series drives. No hardware modifications are required. Parameter sets previously stored in the ACS800 control panel or backed up via DriveWindow software can be restored immediately after module replacement, minimizing commissioning time during both planned and emergency outage windows.

Q: Can long-term supply agreements be arranged for multi-site ACS800 maintenance programs?
A: Yes. KNMKS supports long-term supply agreements for customers managing large ACS800 drive populations or multi-site maintenance contracts. Multi-region warehouse stock and priority dispatch options are available to ensure consistent availability for both scheduled preventive maintenance and emergency breakdown recovery scenarios.
