ABB NDCO-03 Migration-Ready DDCS Fiber-Optic Card

Overview

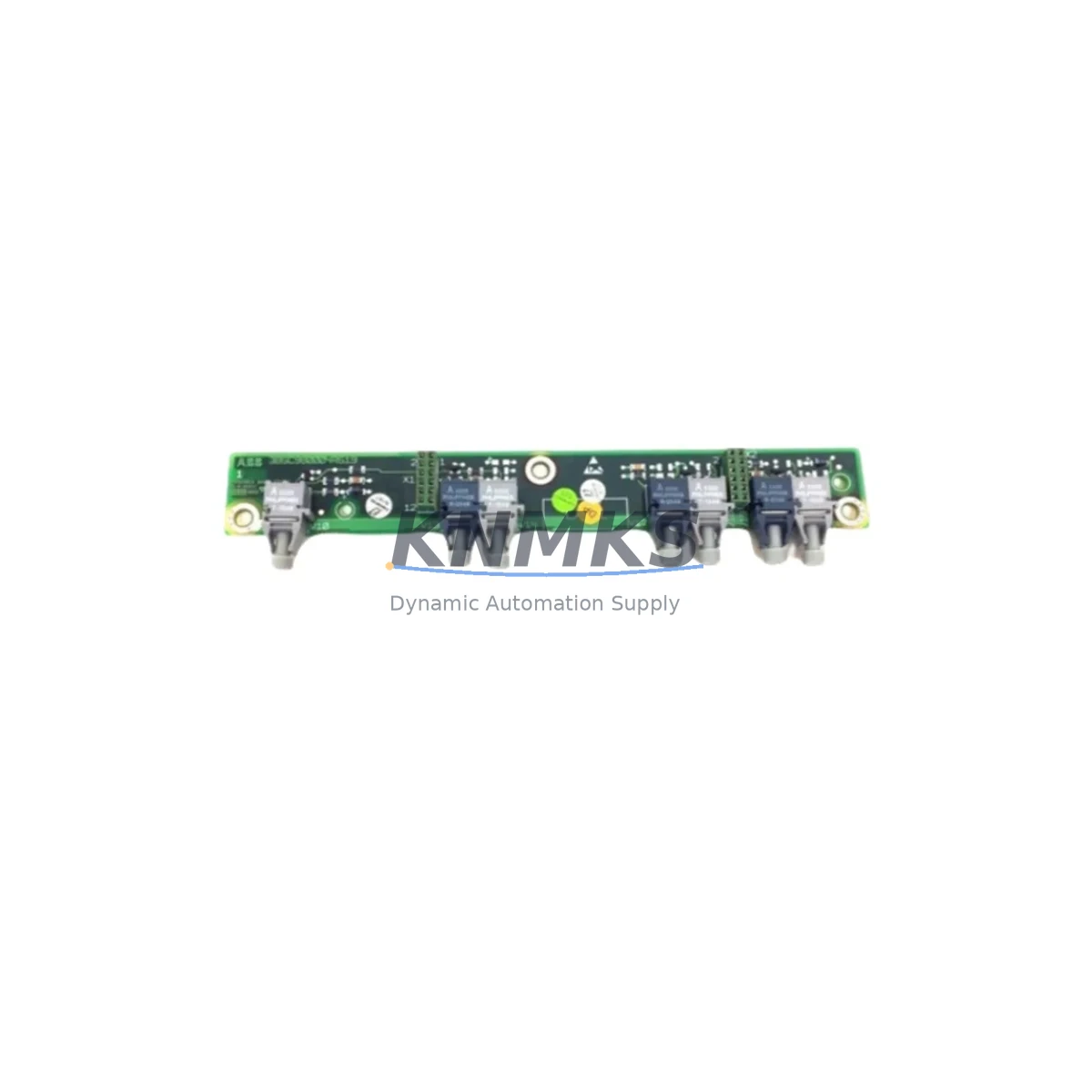

ABB NDCO-03 Migration-Ready DDCS Fiber-Optic Card for Legacy Control Systems

The ABB NDCO-03 is a DDCS (Distributed Drive Control System) fiber-optic communication option card designed for integration into ABB’s ACS800, ACS600, and DCS800 series variable-speed drives. As legacy drive platforms approach end-of-life and OEM support windows close, the NDCO-03 remains a critical spare part for facilities that depend on DDCS ring topology for coordinated multi-drive control, master-follower configurations, and high-speed process synchronization.

This card enables direct fiber-optic communication between the drive and an external controller — typically an AC800M, ADVANT, or third-party master — using the DDCS protocol at up to 4 Mbps. For plants running ACS800 multidrive cabinets or ACS600 retrofit lines, the NDCO-03 is the validated replacement to restore communication integrity without reprogramming the drive application or modifying the existing DDCS ring wiring.

Each unit is pre-shipment tested against ABB firmware compatibility requirements and ships with a support terms confirmed by quotation covering manufacturing defects and functional performance.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the NDCO-03 in an operating plant requires a structured approach to avoid unplanned downtime and communication faults across the DDCS ring. Before removing the existing card, engineers should document the current DIP switch node address, record the fiber-optic port assignments (Rx/Tx), and capture a full parameter backup using DriveWindow or the ACS800 control panel. This backup preserves the drive application program, macro settings, and I/O configuration — critical when the drive is part of a coordinated multi-drive system.

In ACS800 multidrive cabinet installations, the NDCO-03 typically occupies option slot 1 or 2 on the drive’s control board (RMIO or RDCU). When the drive also carries an RDIO-01 digital I/O extension module or an RAIO-01 analog I/O extension, confirm that the slot assignment does not conflict with the NDCO-03 installation. In systems where the ACS800 communicates with an AC800M controller via DDCS, the ring must be re-closed after card replacement — failure to do so will cause a DDCS fault on all downstream nodes.

For DCS800 DC drive retrofits, the NDCO-03 is installed in the same manner but the DDCS ring configuration may differ depending on whether the system uses a SDCS-CON-2 or SDCS-CON-4 control board. Verify the control board variant before ordering to ensure pin and slot compatibility. In mixed fleets where ACS600 drives share the same DDCS ring as ACS800 units, the NDCO-03 can serve both platforms, simplifying spare parts inventory management.

Where the legacy system includes an NPBA-12 PROFIBUS adapter or an NMBP-01 Modbus Plus card in an adjacent slot, confirm that the DDCS card does not share interrupt lines with the fieldbus adapter. In most ACS800 configurations, DDCS and fieldbus adapters occupy separate slots and do not conflict, but this should be verified against the drive’s hardware manual for the specific frame size in use.

For plants planning a broader migration from ACS600 to ACS880 or from DCS800 to DCS880, the NDCO-03 provides a cost-effective bridge solution: it keeps the existing DDCS infrastructure operational while the new drive platform is commissioned in parallel, reducing the risk of a full cutover under time pressure.

Downtime Control During System Migration

The NDCO-03 replacement is typically a cold-swap procedure requiring the drive to be de-energized and the DC bus discharged before the option slot is accessed. In most ACS800 installations, this takes 15–30 minutes per drive, making it feasible to complete during a scheduled maintenance window without a full line shutdown.

To minimize risk, prepare the replacement card, fiber-optic patch cables, and a laptop with DriveWindow installed before the maintenance window begins. After installing the NDCO-03, power up the drive and verify the DDCS link LED (green = active link) before closing the cabinet door. If the LED remains red or unlit, check fiber cable seating, node address DIP switch settings, and ring continuity at the adjacent node.

Where the drive is part of a master-follower configuration — common in winder, crane, and conveyor applications — confirm that the master drive’s DDCS parameters (group 70 in ACS800 standard firmware) are intact after the swap. The follower drives should re-synchronize automatically once the DDCS ring is restored, but a brief manual jog test is recommended before returning the line to production.

For critical processes where even a 30-minute outage is unacceptable, consider staging a pre-configured spare drive with the NDCO-03 already installed and node address set, enabling a full drive swap rather than a card-level repair. This approach is particularly effective in petrochemical and power generation applications where process continuity requirements are strict.

Retrofit Support FAQ

Q: Is the NDCO-03 a direct drop-in replacement for the original ABB DDCS fiber-optic card in my ACS800?
A: Yes. The NDCO-03 is the standard ABB DDCS option card for ACS800, ACS600, and DCS800 drives. It installs into the same option slot as the original card with no mechanical modification. Set the DIP switch node address to match the original before powering up.

Q: What firmware version does my ACS800 need to support the NDCO-03?
A: The NDCO-03 is compatible with ACS800 standard firmware version 5.x and above, and with ACS800 system firmware used in multidrive configurations. Check the firmware version via the drive’s control panel (parameter 33.01 or equivalent) or using DriveWindow before installation.

Q: How do I verify the NDCO-03 is communicating correctly after installation?
A: After power-up, check the DDCS link LED on the card (green = active). In DriveWindow or DriveStudio, navigate to the DDCS diagnostics view and confirm the node is visible on the ring. In ACS800 standard firmware, parameter group 70 shows DDCS link status and follower configuration.

Q: What support terms and pre-shipment testing does this unit include?
A: Every NDCO-03 unit ships with a support terms confirmed by quotation covering manufacturing defects and functional performance. Pre-shipment testing includes power-on verification, fiber-optic port continuity check, and DIP switch function validation. Units are packaged in anti-static materials with inspection documentation included.
