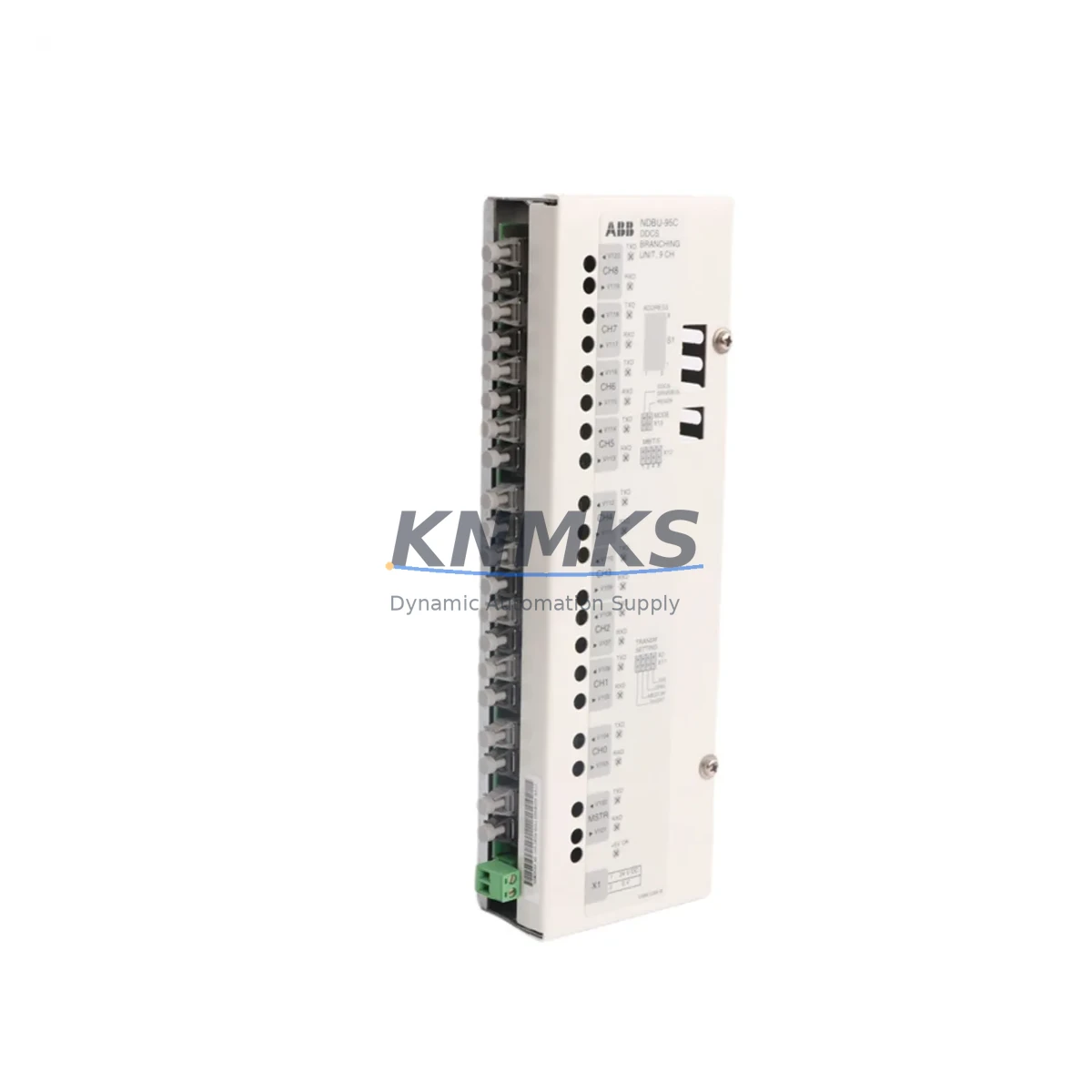

ABB NDBU-95C 3AFE64008366 DDCS Fiber Branching Unit

Overview

ABB NDBU-95C 3AFE64008366 DDCS Fiber Branching Unit: Migration-Ready Upgrade for Legacy Drive Systems

The ABB NDBU-95C (part number 3AFE64008366) is a DDCS (Distributed Drive Control System) fiber-optic branching unit designed for multi-drive communication in ACS800 series variable frequency drive systems. As legacy ACS800 installations age and original branching units reach end-of-life, the NDBU-95C remains the authoritative replacement and upgrade path — providing engineers and maintenance teams with a proven, drop-in solution that preserves existing fiber topology, program logic, and drive network architecture without requiring a full system redesign.

For facilities operating ACS800 multi-drive lines, paper machine drives, crane hoists, or coordinated conveyor systems, the NDBU-95C serves as the central fiber hub connecting the master drive controller to follower drives via DDCS optical links. Its role in the drive network is critical: loss of the branching unit means loss of coordinated torque and speed references across all follower axes. Sourcing a verified, tested replacement unit with documented compatibility is therefore a non-negotiable requirement for any planned or emergency retrofit.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing an NDBU-95C in a running ACS800 multi-drive system requires careful pre-work to avoid extended downtime and configuration errors. Before removing the failed unit, engineers should document all fiber channel assignments — recording which DDCS port connects to which follower drive (e.g., ACS800-04 inverter modules or ACS800-07 regenerative units) and the corresponding node addresses programmed in each drive’s parameter group 70 (DDCS Control). This mapping is essential because the NDBU-95C itself does not store drive parameters; all address and communication settings reside in the individual drive control boards, typically the RDCU-02C or RMIO-11C.

Power supply verification is the next critical step. The NDBU-95C draws 24 VDC from the drive system’s auxiliary power rail. Before installation, confirm that the SDCS-CON-4 or equivalent power supply board in the master drive cabinet can support the additional load, particularly in systems where multiple option boards — such as the RDIO-01 digital I/O extension or RAIO-01 analog I/O module — are already installed. Overloading the 24 V rail is a common cause of intermittent DDCS communication faults after retrofit.

Fiber cable inspection is equally important. DDCS links use plastic optical fiber (POF) with ST-type connectors. During a retrofit, inspect all fiber runs for bending radius violations, connector contamination, and connector seating depth. A single degraded fiber connection can cause CH_LOSS faults on the new NDBU-95C that are easily misdiagnosed as a board defect. Clean all connectors with appropriate fiber optic cleaning tools before reconnecting to the replacement unit.

For systems that also include an NPBA-12 PROFIBUS adapter or NETA-21 remote monitoring unit communicating with the ACS800 master drive, verify that the DDCS token ring timing is not disrupted after the branching unit swap. In some multi-drive configurations, the NETA-21 connects via a dedicated DDCS channel on the NDBU-95C; this channel assignment must be restored exactly as documented to maintain remote monitoring continuity.

HMI panel connections should also be reviewed. If the installation uses an ABB CP600 or Panel Builder 800 HMI communicating via the drive’s fieldbus adapter (e.g., FPBA-01 PROFIBUS or FENA-11 EtherNet/IP), the HMI communication path does not pass through the NDBU-95C directly — but any drive fault triggered by a DDCS error during the swap will appear on the HMI and may require alarm acknowledgment before the system can restart. Coordinate with the HMI operator before beginning the replacement.

Downtime Control During System Migration

Minimizing downtime during an NDBU-95C replacement begins with preparation, not speed. The replacement procedure itself takes 15–30 minutes for an experienced technician, but unplanned downtime typically extends to hours when fiber mapping, parameter backup, or power isolation steps are skipped.

Before de-energizing the cabinet, use DriveWindow Light or Drive Composer to upload a full parameter backup from the master ACS800 drive and all follower drives. Store these backups on a laptop or USB drive kept at the machine. If the RDCU-02C control board in any follower drive has lost its parameter set due to the communication fault that caused the NDBU-95C failure, these backups allow rapid restoration without manual re-entry of hundreds of parameters.

During the swap, label every fiber cable with its channel number before disconnecting. Use a permanent marker or adhesive label on the fiber jacket within 50 mm of the connector. This single step eliminates the most common source of post-retrofit DDCS faults: reconnecting fibers to the wrong channels on the new NDBU-95C.

After installation, power up the system in a controlled sequence: energize the master drive first, confirm DDCS token ring establishment (parameter 70.01 should show the correct number of connected nodes), then enable follower drives one by one. Do not attempt a full production run until all DDCS channels report healthy status and all drive fault logs are clear. This staged commissioning approach protects the original program logic, preserves speed and torque reference chains, and reduces the risk of a second unplanned stop caused by a configuration error discovered under load.

All NDBU-95C units supplied by KNMKS are tested for DDCS communication integrity and optical port function before shipment. In-stock units are available for same-day or next-day dispatch, supporting emergency maintenance scenarios where production continuity is the priority.

Retrofit Support FAQ

Q: Is the NDBU-95C 3AFE64008366 a direct replacement for the NDBU-85C?
A: Yes. The NDBU-95C is the current production revision and is backward compatible with ACS800 systems previously fitted with the NDBU-85C or NDBU-55C. No firmware changes to the drive are required; the DDCS protocol and channel addressing remain identical.

Q: What pre-shipment testing is performed on each unit?
A: Every NDBU-95C is powered up and tested for DDCS optical signal integrity on all active channels before dispatch. A test report is available on request. All units carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: Can the NDBU-95C be used in a system with mixed ACS800 drive ratings?
A: Yes. The NDBU-95C operates as a passive fiber hub and is agnostic to the power rating of connected drives. It is equally compatible with ACS800-01 wall-mounted drives and ACS800-04 cabinet drives within the same DDCS ring, provided each drive’s node address (parameter 70.02) is set uniquely.

Q: What is the lead time and stock availability?
A: KNMKS maintains in-stock inventory of the NDBU-95C 3AFE64008366 to support urgent replacement requirements. Standard orders ship within 1–3 business days. For emergency same-day dispatch, contact our sales team directly to confirm availability and arrange expedited freight.
