ABB NDBU-85C Maintenance-Proven Spare Part for Factory Uptime

Overview

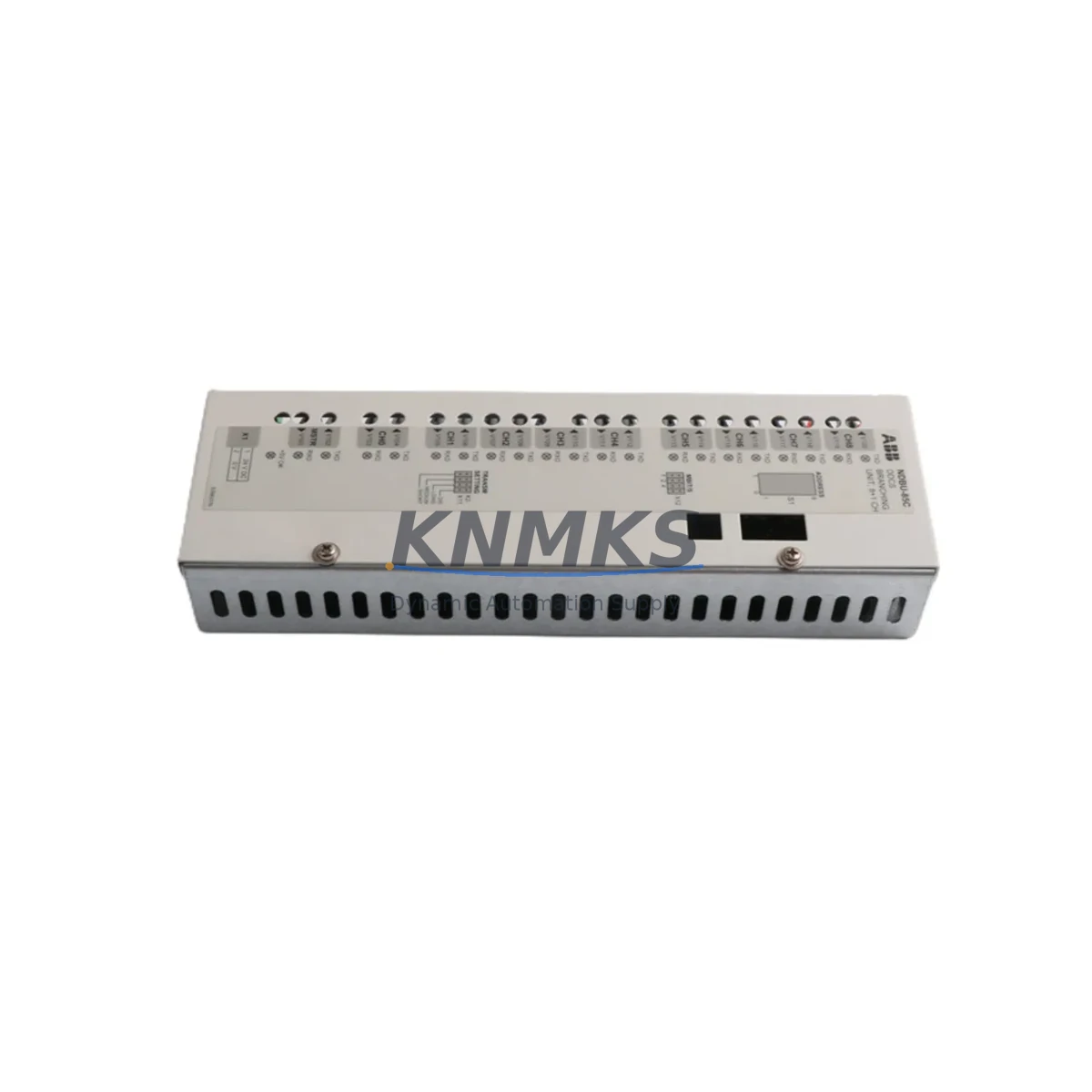

ABB NDBU-85C Maintenance-Proven Spare Part for Factory Uptime

The ABB NDBU-85C is a Fieldbus Branch Unit designed for use in ACS800 multi-drive systems, providing reliable DDCS (Distributed Drives Communication System) fiber-optic branching between the master drive controller and individual inverter units. In industrial environments where continuous production is non-negotiable, maintaining a verified spare NDBU-85C in your control cabinet inventory is a proven strategy for minimizing unplanned downtime and accelerating fault recovery.

Sourced as an original ABB component, the NDBU-85C supplied by KNMKS is fully tested prior to shipment and backed by a support terms confirmed by quotation. Each unit is inspected for optical port integrity, board-level condition, and connector alignment before dispatch, ensuring that what arrives on-site is ready for immediate installation without additional bench testing.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

In ACS800 multi-drive installations, the NDBU-85C sits at the heart of the DDCS communication topology. A failure of this unit will simultaneously isolate all downstream inverter modules from the master controller, causing a full drive-system trip. Maintenance engineers responsible for ACS800 cabinets should treat the NDBU-85C as a Tier-1 critical spare — equivalent in priority to the AINT-02C or AINT-14C inverter interface boards that connect individual power modules to the branch unit.

During scheduled annual maintenance or control cabinet inspections, the NDBU-85C check should be paired with a review of the fiber-optic cables connecting it to each inverter module. POF (Plastic Optical Fiber) cables used in DDCS links are susceptible to bending fatigue and connector contamination; replacing worn cables alongside a new NDBU-85C eliminates the most common sources of intermittent DDCS communication faults. Inspect the APBU-44C or APBU-12C power branching units in the same cabinet at the same time, as power distribution faults can mask or mimic DDCS communication errors during fault diagnosis.

The 24 VDC auxiliary power supply feeding the NDBU-85C should also be verified during replacement. An unstable or undersized SDCS-CON-4 control board power rail or external 24 V PSU can cause the branch unit to reset intermittently, generating nuisance DDCS timeout faults across all connected drives. Procurement engineers building annual spare parts lists for ACS800 multi-drive lines should consider stocking one NDBU-85C per cabinet alongside AINT interface boards, a set of POF patch cables, and at least one spare SDCS-CON-4 control board to cover the most statistically likely failure modes in a five-year maintenance window.

For plants operating legacy ACS800 systems beyond their original design life, the NDBU-85C is frequently the component that determines whether a life-extension program is viable. ABB’s long-term spare parts availability for ACS800 DDCS components has become increasingly constrained; securing verified stock through a specialist supplier like KNMKS reduces procurement lead-time risk and supports multi-year maintenance planning without dependency on spot-market availability.

Site Replacement Workflow

Replacing an NDBU-85C on an active ACS800 multi-drive system requires a controlled shutdown sequence to avoid data corruption in the master controller. Before removing the faulty unit, document the fiber-optic port assignments — photograph or log which drive module connects to which branch port — as incorrect reconnection after replacement is a common cause of post-maintenance DDCS address conflicts.

Power down the ACS800 master drive and allow the DC bus to discharge fully before accessing the NDBU-85C. Disconnect all fiber-optic cables, noting their port positions, then remove the unit from its mounting. Install the replacement NDBU-85C, reconnect fiber cables in the original port order, and restore 24 VDC auxiliary power before powering up the master drive. On first power-up, verify that all downstream drive modules appear correctly in the ACS800 drive composer or panel display before resuming production. If any drive module shows a DDCS communication fault after replacement, check the corresponding fiber cable and connector for contamination or damage before suspecting the new branch unit.

This workflow applies equally when upgrading from an older NDBU-85 (without the C suffix) to the NDBU-85C variant. The C-revision unit is backward-compatible with existing ACS800 DDCS wiring and does not require firmware changes to the master controller, making it a straightforward drop-in upgrade that also improves optical signal margin on longer cable runs.

Spare Parts Support FAQ

Q: Is the NDBU-85C compatible with all ACS800 multi-drive configurations?
A: Yes. The NDBU-85C is the standard DDCS branch unit for ACS800 multi-drive systems and is compatible with all ACS800 master controller variants that use DDCS fiber-optic communication. It is also backward-compatible with installations previously using the NDBU-85 (non-C revision).

Q: How is the NDBU-85C tested before shipment?
A: Each unit undergoes optical port integrity checks, board-level visual inspection, and connector condition verification before dispatch. Units that do not pass inspection are not shipped. A support terms confirmed by quotation cover any defects that emerge under normal operating conditions after installation.

Q: What is the recommended spare parts holding strategy for ACS800 multi-drive lines?
A: For critical production lines, we recommend holding one NDBU-85C per ACS800 multi-drive cabinet, paired with a set of DDCS POF patch cables and at least one AINT interface board. This combination covers the three most common DDCS communication failure modes and supports same-shift fault recovery without waiting for emergency procurement.

Q: Can KNMKS support long-term supply of the NDBU-85C for multi-year maintenance contracts?
A: Yes. KNMKS maintains stock of ACS800 DDCS components including the NDBU-85C and can support blanket order arrangements for customers with multi-year maintenance programs. Contact our team to discuss volume pricing, reserved stock agreements, and delivery scheduling aligned to your planned maintenance windows.
