ABB 3BHE026284R0105 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3BHE026284R0105 Maintenance-Proven Spare Part for Factory Uptime

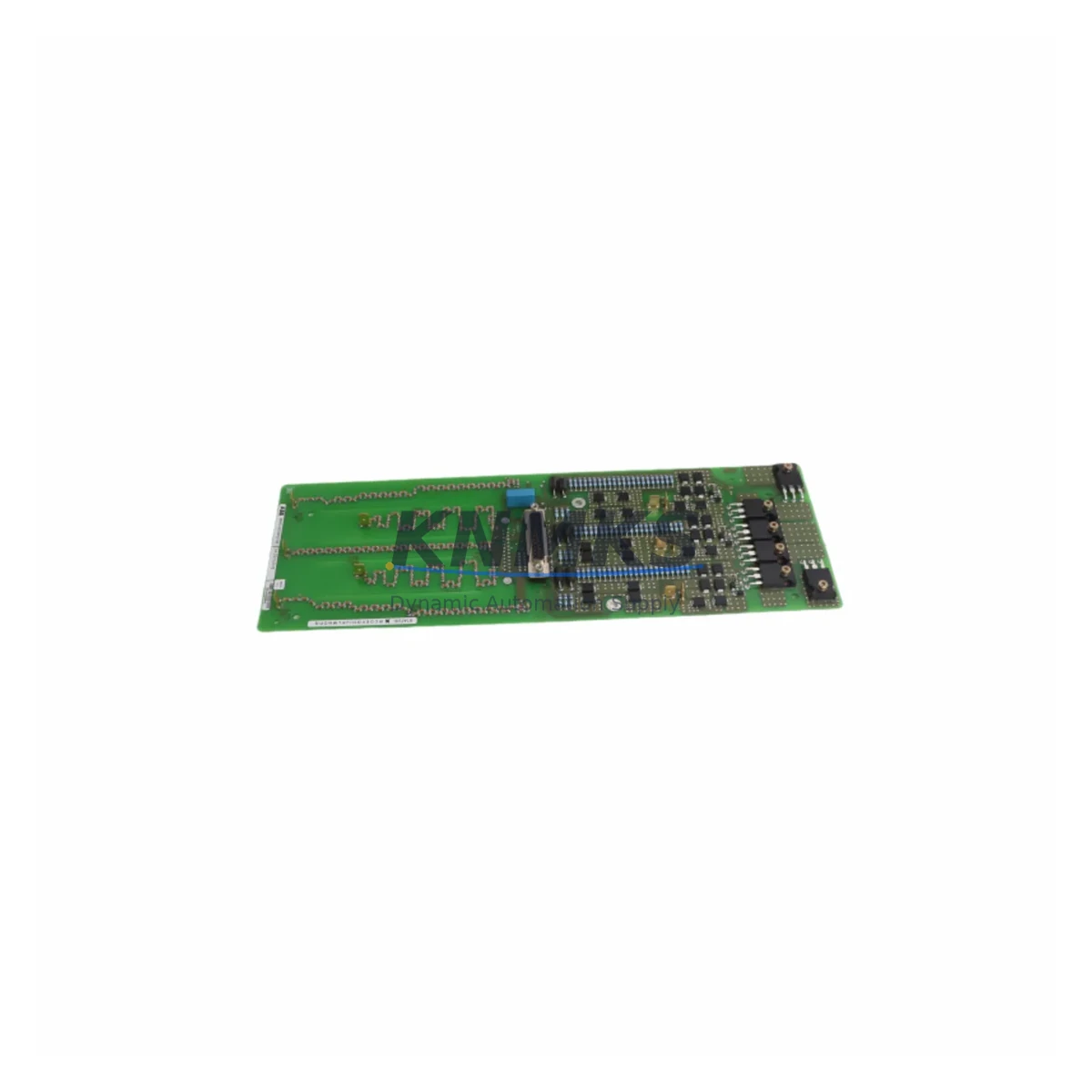

The ABB 3BHE026284R0105 is an original UAD215 A105 Converter Signal Board engineered for the ABB ACS800 series medium-voltage AC drive platform. As a critical interface between the drive control unit and the power conversion stage, this board manages real-time signal conditioning, feedback processing, and converter-side communication that directly governs drive output quality and motor protection response. When this board degrades or fails, the result is uncontrolled drive trips, erratic motor behavior, or complete loss of process control — all of which translate to unplanned downtime in continuous-process industries such as pulp and paper, oil and gas, mining, water treatment, and heavy manufacturing.

KNMKS stocks the 3BHE026284R0105 UAD215 A105 as a pre-tested, ready-to-ship replacement sourced from verified ABB supply channels. Every unit undergoes functional verification prior to dispatch and is covered by a support terms confirmed by quotation, giving maintenance and procurement teams a reliable, low-risk path to fast drive restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3BHE026284R0105 UAD215 A105 is rarely an isolated task. In ACS800 drive cabinets, the converter signal board sits at the intersection of power electronics and control logic, making it essential to audit the surrounding electrical ecosystem during any planned or emergency replacement.

Begin with the RDCU-02C or RMIO-11C control boards — these are the primary control-side counterparts that communicate with the UAD215 via fiber optic links (DDCS protocol). A degraded fiber link or a failing RDCU board can produce fault symptoms that mimic UAD215 signal board failure; always verify fiber continuity and control board firmware revision before condemning the signal board alone.

Next, inspect the APBU-44C or APBU-12C pulse encoder interface units if the drive is operating in closed-loop speed control. Encoder signal noise or interface board faults can corrupt the feedback data that the UAD215 processes, leading to nuisance trips that appear to originate from the converter signal path.

The AINT-02C or AINT-14C inverter control boards share the same backplane communication bus as the UAD215 in multi-drive configurations. If the ACS800 system uses a common DC bus arrangement, a fault on the inverter control board can cascade into converter signal anomalies — inspect these boards and their ribbon cable connections during the same maintenance window.

Power supply integrity is equally critical. The APOW-01C auxiliary power supply board provides the low-voltage DC rails that feed the signal and control boards. Measure output voltages under load before installing the replacement UAD215; a marginal power supply will shorten the service life of any new board. Similarly, check the drive cabinet fuse block and DC bus fuses — blown or weakened fuses are a common root cause of converter-side signal anomalies that are misdiagnosed as board failures.

For sites running ACS800 drives with fieldbus communication (Profibus, Modbus, or DeviceNet), verify the RPBA-01 or RDNA-01 fieldbus adapter modules are seated correctly and that the communication cable shielding is intact. Signal board replacements can disturb fieldbus wiring if the cabinet is not properly de-energized and re-commissioned after the swap.

Finally, review the drive’s fault log and parameter backup (stored via DriveWindow or DriveStudio) before and after replacement. Restoring the correct parameter set — including motor data, control mode, and protection thresholds — is as important as the physical board swap for ensuring the drive returns to stable, production-ready operation.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. Confirm DC bus discharge (ACS800 buses can hold charge for several minutes after mains disconnection). Use a calibrated voltmeter to verify zero voltage across the DC bus terminals before opening the converter module.

Step 2 — Document current configuration: Record all drive parameters using DriveWindow or DriveStudio. Photograph the existing board orientation, fiber optic routing, and connector positions. Note any site-specific parameter modifications that deviate from factory defaults.

Step 3 — Remove the UAD215 board: Disconnect fiber optic cables (label each connection), release the board retention clips, and extract the 3BHE026284R0105 from its slot. Handle by the board edges; avoid contact with signal traces or connector pins.

Step 4 — Install the replacement: Seat the new 3BHE026284R0105 UAD215 A105 firmly into the converter module slot. Reconnect all fiber optic cables in the documented sequence. Verify all connectors are fully engaged.

Step 5 — Power-up and commissioning: Restore power in stages per the ACS800 commissioning guide. Monitor the drive control panel for fault codes during initial energization. Restore the parameter backup and verify motor data, protection settings, and control mode before releasing the drive to production.

Step 6 — Functional test: Run the drive at reduced load and confirm stable speed reference tracking, no converter fault codes, and correct feedback signal levels. Log the replacement in the site maintenance record with the new board serial number and support terms start date.

This workflow minimizes re-work risk and ensures the ACS800 drive returns to full operational status with documented traceability — a requirement for ISO 55001 asset management compliance in critical process industries.

Spare Parts Support FAQ

Q1: Is the 3BHE026284R0105 compatible with all ACS800 variants?
The UAD215 A105 board is designed for the ACS800 medium-voltage converter module family. Compatibility depends on the specific drive type code and hardware revision. KNMKS recommends providing your full ACS800 type code (e.g., ACS800-17-XXXX) when ordering to confirm exact fit. Our technical team can cross-reference the drive’s hardware revision against the UAD215 A105 specification to confirm compatibility before shipment.

Q2: How is the board tested before shipment?
Every 3BHE026284R0105 unit in KNMKS stock undergoes functional verification on a dedicated test bench that simulates ACS800 converter module operating conditions. Key signal paths, I/O interfaces, and communication links are verified. A test report is available upon request. The support terms confirmed by quotation cover defects in materials and workmanship from the date of dispatch.

Q3: What is the recommended spare parts holding strategy for ACS800 drives?
For critical process drives (drives whose failure causes immediate production loss), industry best practice is to hold at least one UAD215 signal board, one RDCU control board, and one APOW auxiliary power supply board as on-site cold spares. For non-critical drives, a shared regional spare pool with a committed 24–48 hour delivery SLA from a stocking distributor like KNMKS is a cost-effective alternative. KNMKS offers long-term supply agreements to support multi-site spare parts programs.

Q4: Can KNMKS support long-term supply for end-of-life ACS800 components?
Yes. KNMKS maintains multi-region stock of ACS800 spare parts including the 3BHE026284R0105 and related converter module components. For sites running legacy ACS800 installations beyond ABB’s standard support lifecycle, KNMKS provides a committed supply channel with support terms confirmed by quotation coverage, pre-shipment testing, and technical cross-reference support. Contact our team to discuss volume pricing and long-term supply agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE026284R0105 UAD215 A105
S800 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB 3BHE026284R0105 UAD215 A105
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
